RCF ND940 Exit:1,4" 140W rms, 280W program. 110 dB, 500-20KHz -Titanium

RCF ND940 Exit:1,4" 140W rms, 280W program. 110 dB, 500-20KHz -Titanium

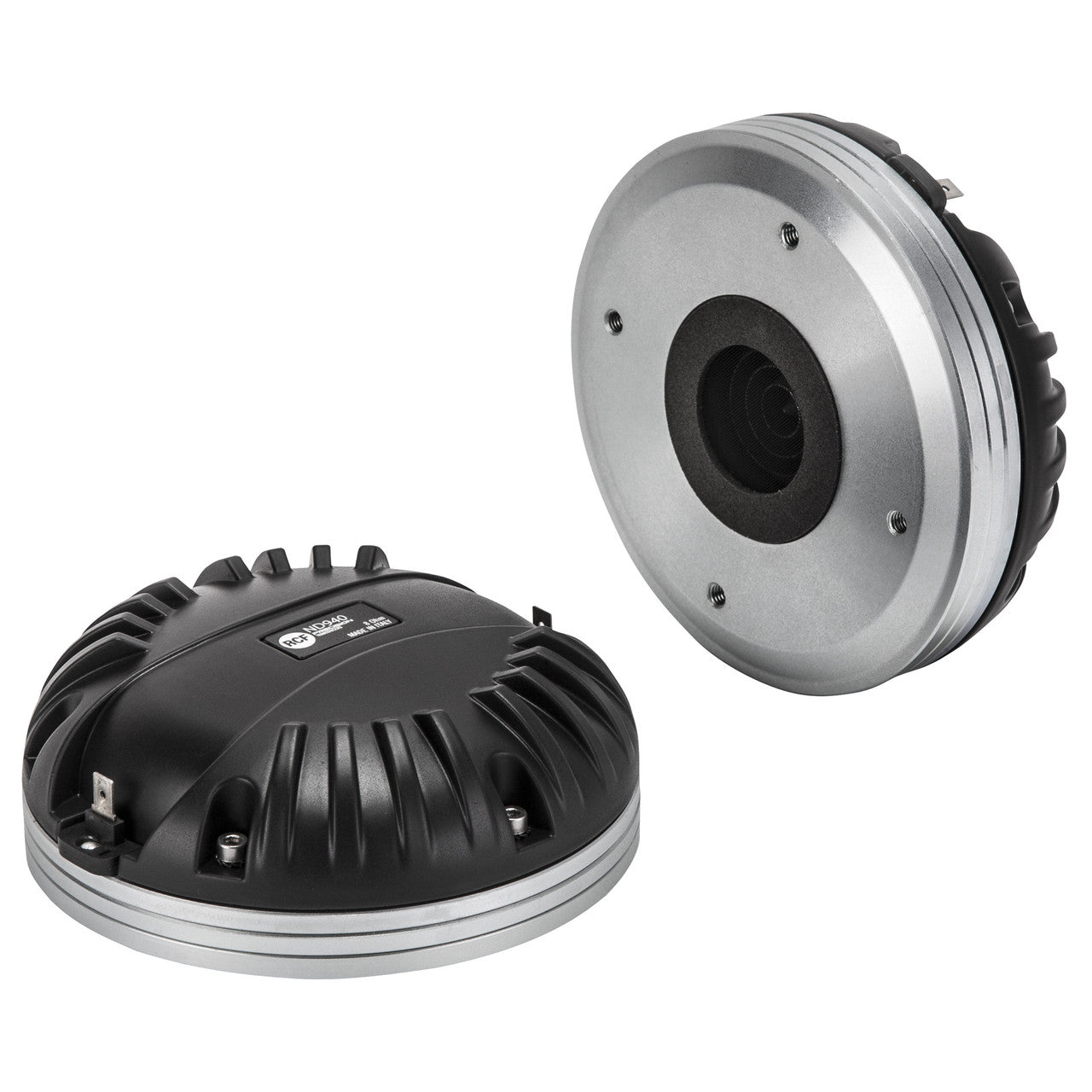

The ND940 is a ultra compact size, high performance, high power handling 4.0-inch diaphragm compression driver with a 1.4 inch exit throat. A thin copper ring is precision pressed on to the pole piece in order to modify and lower the inductance characteristics of the magnetic circuit and voice coil providing a controlled extension of the acoustic frequency response. The voice coil assembly is designed using a high strength, high temperature Kapton® voice coil former and edge wound copper clad aluminium wire directly joined to the diaphragm by RCF proprietary Direct Drive kapton technology. The ND940 features a 4-slot, optimised geometry, phase plug design. Extended computer assisted mathematical modelling and testing has resulted in a geometry that provides a balanced acoustic performance controlling and lowering air distortion and maximizing output.

Features

• 4.0 inch, Kapton former, edge wound aluminium voice coil
• 280W continuous program power handling
• Frequency range: 500Hz - 20kHz
• 4-slot optimized geometry phase plug
• Titanium diaphragm, Polyimide surround

Specifications
