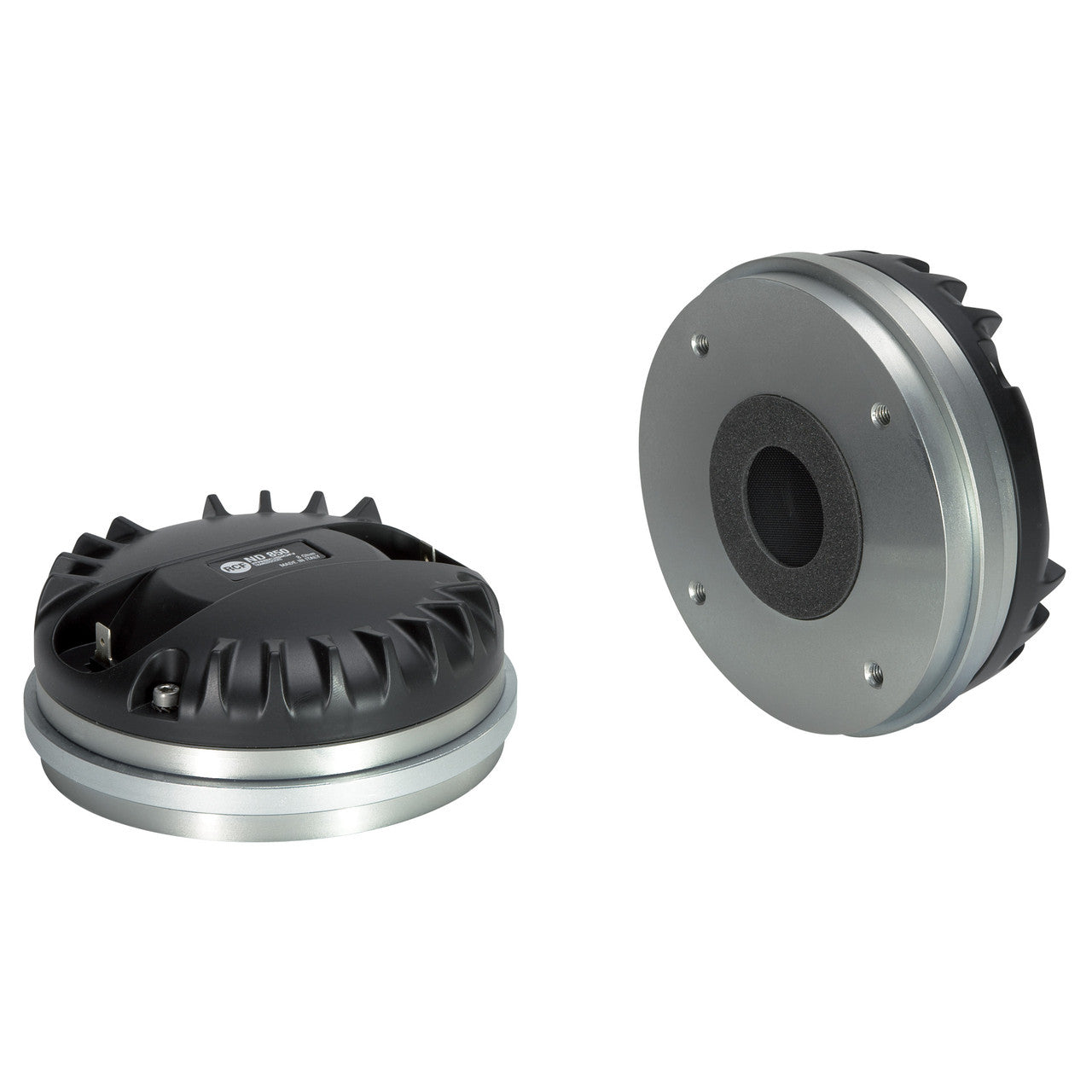

RCF ND850 1.4 Exit:1.4" 110W rms, 220W program. 109 dB, 500-20KHz -Titanium

RCF ND850 1.4 Exit:1.4" 110W rms, 220W program. 109 dB, 500-20KHz -Titanium

Write a review

SKU: ND850 1.4

$799.00
$799.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

RCF ND850 1.4 Exit:1.4" 110W rms, 220W program. 109 dB, 500-20KHz -Titanium

The ND850 1.4 is a high frequency performance 3-inch diaphragm compression driver with a 1.4-inch exit throat featuring several state of the art technologies. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on a vented and damped design in order to provide low distortion. Voice coil assembly is designed using high temperature kapton former.

Features

  • 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
  • 220W continuous program power handling
  • Frequency range: 500Hz - 20kHz
  • 3-slot optimized geometry phase plug
  • Titanium diaphragm
  • Copper inductance ring for extended response
  • Vented, damped, low distortion suspension system
  • Nedymium magnet assembly

Specifications

General Specifications

  • Exit Throat Diameter: 1.4 inch / 36 mm
  • Rated Impedance: 8 ohm
  • Program Power (watt): 220 W
  • Power Handling Capacity: 110 W
  • Sensitivity: 109 dB
  • Frequency Range: 500 - 20000 Hz
  • Diaphragm Material: Pure Titanium
  • Suspension Material: Polyester
  • Suspension Design: Flat
  • Minimum Impedance: 8.50 ohm
  • Voice Coil Diameter: 3.0 inch / 76 mm
  • Voice Coil Winding Material: Edgewound Aluminum
  • Voice Coil Former Design: Straight - Kapton
  • Number of Layers: 1
  • Kind of Layers: Outside
  • Flux Density: 2.0 T
  • Phase Plug Design: 3 slot
  • Phase Plug Material: Aluminum
  • Magnetics: Neodymium
  • Voice Coil Demodulation Ring: Copper

Thiele - Small Parameters

  • Bl Factor (Bl): 13.00 T × m

Mounting Information

  • Overall Diameter: 131 mm / 5.16 inches
  • Overall Height: 54 mm / 2.13 inches
  • Mounting: 4 × 6 mm threaded holes at 90°

Standard Compliance

  • Safety Agency: CE compliant

Size / Weight

  • Weight: 2.5 kg / 5.51 lbs

Shipping Information

  • Package Height: 68 mm / 2.68 inches
  • Package Width: 153 mm / 6.02 inches
  • Package Depth: 155 mm / 6.1 inches
  • Package Weight: 2.66 kg / 5.86 lbs
