RCF ND650 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium
RCF ND650 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium
SKU: ND650
Regular price
$579.00
Sale price
$579.00
Shipping calculated at checkout.
Available options
Description
RCF ND650 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium

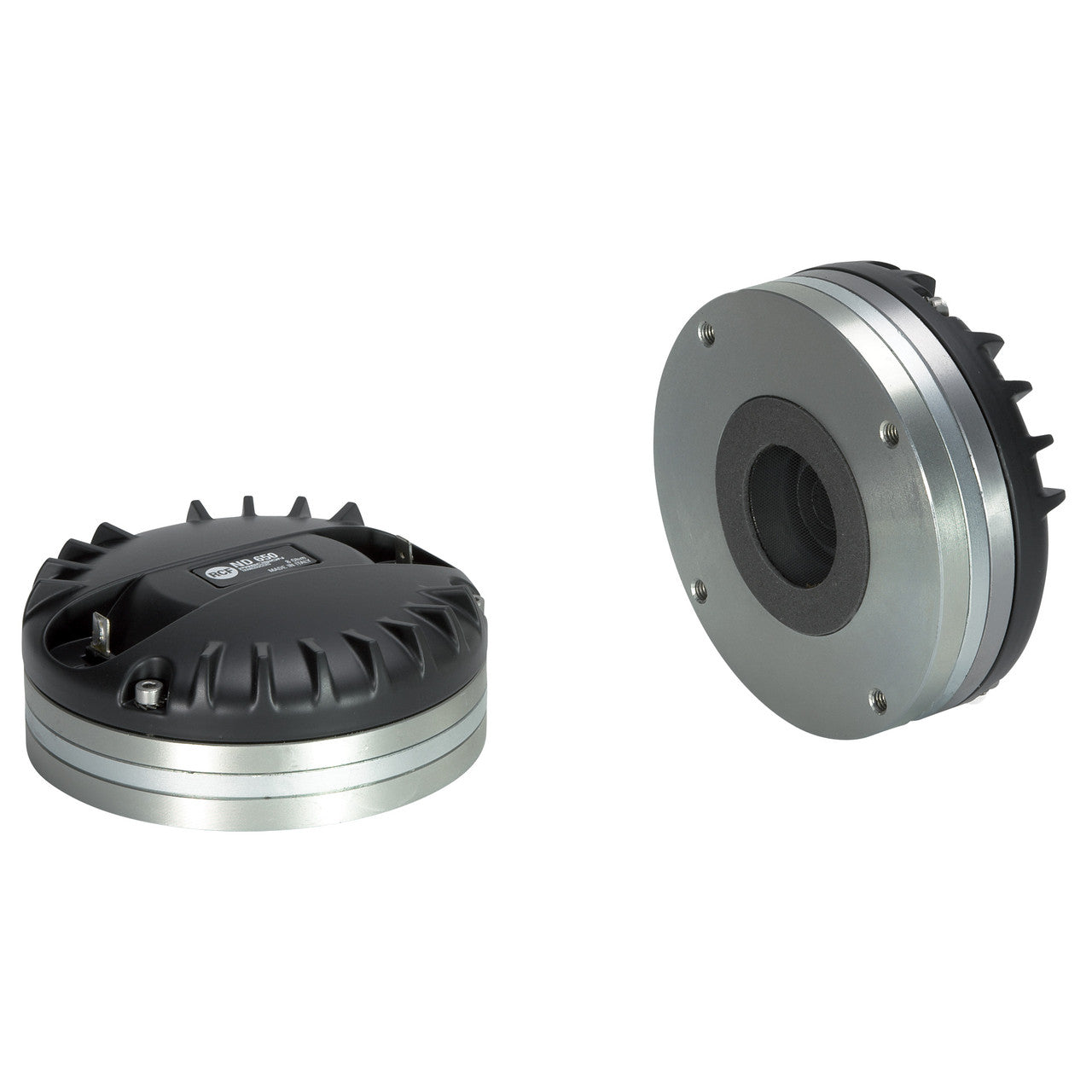

The ND650 is a high frequency performance 2.5-inch diaphragm compression driver with a 1.4-inch exit throat featuring several state of the art technologies. The diaphragm is precision formed from pure titanium. The suspension is based on a vented polyester design for low distortion. Voice coil assembly is designed using high temperature kapton former.
Features
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Neodymium magnet assembly
Specifications
General Specifications
- Exit Throat Diameter: 1.4 inch / 36 mm
- Rated Impedance: 8 ohm
- Program Power (watt): 180 W
- Power Handling Capacity: 90 W
- Sensitivity: 110 dB
- Frequency Range: 700 - 20000 Hz
- Diaphragm Material: Pure Titanium
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance: 7.50 ohm
- Voice Coil Diameter: 2.5 inch / 63 mm
- Voice Coil Winding Material: Edgewound Aluminum
- Voice Coil Former Design: Straight - Kapton
- Number of Layers: 1
- Kind of Layers: Outside
- Flux Density: 2.0 T
- Phase Plug Design: 3 slot
- Phase Plug Material: Aluminum
- Magnetics: Neodymium
- Voice Coil Demodulation Ring: Copper
Thiele - Small Parameters
- Bl Factor (Bl): 10.40 T × m
Mounting Information
- Overall Diameter: 115 mm / 4.53 inches
- Overall Height: 46 mm / 1.81 inches
- Mounting: 4 × 6 mm threaded holes at 90°
Standard Compliance
- Safety Agency: CE compliant
Size / Weight
- Weight: 1.88 kg / 4.14 lbs
Shipping Information
- Package Height: 63 mm / 2.48 inches
- Package Width: 142 mm / 5.59 inches
- Package Depth: 144 mm / 5.67 inches
- Package Weight: 2.02 kg / 4.45 lbs
