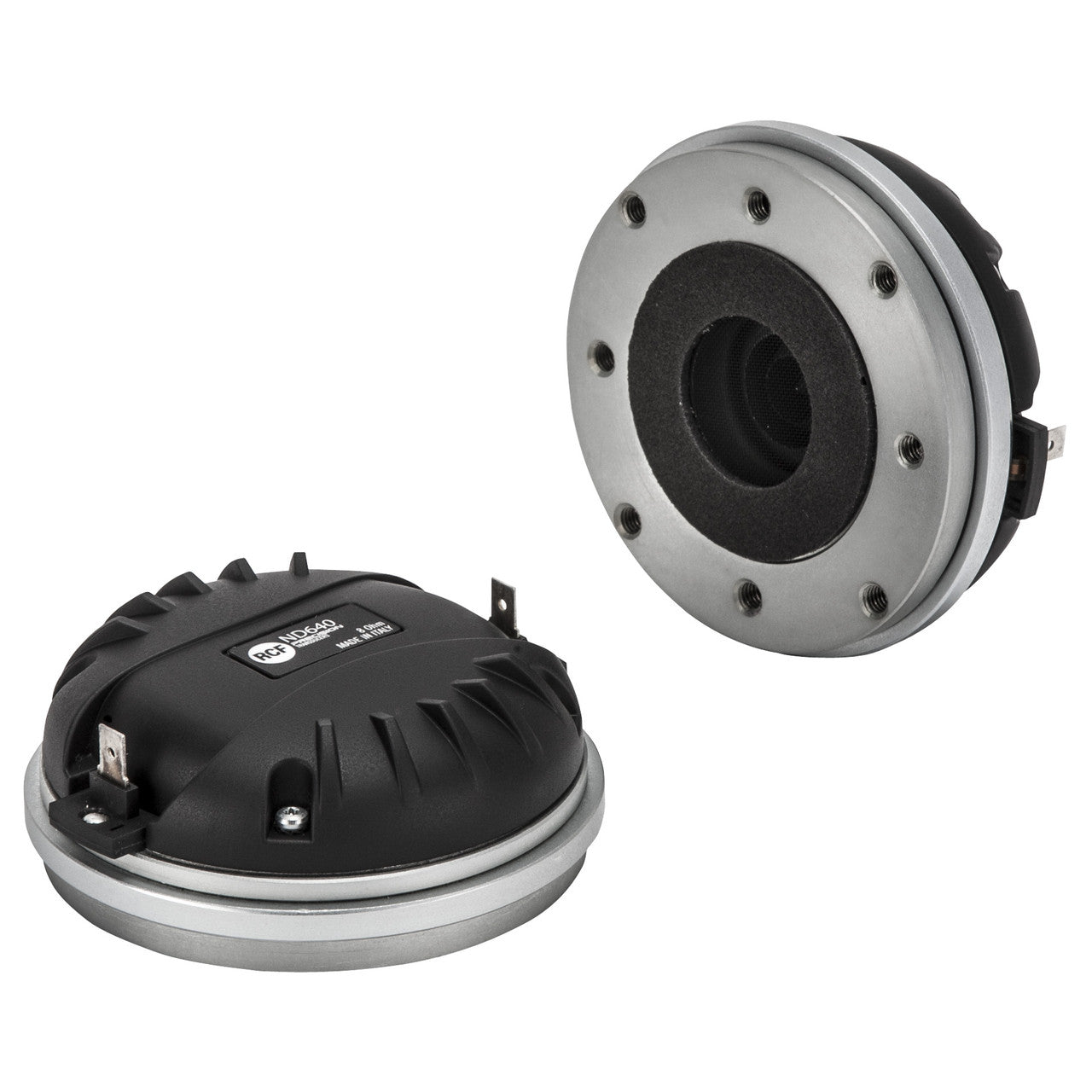

RCF ND640 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium
RCF ND640 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium
SKU: ND640
Regular price
$459.00
Sale price
$459.00
Shipping calculated at checkout.
Available options
Description
RCF ND640 Exit:1.4" 90W rms, 180W program. 110 dB, 700-20KHz -Titanium
The ND640 is a high performance 2.5-inch diaphragm compression driver with a 1.4 inch exit throat featuring the smallest size of the art technology. The diaphragm are precision completely formed from pure titanium. Voice coil assembly is designed using high temperature kapton former and it is joined to the diaphragm by RCF proprietary Direct Drive kapton technology. Diaphragm suspension is designed by extensive FEM study for low distortion and low frequency range extension.
Features
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Neodymium magnet assembly
Specifications
General Specifications
- Exit Throat Diameter: 1.4 inch / 36 mm
- Rated Impedance: 8 ohm
- Program Power (watt): 180 W
- Power Handling Capacity: 90 W
- Sensitivity: 110 dB
- Frequency Range: 700 - 20000 Hz
- Diaphragm Material: Pure Titanium
- Suspension Material: Pure Titanium
- Suspension Design: Double Roll
- Minimum Impedance: 7.50 ohm
- Voice Coil Diameter: 2.5 inch / 63 mm
- Voice Coil Winding Material: Edgewound Aluminum
- Voice Coil Former Design: Direct Drive Kapton
- Number of Layers: 1
- Kind of Layers: Outside
- Flux Density: 1.9 T
- Phase Plug Design: 3 slot
- Phase Plug Material: Aluminum
- Magnetics: Neodymium
- Voice Coil Demodulation Ring: Copper
Thiele - Small Parameters
- Bl Factor (Bl): 9.80 T × m
Mounting Information
- Overall Diameter: 102 mm / 4.02 inches
- Overall Height: 40 mm / 1.57 inches
- Mounting: 4 × 6 mm threaded holes at 90°
Standard Compliance
- Safety Agency: CE compliant
Size / Weight
- Weight: 1.06 kg / 2.34 lbs
Shipping Information
- Package Height: 74 mm / 2.91 inches
- Package Width: 122 mm / 4.8 inches
- Package Depth: 123 mm / 4.84 inches
- Package Weight: 1.17 kg / 2.58 lbs
