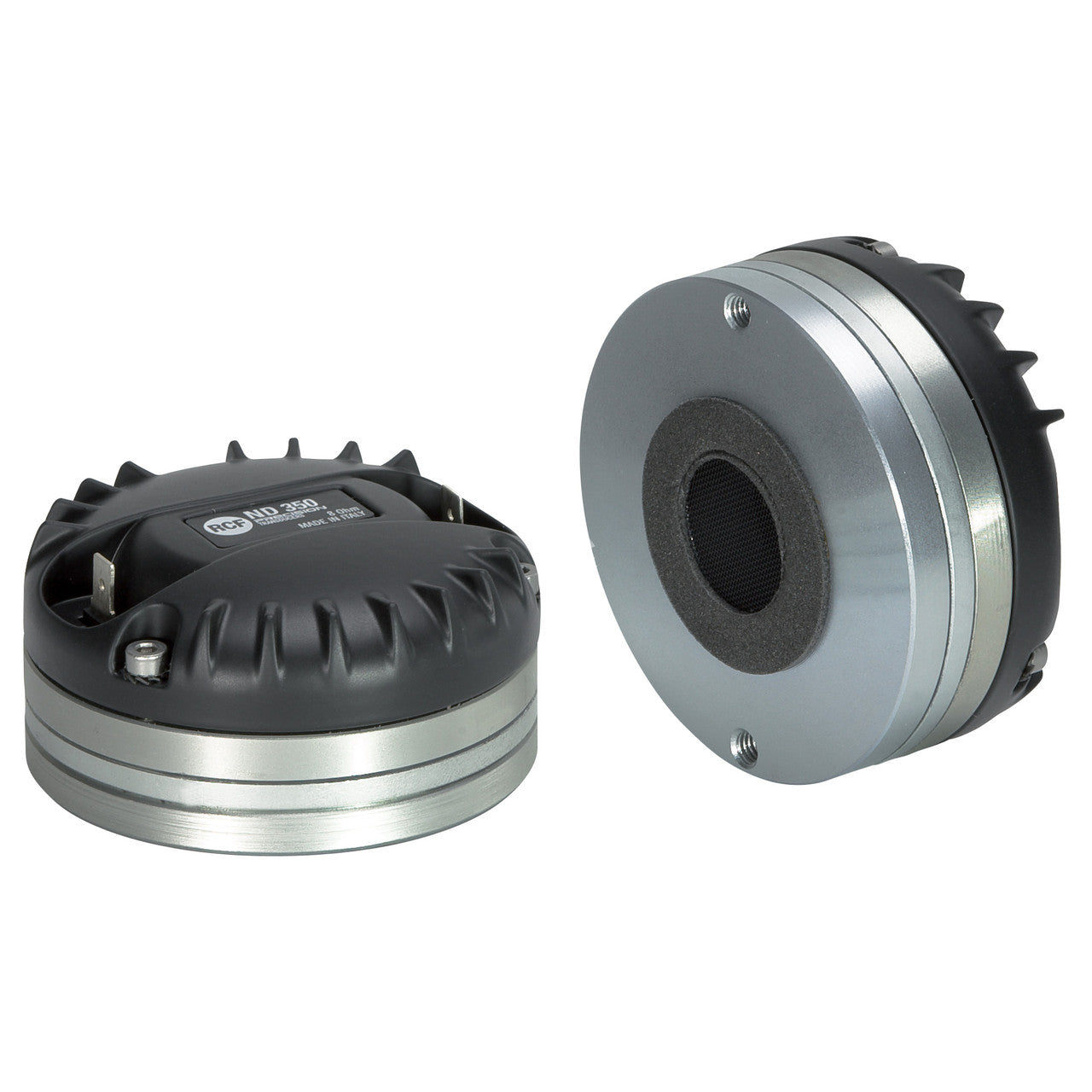

RCF ND350 Exit:1" 50W rms, 100W program. 110 dB. 1500-20KHz -Mylar
RCF ND350 Exit:1" 50W rms, 100W program. 110 dB. 1500-20KHz -Mylar
SKU: ND350
Regular price
$309.00
Sale price
$309.00
Shipping calculated at checkout.
Available options
Description
RCF ND350 Exit:1" 50W rms, 100W program. 110 dB. 1500-20KHz -Mylar
The ND350 is a high frequency performance 1.75-inch diaphragm compression driver with a 1-inch exit throat. The diaphragm is precision formed from polyester. Voice coil assembly is designed using high temperature kapton former and rectangular profile copper clad aluminium wire assembled using advanced specially formulated adhesives.
Features
- 1.75-inch Diaphragm, 1-inch Exit Throat / Pure Titanium Compression Driver
- 100W continuous program power handling
- Frequency range: 1200Hz - 20kHz
- 2-slot optimized geometry phase plug
- Polyester diaphragm
- Vented suspension system
- Compact neodymium magnet assembly
Specifications
General Specifications
- Exit Throat Diameter: 1.0 inch / 25 mm
- Rated Impedance: 8 ohm
- Program Power (watt): 100 W
- Power Handling Capacity: 50 W
- Sensitivity: 109 dB
- Frequency Range: 1200 - 20000 Hz
- Diaphragm Material: Polyester
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance: 6.50 ohm
- Voice Coil Diameter: 1.75 inch / 44 mm
- Voice Coil Winding Material: Edgewound Aluminum
- Voice Coil Former Design: Straight - Kapton
- Number of Layers: 1
- Kind of Layers: Outside
- Flux Density: 1.8 T
- Phase Plug Design: 2 slot
- Phase Plug Material: PP Composite
- Magnetics: Neodymium
Thiele - Small Parameters
- Bl Factor (Bl): 7.50 T × m
Mounting Information
- Overall Diameter: 85 mm / 3.35 inches
- Overall Height: 43 mm / 1.69 inches
- Mounting: 2 × 6 mm threaded holes at 90°
Standard Compliance
- Safety Agency: CE compliant
Size / Weight
- Weight: 0.85 kg / 1.87 lbs
Shipping Information
- Package Height: 65 mm / 2.56 inches
- Package Width: 111 mm / 4.37 inches
- Package Depth: 113 mm / 4.45 inches
- Package Weight: 0.89 kg / 1.96 lbs
