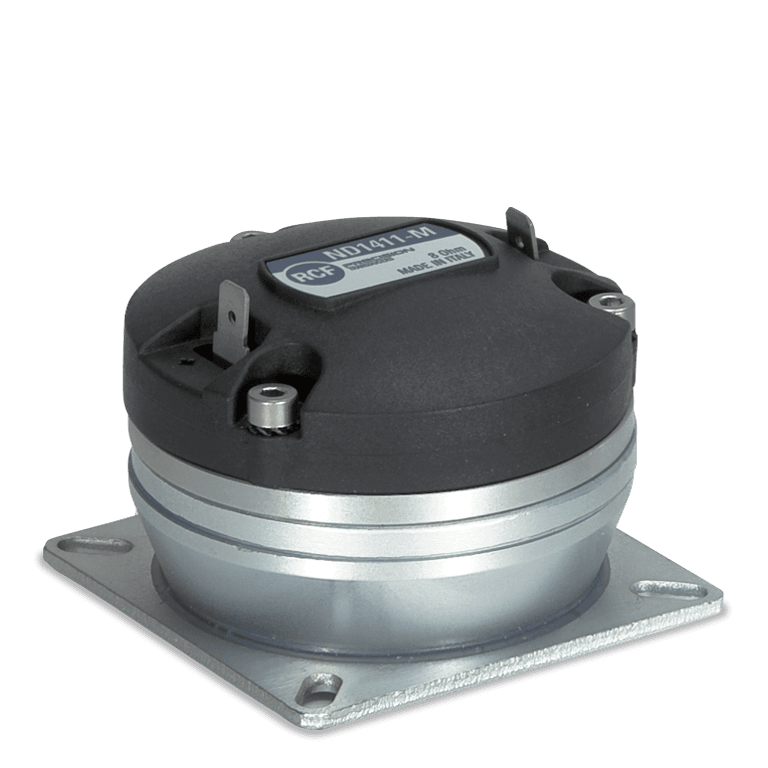

RCF ND1411-M Exit:1" 25W rms, 50W program. 109 dB, 1500-20KHz -Mylar

RCF ND1411-M Exit:1" 25W rms, 50W program. 109 dB, 1500-20KHz -Mylar

Write a review

SKU: ND1411-M

$249.00
$249.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

RCF ND1411-M Exit:1" 25W rms, 50W program. 109 dB, 1500-20KHz -Mylar

The ND1411-M is a high performance 1.5-inch diaphragm compression driver with a 1-inch exit throat featuring a single pieces, low compression, radial phase plug. The diaphragm and suspension are precision formed from 0.1mm thick Mylar. The ND1411-M is a very compact size, versatile driver for professional applications.

Features

  • 1.5-inch Diaphragm, 1-inch Exit Throat
  • 50W continuous program power handling
  • Frequency range: 1500Hz - 20kHz
  • Optimized geometry radial phase plug
  • Very compact size for array applications
  • Neodymium magnet assembly
  • High power handling in only 70mm overall diameter

Specifications

General specifications

  • Exit Throat Diameter : 1.0 inch / 25 mm
  • Related Impedance : 8 ohm
  • Program Power (watt) : 50 W
  • Power handling capacity : 25 W
  • Sensitivity : 109 dB
  • Frequency range : 1500 - 20000 Hz
  • Diaphragm Material : Mylar
  • Suspension Material : Mylar
  • Suspension Design : Radial
  • Minimum Impedance (ohm) : 7.00 ohm
  • Voice Coil Diameter : 1.5 inch / 38 mm
  • Voice Coil Winding Material : Edgewound Aluminum
  • Voice Coil Former Design : Straight - Nomex
  • Number of layers : 1
  • Kind of layers : outside
  • Flux Density : 1.7 T
  • Phase Plug Design : 10 radial slots
  • Phase Plug Material : PP Composite
  • Magnetics : Neodymium

Thiele - small parameters

  • Bl factor (Bl) (T x m) : 4.40 T x m

Mounting information

  • Overall diameter : 69 mm / 2.72 inches
  • Overall height : 51 mm / 2.01 inches
  • Mounting : 4 x 6 mm threaded holes at 90°

Standard compliance

  • Safety agency : CE compliant

Size / Weight

  • Weight : 0.69 kg / 1.52 lbs

Shipping information

  • Package Height : 65 mm / 2.56 inches
  • Package Width : 95 mm / 3.74 inches
  • Package Depth : 97 mm / 3.82 inches
  • Package Weight : 0.72 kg / 1.59 lbs
