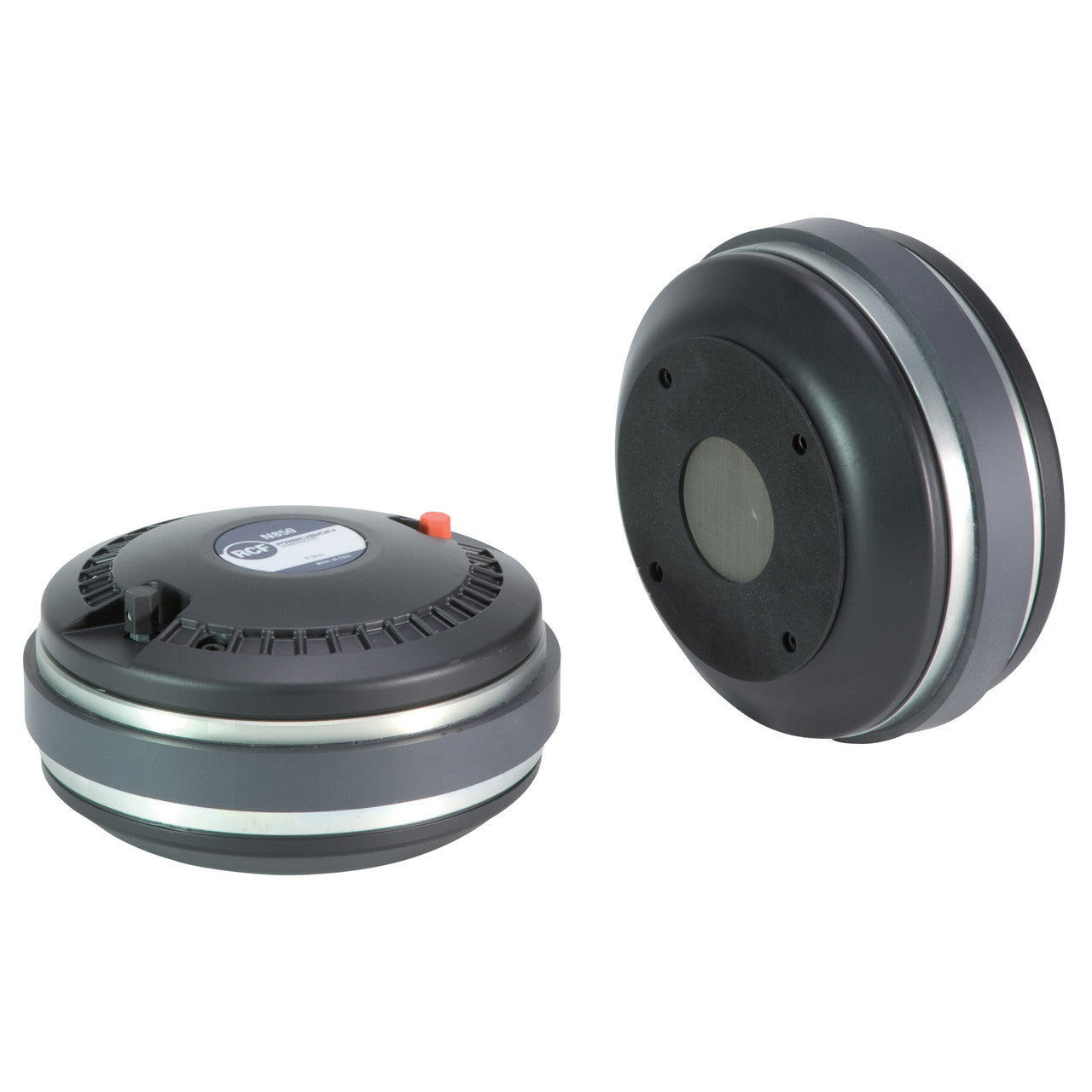

RCF N850 Exit:2" 90W rms, 180W program. 109 dB, 500-20KHz -Titanium
RCF N850 Exit:2" 90W rms, 180W program. 109 dB, 500-20KHz -Titanium
SKU: N850
Regular price
$619.00
Sale price
$619.00
Shipping calculated at checkout.
Available options
Description
RCF N850 Exit:2" 90W rms, 180W program. 109 dB, 500-20KHz -Titanium
The N850 is a high quality 3-inch diaphragm compression driver with a 2-inch exit throat. The diaphragm is precision formed from 0.05mm thick pure titanium. The suspension is based on Mylar vented design. The front aluminium adaptor guarantee a very smooth transition from the phase plug to 2-inch output interface.
Features
- 3-inch Diaphragm, 2-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Aluminium rear cover and front adaptor
- Copper inductance ring for extended response
- Vented suspension system
Specifications
General specifications
- Exit Throat Diameter : 2.0 inch / 51 mm
- Related Impedance : 8 ohm
- Program Power (watt) : 180 W
- Power handling capacity : 90 W
- Sensitivity : 109 dB
- Frequency range : 500 - 20000 Hz
- Diaphragm Material : Pure Titanium
- Suspension Material : Mylar
- Suspension Design : Radial
- Minimum Impedance (ohm) : 8.80 ohm
- Voice Coil Diameter : 3.0 inch / 76 mm
- Voice Coil Winding Material : Edgewound Aluminum
- Voice Coil Former Design : Straight - Kapton
- Number of layers : 1
- Kind of layers : outside
- Flux Density : 1.8 T
- Phase Plug Design : 3 slot
- Phase Plug Material : PP Composite
- Magnetics : Ceramic
- Voice Coil Demodulation Ring : Copper
Mounting information
- Overall diameter : 180 mm / 7.09 inches
- Overall height : 95 mm / 3.74 inches
- Mounting : 4 x 6 mm threaded holes at 90°
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Weight : 6 kg / 13.23 lbs
Shipping information
- Package Height : 114 mm / 4.49 inches
- Package Width : 203 mm / 7.99 inches
- Package Depth : 205 mm / 8.07 inches
- Package Weight : 7 kg / 15.43 lbs
