Description

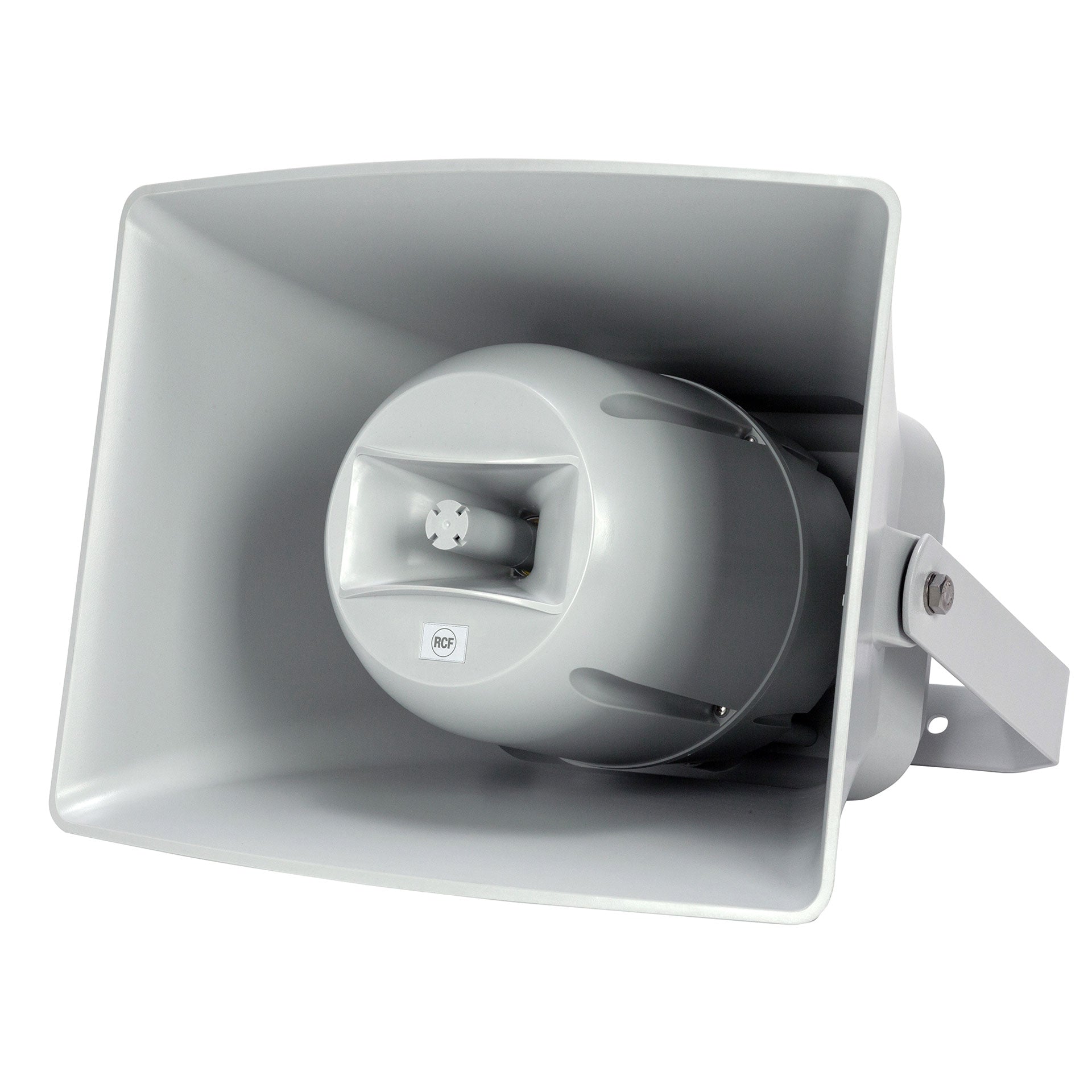

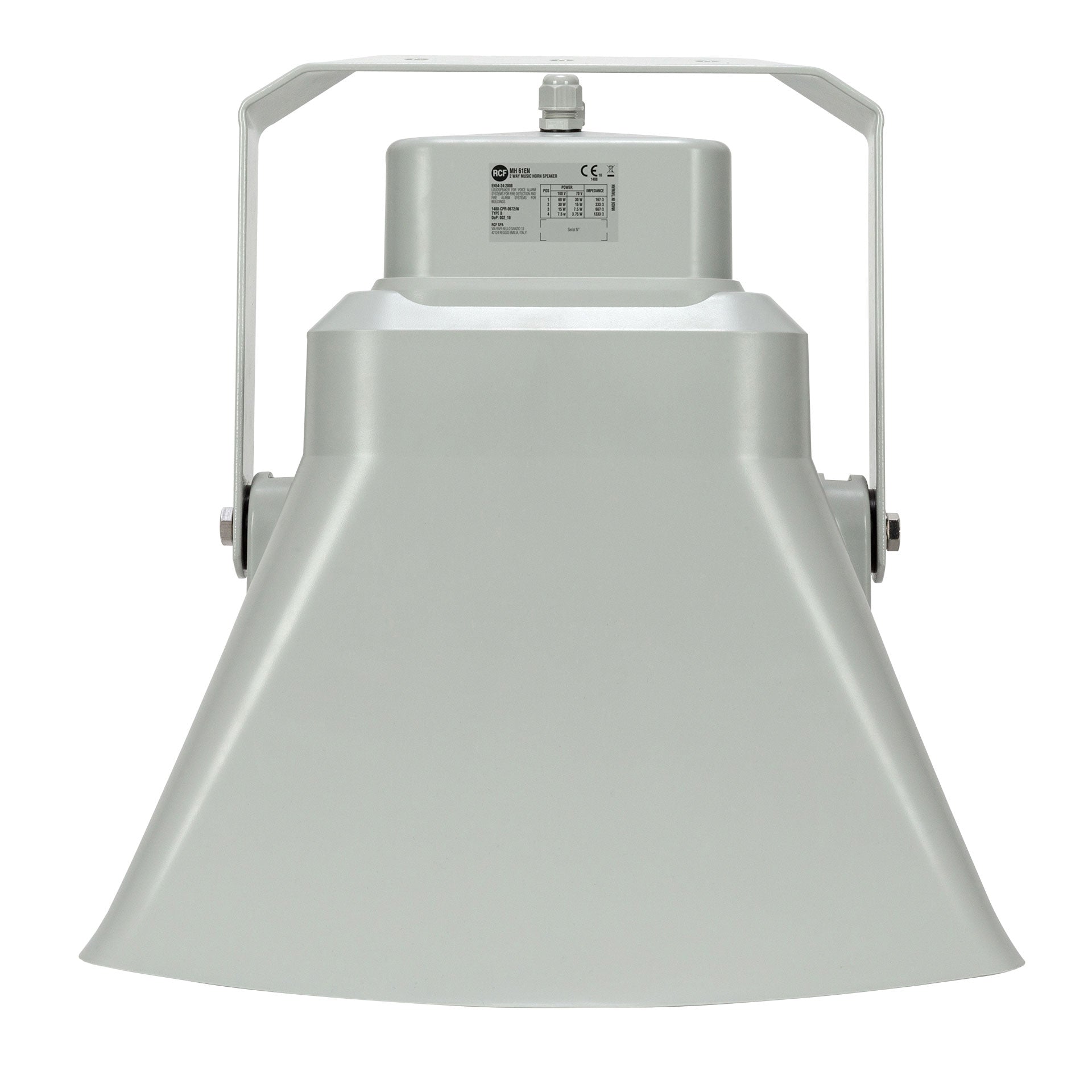

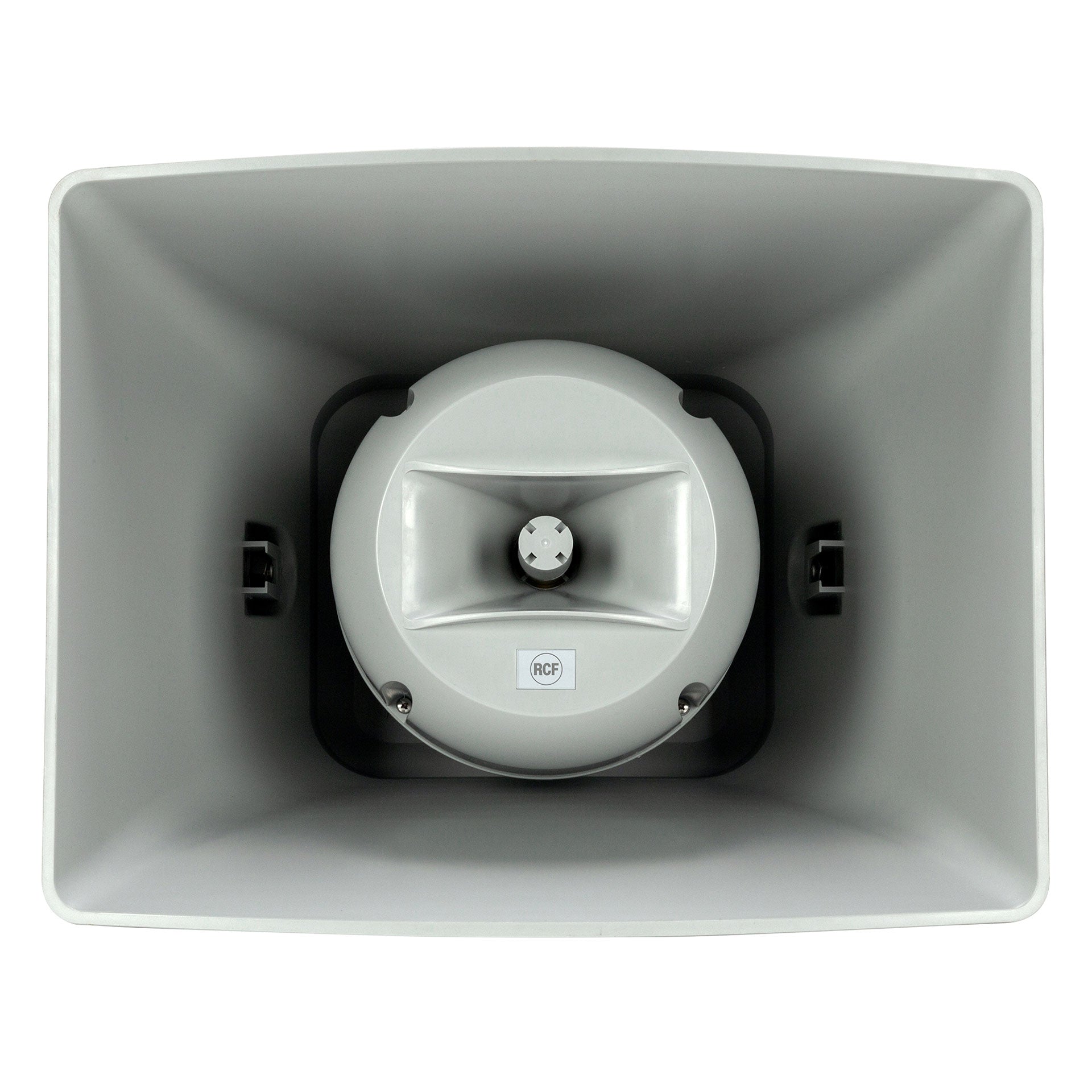

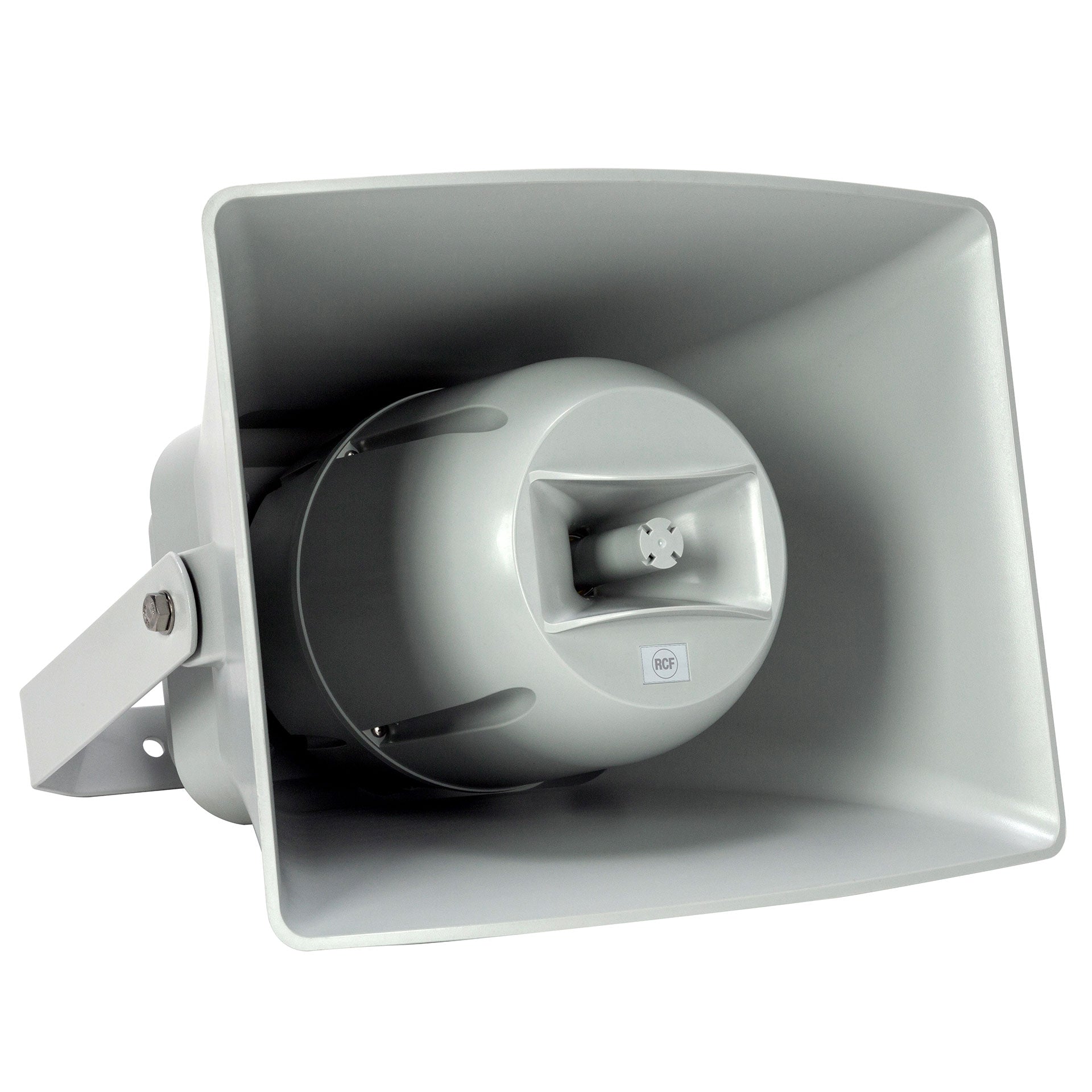

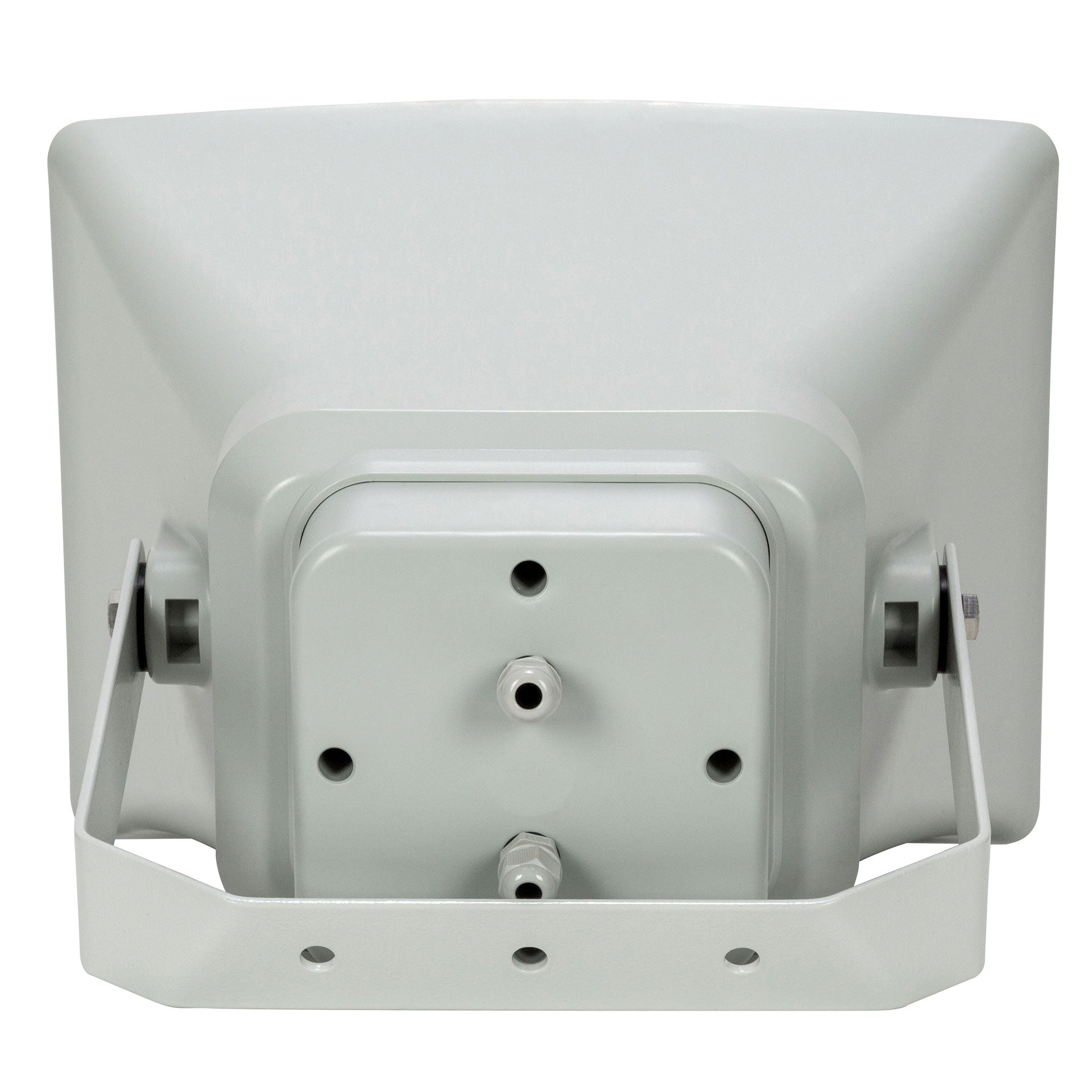

Passive 2 Way Plastic Horn Speaker, 60 W, 70-100 V - EN54-24

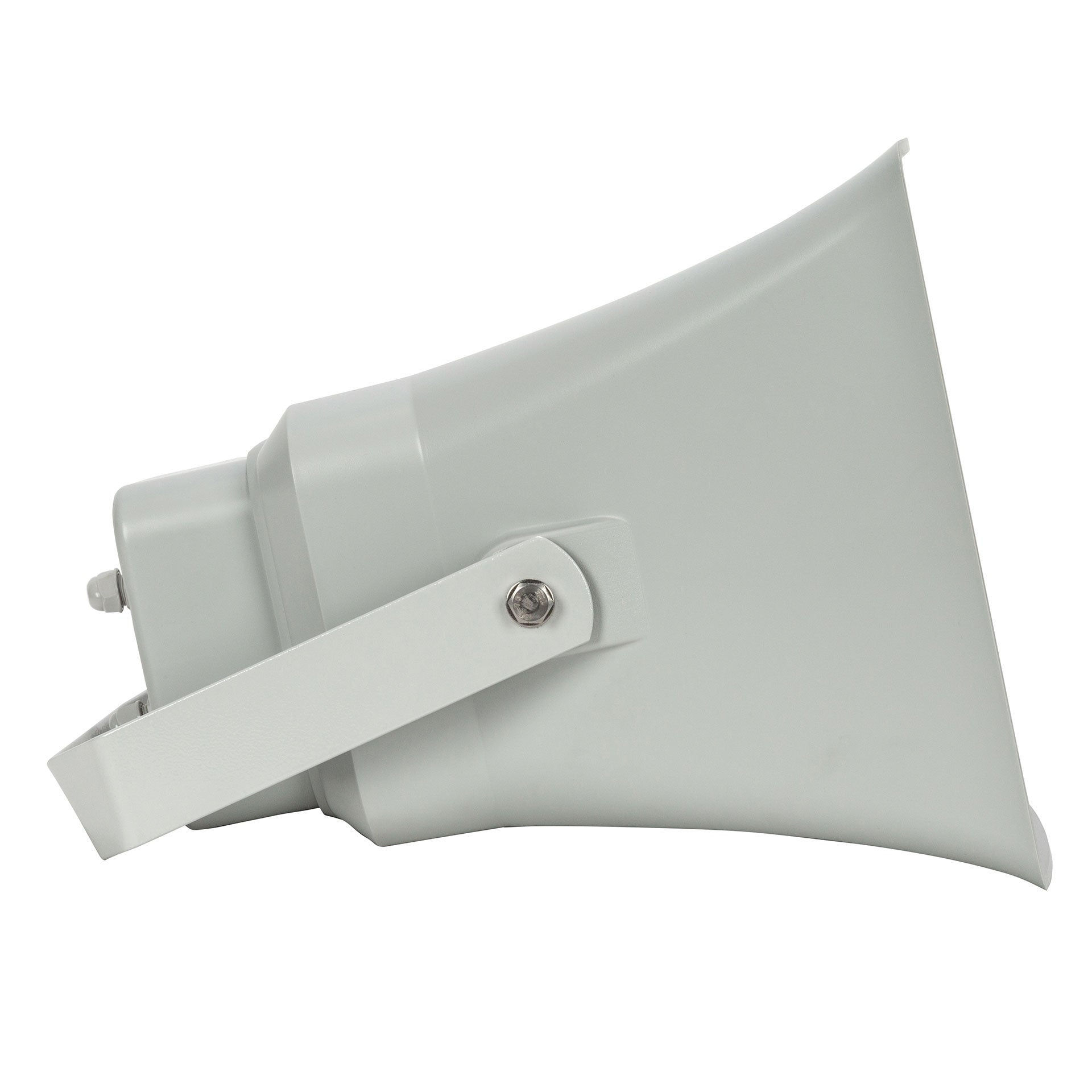

MH 61EN is a two-way plastic horn speaker suitable for both broadcasting alarm messages (thanks to the highly intelligible voice reproduction) and background music, and can be used for sound reinforcement and speech systems in medium and large spaces. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. It can be easily aimed towards any direction through the adjustable wall-mount bracket, and thanks to its IP66 protection grade it can be installed both indoor and outdoor.
FEATURES
- 6.5" woofer with 1" dome tweeter.
- Power selectable (100 V): 60 W – 30 W – 15 W – 7.5 W.
- 99 dB sensitivity.
- Colour grey RAL 7035.
- Plastic body.
- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP66.
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 100 Hz - 20000 Hz
-
Max SPL @ 1m: 115 dB
-
Max SPL @ 4m: 103 dB
-
Horizontal coverage angle: 70°
-
Vertical coverage angle: 90°
-
System Sensitivity: 99 dB
-
System Sensitivity 1W @ 4m: 87 dB
POWER SECTION
-
Nominal Impedance: 8 ohm
-
Power Handling: 60 W
-
Peak Power Handling: 240 W PEAK
-
Protections: Thermal fuse
-
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
-
Dome Tweeter: 1 x 1.0''
-
Woofer: 1 x 6.5''
INPUT/OUTPUT SECTION
-
Input connectors: Ceramic screw terminals
-
Output connectors: Ceramic screw terminals
-
Constant Voltage Transformer: 100 V
-
Power selection 1: 60 W - 167 ohm
-
Power selection 2: 30 W - 333 ohm
-
Power selection 3: 15 W - 667 ohm
-
Power selection 4: 7.5 W - 1333 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 66
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 1488-CPR-0672/W
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: ABS
-
Hardware: Steel bracket
-
Color: Grey - RAL 7035
SIZE / WEIGHT
-
Height: 332 mm / 13.07 inches
-
Width: 418 mm / 16.46 inches
-
Depth: 391 mm / 15.39 inches
-
Weight: 7.35 kg / 16.2 lbs
SHIPPING INFORMATION
-
Package Height: 450 mm / 17.72 inches
-
Package Width: 360 mm / 14.17 inches
-
Package Depth: 430 mm / 16.93 inches
-
Package Weight: 8.6 kg / 18.96 lbs
