RCF MB8N251 8" Power: 300W rms, 600W prog. Sensitivity: 96 dB Freq. Range 60-3500 Hz
RCF MB8N251 8" Power: 300W rms, 600W prog. Sensitivity: 96 dB Freq. Range 60-3500 Hz
SKU: MB8N251
Regular price
$409.00
Sale price
$409.00
Shipping calculated at checkout.
Available options
Description
RCF MB8N251 8" Power: 300W rms, 600W prog. Sensitivity: 96 dB Freq. Range 60-3500 Hz

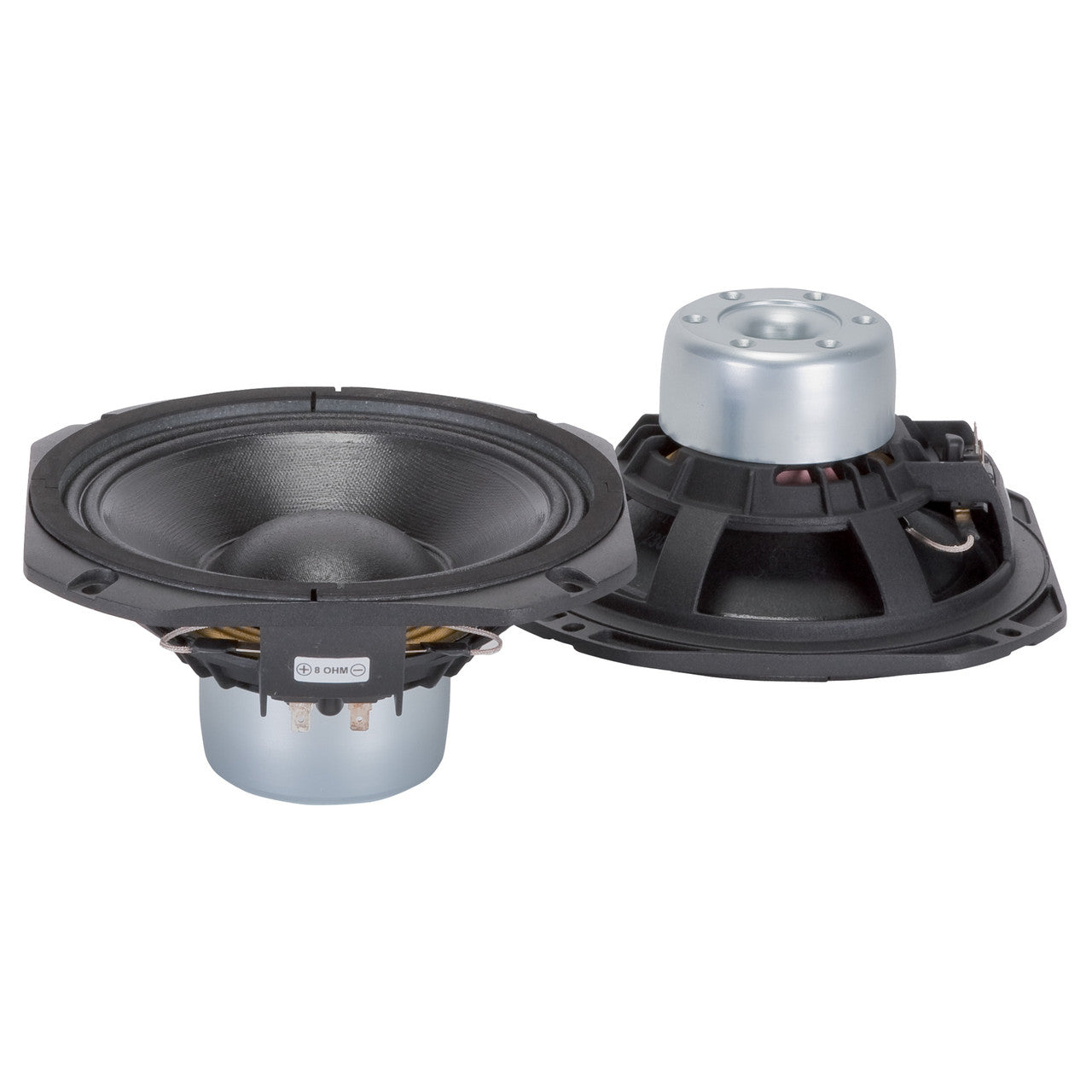

The MB8N251 is a 8” neodymium mid-bass driver with an excellent linearity, good efficiency and high power handling capabilities. The 2,5” aluminium voice coil combined with a high strength fibreglass former allows high efficiency and good frequency response extension. Aluminium basket and magnetic assembly design provide an excellent heat dissipation and very low power compression. The M-roll surround shape combined to spider design offer good linear displacement and precise low frequency reproduction.
Features
- 2.5-inch , fibreglass former, aluminum voice coil
- 600 Watt continuous program power handling
- 96 dB Sensitivity
- 60 Hz - 3.5kHz Frequency range
- Forced air ventilation
- M-roll surround and exponential cone geometry
Specifications
General specifications
- Nominal Diameter : 8 inch / 203 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 600 W
- Power handling capacity : 300 W
- Sensitivity : 96.0 dB
- Frequency range : 60 - 3500 Hz
- Effective piston diameter : 165 mm / 6.5 inch
- Max. Excursion Before Damage : 40 mm / 1.57 inch
- Minimum Impedance (ohm) : 6.0 ohm
- Voice Coil Diameter : 2.5 inch / 63 mm
- Voice Coil Winding Material : Aluminum
- Voice Coil Length : 14 mm / 0.55 inch
- Number of layers : 1
- Kind of layers : outside
- Top Plate Thickness : 9 mm / 0.35 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : M-roll
- Magnets : Neodymium
- Dual-force air ventilation : Yes
- Spider : 01
Thiele - small parameters
- Resonance frequency (Fs) : 68 Hz
- DC resistance (Re) (ohm) : 5.10 ohm
- Mechanical factor : 4.60 Qms
- Electrical factor : 0.26 Qes
- Total factor : 0.25 Qts
- Bl factor (Bl) (T x m) : 15.20 T x m
- Effective moving mass (Mms) : 27.0 g
- Equivalent Cas air loaded (Vas) : 13.0 liters
- Effective piston area (Sd) : 0.020 m2
- Max. linear excursion (Xmax) : 5 mm
- Voice coil inductance @ 1kHz (Le1k) : 1.30 mH
- Half-space efficency (Eff) : 1.70%
Mounting information
- Overall diameter : 239 mm / 9.41 inches
- Bolt circle diameter : 221-227 mm / 8.7-8.94 inch
- Bolt hole diameter : 7 mm / 0.28 inch
- Front mount baffle cut-out : 185 mm / 7.28 inch
- Rear mount baffle cut-out : 185 mm / 7.28 inch
- Volume occupied by the driver : 0.6 liters / 0.02 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 102 mm / 4.02 inches
- Diameter : 208 mm / 8.19 inches
- Weight : 2.01 kg / 4.43 lbs
Shipping information
- Package Height : 125 mm / 4.92 inches
- Package Width : 235 mm / 9.25 inches
- Package Depth : 220 mm / 8.66 inches
- Package Weight : 2.47 kg / 5.45 lbs
