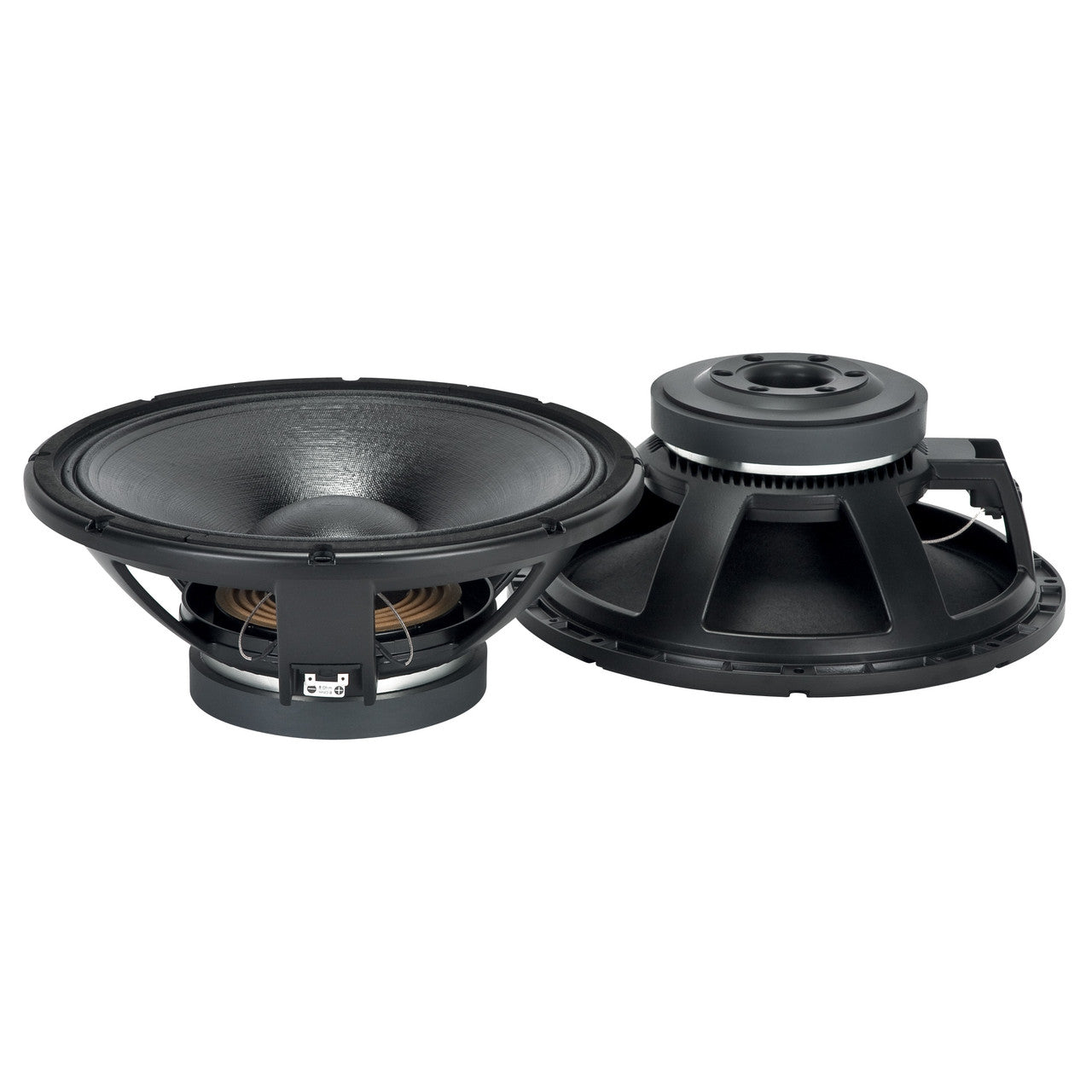

RCF MB15X351 15" Power: 700W rms, 1400W prog. Sensitivity: 99 dB Freq. Range 46-2500 Hz
RCF MB15X351 15" Power: 700W rms, 1400W prog. Sensitivity: 99 dB Freq. Range 46-2500 Hz
SKU: MB15X351
Regular price
$649.00
Sale price
$649.00
Shipping calculated at checkout.
Available options
Description
RCF MB15X351 15" Power: 700W rms, 1400W prog. Sensitivity: 99 dB Freq. Range 46-2500 Hz
The MB15N351 is designed to provide an excellent frequency response linearity with very low distortion. A very strong neodymium magnetic structure guarantee dynamic and precision, a new and unique 3,5” voice coil design provides a very high power handling, especially recommended in comparison to a standard 3” voice coil. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 3.5-inch, fiberglass inside/outside copper voice coil
- 1400W continuous program power handling
- 99 dB Sensitivity
- 40 Hz – 2.5 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- M-roll surround and corrugated straight cone geometry
Specifications
General specifications
- Nominal Diameter : 15 inch / 381 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 1400 W
- Power handling capacity : 700 W
- Sensitivity : 99.0 dB
- Frequency range : 40 - 2500 Hz
- Effective piston diameter : 330 mm / 12.99 inch
- Max. Excursion Before Damage : 40 mm / 1.57 inch
- Minimum Impedance (ohm) : 6.5 ohm
- Voice Coil Diameter : 3.5 inch / 89 mm
- Voice Coil Winding Material : Copper
- Voice Coil Length : 19 mm / 0.75 inch
- Number of layers : 2
- Kind of layers : inside/outside
- Top Plate Thickness : 10 mm / 0.39 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : M-roll
- Magnets : Ceramic
- Dual-force air ventilation : Yes
- Spider : 03
Thiele - small parameters
- Resonance frequency (Fs) : 46 Hz
- DC resistance (Re) (ohm) : 5.40 ohm
- Mechanical factor : 6.70 Qms
- Electrical factor : 0.33 Qes
- Total factor : 0.31 Qts
- Bl factor (Bl) (T x m) : 22.80 T x m
- Effective moving mass (Mms) : 106.0 g
- Equivalent Cas air loaded (Vas) : 114.0 liters
- Effective piston area (Sd) : 0.090 m2
- Max. linear excursion (Xmax) : 7 mm
- Voice coil inductance @ 1kHz (Le1k) : 0.90 mH
- Half-space efficency (Eff) : 3.20%
Mounting information
- Overall diameter : 393 mm / 15.47 inches
- Bolt circle diameter : 371-376 mm / 14.61-14.8 inch
- Bolt hole diameter : 7 mm / 0.28 inch
- Front mount baffle cut-out : 354 mm / 13.94 inch
- Rear mount baffle cut-out : 354 mm / 13.94 inch
- Volume occupied by the driver : 4.5 liters / 0.18 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 167 mm / 6.57 inches
- Diameter : 393 mm / 15.47 inches
- Weight : 8.2 kg / 18.08 lbs
Shipping information
- Package Height : 209 mm / 8.23 inches
- Package Width : 439 mm / 17.28 inches
- Package Depth : 434 mm / 17.09 inches
- Package Weight : 9.5 kg / 20.94 lbs
