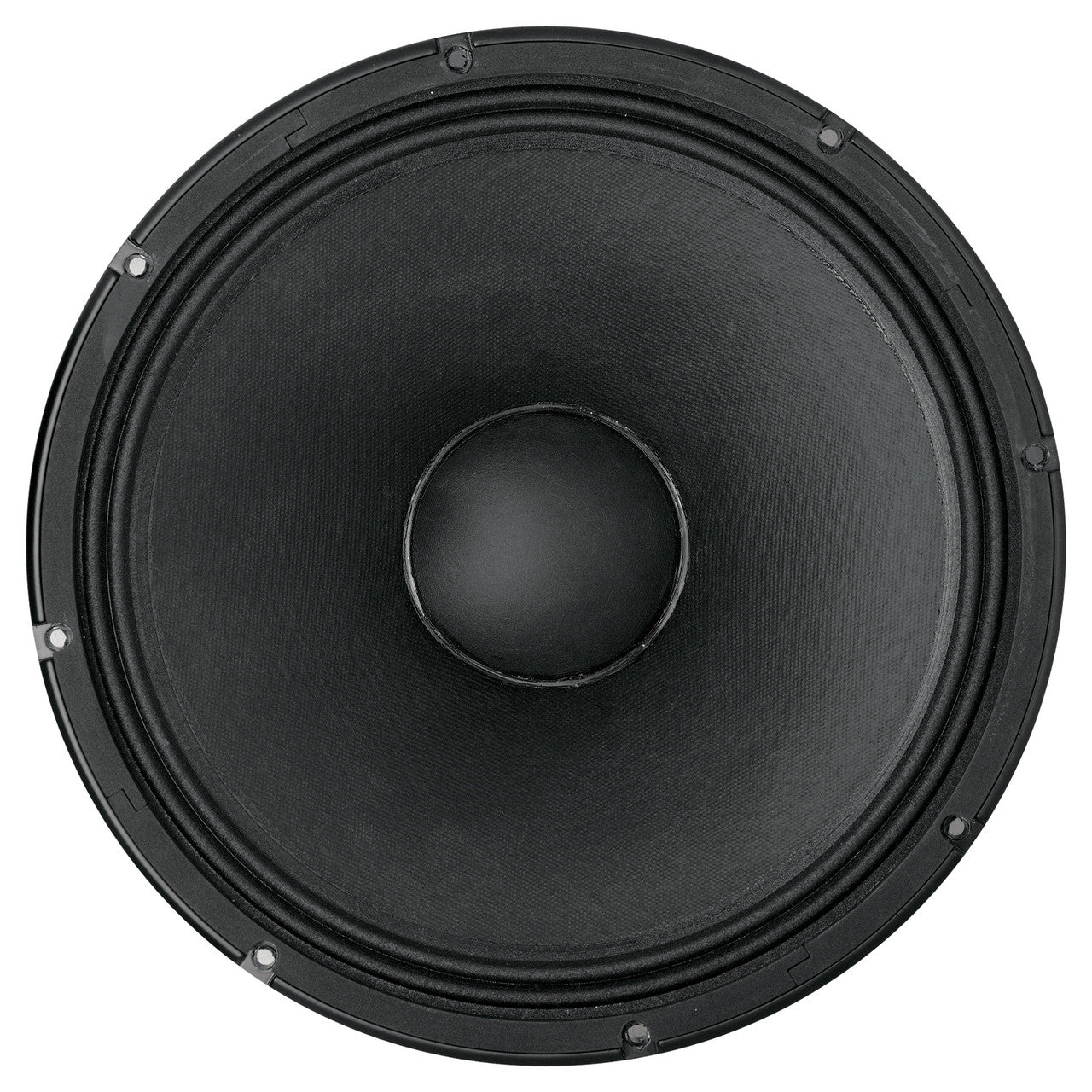

RCF MB15N351 15" Power: 650W rms, 1300W prog. Sensitivity: 99 dB Freq. Range 40-2000 Hz
RCF MB15N351 15" Power: 650W rms, 1300W prog. Sensitivity: 99 dB Freq. Range 40-2000 Hz
SKU: MB15N351
Regular price
$749.00
Sale price
$749.00
Shipping calculated at checkout.
Available options
Description
RCF MB15N351 15" Power: 650W rms, 1300W prog. Sensitivity: 99 dB Freq. Range 40-2000 Hz
This MB15N351 is designed to provide an excellent linearity in the frequency response with low distortion. The transducer is built around a very stronger neodymium magnetic structure and a new 3,5” voice coil, this combination provides to increase the power handling especially in comparison a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimize the power compression at the higher power handling.
Features
- 3.5-inch, inside/outside copper voice coil
- 1300W continuous program power handling
- 100 dB Sensitivity
- 40 Hz – 3 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Dual spider design with silicon based dampening control
Specifications
General specifications
- Nominal Diameter : 15 inch / 381 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 1300 W
- Power handling capacity : 650 W
- Sensitivity : 100.0 dB
- Frequency range : 40 - 3000 Hz
- Effective piston diameter : 330 mm / 12.99 inch
- Max. Excursion Before Damage : 39 mm / 1.54 inch
- Minimum Impedance (ohm) : 6.8 ohm
- Voice Coil Diameter : 3.5 inch / 89 mm
- Voice Coil Winding Material : Copper
- Voice Coil Length : 17 mm / 0.67 inch
- Number of layers : 2
- Kind of layers : inside/outside
- Top Plate Thickness : 11 mm / 0.43 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : M-roll
- Magnets : Neodymium
- Dual-force air ventilation : Yes
- Spider : 03
Thiele - small parameters
- Resonance frequency (Fs) : 42 Hz
- DC resistance (Re) (ohm) : 5.60 ohm
- Mechanical factor : 4.00 Qms
- Electrical factor : 0.24 Qes
- Total factor : 0.22 Qts
- Bl factor (Bl) (T x m) : 22.50 T x m
- Effective moving mass (Mms) : 80.0 g
- Equivalent Cas air loaded (Vas) : 191.0 liters
- Effective piston area (Sd) : 0.090 m2
- Max. linear excursion (Xmax) : 6 mm
- Voice coil inductance @ 1kHz (Le1k) : 1.65 mH
- Half-space efficency (Eff) : 5.68%
Mounting information
- Overall diameter : 393 mm / 15.47 inches
- Bolt circle diameter : 371-376 mm / 14.61-14.8 inch
- Bolt hole diameter : 7 mm / 0.28 inch
- Front mount baffle cut-out : 354 mm / 13.94 inch
- Rear mount baffle cut-out : 354 mm / 13.94 inch
- Volume occupied by the driver : 3.8 liters / 0.15 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 180 mm / 7.09 inches
- Diameter : 393 mm / 15.47 inches
- Weight : 5.16 kg / 11.38 lbs
Shipping information
- Package Height : 230 mm / 9.06 inches
- Package Width : 440 mm / 17.32 inches
- Package Depth : 440 mm / 17.32 inches
- Package Weight : 6.52 kg / 14.37 lbs
