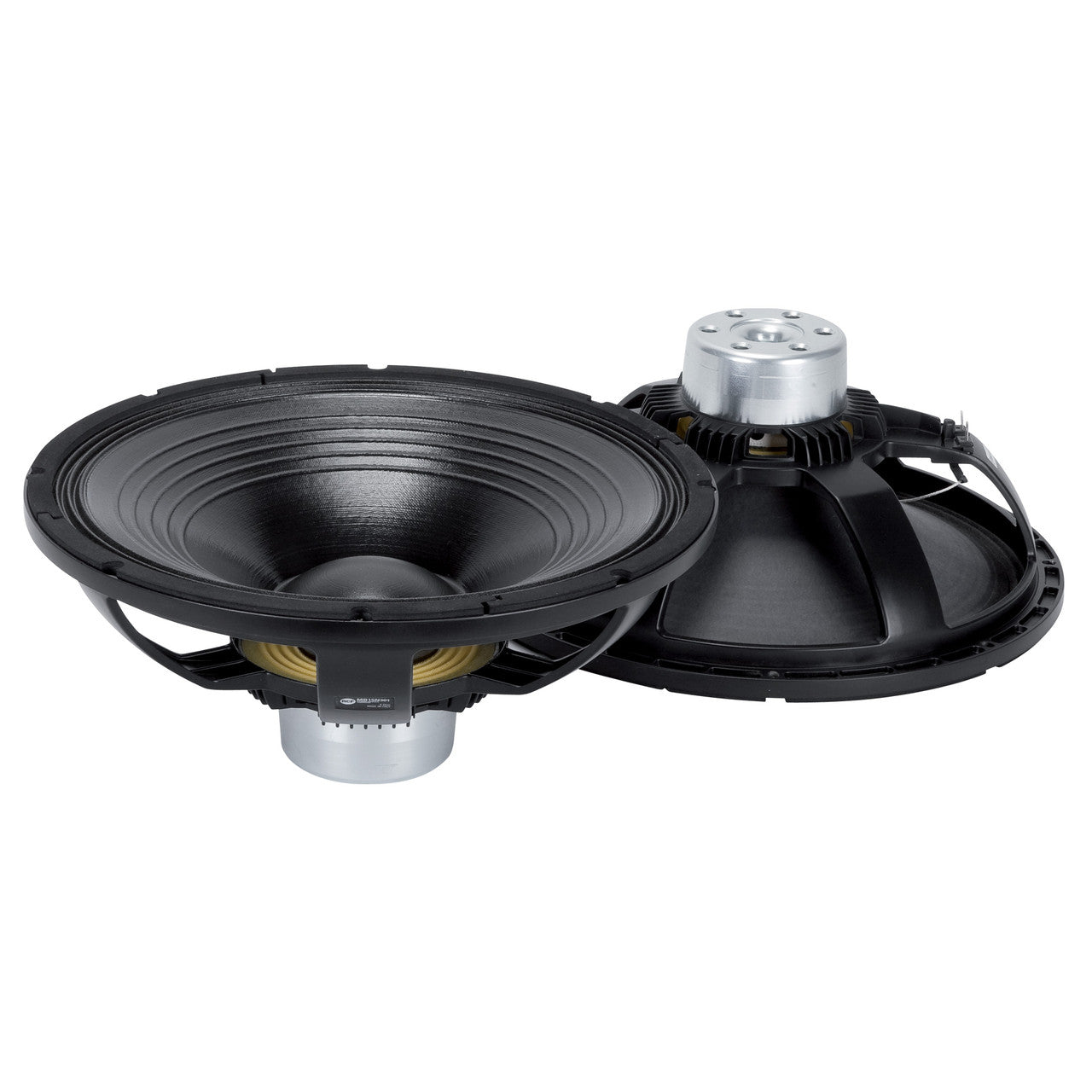

RCF MB15N301 15" Power: 500W rms, 1000W prog. Sensitivity: 99,5 dB Freq. Range 40-3500 Hz
RCF MB15N301 15" Power: 500W rms, 1000W prog. Sensitivity: 99,5 dB Freq. Range 40-3500 Hz
SKU: MB15N301
Available options
Description
RCF MB15N301 15" Power: 500W rms, 1000W prog. Sensitivity: 99,5 dB Freq. Range 40-3500 Hz
The MB15N301 is a neodymium, high efficiency, 15” mid-bass. High sensitivity, excellent linearity and very high power handling capabilities. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3.0-inch, fibreglass inside/outside copper voice coil
- 1000 Watt continuous program power handling
- 99 dB Sensitivity
- 40Hz –3.5KHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Triple-roll surround and exponential cone geometry
Specifications
General specifications
- Nominal Diameter : 15 inch / 381 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 1000 W
- Power handling capacity : 500 W
- Sensitivity : 99.0 dB
- Frequency range : 40 - 3500 Hz
- Effective piston diameter : 330 mm / 12.99 inch
- Max. Excursion Before Damage : 40 mm / 1.57 inch
- Minimum Impedance (ohm) : 6.8 ohm
- Voice Coil Diameter : 3.0 inch / 76 mm
- Voice Coil Winding Material : Aluminum
- Voice Coil Length : 17 mm / 0.67 inch
- Number of layers : 2
- Kind of layers : inside/outside
- Top Plate Thickness : 10 mm / 0.39 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : Curved
- Magnets : Neodymium
- Dual-force air ventilation : Yes
- Spider : 01
Thiele - small parameters
- Resonance frequency (Fs) : 48 Hz
- DC resistance (Re) (ohm) : 5.80 ohm
- Mechanical factor : 4.60 Qms
- Electrical factor : 0.39 Qes
- Total factor : 0.37 Qts
- Bl factor (Bl) (T x m) : 19.20 T x m
- Effective moving mass (Mms) : 90.0 g
- Equivalent Cas air loaded (Vas) : 134.0 liters
- Effective piston area (Sd) : 0.090 m2
- Max. linear excursion (Xmax) : 6 mm
- Voice coil inductance @ 1kHz (Le1k) : 0.90 mH
- Half-space efficency (Eff) : 3.70%
Mounting information
- Overall diameter : 388 mm / 15.28 inches
- Bolt circle diameter : 369-373 mm / 14.53-14.69 inch
- Bolt hole diameter : 6 mm / 0.24 inch
- Front mount baffle cut-out : 355 mm / 13.98 inch
- Rear mount baffle cut-out : 358 mm / 14.09 inch
- Volume occupied by the driver : 3 liters / 0.12 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 165 mm / 6.5 inches
- Diameter : 388 mm / 15.28 inches
- Weight : 3.7 kg / 8.16 lbs
Shipping information
- Package Height : 209 mm / 8.23 inches
- Package Width : 434 mm / 17.09 inches
- Package Depth : 439 mm / 17.28 inches
- Package Weight : 4.7 kg / 10.36 lbs
