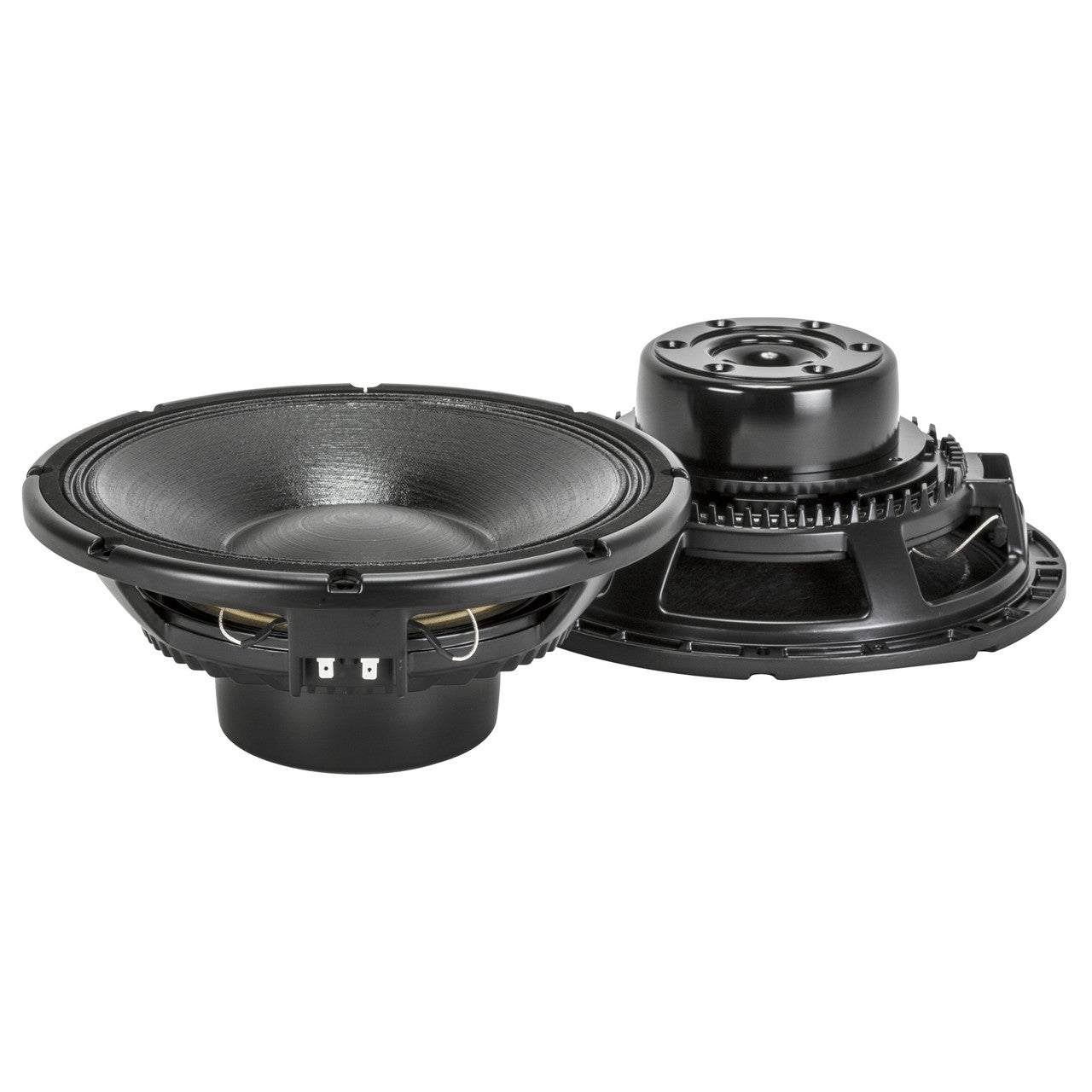

RCF MB12N405 12" Power: 1000W rms, 2000W prog. Sensitivity: 98,5 dB Freq. Range 50-2000 Hz
RCF MB12N405 12" Power: 1000W rms, 2000W prog. Sensitivity: 98,5 dB Freq. Range 50-2000 Hz
SKU: MB12N405
Regular price
$749.00
Sale price
$749.00
Shipping calculated at checkout.
Available options
Description
RCF MB12N405 12" Power: 1000W rms, 2000W prog. Sensitivity: 98,5 dB Freq. Range 50-2000 Hz
The MB12N405 is a hypervented neo mid-bass design with a linear frequency response and very high efficiency. To get this performance the magnetic structure use a high flux neo disc and the cone assembly a fibre loaded exponential shape along with a high excursion triple roll, constant geometry surround. The fibreglass former and aluminium voice coil provide a very high power handling maintaining a light mass and a proper Q factor for bass alignment.
Features
- 4-inch, fibreglass inside/outside aluminium voice coil
- 2000W continuous program power handling
- 98.5 dB Sensitivity
- 50 Hz – 2 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Triple roll surround and exponential cone geometry
Specifications
General specifications
- Nominal Diameter : 12 inch / 305 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 2000 W
- Power handling capacity : 1000 W
- Sensitivity : 98.5 dB
- Frequency range : 50 - 2000 Hz
- Effective piston diameter : 260 mm / 10.24 inch
- Max. Excursion Before Damage : 53 mm / 2.09 inch
- Minimum Impedance (ohm) : 6.6 ohm
- Voice Coil Diameter : 4.0 inch / 102 mm
- Voice Coil Winding Material : Aluminum
- Voice Coil Length : 20 mm / 0.79 inch
- Number of layers : 2
- Kind of layers : inside/outside
- Top Plate Thickness : 12 mm / 0.47 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : Triple roll
- Magnets : Neodymium
- Hypervented magnetic structure : Yes
- Spider : 01
Thiele - small parameters
- Resonance frequency (Fs) : 52 Hz
- DC resistance (Re) (ohm) : 5.00 ohm
- Mechanical factor : 6.00 Qms
- Electrical factor : 0.21 Qes
- Total factor : 0.20 Qts
- Bl factor (Bl) (T x m) : 23.50 T x m
- Effective moving mass (Mms) : 73.0 g
- Equivalent Cas air loaded (Vas) : 53.0 liters
- Effective piston area (Sd) : 0.050 m2
- Max. linear excursion (Xmax) : 7 mm
- Voice coil inductance @ 1kHz (Le1k) : 1.20 mH
- Half-space efficency (Eff) : 3.31%
Mounting information
- Overall diameter : 320 mm / 12.6 inches
- Bolt circle diameter : 293-304 mm / 11.54-11.97 inch
- Bolt hole diameter : 7 mm / 0.28 inch
- Front mount baffle cut-out : 282 mm / 11.1 inch
- Rear mount baffle cut-out : 284 mm / 11.18 inch
- Volume occupied by the driver : 2.9 liters / 0.11 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 133 mm / 5.24 inches
- Diameter : 320 mm / 12.6 inches
- Weight : 7.7 kg / 16.98 lbs
Shipping information
- Package Height : 194 mm / 7.64 inches
- Package Width : 354 mm / 13.94 inches
- Package Depth : 364 mm / 14.33 inches
- Package Weight : 8.7 kg / 19.18 lbs
