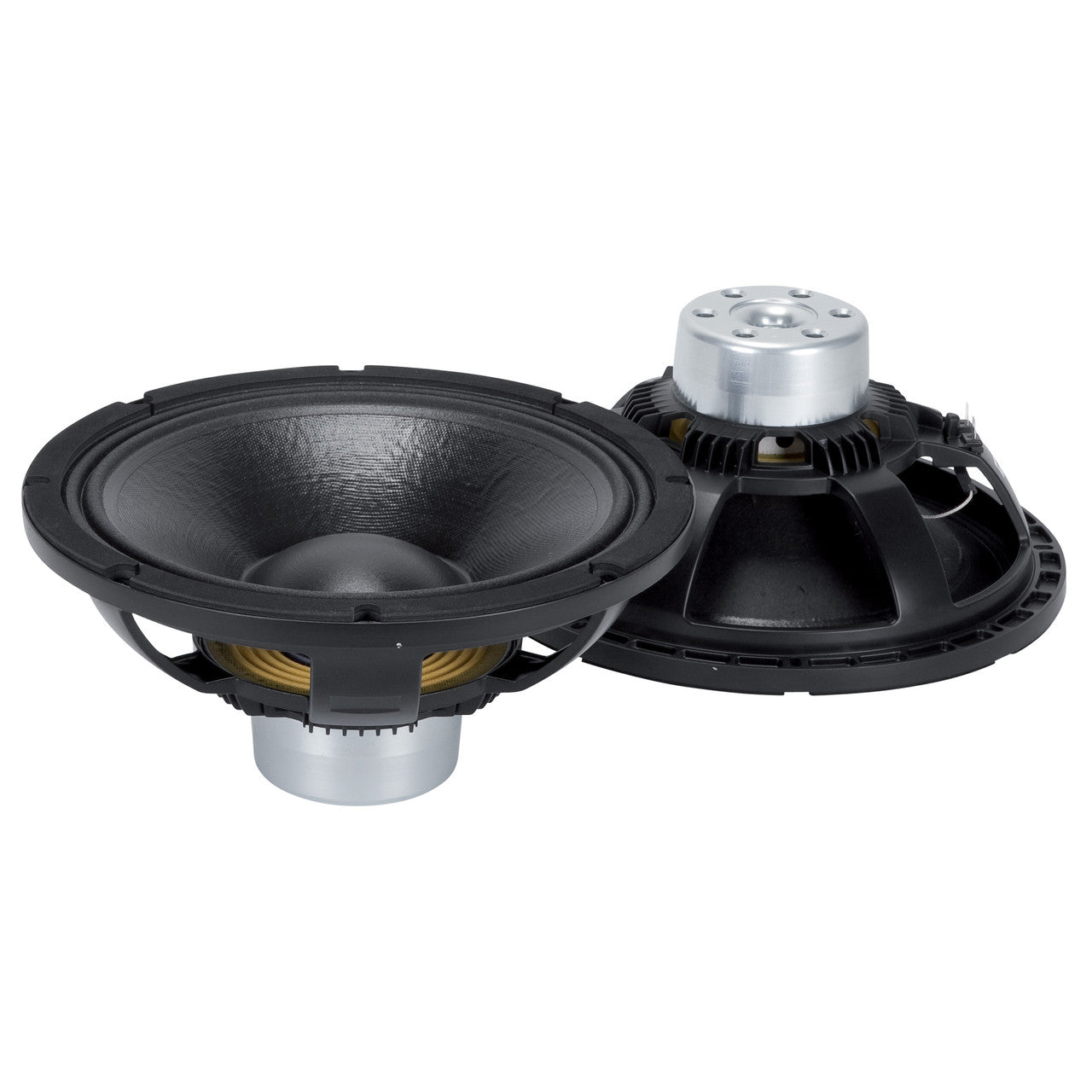

RCF MB12N301 12" Power: 500W rms, 1000W prog. Sensitivity: 98,5 dB Freq. Range 50-3000 Hz
RCF MB12N301 12" Power: 500W rms, 1000W prog. Sensitivity: 98,5 dB Freq. Range 50-3000 Hz
SKU: MB12N301
Available options
Description
RCF MB12N301 12" Power: 500W rms, 1000W prog. Sensitivity: 98,5 dB Freq. Range 50-3000 Hz
The MB12N301 is a neodymium, high efficiency, 12” mid-bass. High sensitivity, excellent linearity and very high power handling capabilities. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3.0-inch, fibreglass inside/outside copper voice coil
- 1000 Watt continuous program power handling
- 98.5dB Sensitivity
- 50Hz –3.0KHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Specifications
General specifications
- Nominal Diameter : 12 inch / 305 mm
- Rated Impedance : 8 ohm
- Program Power (watt) : 1000 W
- Power handling capacity : 500 W
- Sensitivity : 98.5 dB
- Frequency range : 50 - 3000 Hz
- Effective piston diameter : 260 mm / 10.24 inch
- Max. Excursion Before Damage : 34 mm / 1.34 inch
- Minimum Impedance (ohm) : 6.7 ohm
- Voice Coil Diameter : 3.0 inch / 76 mm
- Voice Coil Winding Material : Aluminum
- Voice Coil Length : 17 mm / 0.67 inch
- Number of layers : 2
- Kind of layers : inside/outside
- Top Plate Thickness : 10 mm / 0.39 inch
- Cone Design : Curved
- Surround Material : Polycotton
- Surround Design : M-roll
- Magnets : Neodymium
- Dual-force air ventilation : Yes
- Spider : 01
Thiele - small parameters
- Resonance frequency (Fs) : 54 Hz
- DC resistance (Re) (ohm) : 5.80 ohm
- Mechanical factor : 3.10 Qms
- Electrical factor : 0.26 Qes
- Total factor : 0.24 Qts
- Bl factor (Bl) (T x m) : 19.00 T x m
- Effective moving mass (Mms) : 48.0 g
- Equivalent Cas air loaded (Vas) : 71.0 liters
- Effective piston area (Sd) : 0.050 m2
- Max. linear excursion (Xmax) : 6 mm
- Voice coil inductance @ 1kHz (Le1k) : 1.80 mH
- Half-space efficency (Eff) : 4.00%
Mounting information
- Overall diameter : 320 mm / 12.6 inches
- Bolt circle diameter : 295-304 mm / 11.61-11.97 inch
- Bolt hole diameter : 6 mm / 0.24 inch
- Front mount baffle cut-out : 288 mm / 11.34 inch
- Rear mount baffle cut-out : 288 mm / 11.34 inch
- Volume occupied by the driver : 2.2 liters / 0.09 ft3
Standard compliance
- Safety agency : CE compliant
Size / Weight
- Height : 146 mm / 5.75 inches
- Diameter : 320 mm / 12.6 inches
- Weight : 3.4 kg / 7.5 lbs
Shipping information
- Package Height : 194 mm / 7.64 inches
- Package Width : 364 mm / 14.33 inches
- Package Depth : 354 mm / 13.94 inches
- Package Weight : 4.2 kg / 9.26 lbs
