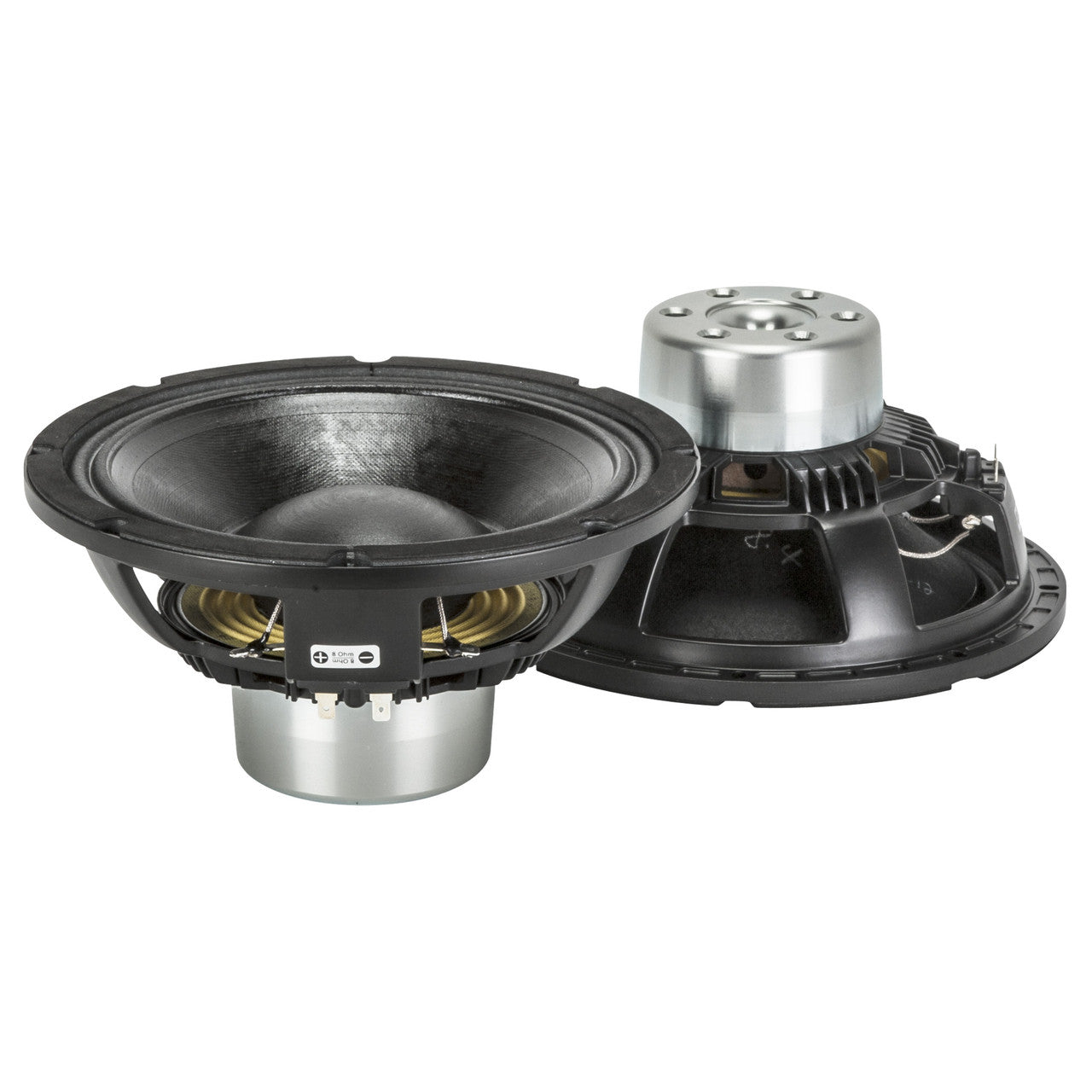

RCF MB10N305 10" Power: 500W rms, 1000W prog. Sensitivity: 97,5 dB Freq. Range 55-3500 Hz
RCF MB10N305 10" Power: 500W rms, 1000W prog. Sensitivity: 97,5 dB Freq. Range 55-3500 Hz
SKU: MB10N305
Regular price
$629.00
Sale price
$629.00
Shipping calculated at checkout.
Available options
Description
RCF MB10N305 10" Power: 500W rms, 1000W prog. Sensitivity: 97,5 dB Freq. Range 55-3500 Hz
The MB10N305 is a hypervented neo, high linearity mid-bass. The magnetic structure is powered by a large neodymium magnet that provides an extremely high flux density in the gap. The new hyper-vented aluminium basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special airforced ventilations are provided for voice coil, magnet assembly and basket. M-roll surround and spider design offer great linearity and precise reproduction.
Features
- 3-inch, fibreglass inside/outside aluminium voice coil
- 1000W continuous program power handling
- 97.5 dB Sensitivity
- 55 Hz – 3.5 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- M-roll surround and exponential cone geometry
Specifications
General Specifications
- Nominal Diameter: 10 inch / 254 mm
- Rated Impedance: 8 ohm
- Program Power: 1000 W
- Power Handling Capacity: 500 W
- Sensitivity: 97.5 dB
- Frequency Range: 55–3500 Hz
- Effective Piston Diameter: 210 mm / 8.27 inch
- Max. Excursion Before Damage: 34 mm / 1.34 inch
- Minimum Impedance: 6.9 ohm
- Voice Coil Diameter: 3.0 inch / 76 mm
- Voice Coil Winding Material: Aluminum
- Voice Coil Length: 14 mm / 0.55 inch
- Number of Layers: 1
- Kind of Layers: Inside/Outside
- Top Plate Thickness: 10 mm / 0.39 inch
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M-roll
- Magnets: Neodymium
- Hypervented Magnetic Structure: Yes
- Spider: 01
Thiele–Small Parameters
- Resonance Frequency (Fs): 60 Hz
- DC Resistance (Re): 5.60 ohm
- Mechanical Factor (Qms): 4.00
- Electrical Factor (Qes): 0.24
- Total Factor (Qts): 0.23
- BL Factor (Bl): 18.50 T × m
- Effective Moving Mass (Mms): 37.0 g
- Equivalent Cas Air Loaded (Vas): 31.0 liters
- Effective Piston Area (Sd): 0.040 m²
- Max. Linear Excursion (Xmax): 5 mm
- Voice Coil Inductance @ 1 kHz (Le1k): 0.90 mH
- Half-Space Efficiency (Eff): 2.90%
Mounting Information
- Overall Diameter: 260 mm / 10.24 inches
- Bolt Circle Diameter: 241–246 mm / 9.49–9.69 inch
- Bolt Hole Diameter: 6 mm / 0.24 inch
- Front Mount Baffle Cut-Out: 234 mm / 9.21 inch
- Rear Mount Baffle Cut-Out: 234 mm / 9.21 inch
- Volume Occupied by the Driver: 1.4 liters / 0.06 ft³
Standard Compliance
- Safety Agency: CE Compliant
Size & Weight
- Height: 126 mm / 4.96 inches
- Diameter: 260 mm / 10.24 inches
- Weight: 3.2 kg / 7.05 lbs
Shipping Information
- Package Height: 169 mm / 6.65 inches
- Package Width: 289 mm / 11.38 inches
- Package Depth: 289 mm / 11.38 inches
- Package Weight: 3.8 kg / 8.38 lbs
