RCF MB10N251 10" Power: 300W rms, 600W prog. Sensitivity: 97 dB Freq. Range 50-3500 Hz
RCF MB10N251 10" Power: 300W rms, 600W prog. Sensitivity: 97 dB Freq. Range 50-3500 Hz
SKU: MB10N251
Regular price
$449.00
Sale price
$449.00
Shipping calculated at checkout.
Available options
Description
RCF MB10N251 10" Power: 300W rms, 600W prog. Sensitivity: 97 dB Freq. Range 50-3500 Hz

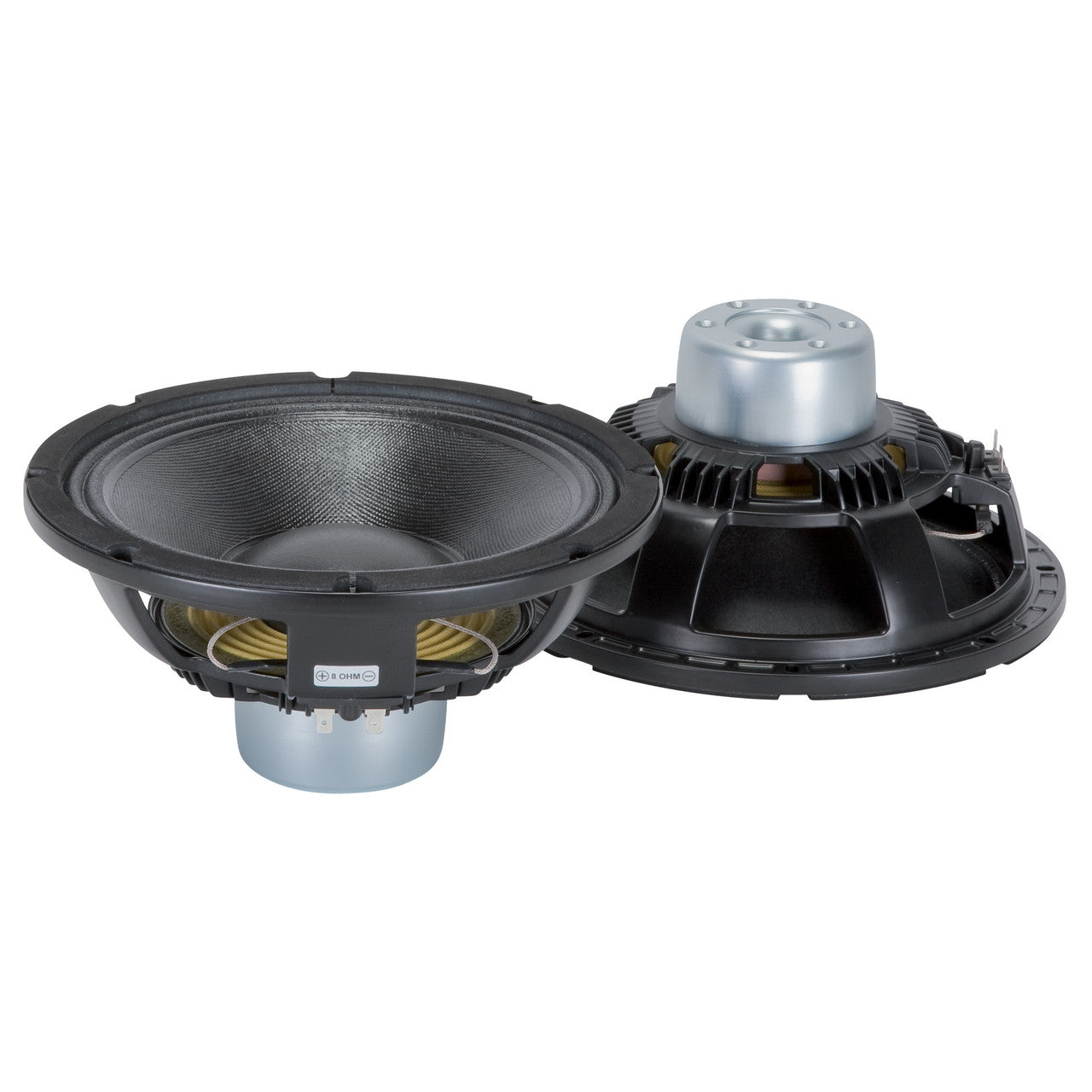

The MB10N251 is a 10” neodymium mid-bass driver with an excellent linearity, good efficiency and high power handling capabilities. The 2,5” aluminium voice coil combined with a high strength fibreglass former allows high efficiency and good frequency response extension. Aluminium basket and magnetic assembly design provide an excellent heat dissipation and very low power compression. The M-roll surround shape combined to spider design offer good linear displacement and precise low frequency reproduction.
Features
- 2.5-inch , fibreglass former, aluminum voice coil
- 600 Watt continuous program power handling
- 97 dB Sensitivity
- 50 Hz - 3.5kHz Frequency range
- Forced air ventilation
- M-roll surround and exponential cone geometry
Specifications
General Specifications
- Nominal Diameter: 10 inch / 254 mm
- Rated Impedance: 8 ohm
- Program Power: 600 W
- Power Handling Capacity: 300 W
- Sensitivity: 97.0 dB
- Frequency Range: 50–3500 Hz
- Effective Piston Diameter: 210 mm / 8.27 inch
- Max. Excursion Before Damage: 40 mm / 1.57 inch
- Minimum Impedance: 6.4 ohm
- Voice Coil Diameter: 2.5 inch / 63 mm
- Voice Coil Winding Material: Aluminum
- Voice Coil Length: 14 mm / 0.55 inch
- Number of Layers: 1
- Kind of Layers: Outside
- Top Plate Thickness: 9 mm / 0.35 inch
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: M-roll
- Magnets: Neodymium
- Dual-Force Air Ventilation: Yes
- Spider: 01
Thiele–Small Parameters
- Resonance Frequency (Fs): 55 Hz
- DC Resistance (Re): 5.10 ohm
- Mechanical Factor (Qms): 4.20
- Electrical Factor (Qes): 0.29
- Total Factor (Qts): 0.27
- BL Factor (Bl): 15.20 T × m
- Effective Moving Mass (Mms): 36.0 g
- Equivalent Cas Air Loaded (Vas): 39.0 liters
- Effective Piston Area (Sd): 0.040 m²
- Max. Linear Excursion (Xmax): 5 mm
- Voice Coil Inductance @ 1 kHz (Le1k): 1.30 mH
- Half-Space Efficiency (Eff): 2.20%
Mounting Information
- Overall Diameter: 260 mm / 10.24 inches
- Bolt Circle Diameter: 241–246 mm / 9.49–9.69 inch
- Bolt Hole Diameter: 6 mm / 0.24 inch
- Front Mount Baffle Cut-Out: 234 mm / 9.21 inch
- Rear Mount Baffle Cut-Out: 234 mm / 9.21 inch
- Volume Occupied by the Driver: 1.2 liters / 0.05 ft³
Standard Compliance
- Safety Agency: CE Compliant
Physical Specifications
- Color: Black
Size & Weight
- Height: 123 mm / 4.84 inches
- Diameter: 260 mm / 10.24 inches
- Weight: 2.5 kg / 5.51 lbs
Shipping Information
- Package Height: 180 mm / 7.09 inches
- Package Width: 290 mm / 11.42 inches
- Package Depth: 290 mm / 11.42 inches
- Package Weight: 3 kg / 6.61 lbs
