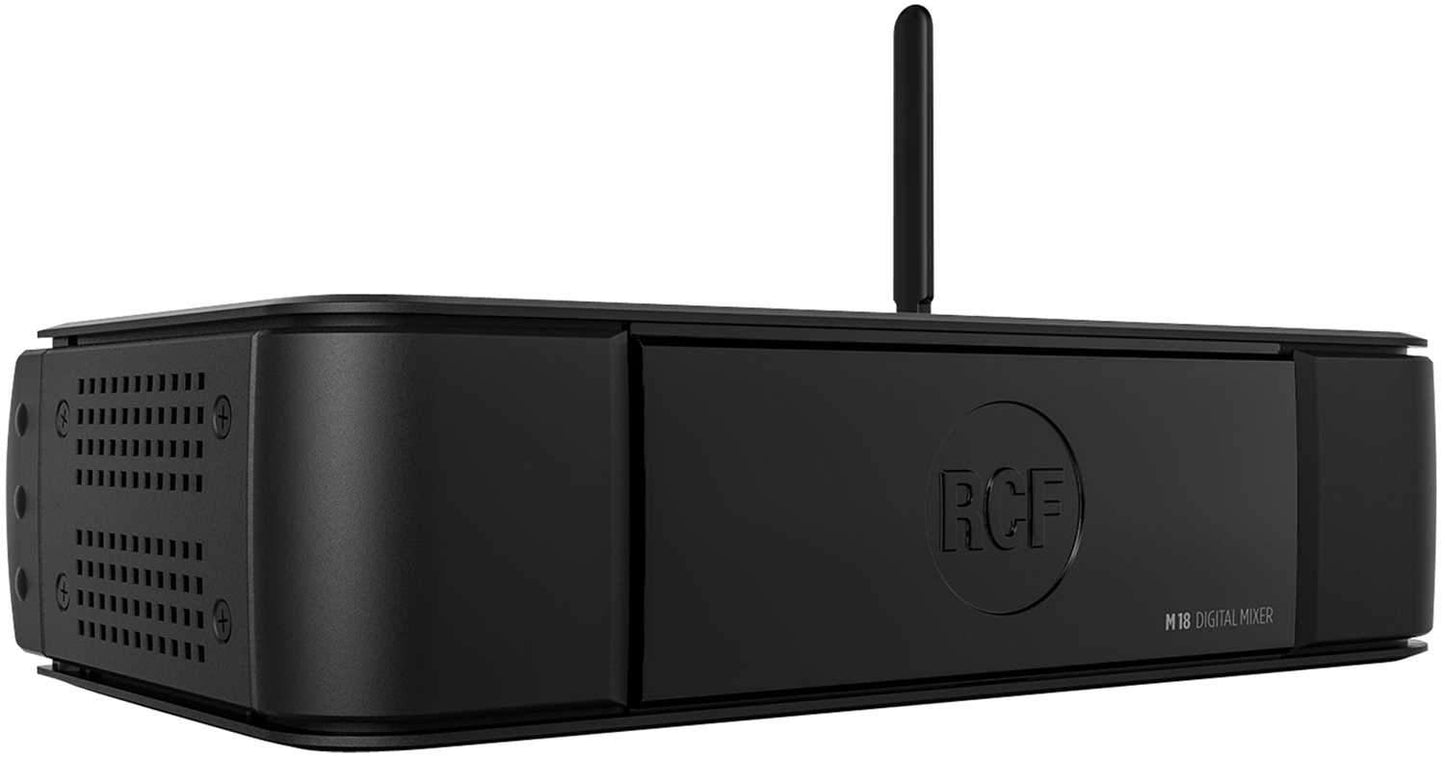

RCF M18 18-Channel Digital Mixer

RCF M18 18-Channel Digital Mixer

Small-Format WiFi-Controlled digital mixer

Fader-free, all-In-one M 18 has an on-board WiFi access point with both external and internal antennas, enabling full wireless control from up to 5 tablets. It features a total of 18 analog inputs, 8 mic preamps, up to 19 simultaneous studio-grade effects and a full suite of plug-In algorithms and professional internal effects, including a high-quality stereo reverb and classic emulations of guitar and bass amplifiers.

The input EQs (Standard, Vintage and Smooth) enable a wide range of sounds and a flexible sound-sculpting environment. A Mastering processor on the main outputs allows a final fine-tuning of the overall sound. A USB port for the internal two-track player and recorder, MIDI ports and footswitch input provide maximum flexibility.

Features:

• 18 analog input channels, 8 mic preamps and 10 Line inputs including 2 HiZ switchable inputs
• Three internal FX: Reverb, Delay, Modulation
• 19 simultaneous studio-grade effects, including Guitar & Bass emulations developed by Overloud
• MIDI In and Out ports
• MixRemote app ensuring a comprehensive control
• Valve warmer, Xciter, Maximizer and Stereo Graphic EQ on Main Mix
• 1 stereo main out and 6 aux outputs
• USB port for the internal four-track player and two-track recorder
• MIDI In and Out ports
• 1 dual footswitch connector
• Internal power supply

Specifications:

• Auxiliary sends
  • AUX: 4 PRE / 2 PRE / Post
  • FX Post: 3
• Compressors
  • RCF Compressors: Compressors on each input channel
• Electrical specifications
  • Power Consumption (W): 40W
  • Voltage Requirements: 90 V - 240 V
  • Power Supply: Internal
  • Frequency Response
• EQ
  • AUX Output EQ: 2 full Parametric / 2 Shelving
  • Input Channel EQ: 2 full Parametric / 2 Semi Parametric
• Gates
  • RCF Gates: "Gates present on all input channel"
• Inputs
  • A/D Dynamic Range (DB): 114 dB
  • Gain Range: 0 dB ÷ 60 dB
  • Gain Selection: -10 dB ÷ 4 dB
  • HI-Z Line Input Impedance (MOHM): 1 Mohm
  • HI-Z Line Inputs: 2
  • Mic Inputs Impedance (KOHM): 1 kohm
  • Line: 10
  • Low Cut: 10 Hz ÷ 500 dB
  • Phantom Power +48V: Yes
  • Line Input Impedance (KOHM): 10 kohm
  • Mic: 8
• Internal Effects
  • Multifx Insert Effects: 16
  • Send Effects: 3
• Mastering processors
  • Main Out Processors: 4.00
  • Main Out Type: "Valve Warmer, Xciter, Maximizer, 31 band Graphic EQ present on Main MIX"
• Other features
  • Footswitch: Yes
  • MIDI Out: Yes
  • Lan Port: Yes
  • MIDI In: Yes
• Outputs
  • AUX Output: 6
  • FX Send: 3
  • Phones: 1
  • AUX Send: 6
  • Main MIX: 2
• Outputs specifications
  • AUX Out Impedance (OHM): 50 ohm
  • D/A Dynamic Range (DB): 114 dB
  • Main Out Level (DBU): 21 dBu
  • Phones Out Level (DBM): 35 dBm
  • AUX Out Level (DBU): 21 dBu
  • Main Out Impedance (OHM): 50 ohm
  • Phones Out Impedance (OHM): 40 ohm
• Physical specifications
  • Cabinet/Case Material: ABS
  • Rack Mounting: 2U , Optional rack mounting accessory required
  • Color: Black
• Processing
  • A/D-D/A Convension: 24 Bit @ 48.0 kHz
  • Processing Channels: 20
  • Dynamic Range: 114
  • Signal Processing: 32 Bit Floating Point
• Shipping informations
  • Package Depth: 132 mm / 5.2 inches
  • Package Weight: 3.4 kg / 7.5 lbs
  • Package Height: 378 mm / 14.88 inches
  • Package Width: 253 mm / 9.96 inches
• Size
  • Depth: 180 mm / 7.09 inches
  • Weight: 2.5 kg / 5.51 lbs
  • Height: 88 mm / 3.46 inches
  • Width: 340 mm / 13.39 inches
• Standard compliance
  • CE Marking:Yes
• USB audio
  • Compressed File Format Play (Up To) (KBPS):320 Kbps
  • Rec TRK: 2
  • Supported Rec Format: WAV
  • Type: A
  • Play TRK: 2
  • Supported Play Format: MP3, WAV, AIFF
  • Supported Sample Rate (KHZ): 48.0
• Wireless specifications
  • Dual Band: Yes
  • IEEE802.11 B/G Standard (GHZ): 2.4 / 5.0
  • Internal Access Point: Yes
  • External Antennas: 1
  • Internal Antennas: 2
