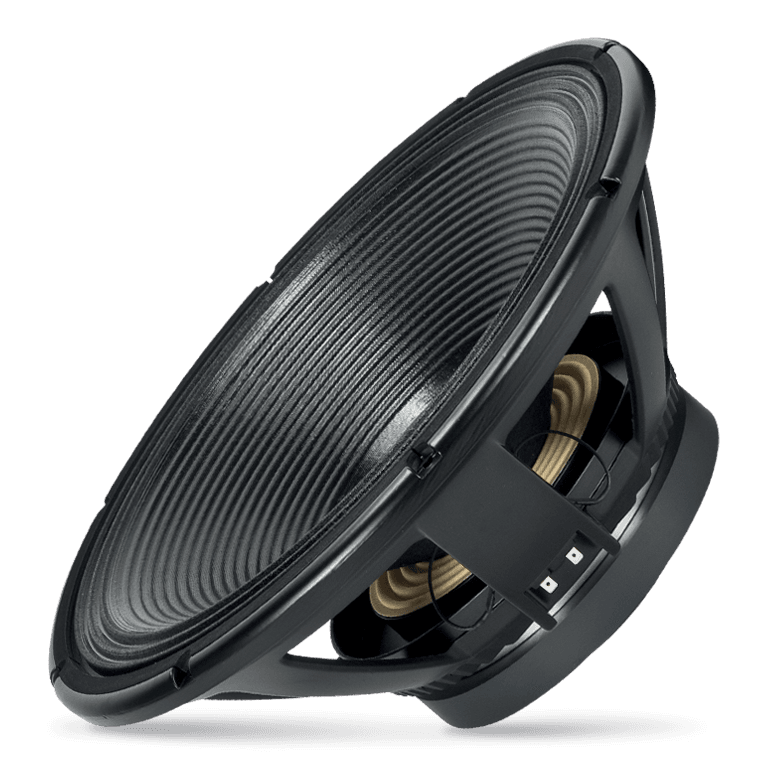

RCF LF18X401 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 dB Freq. Range 30-1000 Hz
RCF LF18X401 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 dB Freq. Range 30-1000 Hz
SKU: LF18X401
Regular price
$799.00
Sale price
$799.00
Shipping calculated at checkout.
Available options
Description
RCF LF18X401 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 dB Freq. Range 30-1000 Hz
Very linear frequency response characteristics, extreme high power handling while generating the lowest harmonic distortion of any comparable 18-inch transducer within its application range. The LF18X401 uses a fibre loaded cone assembly along with a high excursion triple roll surround. This combination provides remarkable strength and a peak to peak maximum excursion of 50 mm. The new dual forced hyper-venting system guarantee a very efficient voice coil ventilation for minimum power compression and incredible power handling.
Features
- 4-inch, fiberglass inside/outside copper voice coil
- 3000W continuous program power handling
- 97.5 dB Sensitivity
- 25 Hz – 1 kHz Frequency range
- Dual Forced Hyperventing System
- Dual spider design with silicon based dampening control
- Triple-roll surround and corrugated straight cone geometry
Specifications
General Specifications
- Nominal Diameter: 18 inch / 457 mm
- Rated Impedance: 8 ohm
- Program Power: 3000 W
- Power Handling Capacity: 1500 W
- Sensitivity: 97.5 dB
- Frequency Range: 25–1000 Hz
- Effective Piston Diameter: 395 mm / 15.55 inch
- Max. Excursion Before Damage: 50 mm / 1.97 inch
- Minimum Impedance: 6.5 ohm
- Voice Coil Diameter: 4.0 inch / 102 mm
- Voice Coil Winding Material: Copper
- Voice Coil Length: 30 mm / 1.18 inch
- Number of Layers: 2
- Kind of Layers: Inside/Outside
- Top Plate Thickness: 15 mm / 0.59 inch
- Cone Design: Straight
- Surround Material: Polycotton
- Surround Design: Triple Roll
- Magnets: Ceramic
- Dual-Force Air Ventilation: Yes
- Spider: 03
Thiele–Small Parameters
- Resonance Frequency (Fs): 30 Hz
- DC Resistance (Re): 5.40 ohm
- Mechanical Factor (Qms): 7.40
- Electrical Factor (Qes): 0.31
- Total Factor (Qts): 0.30
- BL Factor (Bl): 26.50 T × m
- Effective Moving Mass (Mms): 215.0 g
- Equivalent Cas Air Loaded (Vas): 274.0 liters
- Effective Piston Area (Sd): 0.120 m²
- Max. Linear Excursion (Xmax): 12 mm
- Voice Coil Inductance @ 1 kHz (Le1k): 0.83 mH
- Half-Space Efficiency (Eff): 2.30%
Mounting Information
- Overall Diameter: 465 mm / 18.31 inches
- Bolt Circle Diameter: 442–447 mm / 17.4–17.6 inch
- Bolt Hole Diameter: 7 mm / 0.28 inch
- Front Mount Baffle Cut-Out: 424 mm / 16.69 inch
- Rear Mount Baffle Cut-Out: 425 mm / 16.73 inch
- Volume Occupied by the Driver: 6.5 liters / 0.26 ft³
Standard Compliance
- Safety Agency: CE Compliant
Size & Weight
- Height: 196 mm / 7.72 inches
- Diameter: 465 mm / 18.31 inches
- Weight: 12.5 kg / 27.56 lbs
Shipping Information
- Package Height: 254 mm / 10 inches
- Package Width: 524 mm / 20.63 inches
- Package Depth: 494 mm / 19.45 inches
- Package Weight: 15 kg / 33.07 lbs
