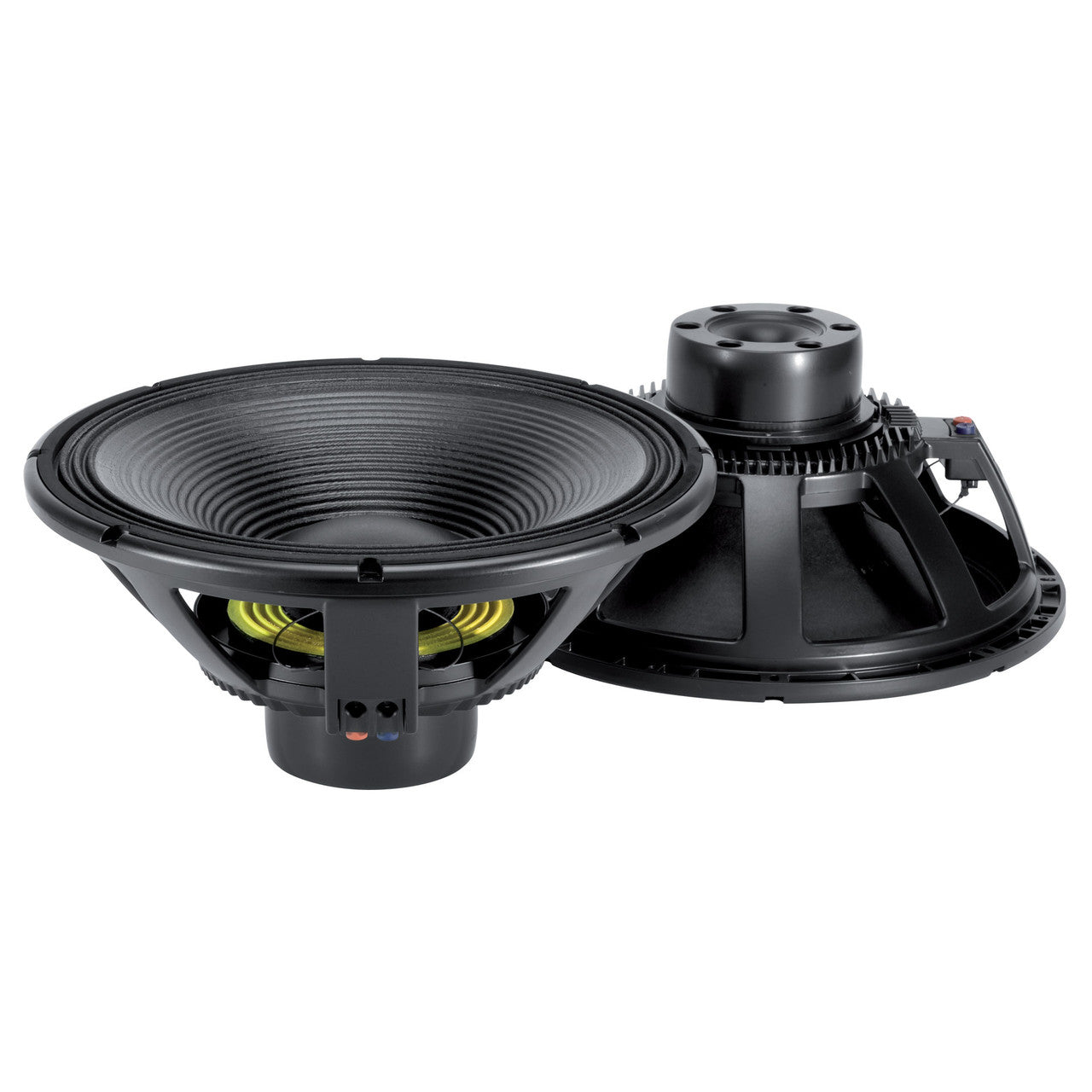

RCF LF18N451 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 Freq. Range 30-1000 Hz
RCF LF18N451 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 Freq. Range 30-1000 Hz
SKU: LF18N451
Available options
Description
RCF LF18N451 18" Power: 1500W rms, 3000W prog. Sensitivity: 97,5 Freq. Range 30-1000 Hz
The LF18N451 is a very high power handling and efficiency transducer specially designed to provide powerful and accurate sub-bass frequencies with low distortion and low power compression. Ultra fast time response. The LF18N451 uses a fibre loaded cone assembly along a large triple roll surround, this combination provides remarkable strength and control. Double silicon spider sysetm ensures excellent control during large excursions. A fully optimazed T-pole design generate the minimum amount of flux modulation. The Dual-forced air venting system provides a very efficient voice coil ventilation to minimize the power compression
Features
- 4,5 - inch Inside/Outside copper voice coil
- 3000 Watt continuous program power handling
- 97.5 dB Sensitivity
- 30 Hz - 1 kHz Frequency range
- Dual-forced air ventilation for minimum power compression
- Dual spider designed with silicon based damping control
- BL of 30.2 Txm to provide a faster and accurate low frequency
Specifications
General Specifications
- Nominal Diameter: 18 inch / 457 mm
- Rated Impedance: 8 ohm
- Program Power: 3000 W
- Power Handling Capacity: 1500 W
- Sensitivity: 97.5 dB
- Frequency Range: 30–1000 Hz
- Effective Piston Diameter: 395 mm / 15.55 inch
- Max. Excursion Before Damage: 60 mm / 2.36 inch
- Minimum Impedance: 6.3 ohm
- Voice Coil Diameter: 4.5 inch / 114 mm
- Voice Coil Winding Material: Copper
- Voice Coil Length: 26 mm / 1.02 inch
- Number of Layers: 2
- Kind of Layers: Inside/Outside
- Top Plate Thickness: 15 mm / 0.59 inch
- Cone Design: Curved
- Surround Material: Polycotton
- Surround Design: Triple Roll
- Magnets: Neodymium
- Dual-Force Air Ventilation: Yes
- Spider: 03
Thiele–Small Parameters
- Resonance Frequency (Fs): 31 Hz
- DC Resistance (Re): 5.00 ohm
- Mechanical Factor (Qms): 6.00
- Electrical Factor (Qes): 0.25
- Total Factor (Qts): 0.24
- BL Factor (Bl): 30.20 T × m
- Effective Moving Mass (Mms): 235.0 g
- Equivalent Cas Air Loaded (Vas): 245.0 liters
- Effective Piston Area (Sd): 0.120 m²
- Max. Linear Excursion (Xmax): 9 mm
- Voice Coil Inductance @ 1 kHz (Le1k): 2.60 mH
- Half-Space Efficiency (Eff): 2.54%
Mounting Information
- Overall Diameter: 465 mm / 18.31 inches
- Bolt Circle Diameter: 442–447 mm / 17.4–17.6 inch
- Bolt Hole Diameter: 7 mm / 0.28 inch
- Front Mount Baffle Cut-Out: 424 mm / 16.69 inch
- Rear Mount Baffle Cut-Out: 425 mm / 16.73 inch
- Volume Occupied by the Driver: 5.5 liters / 0.22 ft³
Standard Compliance
- Safety Agency: CE Compliant
Size & Weight
- Height: 223 mm / 8.78 inches
- Diameter: 465 mm / 18.31 inches
- Weight: 10.5 kg / 23.15 lbs
Shipping Information
- Package Height: 240 mm / 9.45 inches
- Package Width: 510 mm / 20.08 inches
- Package Depth: 480 mm / 18.9 inches
- Package Weight: 12.5 kg / 27.56 lbs
