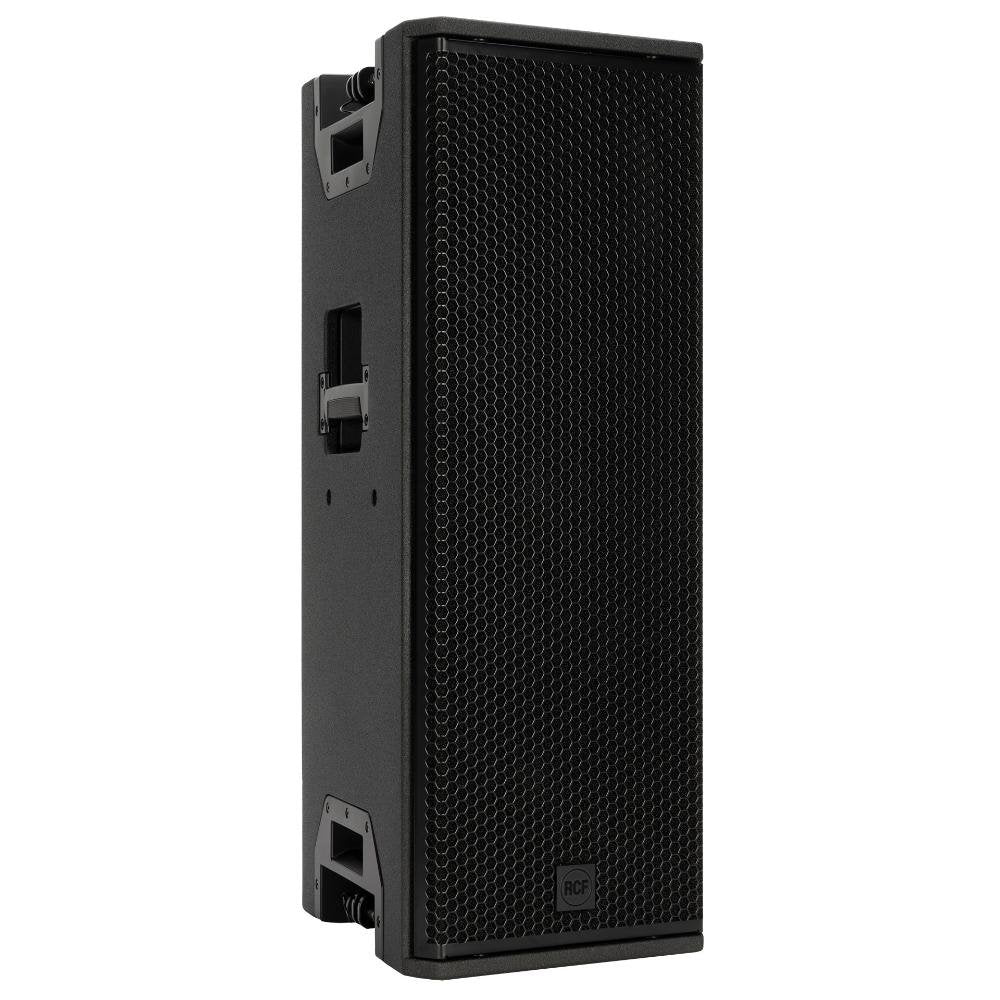

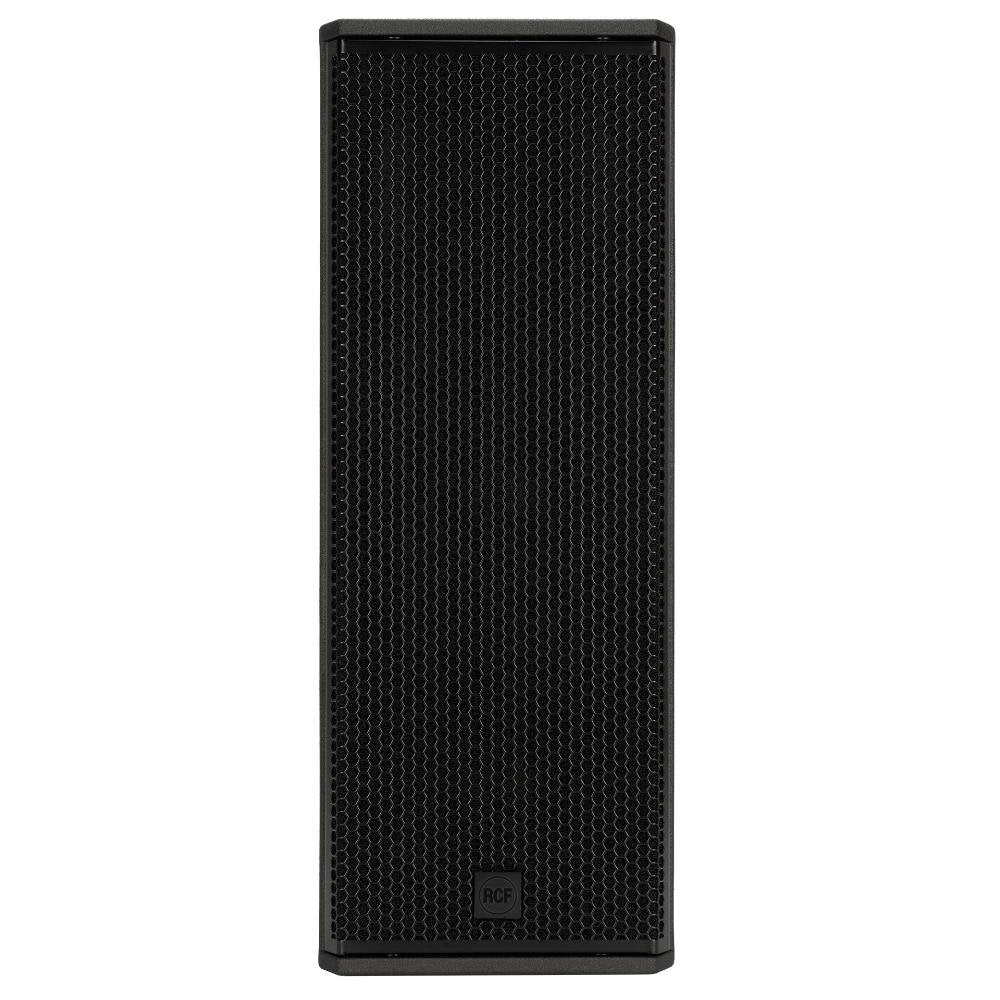

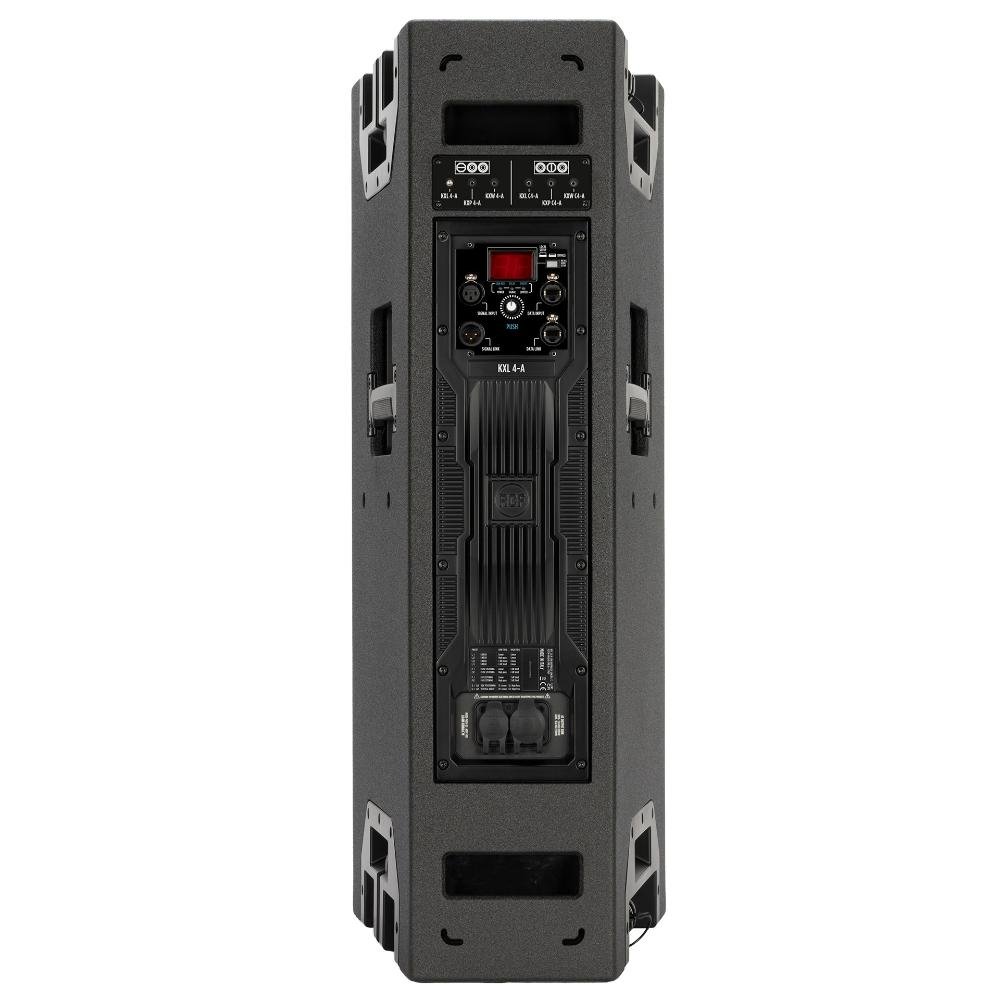

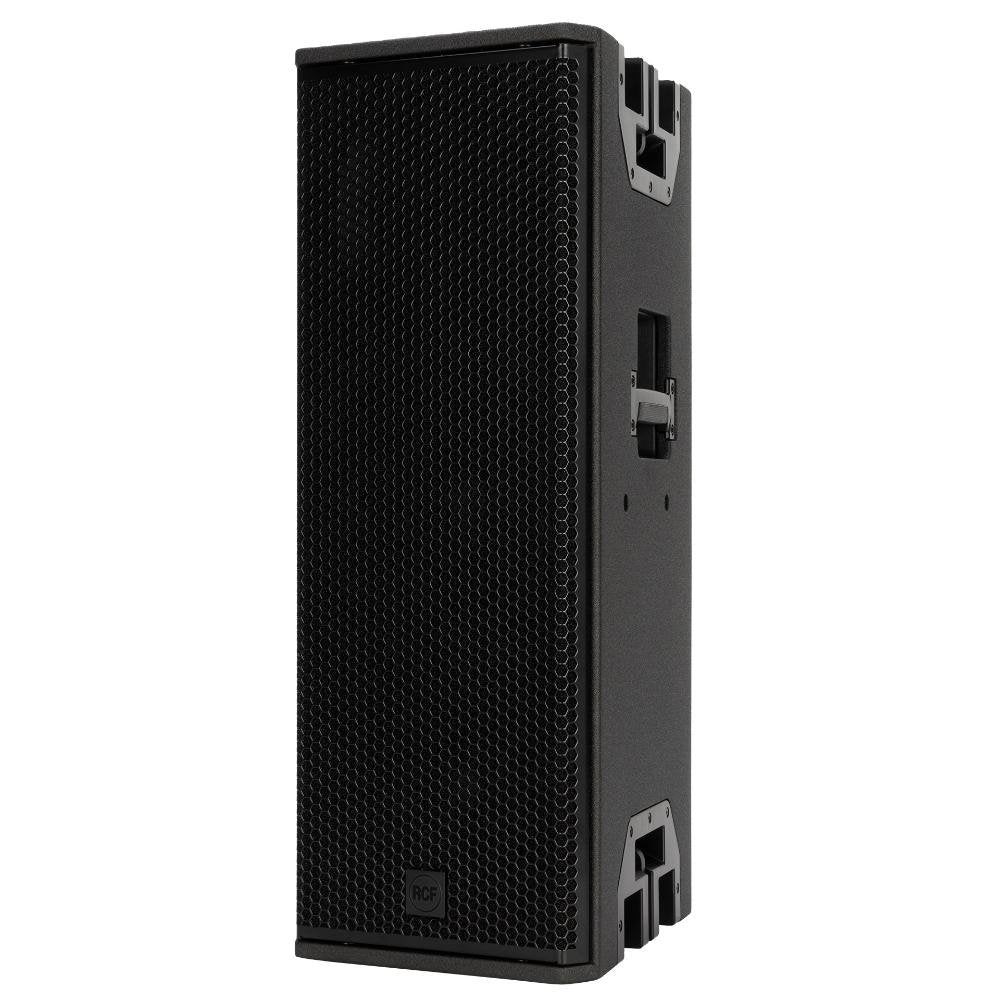

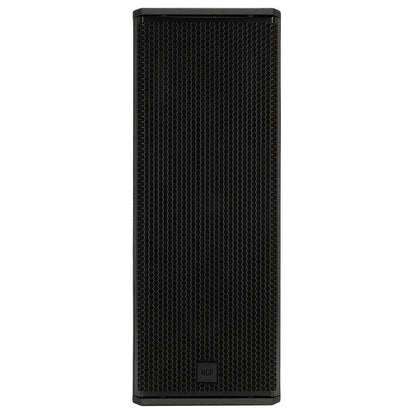

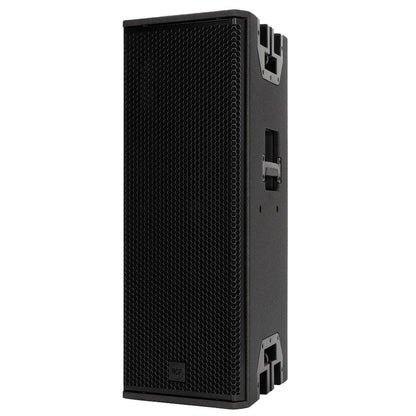

RCF KXP 4-A Active 3200W Dual 10" 2-Way Narrow Directivity Speaker (RDNET Ready) (60°X 25° Coverage)

Active 3200W Narrow Directivity Two-Way Speaker - (2) 10" Woofers

The KXP 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal array configurations. The low-frequency section features two 10” neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a rotatable 60° x 25° True Resistive Waveguide. Transducers can be swapped with a firmware update. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.

Features

• 135 dB max SPL
• Rotatable 60° x 25° TRW horn
• LF 2 x 10” neodymium woofer, 3.0” voice coil
• HF 4.0” titanium dome, neodymium compression driver
• 2 x Class-D amplifiers, 3200 Watt total power
• DSP Processing with FiRPHASE and BMC
• RDNet Networked Management
• Advanced rigging and powerCON TRUE1 TOP mains connectors

Specifications

ACOUSTICAL

• Frequency Response: 45 Hz - 20000 Hz
• Max SPL @ 1m: 135 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 25°

TRANSDUCERS

• Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
• Woofer: 2 x 10'' neo, 3.0'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: +4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 900 Hz
• Protections: Thermal, RMS
• Limiter: Fast Limiter
• Controls: Gain Reduction, delay, proces., 8 sel. presets
• RDNet: Onboard

POWER SECTION

• Total Power: 3200 W Peak, 1600 W RMS
• High frequencies: 1200 W Peak, 600 W RMS
• Low frequencies: 2000 W Peak, 1000 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Hardware: Array fittings, 2xM10 on the top, 2xM8 on each side
• Handles: 2 Side, 2 Rear
• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 825 mm / 32.48 inches
• Width: 316 mm / 12.44 inches
• Depth: 369 mm / 14.53 inches
• Weight: 30.4 kg / 67.02 lbs
