RCF KXM-25-A Active 3200W 15" 2-Way Coxial Stage Monitor (RDNET Ready)

Active 3200W 15" 2-Way Coxial Stage Monitor (RDNET Ready)

The KXM 25-A is a very high-output active monitor designed for maximum impact, precision, and controlled coverage in professional environments. Reaching 137 dB SPL Max and powered by a 3200 W peak Class-D amplifier, it delivers a focused 60° x 60° constant-directivity pattern that supports a clean monitoring window and strong gain-before-feedback. Its coaxial architecture combines a 15” neodymium coaxial woofer with a 3.5” voice coil and a 2.5” neodymium coaxial compression driver, keeping the sound coherent and consistent as performers move. Integrated DSP processing with FiRPHASE and BMC improves coherence and definition in real-world conditions, and onboard RDNet control enables centralized monitoring and control for efficient stage workflows. The multifunctional cabinet makes KXM 25-A equally effective as a stage wedge or as a controlled point source in portable FOH or fill applications.

FEATURES

• 137 dB SPL Max
• 3200 W peak power Class D Amplifier
• 60 x 60 constant directivity coverage

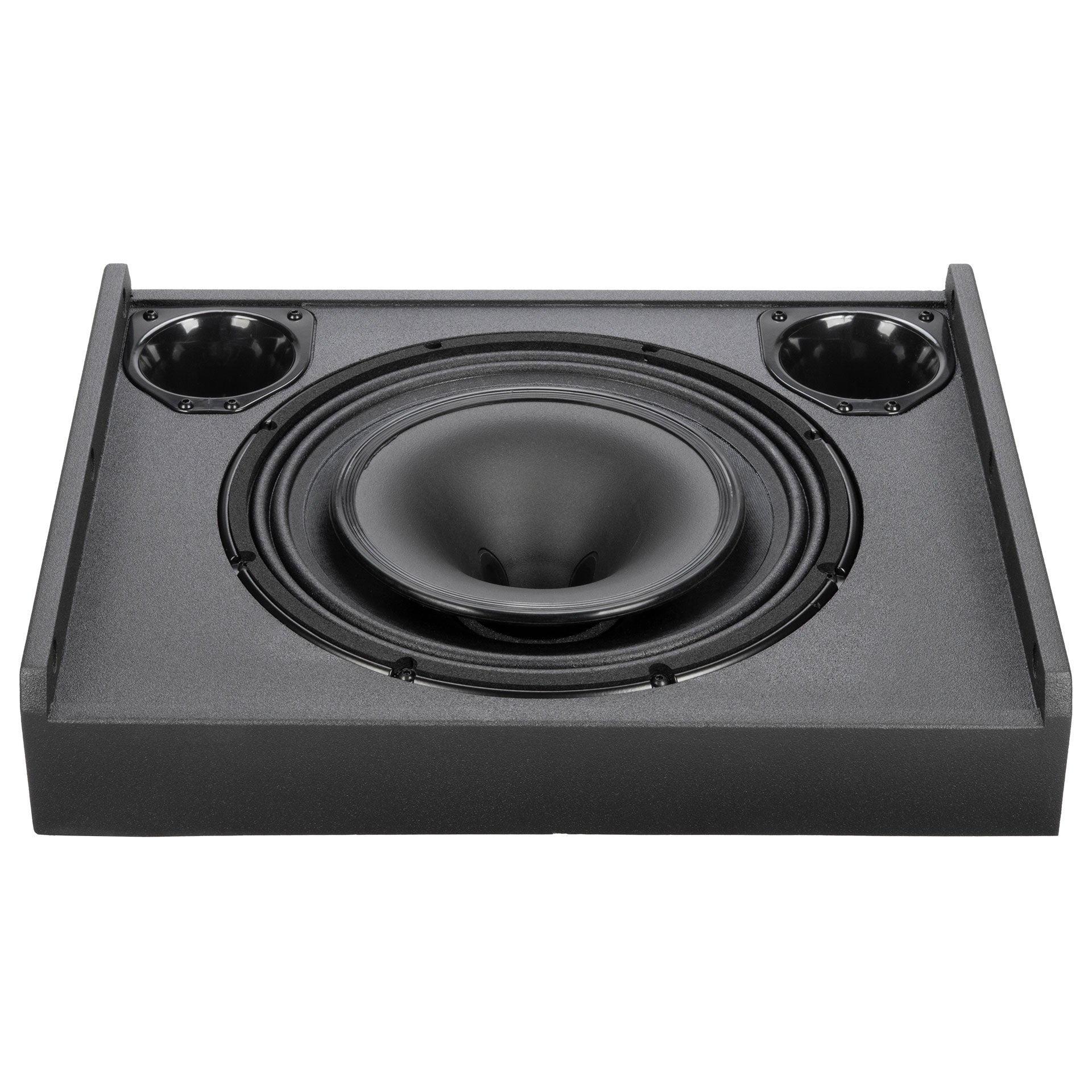

• 15" neo coaxial woofer, 3.5" voice coil
• 2.5" neo coaxial compression driver
• FiRPHASE and Bass Motion Control
• RDNet Networked Management
• Multifunctional cabinet with coaxial transducers’ design

Specifications

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 50 Hz - 20000 Hz
• Max SPL @ 1m: 137 dB
• Horizontal coverage angle: 60°
• Vertical coverage angle: 60°

TRANSDUCERS

• Compression Driver: Coaxial 1.5'' neo, 2.5'' v.c
• Woofer: Coaxial 15'' neo, 3.5'' v.c

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 900 Hz
• Protections: Thermal, HF
• Limiter: Soft Limiter
• Controls: Proces., 8 sel. presets
• RDNet: Onboard

POWER SECTION

• Total Power: 3200 W Peak
• High frequencies: 1200 W Peak
• Low frequencies: 2000 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Handles: 1 Top
• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 353 mm / 13.9 inches
• Width: 580 mm / 22.83 inches
• Depth: 486 mm / 19.13 inches
• Weight: 18 kg / 39.68 lbs

SHIPPING INFORMATION

• Package Height: 615 mm / 24.21 inches
• Package Width: 390 mm / 15.35 inches
• Package Depth: 515 mm / 20.28 inches
• Package Weight: 23 kg / 50.71 lbs
