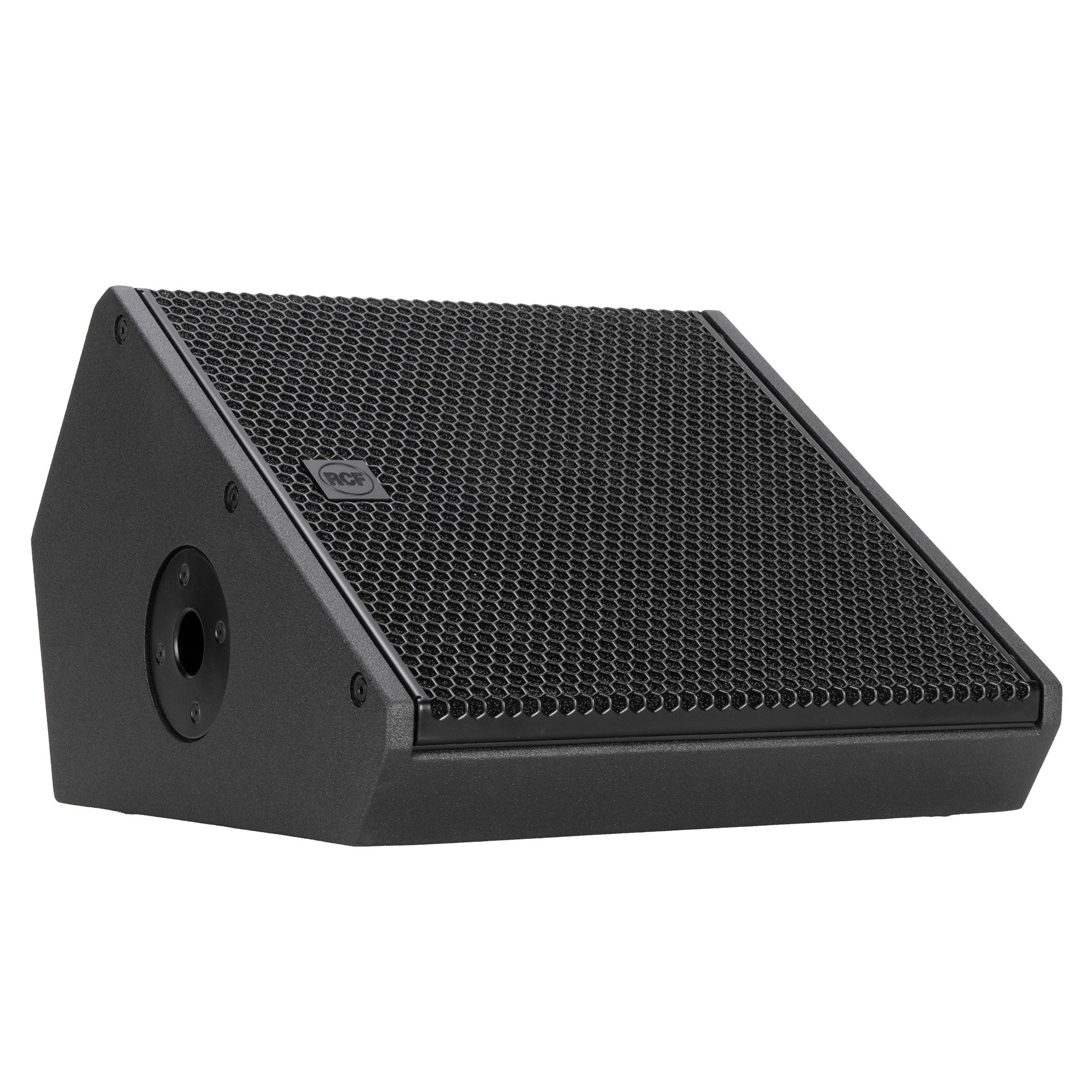

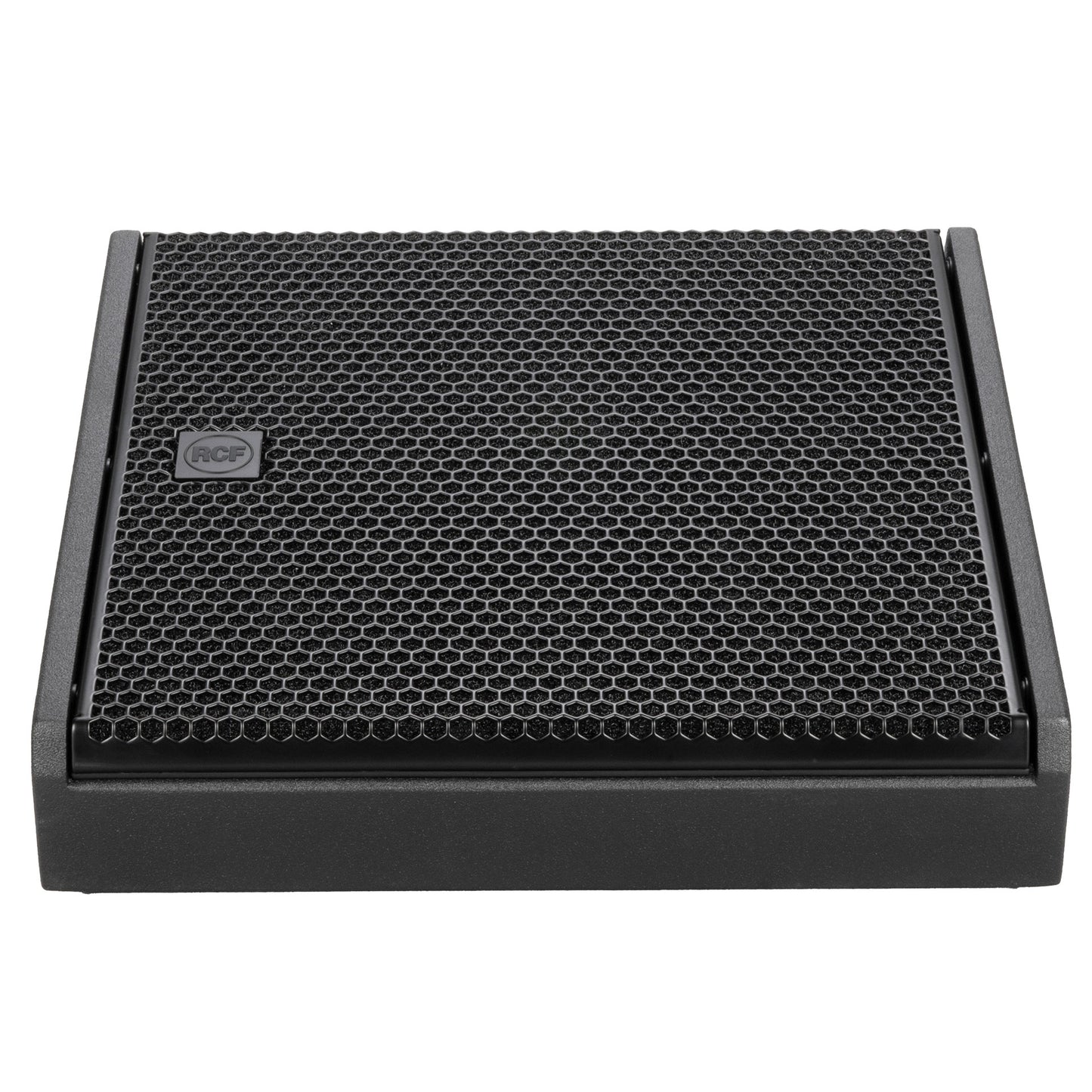

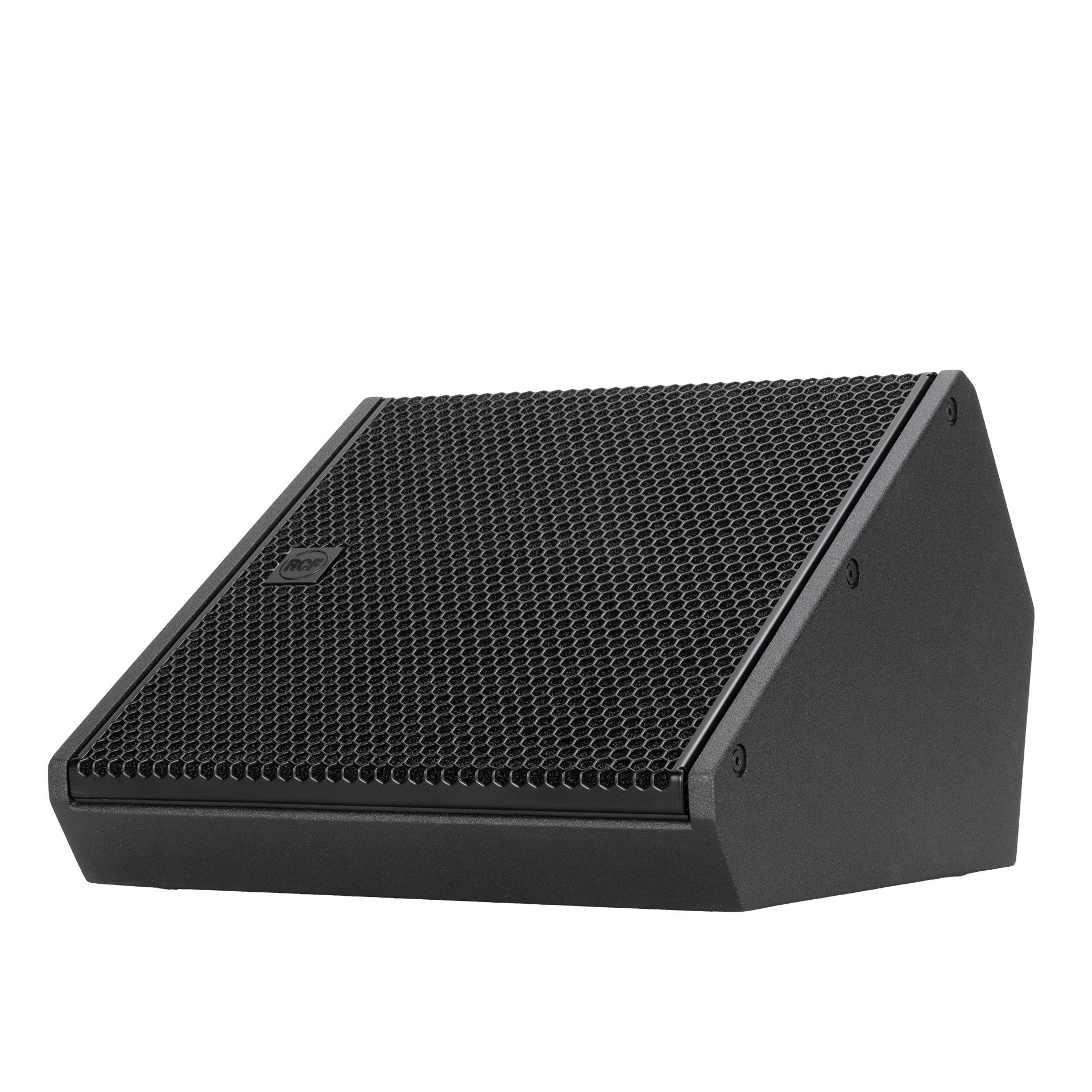

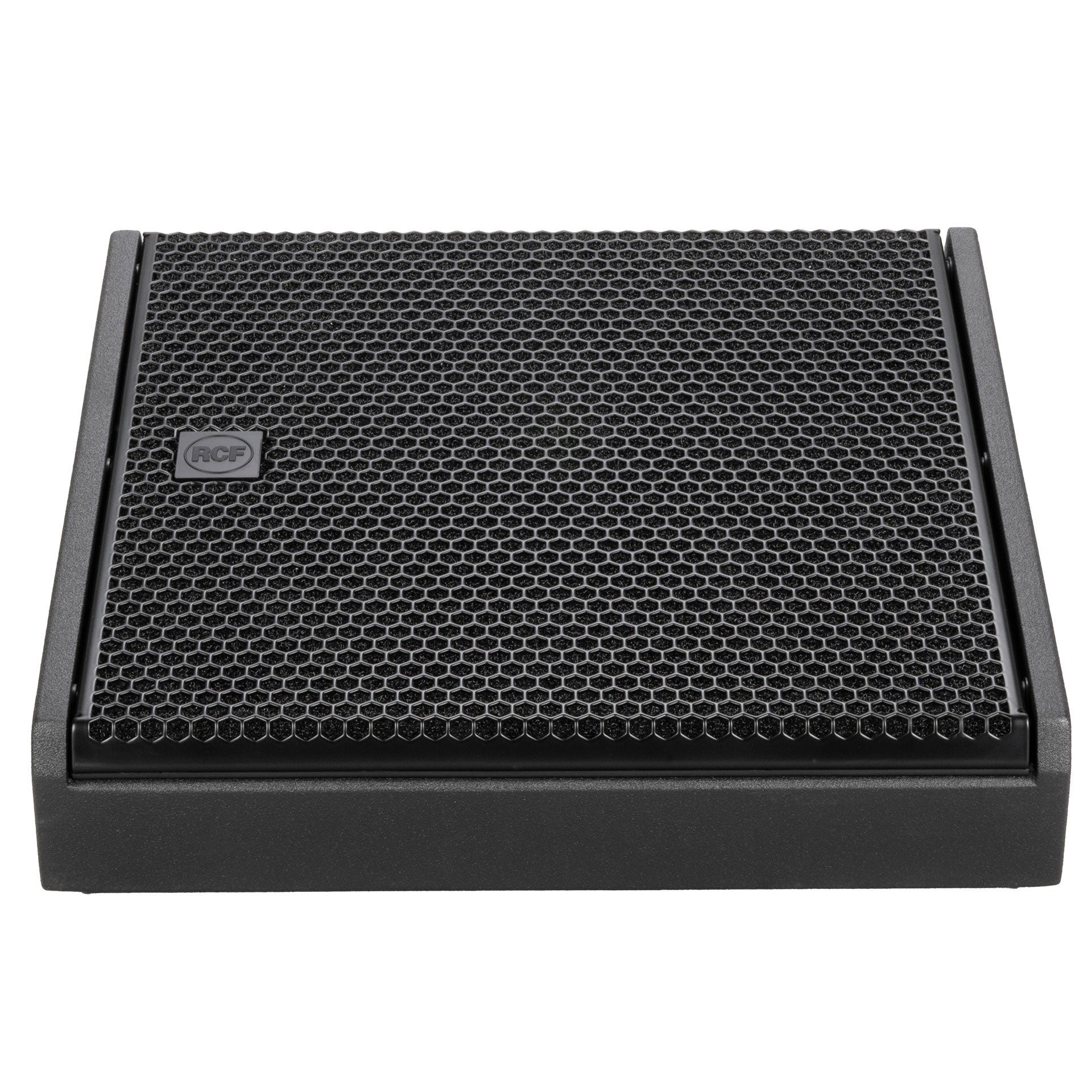

RCF KXM-20-A Active 2000W Dual 8" 2-Way Stage Monitor (RDNET Ready)

Active 2000W Dual 8" 2-Way Stage Monitor (RDNET Ready)

The KXM 20-A is a high-output, two-way active stage monitor engineered for clarity, control, and fast deployment. Delivering up to 134 dB SPL Max with a 2000 W Peak Class-D amplifier, it provides 90° x 70° constant-directivity coverage for a stable monitoring window and predictable off-axis response. The multifunctional cabinet features a symmetrical transducer configuration to ensure consistent voicing across the listening area. Two 8” neodymium woofers with 2.5” voice coils deliver punch and headroom, while a horn-loaded neodymium compression driver with a 3” voice coil ensures strong vocal presence and projection. Integrated DSP processing with FiRPHASE and BMC improves coherence and definition in real-world conditions, and onboard RDNet control enables centralized monitoring and control for efficient stage workflows. The multifunctional cabinet makes KXM 20-A equally effective as a stage wedge or as a controlled point source in portable FOH or fill applications.

FEATURES

• 131 dB SPL Max
• 2000W Peak, two-way Class-D amplifier
• 90° x 70° constant directivity coverage

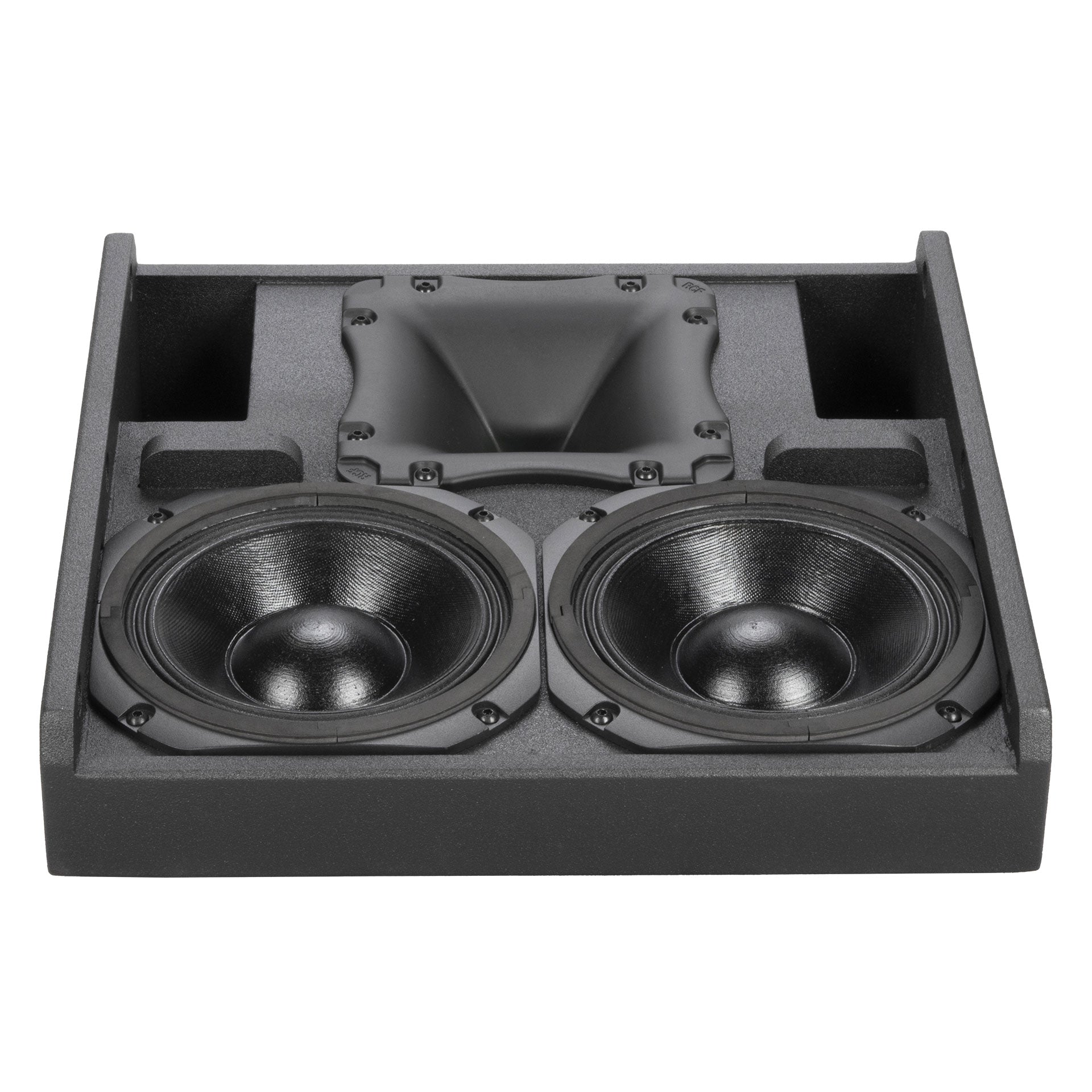

• 2 x 8’’ neodymium Woofers, 2.5’’ voice coil.
• TRW loaded 3" voice coil neodymium compression driver,
• FiRPHASE and Bass Motion Control
• RDNet Networked Management
• Multifunctional cabinet with symmetrical transducers’ design

Specifications

ACOUSTICAL SPECIFICATIONS

• Frequency Response: 60 Hz - 20000 Hz
• Max SPL @ 1m: 131 dB
• Horizontal coverage angle: 90°
• Vertical coverage angle: 70°

TRANSDUCERS

• Compression Driver: 1 x 1.5'' neo, 3.0'' v.c
• Woofer: 2 x 8'' neo, 2.5'' v.c

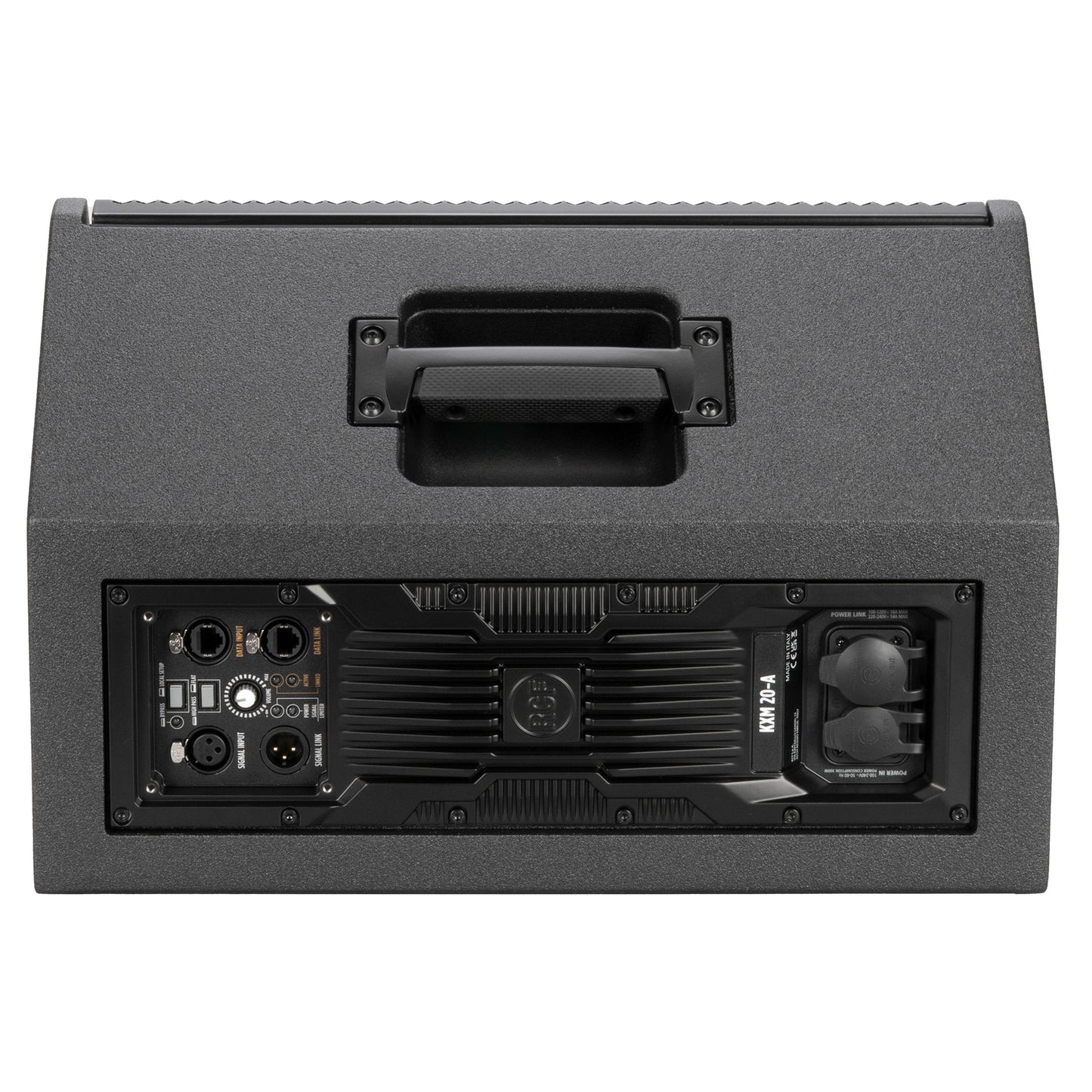

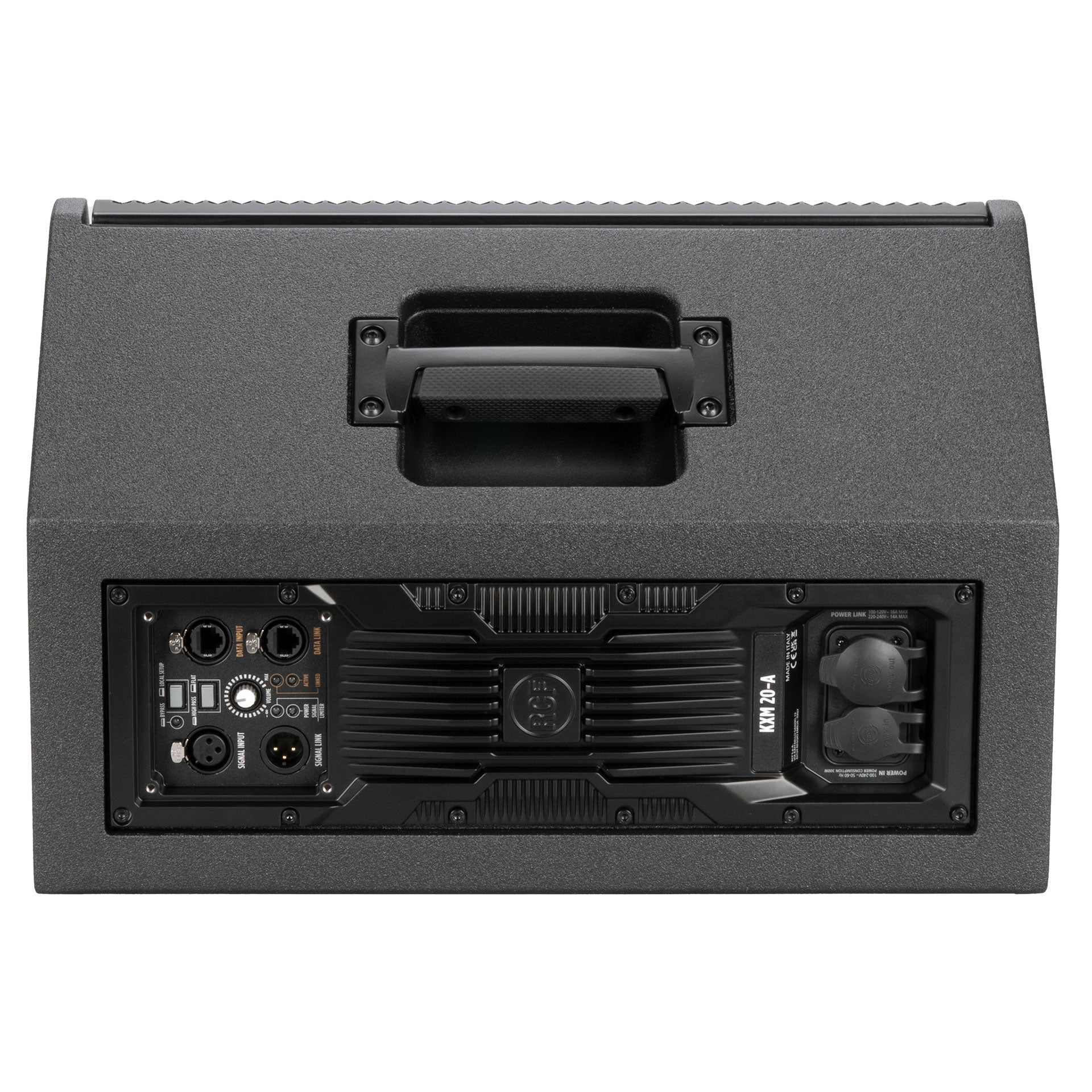

INPUT/OUTPUT SECTION

• Input signal: bal/unbal
• Input connectors: XLR, RDNet Ethercon
• Output connectors: XLR, RDNet Ethercon
• Input sensitivity: -2 dBu/+4 dBu

PROCESSOR SECTION

• Crossover Frequencies: 900 Hz
• Protections: Thermal, HF
• Limiter: Fast Limiter
• Controls: Bypass, Linear/High Pass, Volume, RDnet on boar
• RDNet: Onboard

POWER SECTION

• Total Power: 2000 W Peak
• High frequencies: 600 W Peak
• Low frequencies: 1400 W Peak
• Cooling: Convection
• Connections: Powercon TRUE1 TOP IN/OUT

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Baltic birch plywood
• Handles: 1 TOP

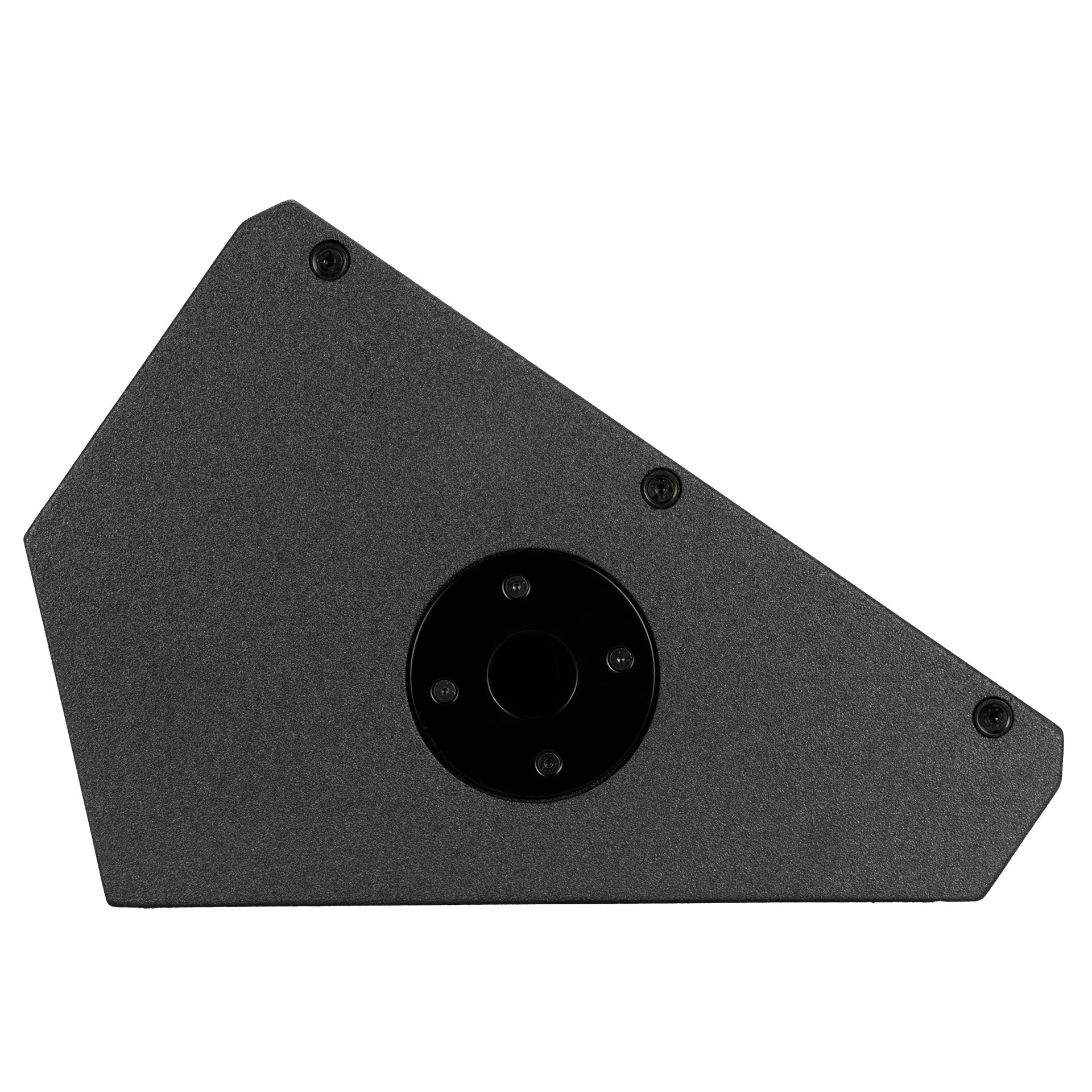

• Pole mount/Cap: 35 mm insert
• Grille: Steel
• Color: Black

SIZE / WEIGHT

• Height: 318 mm / 12.52 inches
• Width: 445 mm / 17.52 inches
• Depth: 450 mm / 17.72 inches
• Weight: 14 kg / 30.86 lbs

SHIPPING INFORMATION

• Package Height: 500 mm / 19.69 inches
• Package Width: 490 mm / 19.29 inches
• Package Depth: 375 mm / 14.76 inches
• Package Weight: 16.4 kg / 36.16 lbs
