Description

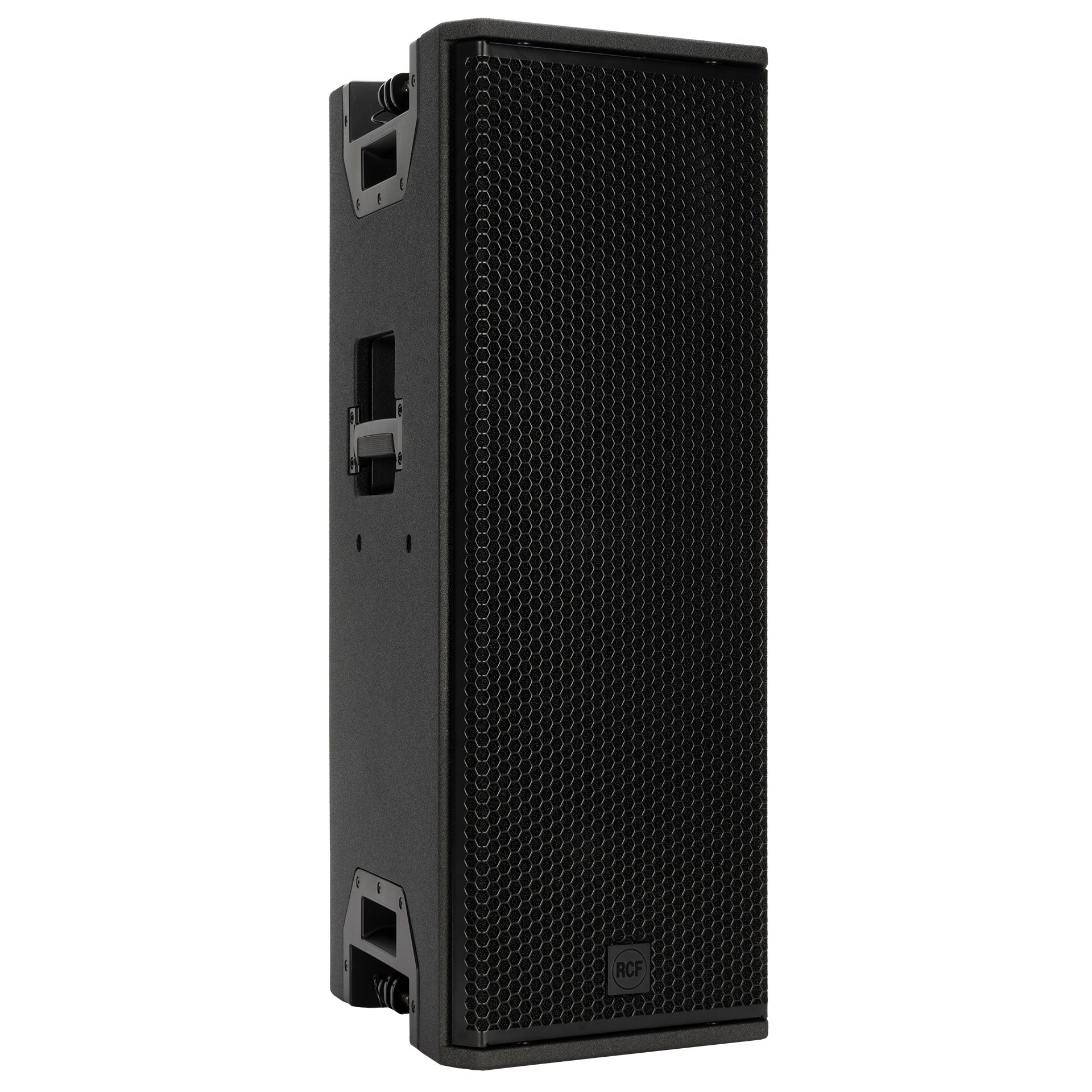

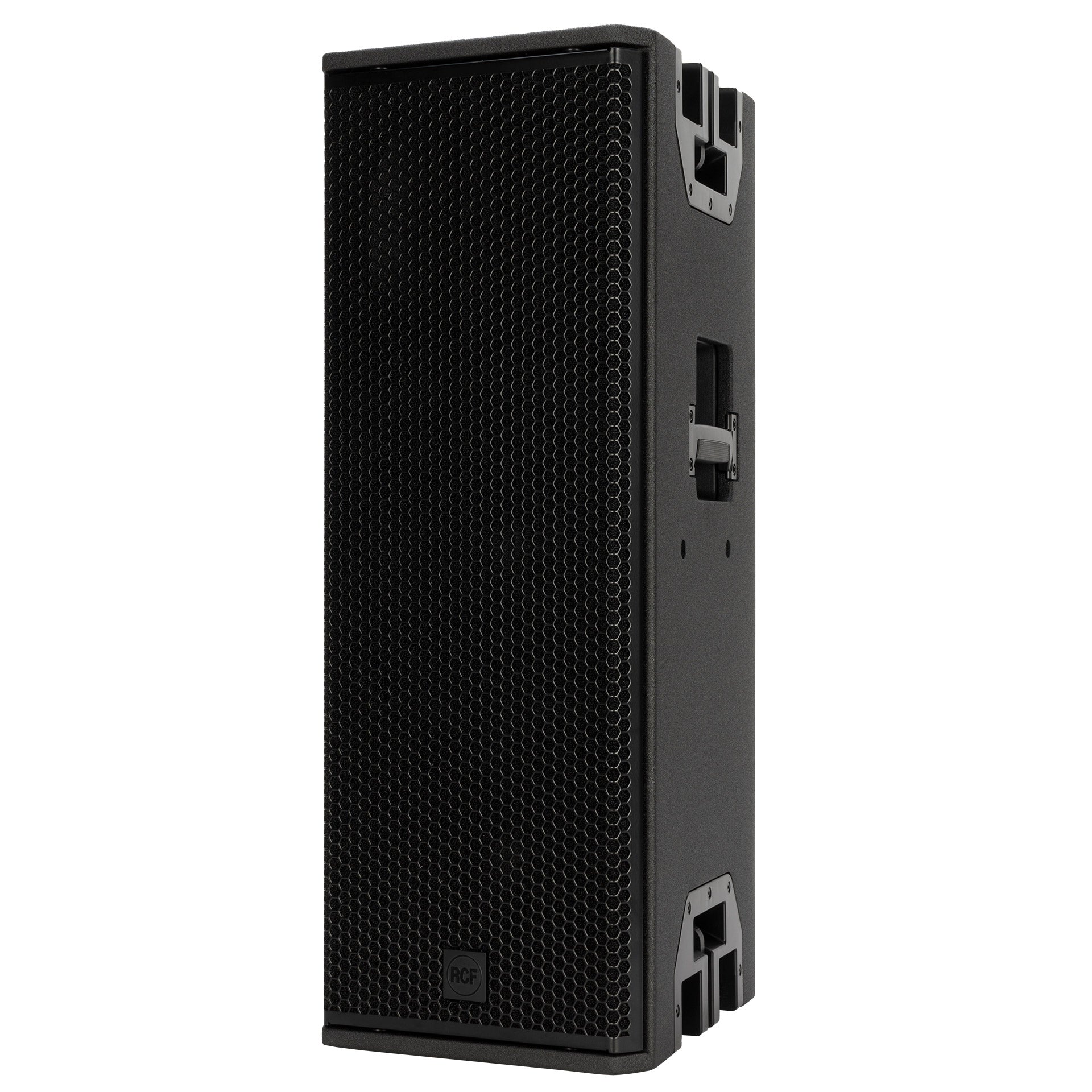

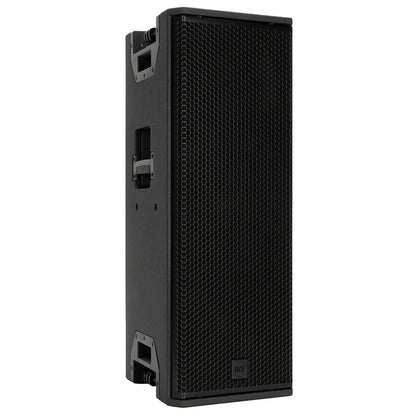

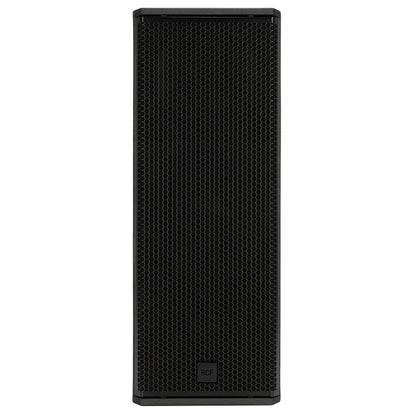

Active 3200W Dual 10" 2-Way Line Source Speaker (RDNET Ready)

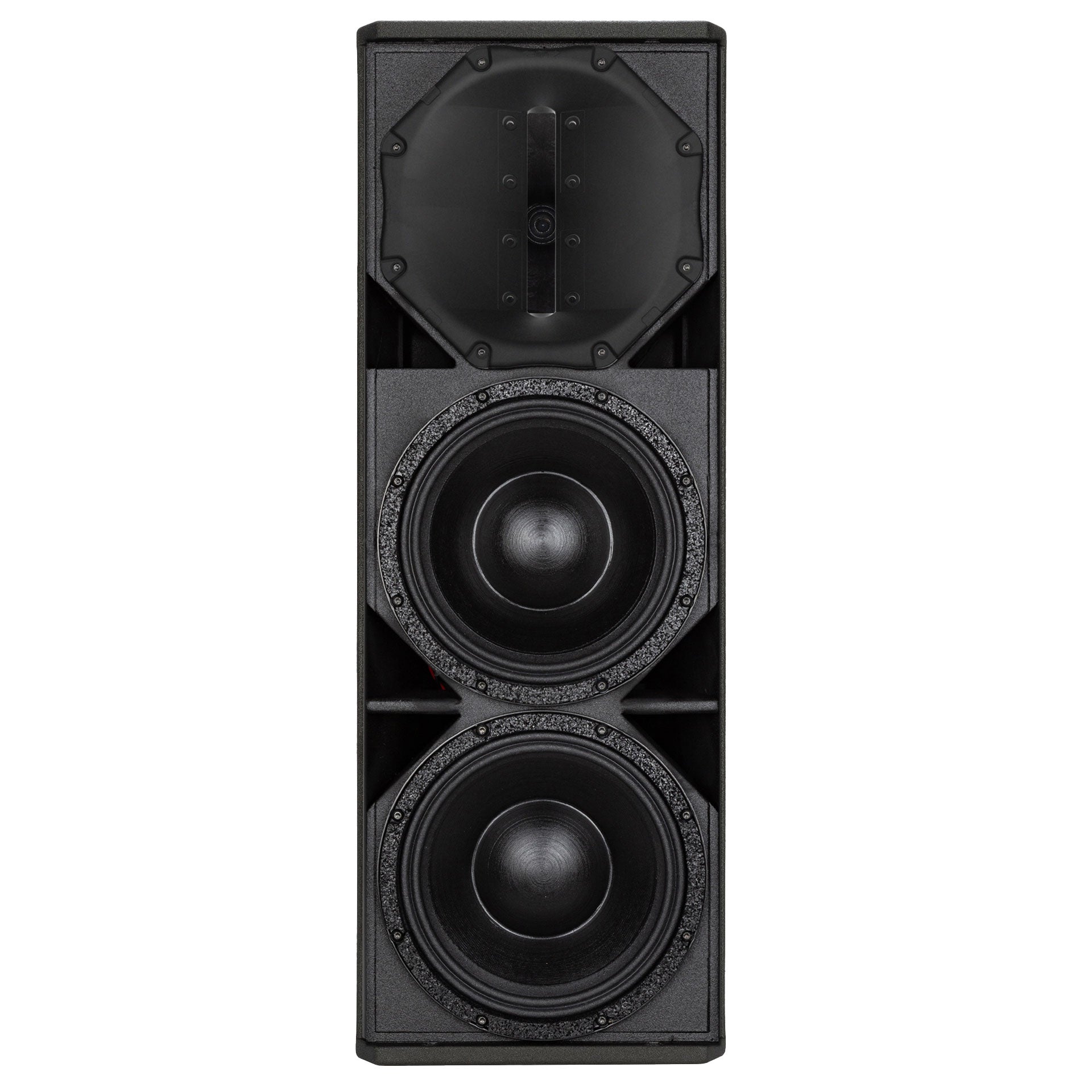

The KXL 4-A is a compact, flexible high-output 2-way active speaker engineered for professional users, combining precise directivity, high SPL capability, and advanced rigging for both vertical and horizontal array configurations. The low-frequency section features two 10” neodymium drivers in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a rotatable 100° x 25° True Resistive Waveguide. Transducers can be swapped (firmware update required). An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
FEATURES
- 135 dB max SPL
- Rotatable 100° x 25° TRW waveguide
- LF 2 x 10’’ neodymium woofer, 3.0” voice coil
- HF 4.0” titanium dome, neodymium comp. driver
- 2 x Class-D amplifiers, 3200 Watt total power
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- Advanced Rigging and powerCON TRUE1 TOP mains connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 45 Hz - 20000 Hz
-
Max SPL @ 1m: 135 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 25°
TRANSDUCERS
-
Compression Driver: 1 x 1.4'' neo, 4.0'' v.c
-
Woofer: 2 x 10'' neo, 3.0'' v.c

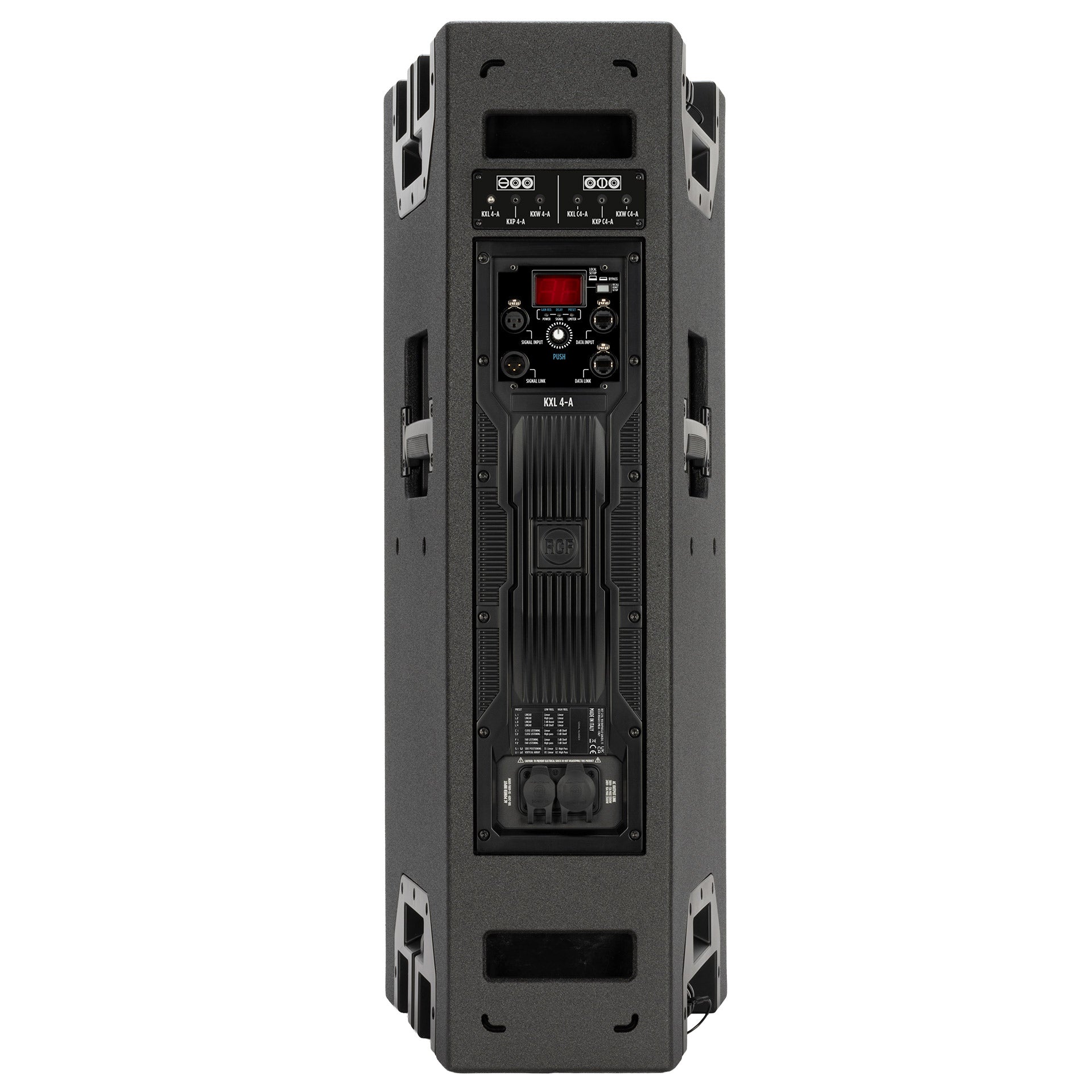

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: +4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 900Hz
-
Protections: Thermal, RMS
-
Limiter: Fast Limiter
-
Controls: Gain Reduction, delay, proces., 8 sel. presets
-
RDNet: Onboard
POWER SECTION
-
Total Power: 3200 W Peak
-
High frequencies: 1200 W Peak
-
Low frequencies: 2000 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-

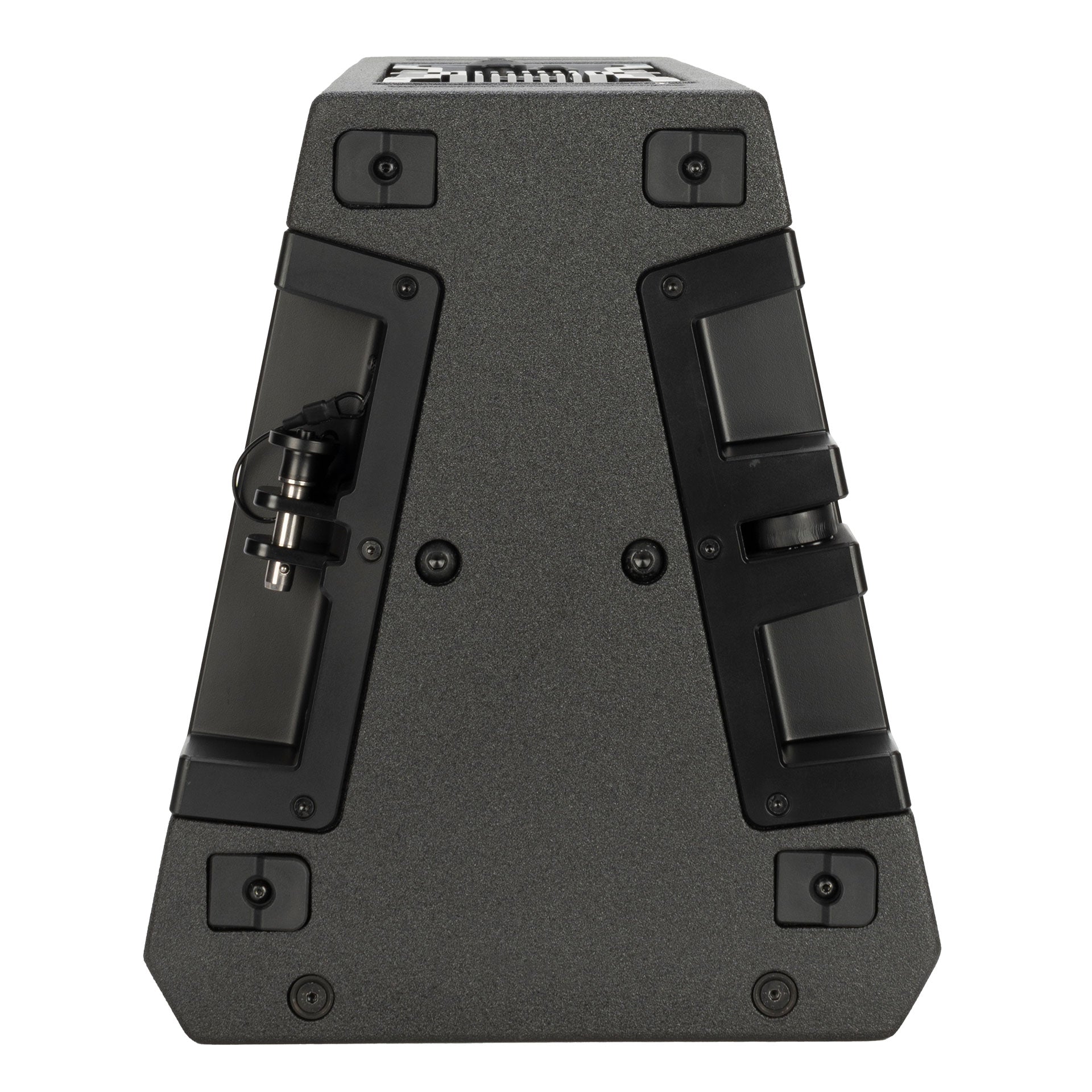

Hardware: Array fittings, 2xM10 on the top, 2xM8
-

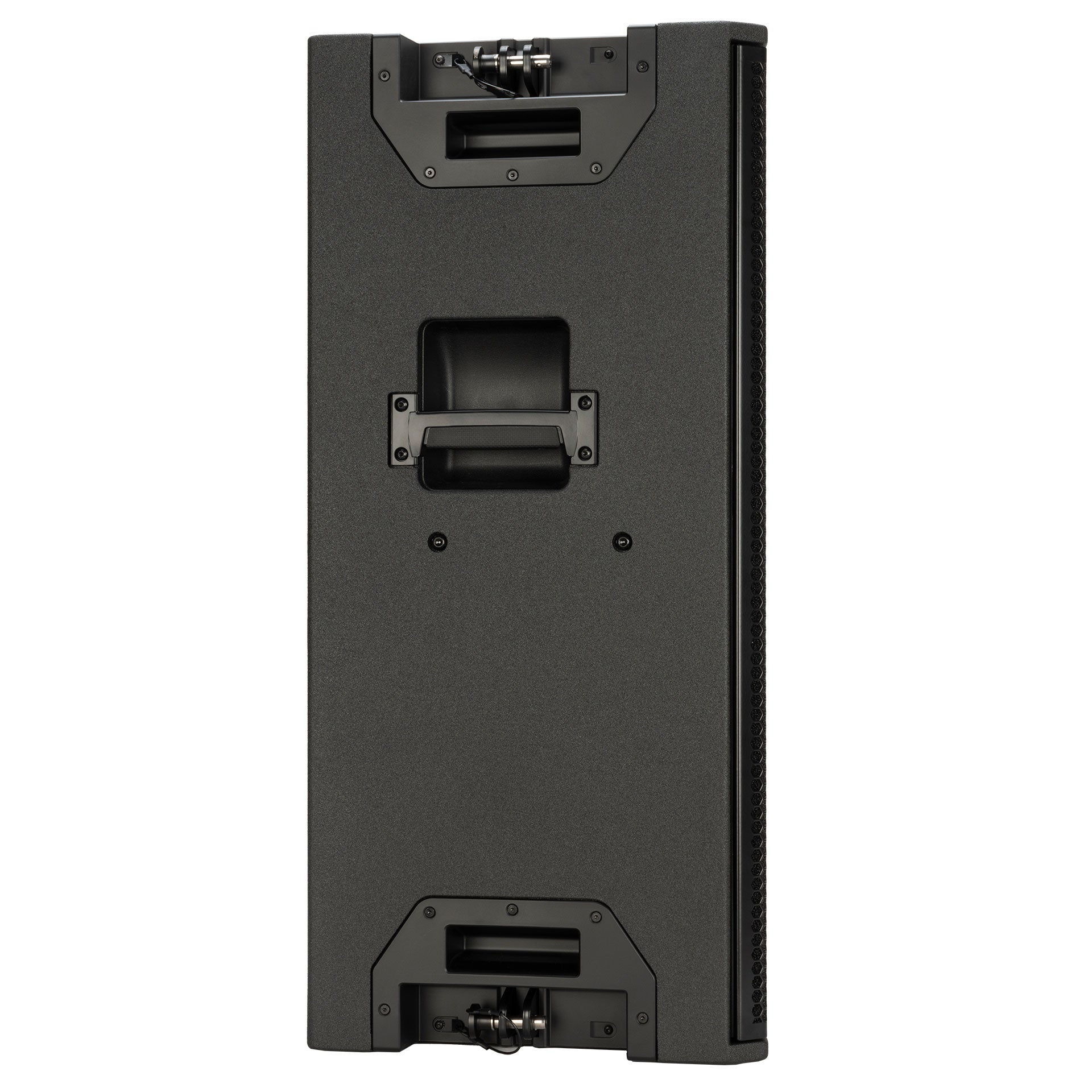

Handles: 2 side, 2 rear
-

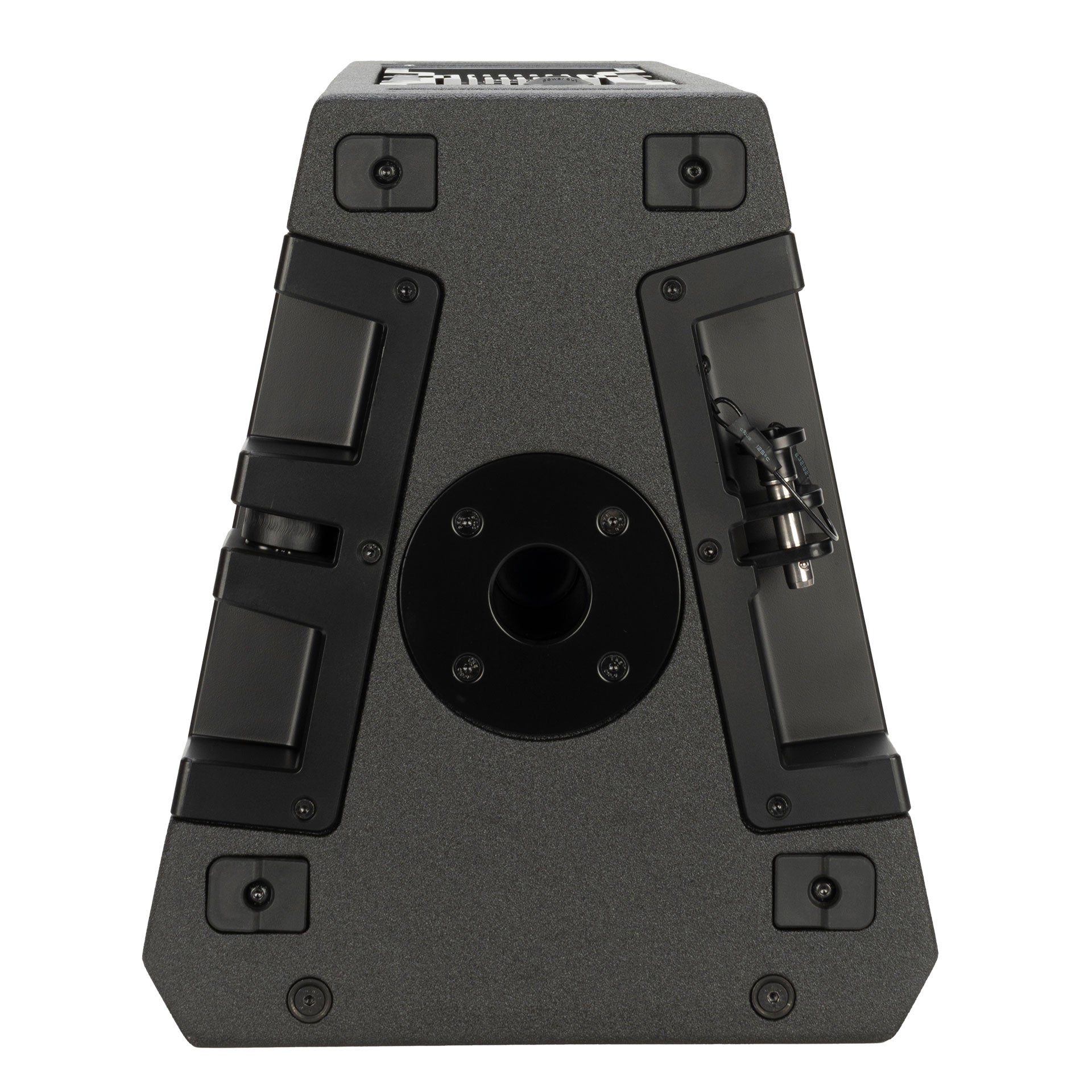

Pole mount/Cap: 35 mm insert
-

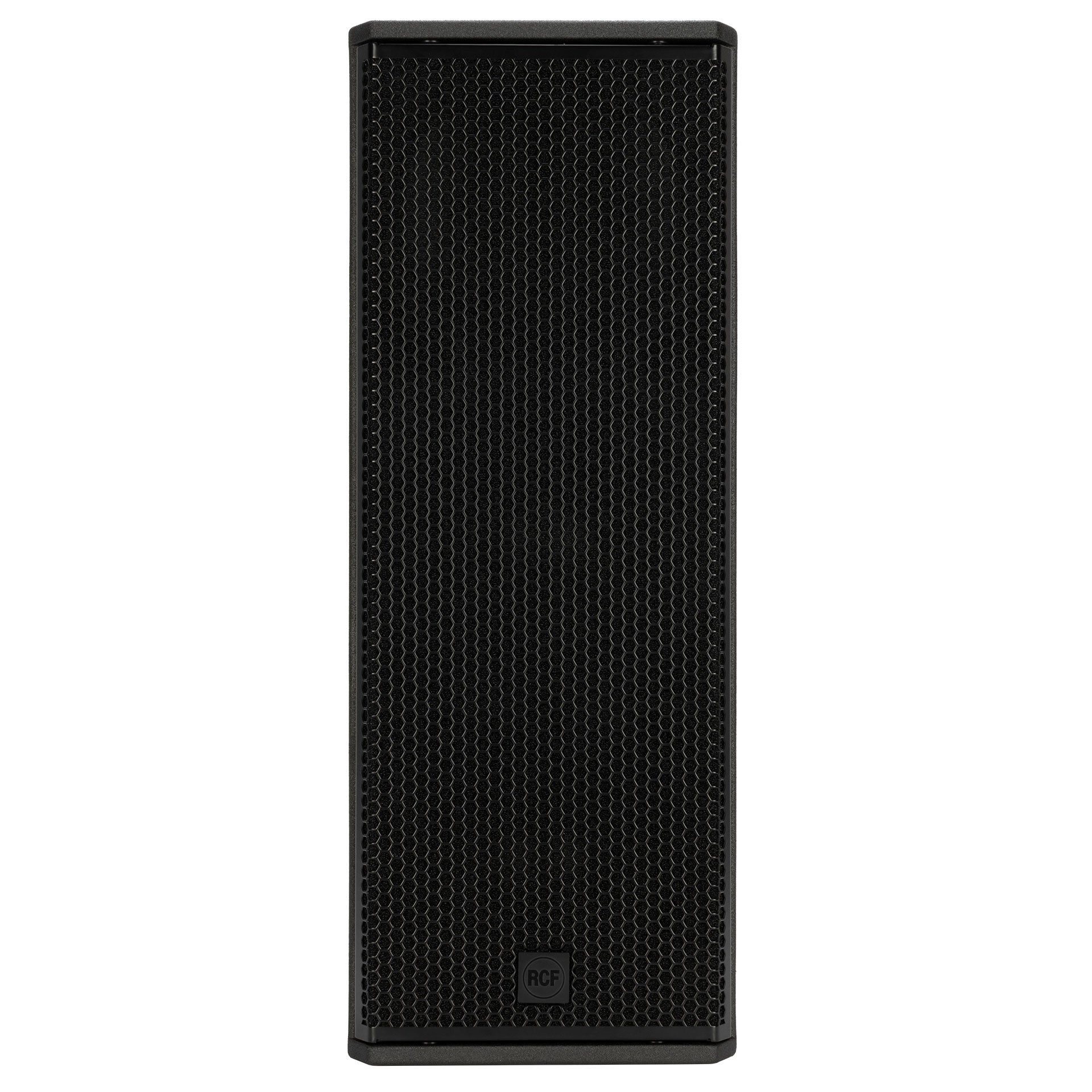

Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 825 mm / 32.48 inches
-
Width: 310 mm / 12.2 inches
-
Depth: 369 mm / 14.53 inches
-
Weight: 30.4 kg / 67.02 lbs
SHIPPING INFORMATION
-
Package Height: 410 mm / 16.14 inches
-
Package Width: 865 mm / 34.06 inches
-
Package Depth: 365 mm / 14.37 inches
-
Package Weight: 33.5 kg / 73.85 lbs
