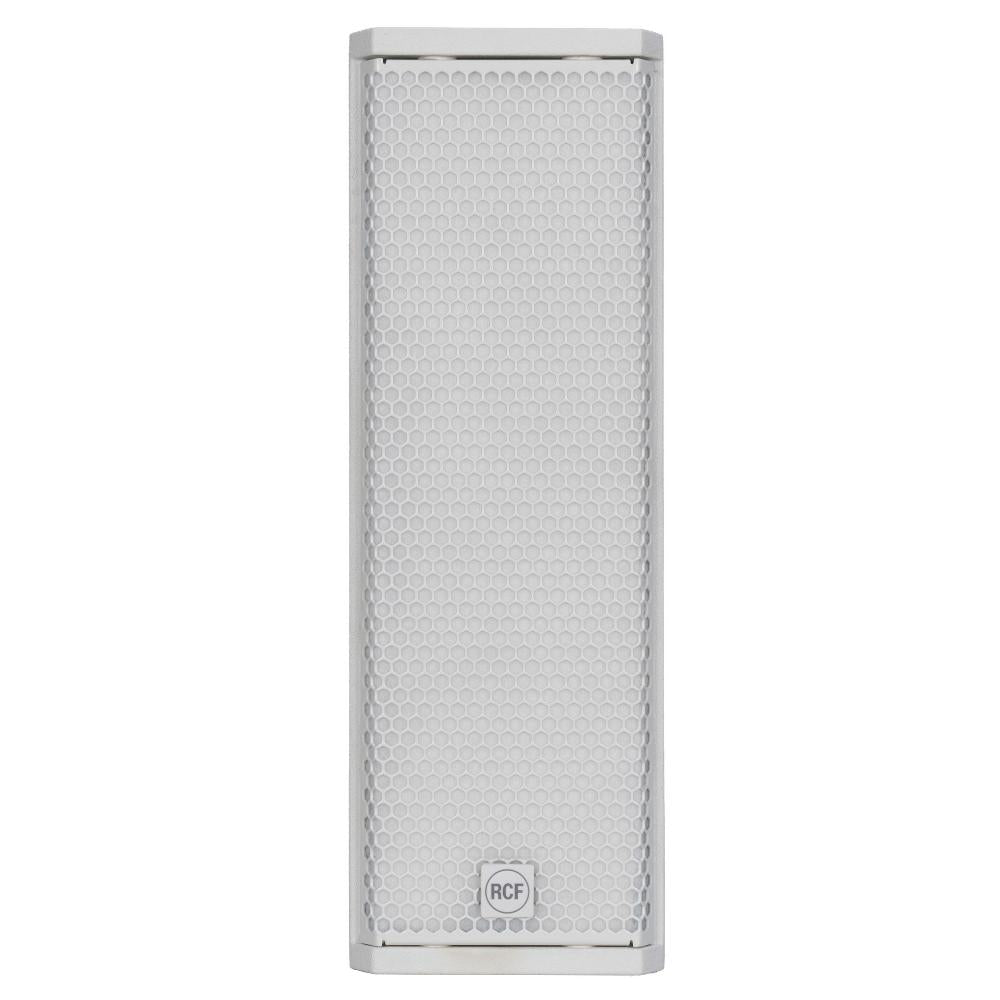

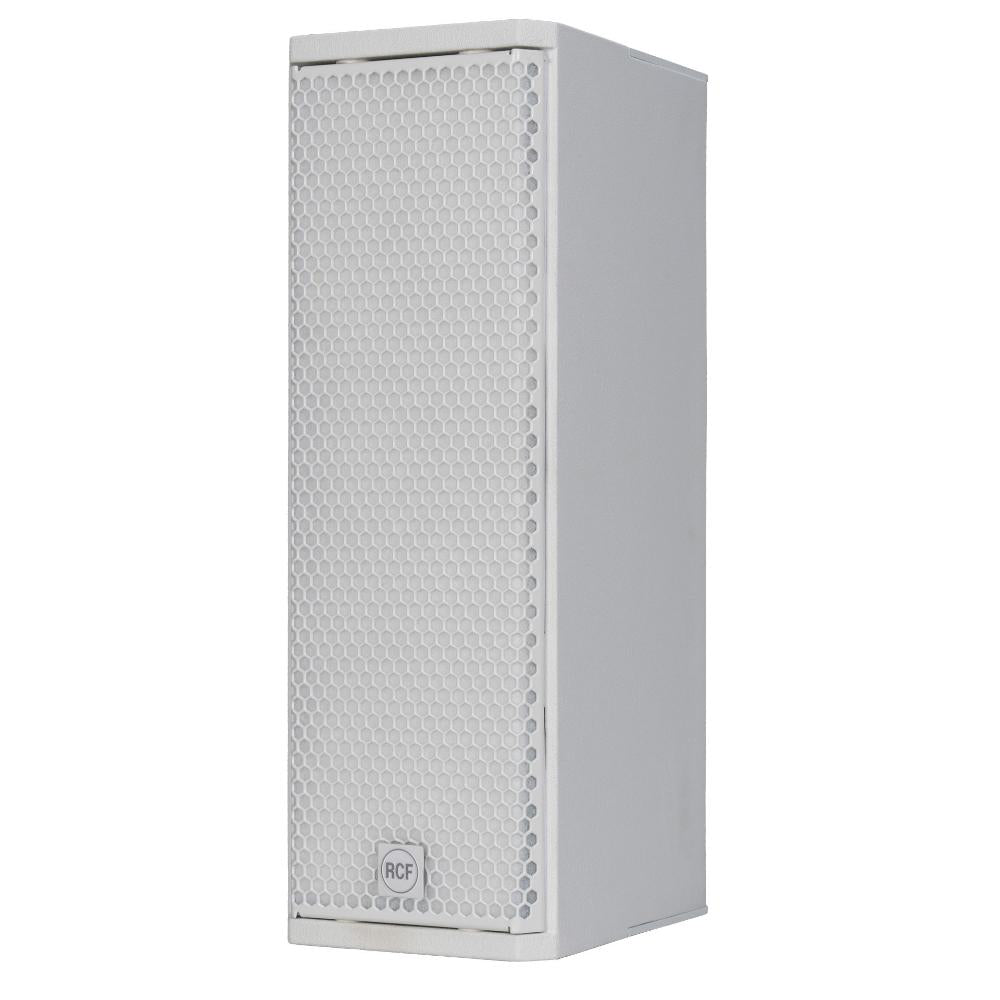

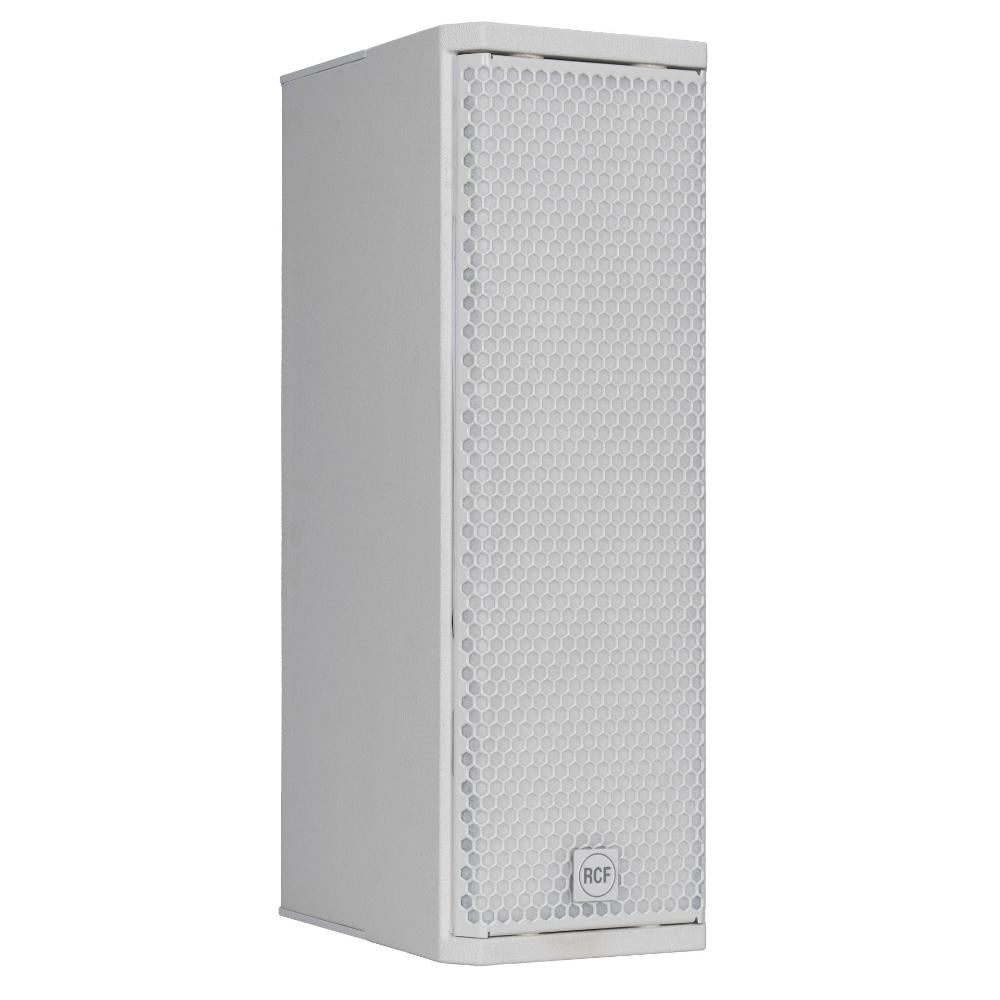

RCF KX 515-A W Active 2000W Dual 5" Speaker (RDNET Ready) (White)

RCF KX 515-A W Active 2000W Dual 5" Speaker (RDNET Ready) (White)

Write a review

SKU: KX 515-A W

$2,999.00
$2,999.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Active 2000W Dual 5" Speaker (RDNET Ready) (White)

Flexibility, power, and compactness make the KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, KX 515-A is quick to deploy and fast to tune.

Features

  • 127 dB max SPL
  • Rotatable 100° x 70° CMD horn
  • LF 2 x 5” neodymium woofer, 2” voice coil
  • HF 1.75” titanium dome, neodymium comp. driver
  • Dual Class-D amplifier, 2000 Watts total peak power
  • DSP Processing with FiRPHASE and BMC
  • RDNet Networked Management
  • powerCON TRUE1 TOP mains connectors
  • Available in full black or white coating

    • Specifications

    Acoustical specifications
    Frequency Response 70 Hz - 20000 Hz
    Max SPL @ 1m 127 dB
    Horizontal coverage angle 100°
    Vertical coverage angle 70°
    Transducers
    Compression Driver 1 x 1.0'' neo, 1.75'' v.c
    Woofer 2 x 5.0'' neo, 2.0'' v.c
    Input/Output section
    Input signal bal/unbal
    Input connectors XLR, RDNet Ethercon
    Output connectors XLR, RDNet Ethercon
    Input sensitivity -2 dBu/+4 dBu
    Processor section
    Crossover Frequencies 1200
    Protections Excurs.
    Limiter Fast Limiter
    Controls Bypass, Linear/High Pass, Volume
    RDNet Onboard
    Power section
    Total Power 2000 W Peak
    High frequencies 600 W Peak
    Low frequencies 1400 W Peak
    Cooling Convection
    Connections Powercon TRUE1 TOP IN/OUT
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood
    Hardware 2X M10 TOP AND BOTTOM
    2X PIN D.10
    Handles 2 TOP AND BOTTOM
    Pole mount/Cap Quick-fit socket
    Grille Steel with clothing
    Color Black, White
    Size / Weight
    Height 456 mm / 17.95 inches
    Width 154 mm / 6.06 inches
    Depth 237.5 mm / 9.35 inches
    Weight 9.8 kg / 21.61 lbs
    Shipping information
    Package Height 510 mm / 20.08 inches
    Package Width 290 mm / 11.42 inches
    Package Depth 200 mm / 7.87 inches
    Package Weight 11.3 kg / 24.91 lbs
