Description

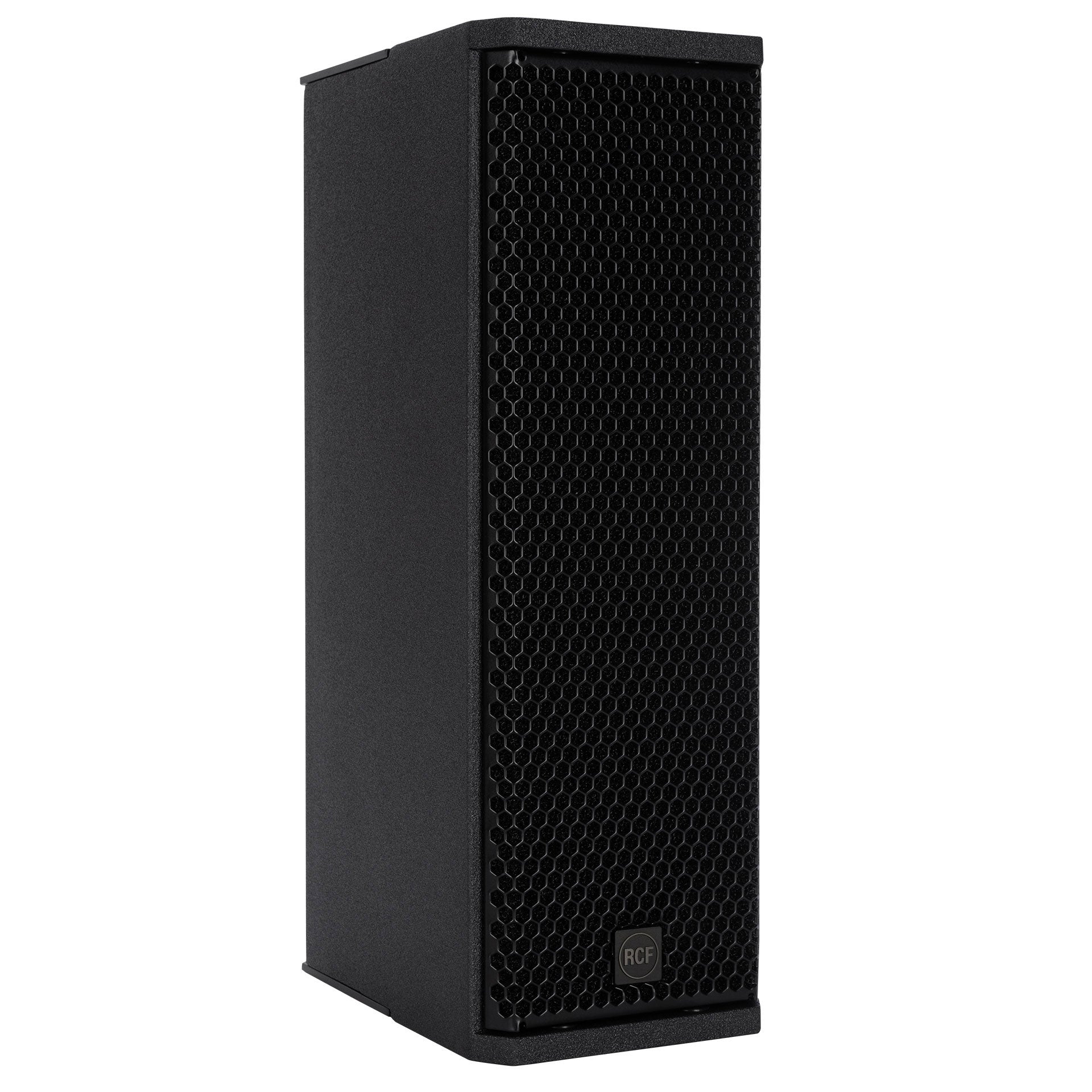

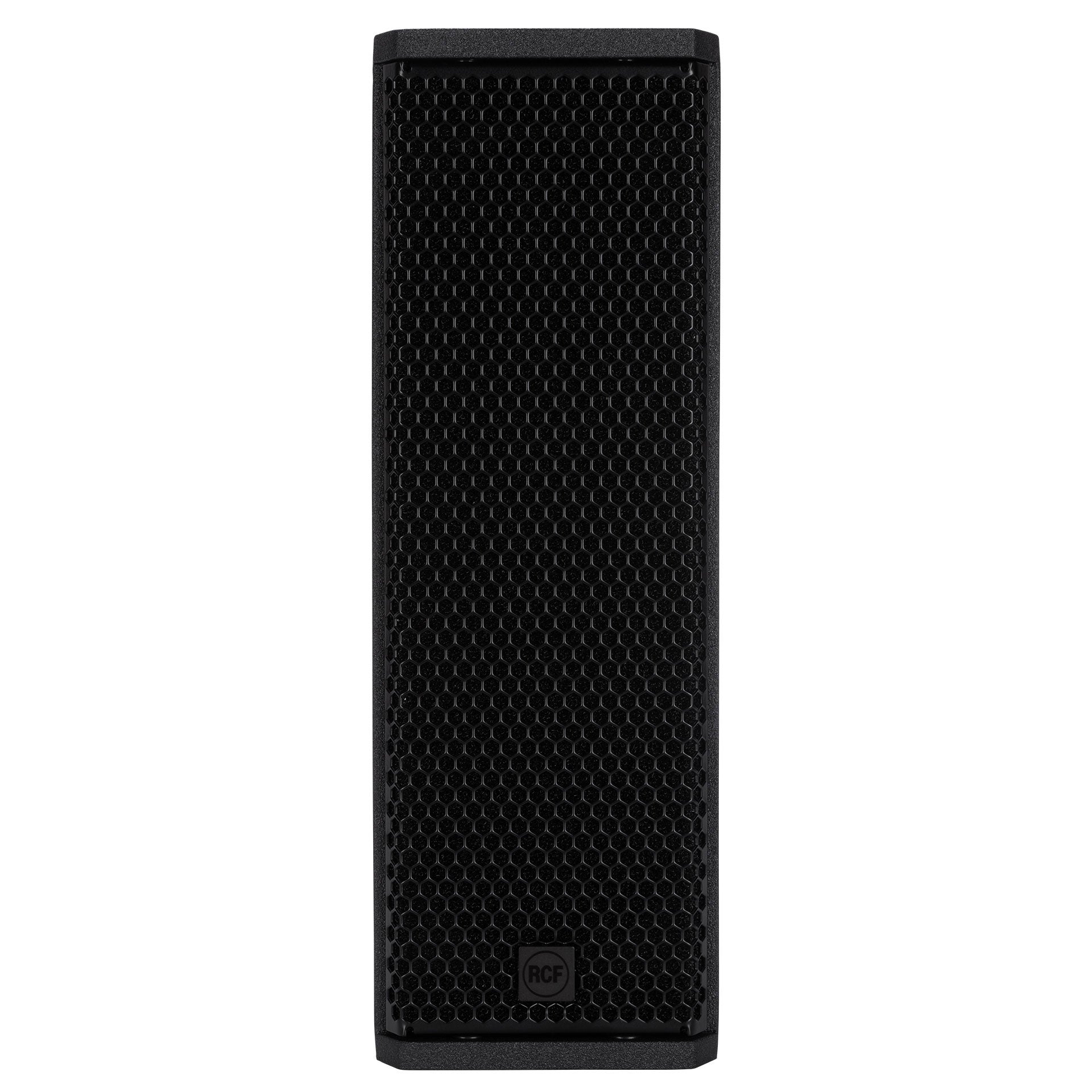

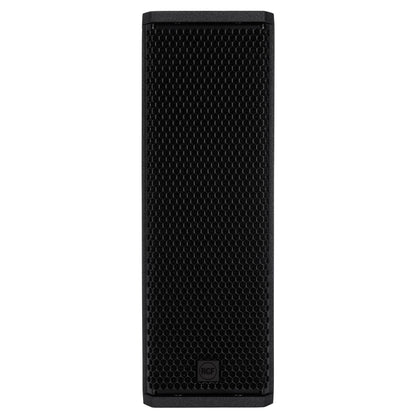

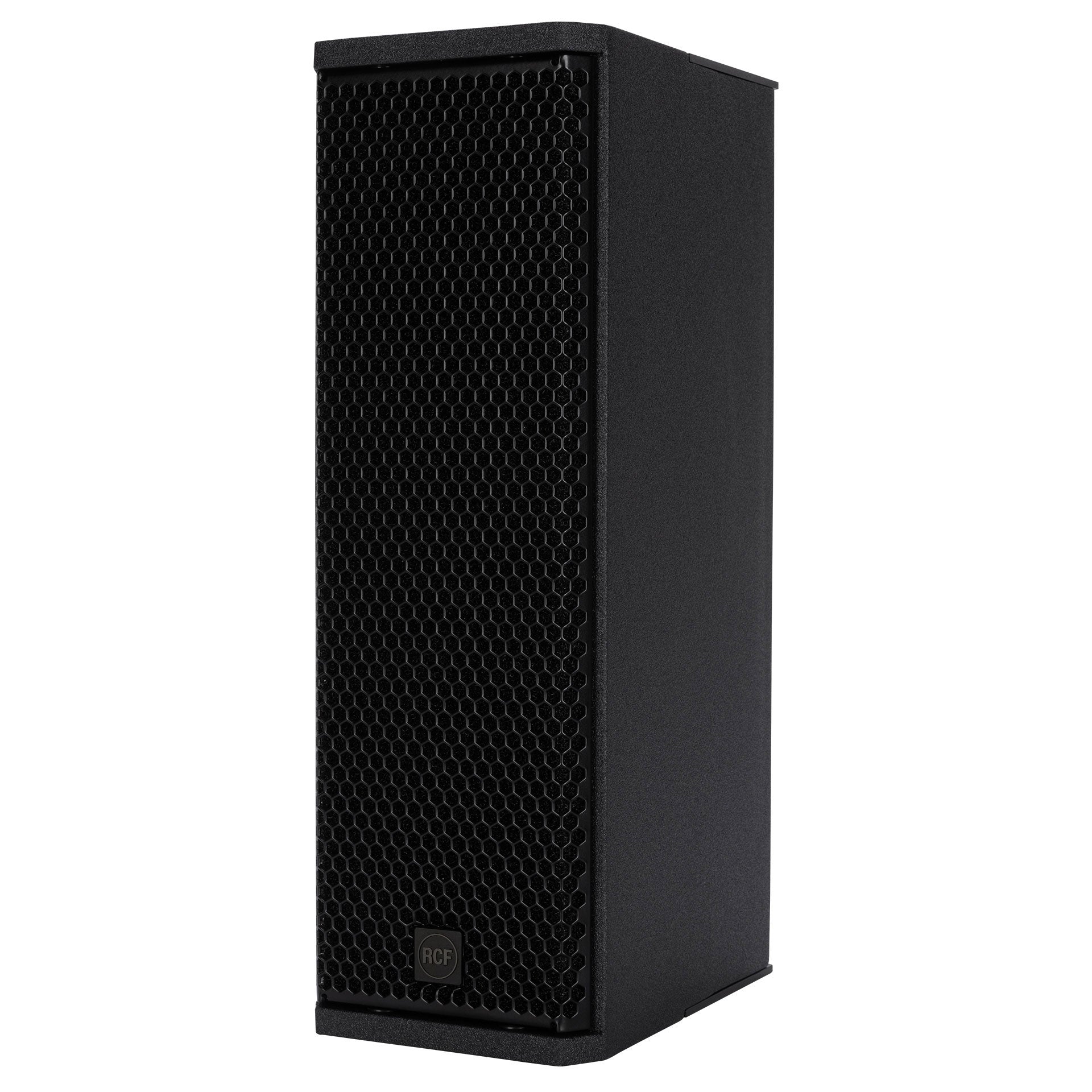

Active 2000W Dual 5" Speaker (RDNET Ready)

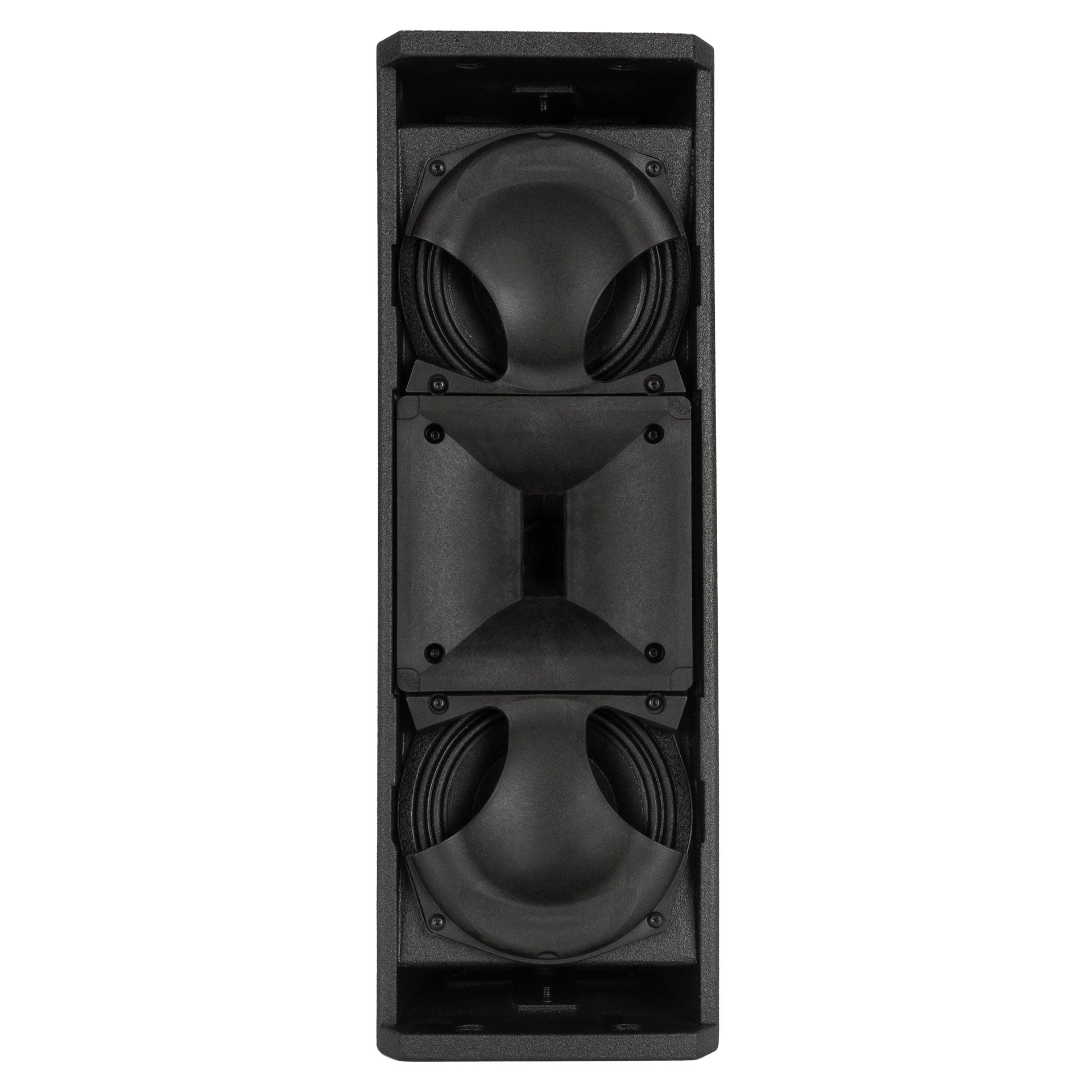

Flexibility, power, and compactness make the KX 515-A ideal for installed and portable professional applications where size and weight are critical factors. This approach combines the advantages of RCF technology such as controlled dispersion, outstanding clarity and extreme power, multiple flexible rigging accessories, weatherproof protection, and RDNET real-time monitoring and management software with recallable presets. Its transducer configuration pairs two custom-loaded 5-inch cone drivers to a rotatable CMD waveguide surrounding a titanium 1.75-inch high-frequency compression driver. Whether it’s used as a compact main system, as fills, or surrounds in a larger system, KX 515-A is quick to deploy and fast to tune.
FEATURES
- 127 dB max SPL
- Rotatable 100° x 70° CMD horn
- LF 2 x 5” neodymium woofer, 2” voice coil
- HF 1.75” titanium dome, neodymium comp. driver
- Dual Class-D amplifier, 2000 Watts total peak power
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
- Available in full black or white coating
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 70 Hz - 20000 Hz
-
Max SPL @ 1m: 127 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 70°
TRANSDUCERS
-
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
-
Woofer: 2 x 5.0'' neo, 2.0'' v.c

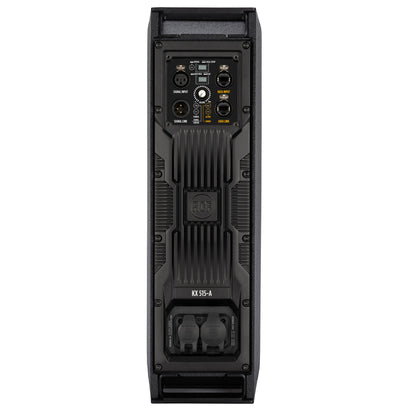

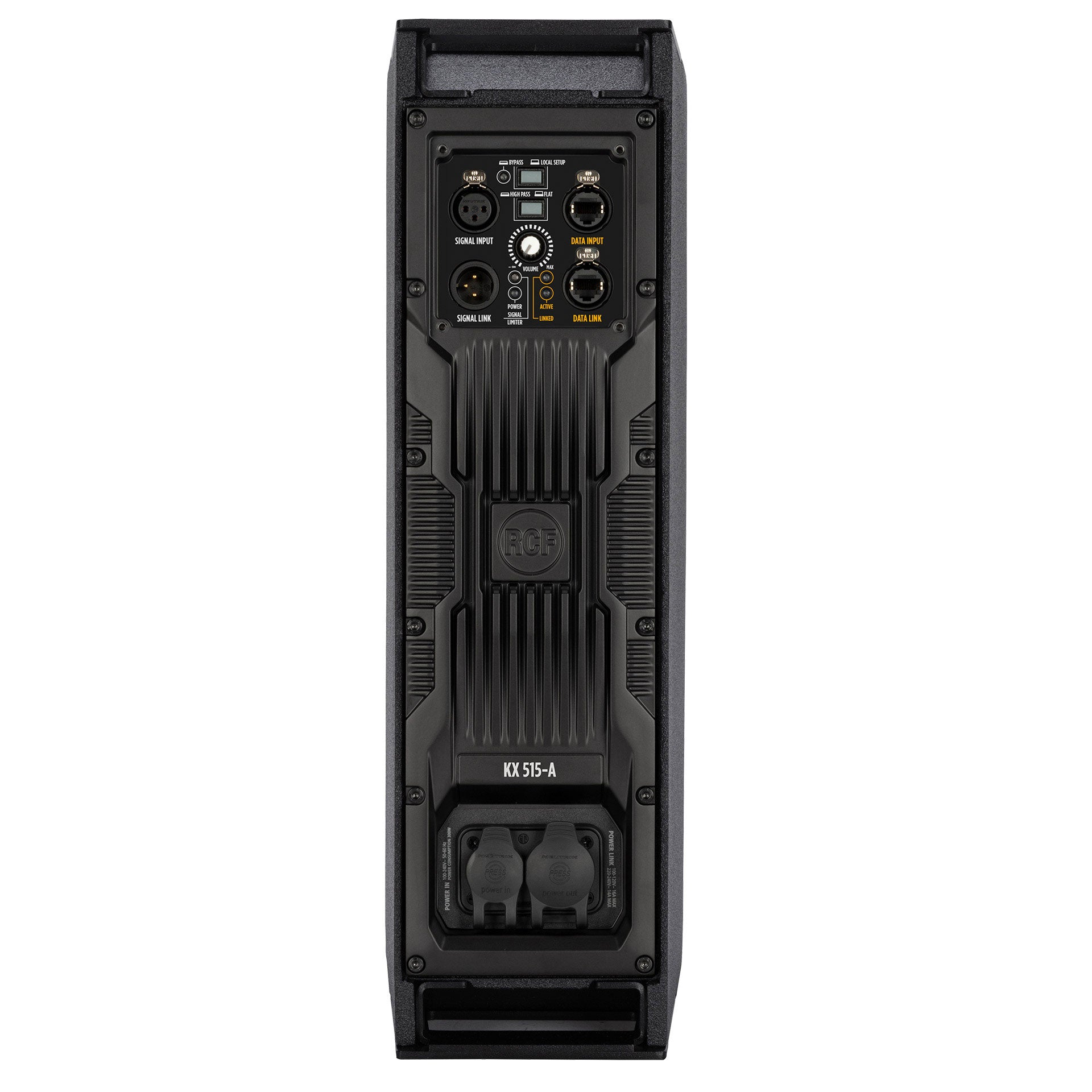

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 1200
-
Protections: Excurs.
-
Limiter: Fast Limiter
-
Controls: Bypass, Linear/High Pass, Volume
-
RDNet: Onboard
POWER SECTION
-
Total Power: 2000 W Peak
-
High frequencies: 600 W Peak
-
Low frequencies: 1400 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-
Hardware: 2X M10 TOP AND BOTTOM 2X PIN D.10
-
Handles: 2 TOP AND BOTTOM
-

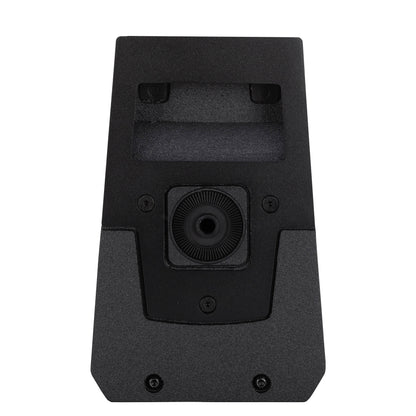

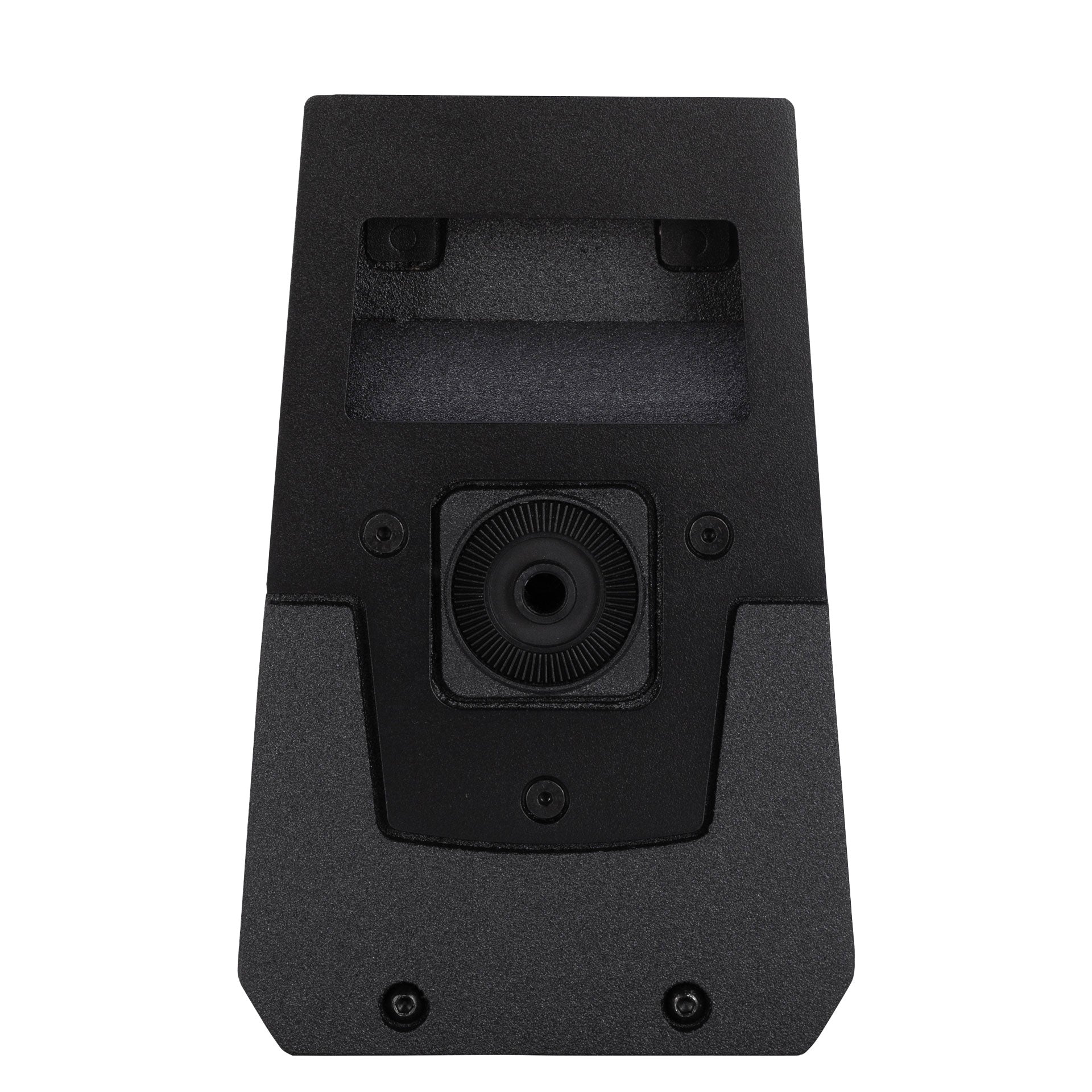

Pole mount/Cap: Quick-fit socket
-
Grille: Steel with clothing
-
Color: Black, White
SIZE / WEIGHT
-
Height: 456 mm / 17.95 inches
-
Width: 154 mm / 6.06 inches
-
Depth: 237.5 mm / 9.35 inches
-
Weight: 9.8 kg / 21.61 lbs
SHIPPING INFORMATION
-
Package Height: 510 mm / 20.08 inches
-
Package Width: 290 mm / 11.42 inches
-
Package Depth: 200 mm / 7.87 inches
-
Package Weight: 11.3 kg / 24.91 lbs
