Description

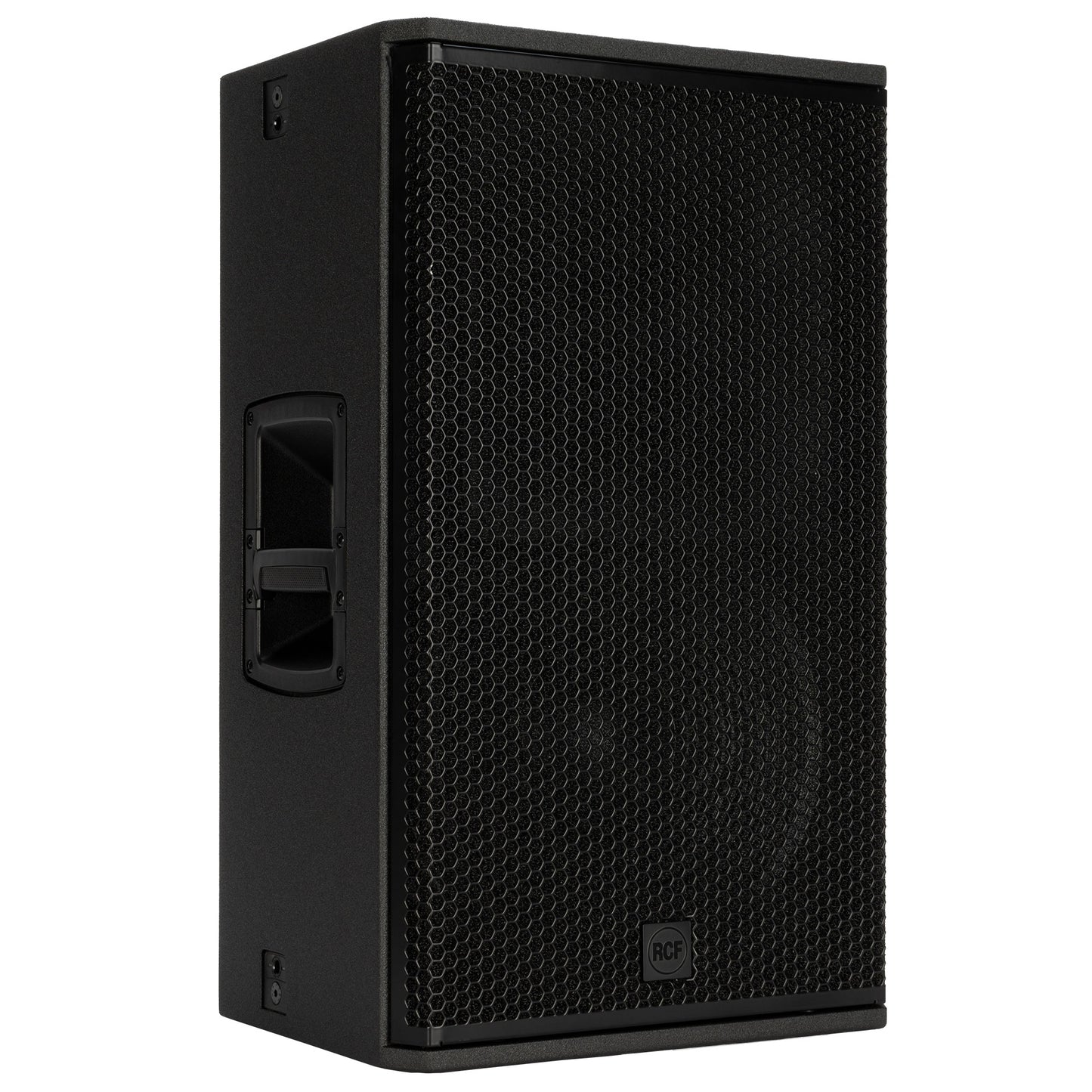

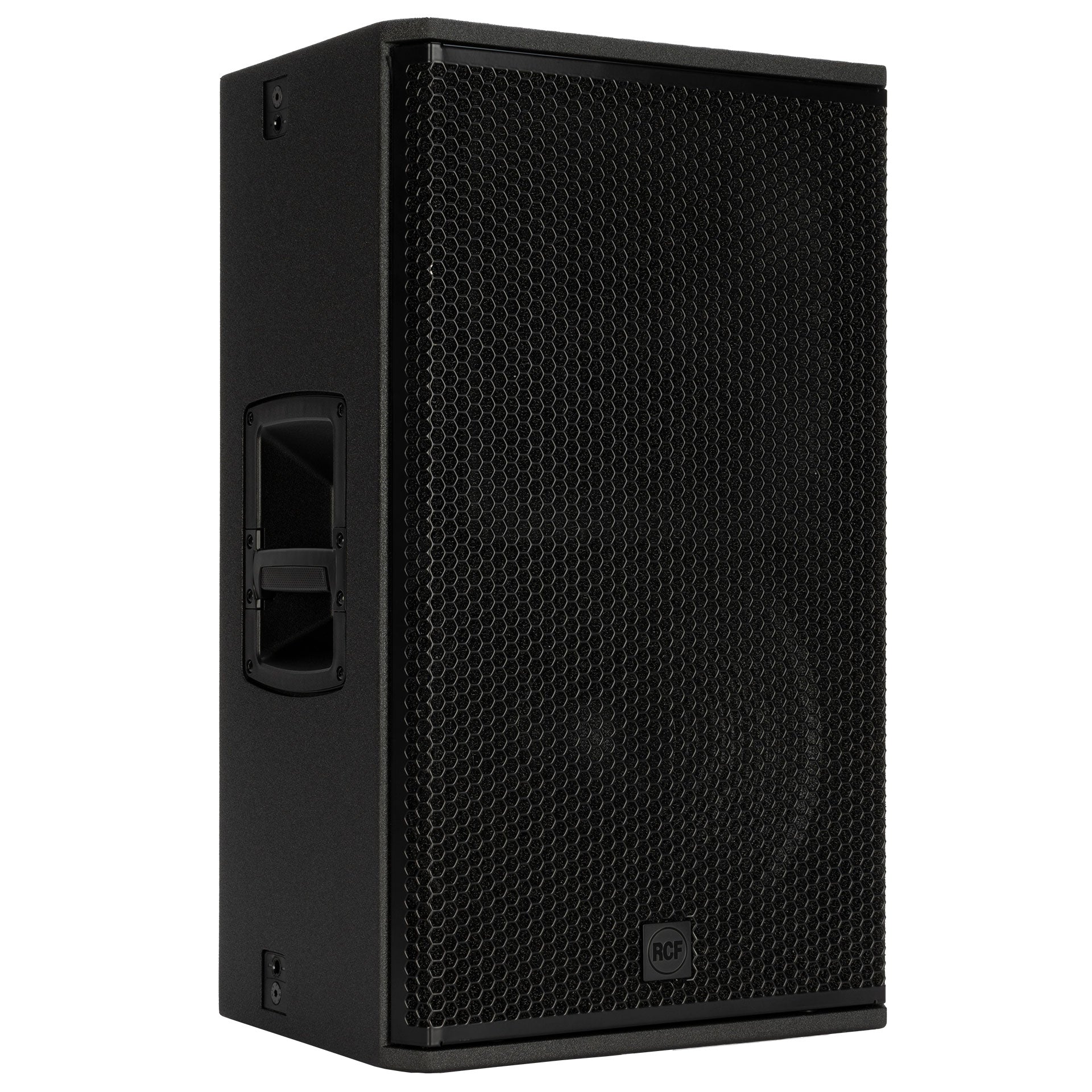

Active 3200W 15" 2-Way Speaker with 4" Neo HF Driver (RDNET Ready)

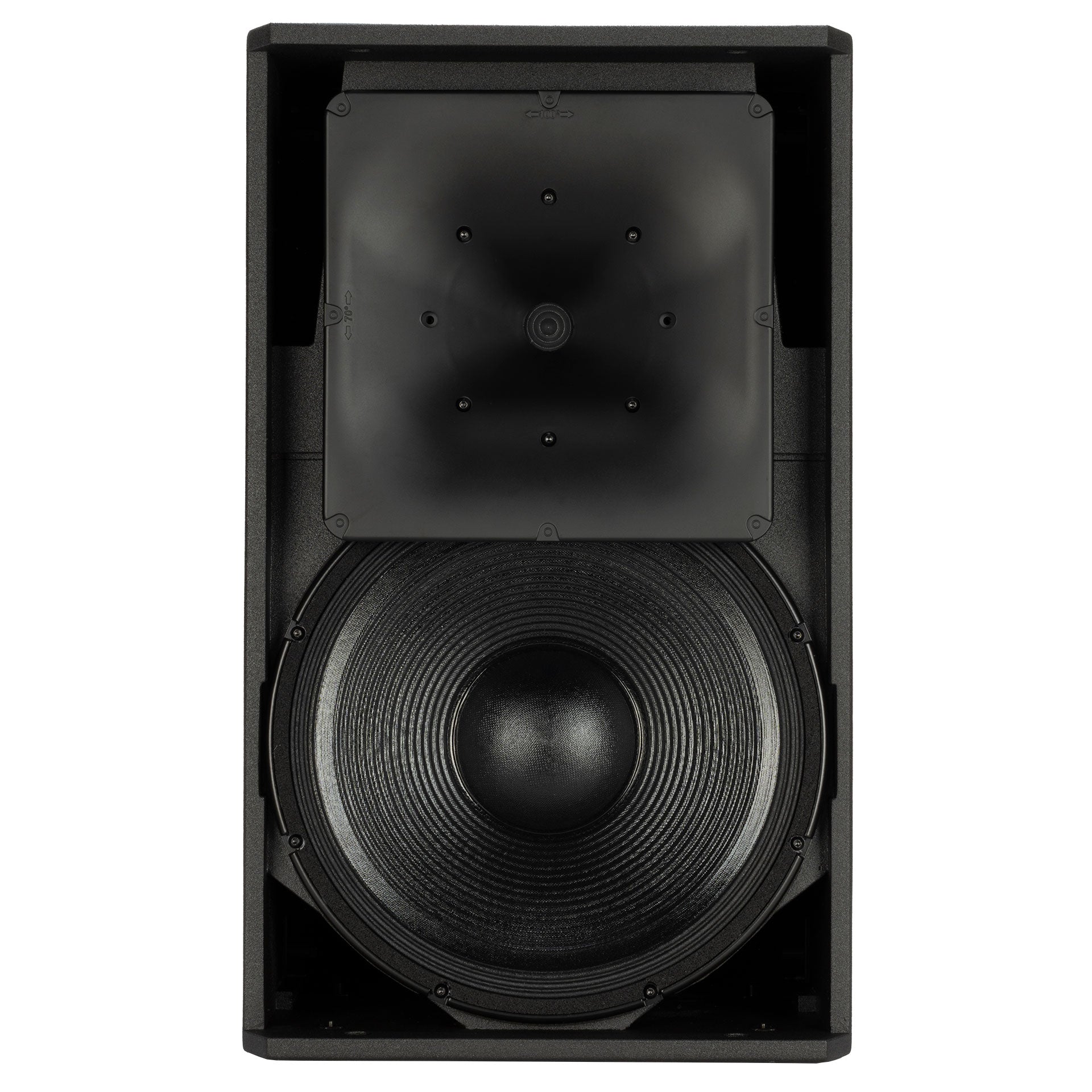

The KX 45-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features a 15” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 4” titanium dome, coupled to a 100° x 70° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Lock Pins and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
FEATURES
- 137 dB Max SPL
- Rotatable 100° x 70° TRW horn
- 15” neodymium woofer, 3.5” voice coil
- 4.0” Titanium dome, neodymium compression driver
- 2 channel, 3200 W Class D Amplifier
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 50 Hz - 20000 Hz
-
Max SPL @ 1m: 137 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 70°
TRANSDUCERS
-
Compression Driver: 1.4'' neo, 4.0'' v.c
-
Woofer: 1 x 15'' neo, 3.5'' v.c

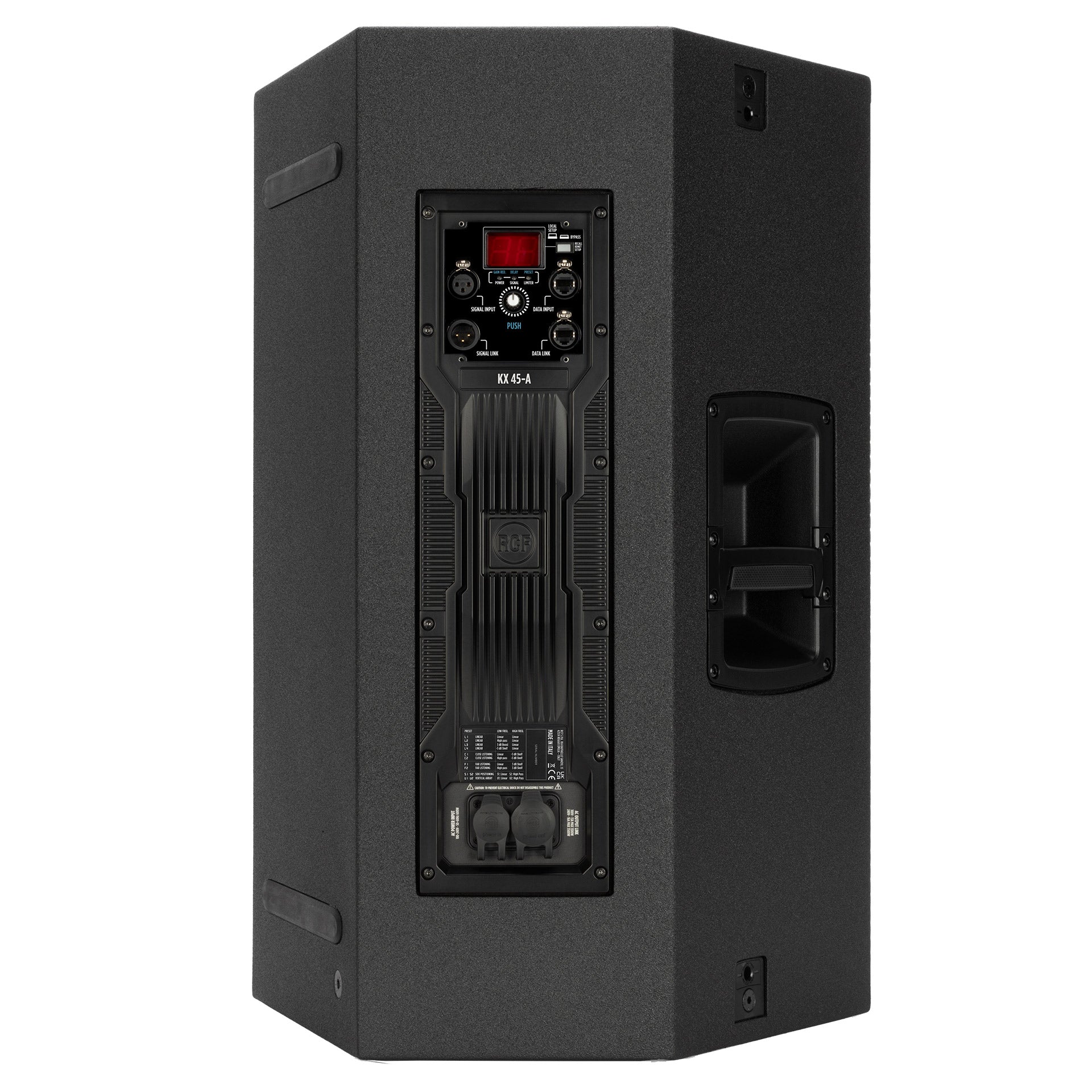

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 750Hz
-
Protections: Thermal, HF
-
Limiter: Fast Limiter
-
Controls: Gain Reduction, Proces., 8 sel. presets
-
RDNet: Onboard
POWER SECTION
-
Total Power: 3200 W Peak
-
High frequencies: 1200 W Peak
-
Low frequencies: 2000 W Peak
-
Cooling: Convection
-

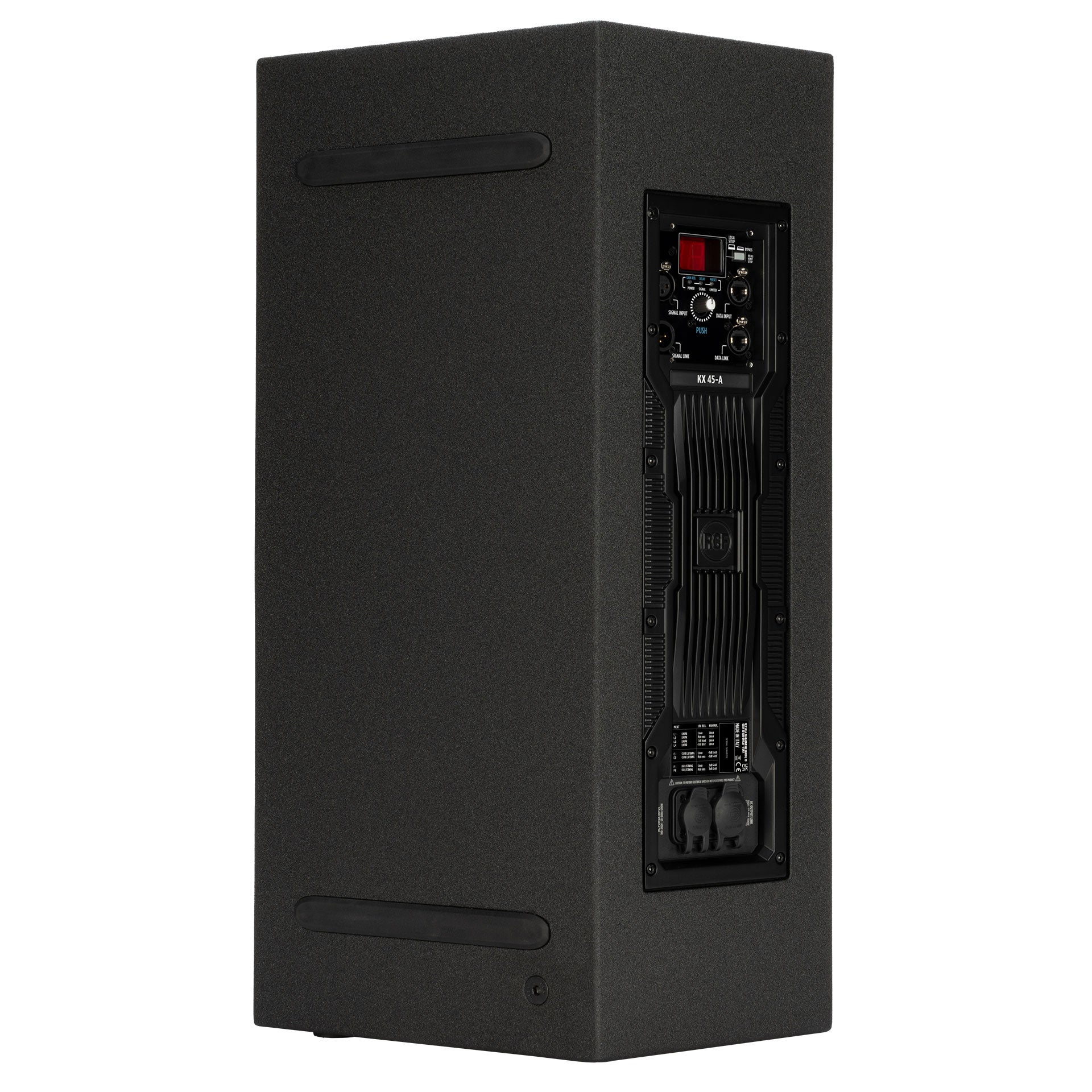

Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-

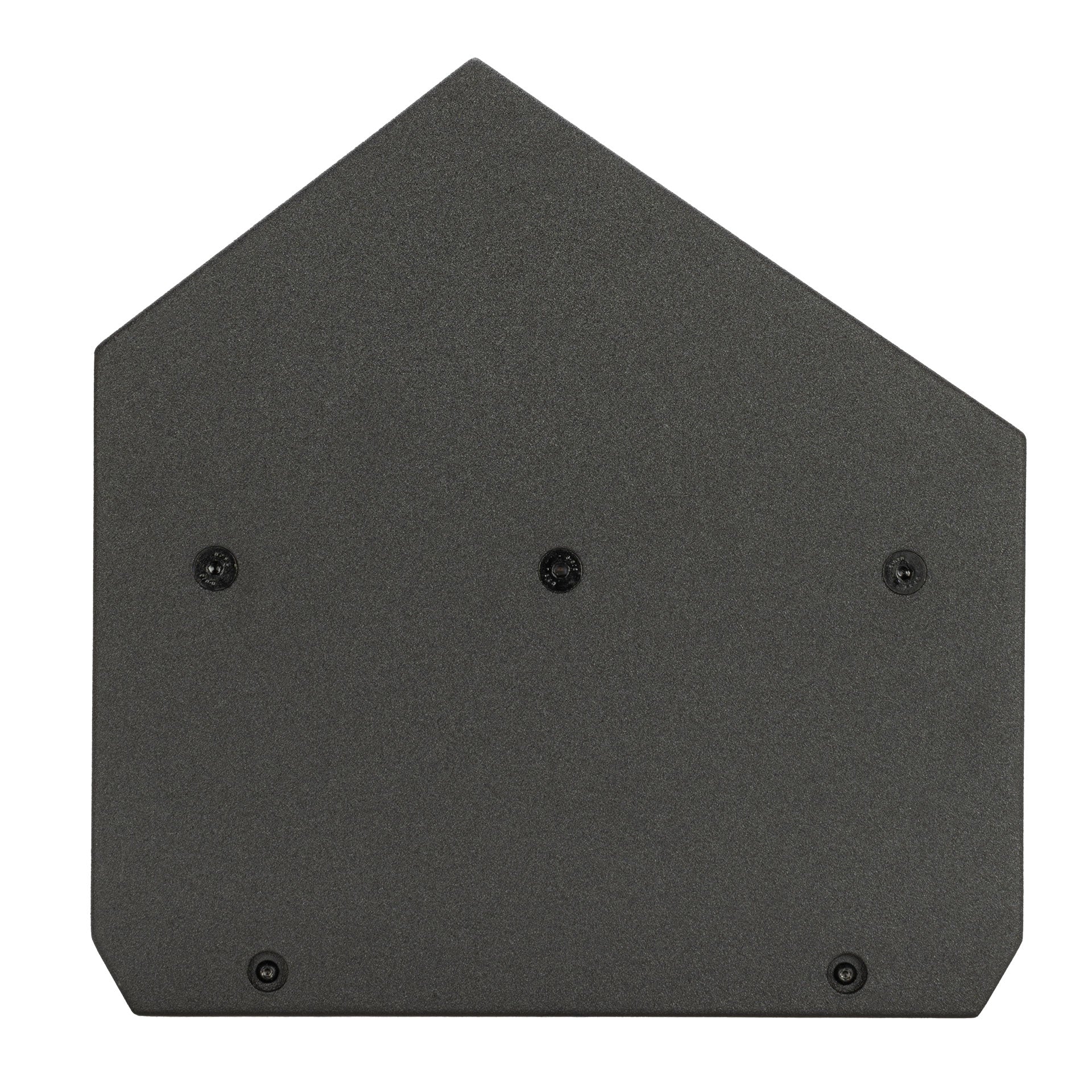

Hardware: Quick lock, pole mount, 3 M10 on top, 3 M10 on bottom sides
-

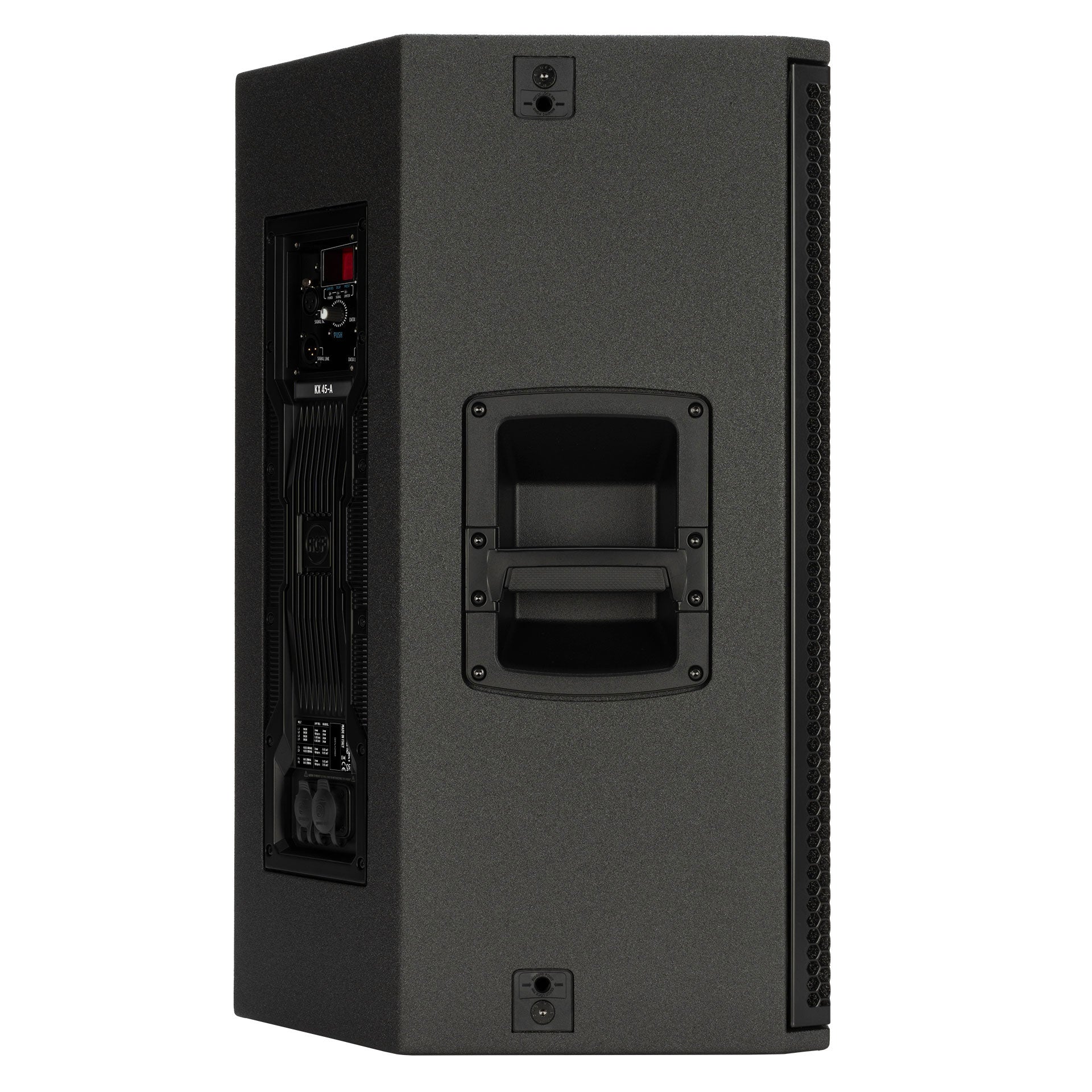

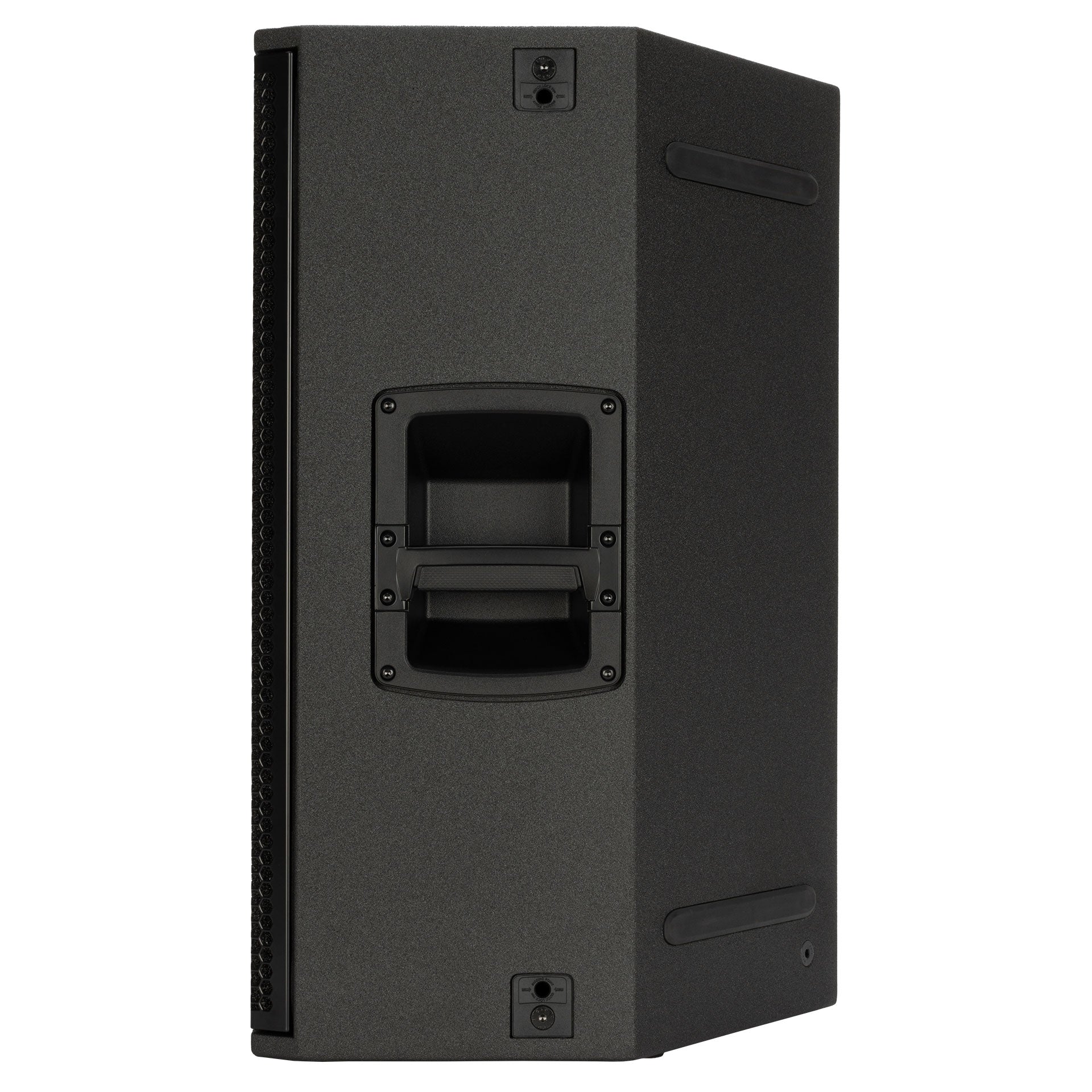

Handles: 2 on side
-

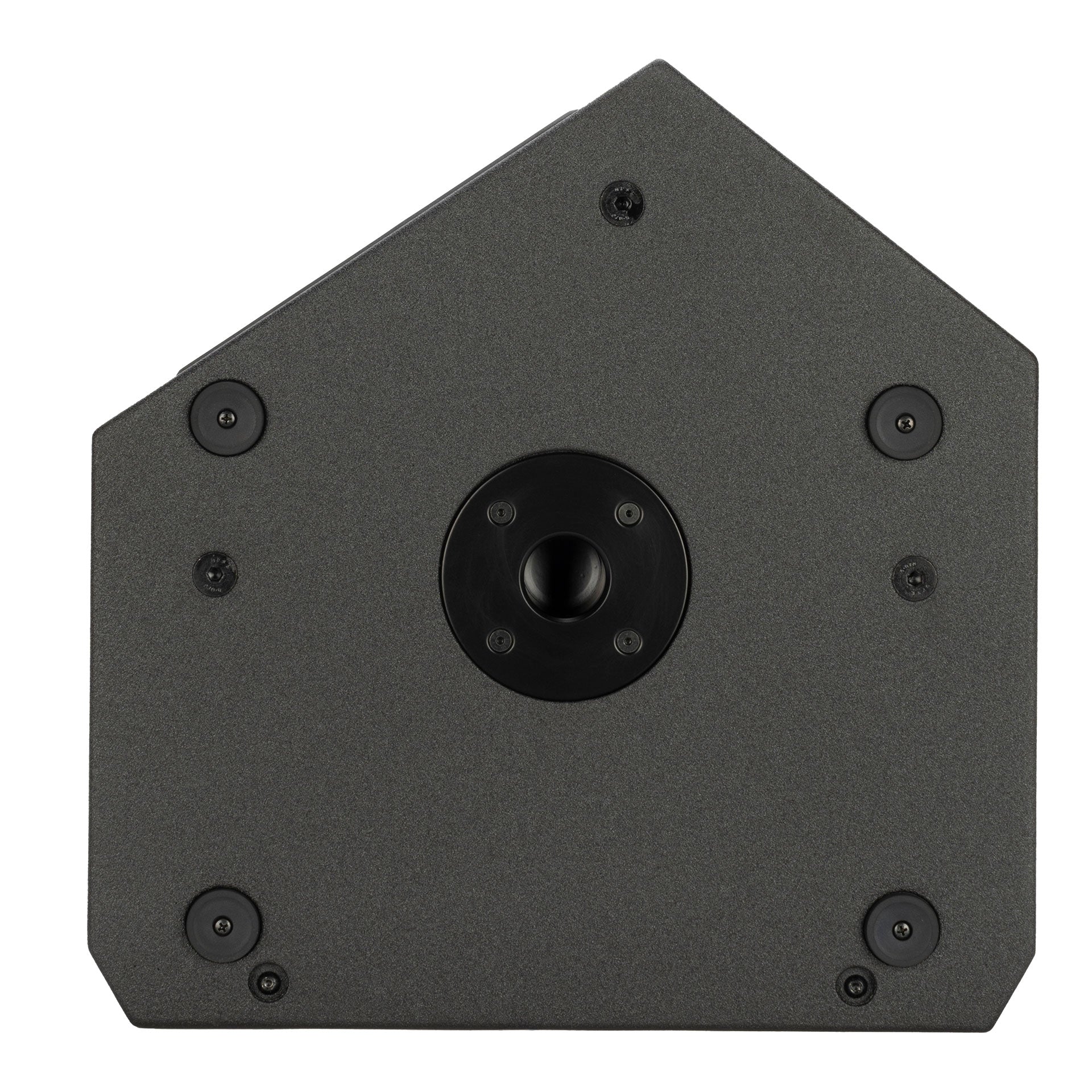

Pole mount/Cap: 35 mm insert
-

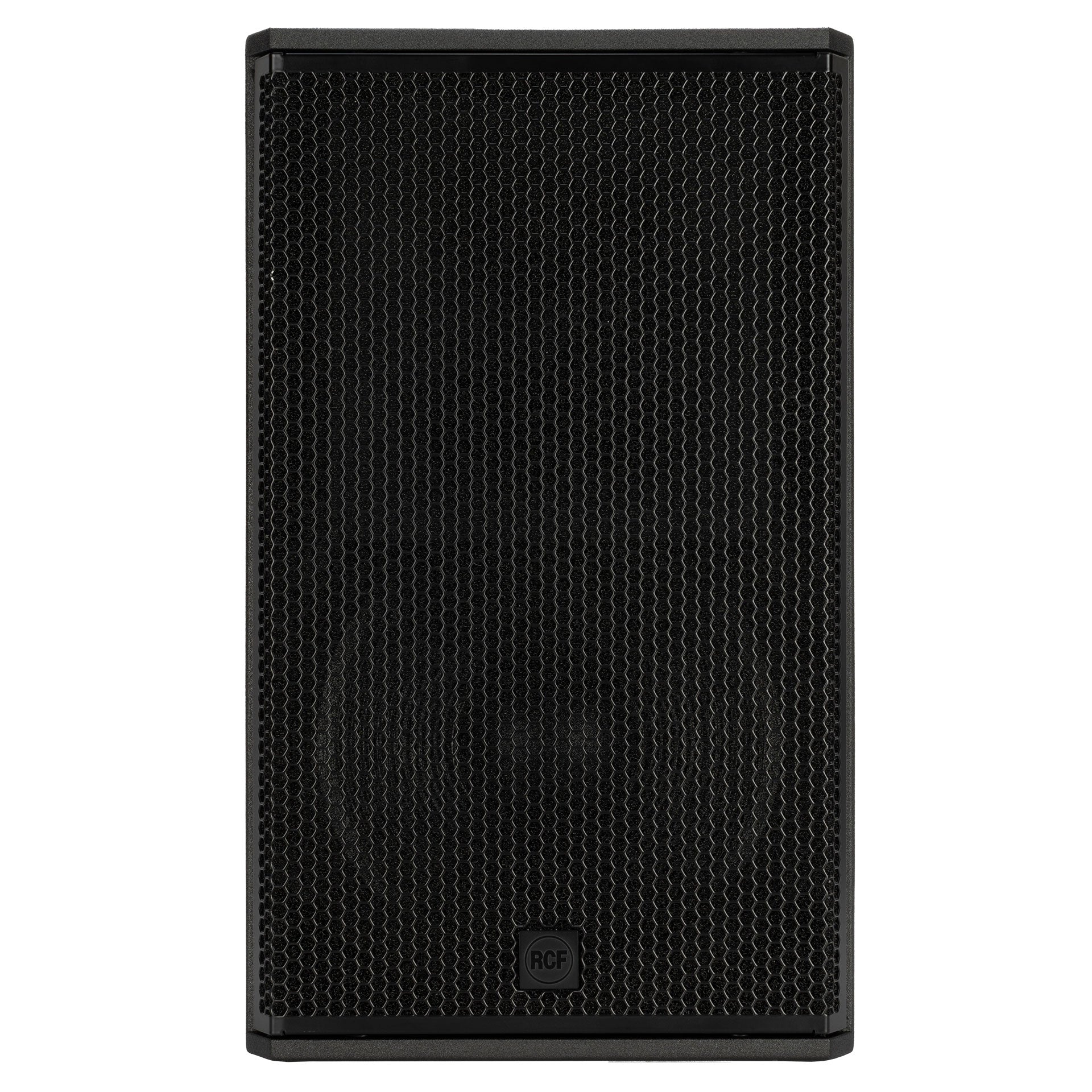

Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 705 mm / 27.76 inches
-
Width: 419.6 mm / 16.52 inches
-
Depth: 430 mm / 16.93 inches
-
Weight: 28.4 kg / 62.61 lbs
SHIPPING INFORMATION
-
Package Height: 801 mm / 31.54 inches
-
Package Width: 484 mm / 19.06 inches
-
Package Depth: 474 mm / 18.66 inches
-
Package Weight: 32 kg / 70.55 lbs
