Description

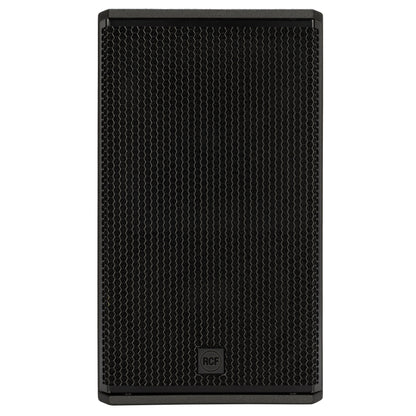

Active 3200W 12" 2-Way Speaker with 3" Neo HF Driver (RDNET Ready)

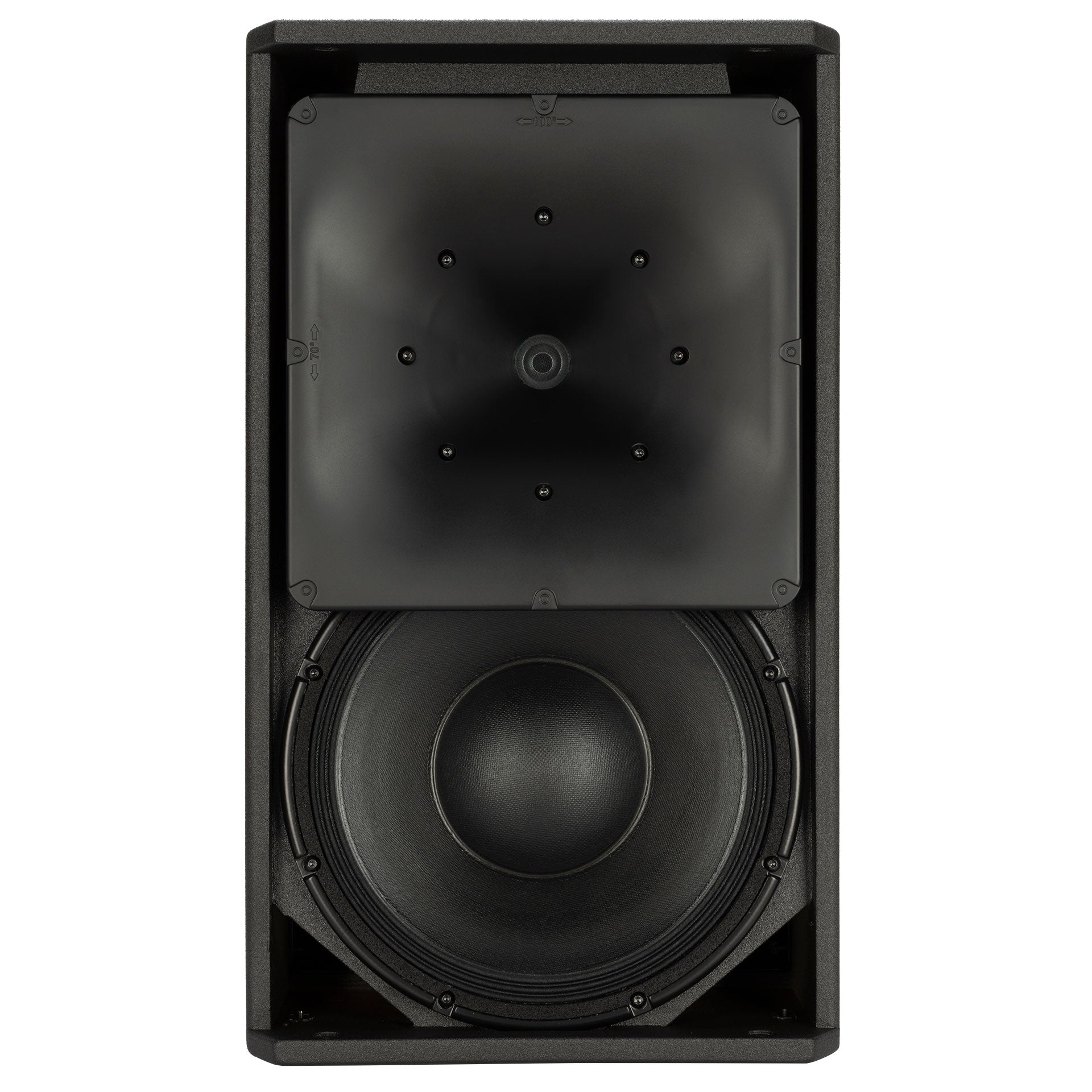

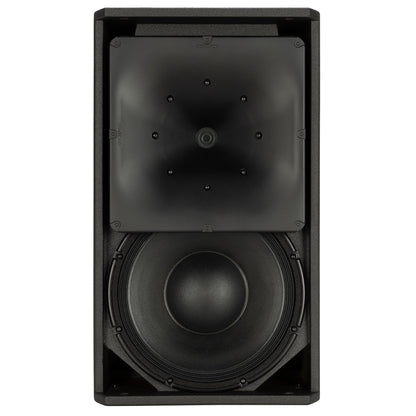

The KX 32-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features a 12” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 3” titanium dome, coupled to a 100° x 70° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 3200 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Lock Pins and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
FEATURES
- 134 dB Max SPL
- Rotatable 100° x 70° TRW horn
- 12” neodymium woofer, 3.5” voice coil
- 3.0” Ti dome, neodymium compression driver
- 2 channel, 3200 W Class D Amplifier
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 50 Hz - 20000 Hz
-
Max SPL @ 1m: 134 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 70°
TRANSDUCERS
-
Compression Driver: 1.4'' neo, 3.0'' v.c
-
Woofer: 12'' neo, 3.5'' v.c
INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 750Hz
-
Protections: Thermal, HF
-
Limiter: Fast Limiter
-
Controls: Gain Reduction, Proces., 8 sel. presets
-
RDNet: Onboard
POWER SECTION
-
Total Power: 3200 W Peak
-
High frequencies: 1200 W Peak
-
Low frequencies: 2000 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-

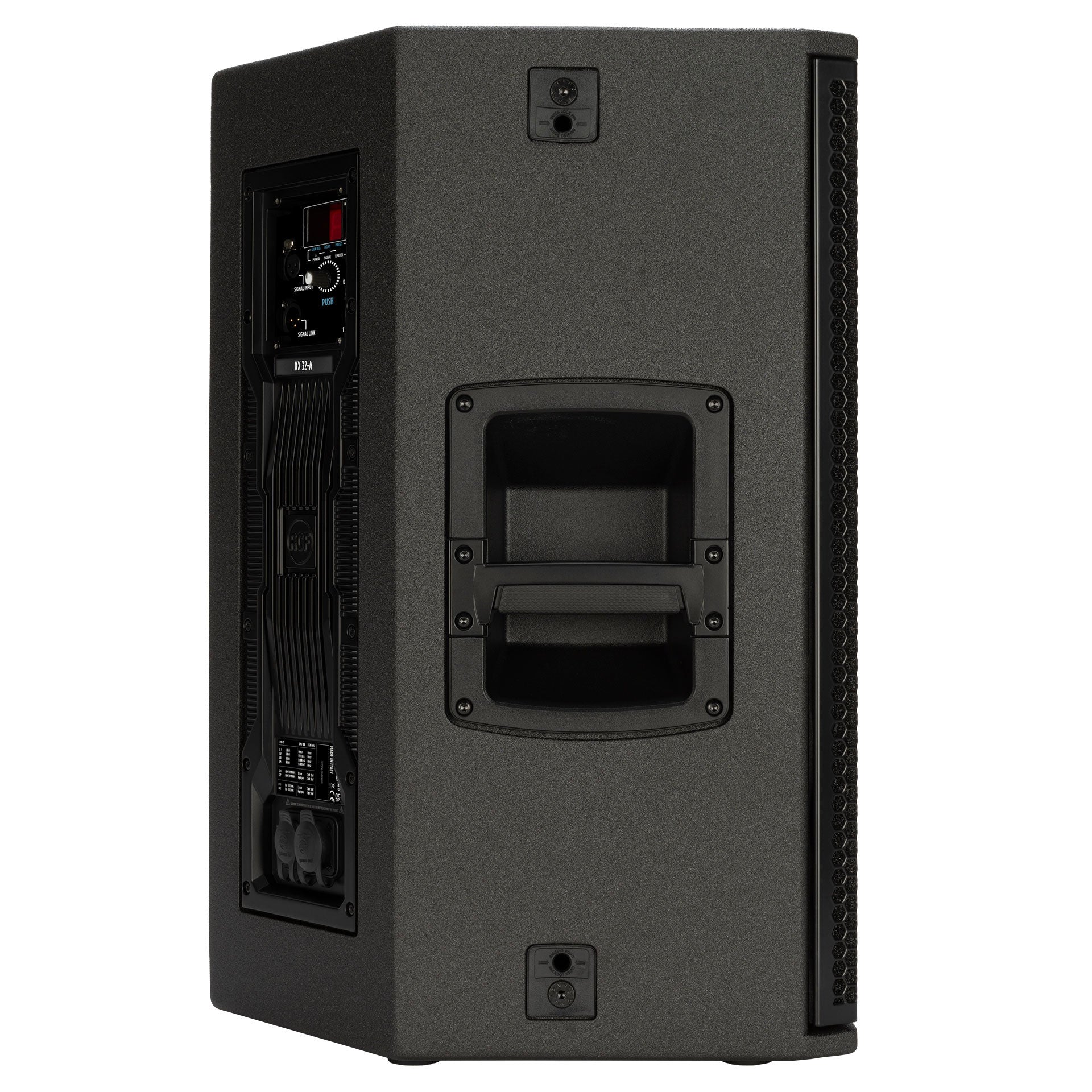

Hardware: Quick lock, pole mount, 3 x M10 on top, 3 x M10 on bottom sides
-

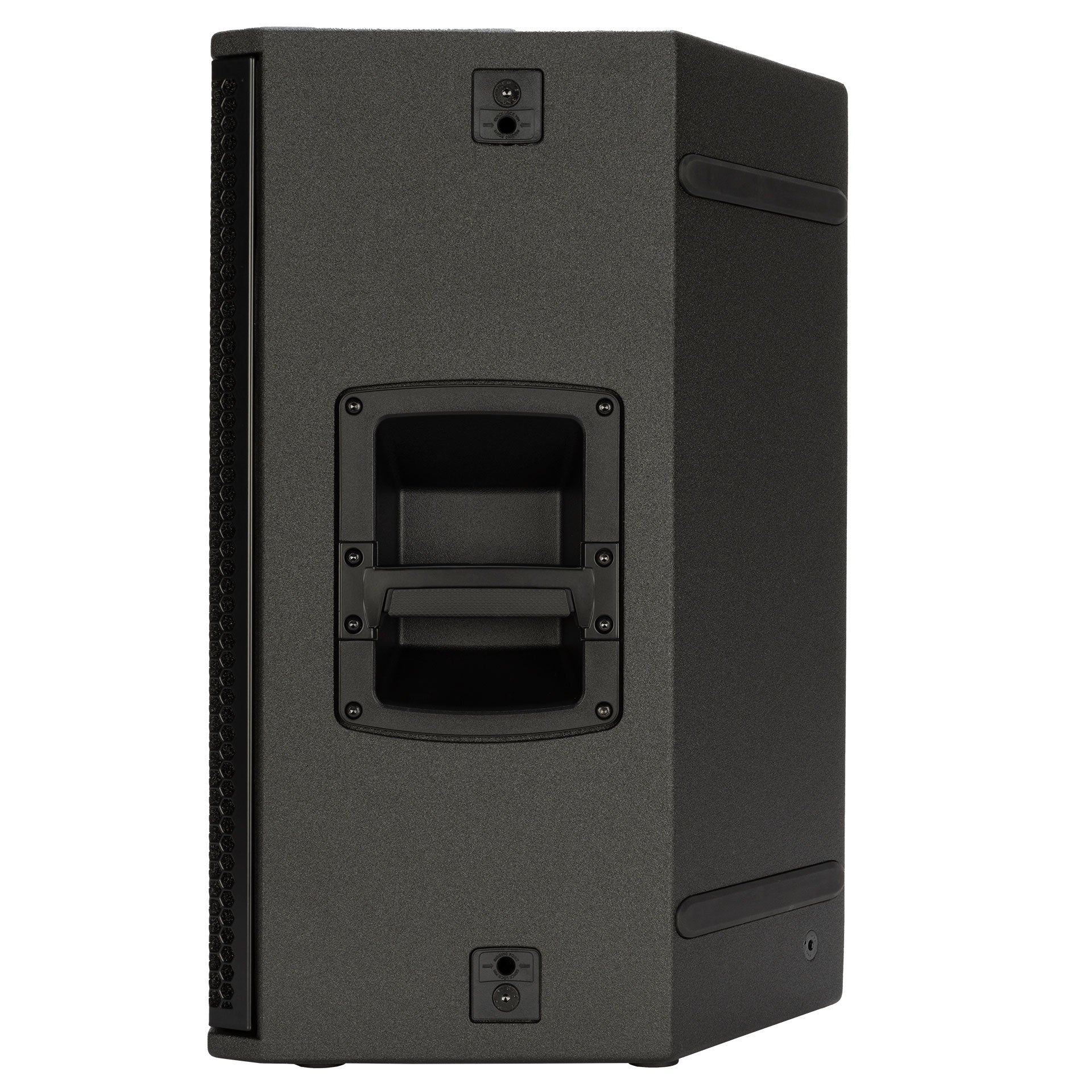

Handles: 2 on side
-
Pole mount/Cap: 35 mm insert
-
Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 620 mm / 24.41 inches
-
Width: 360 mm / 14.17 inches
-
Depth: 409.3 mm / 16.11 inches
-
Weight: 23.65 kg / 52.14 lbs
SHIPPING INFORMATION
-
Package Height: 716 mm / 28.19 inches
-
Package Width: 409 mm / 16.1 inches
-
Package Depth: 458 mm / 18.03 inches
-
Package Weight: 25.85 kg / 56.99 lbs
