Description

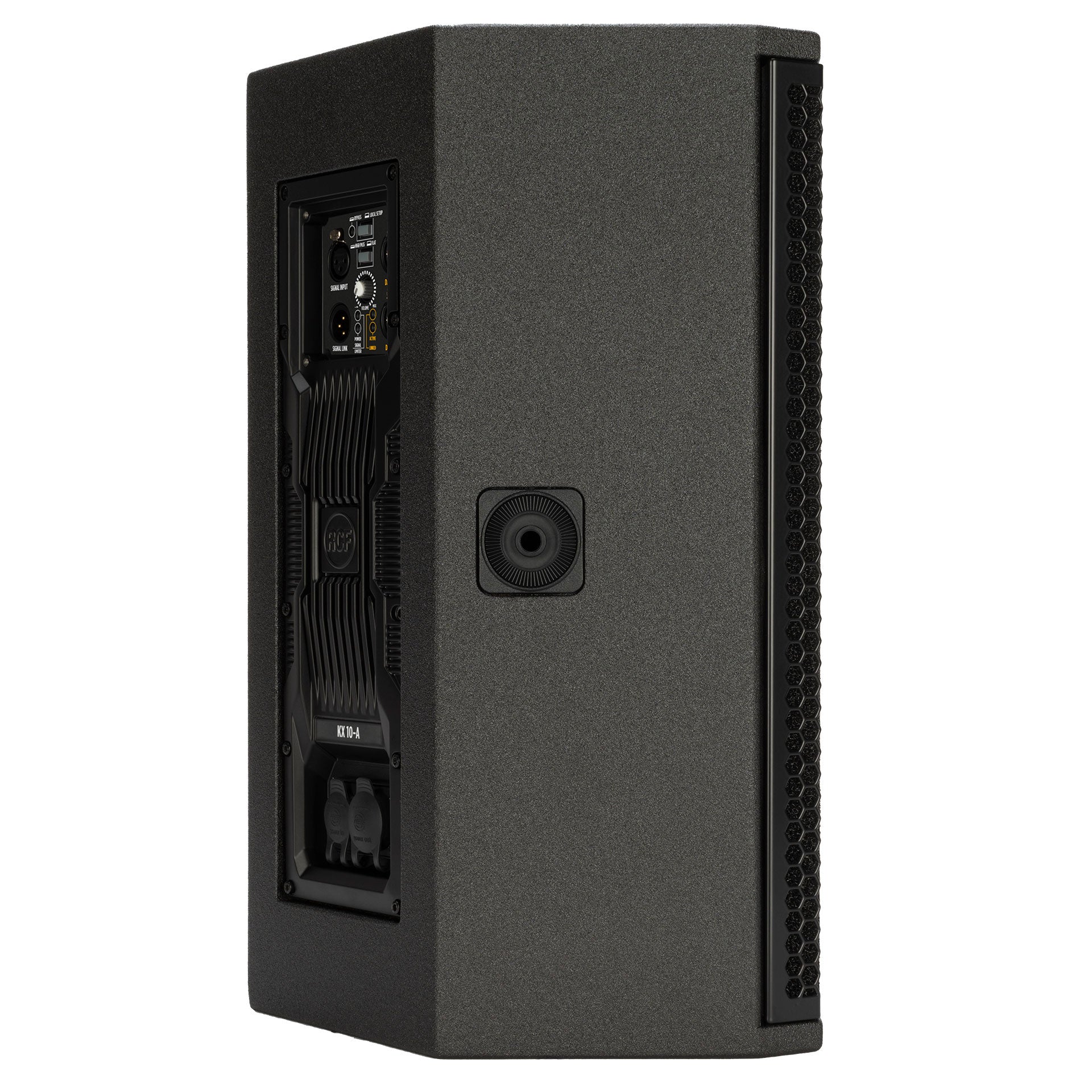

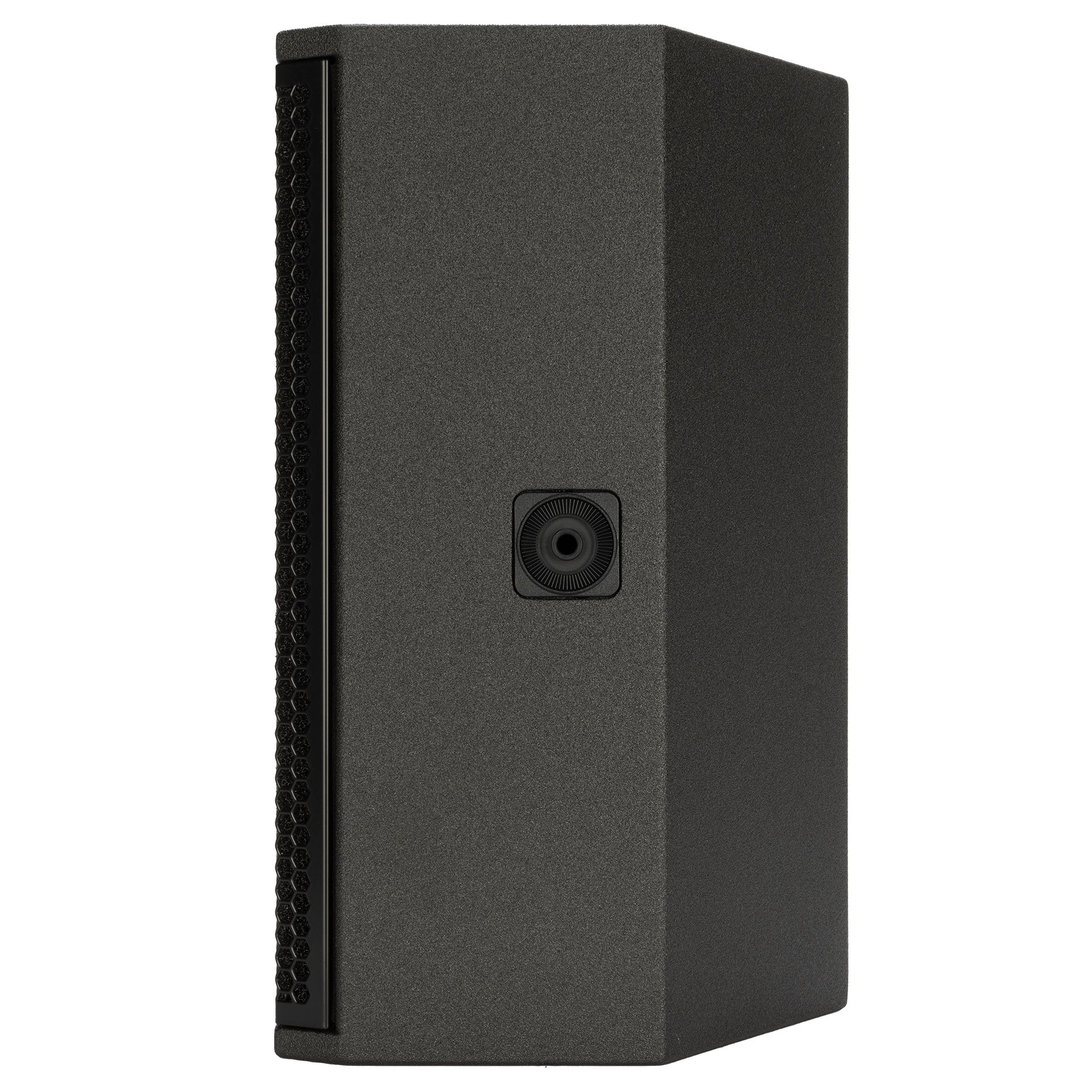

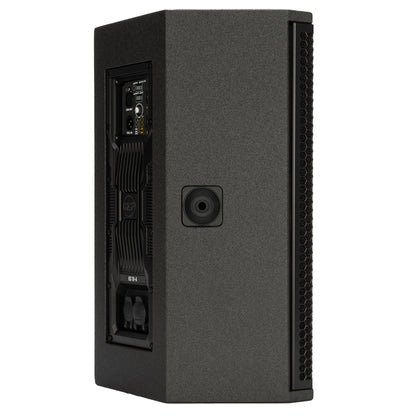

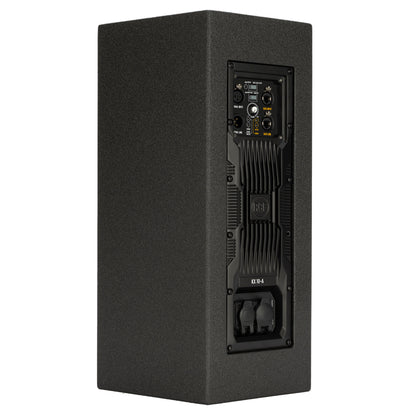

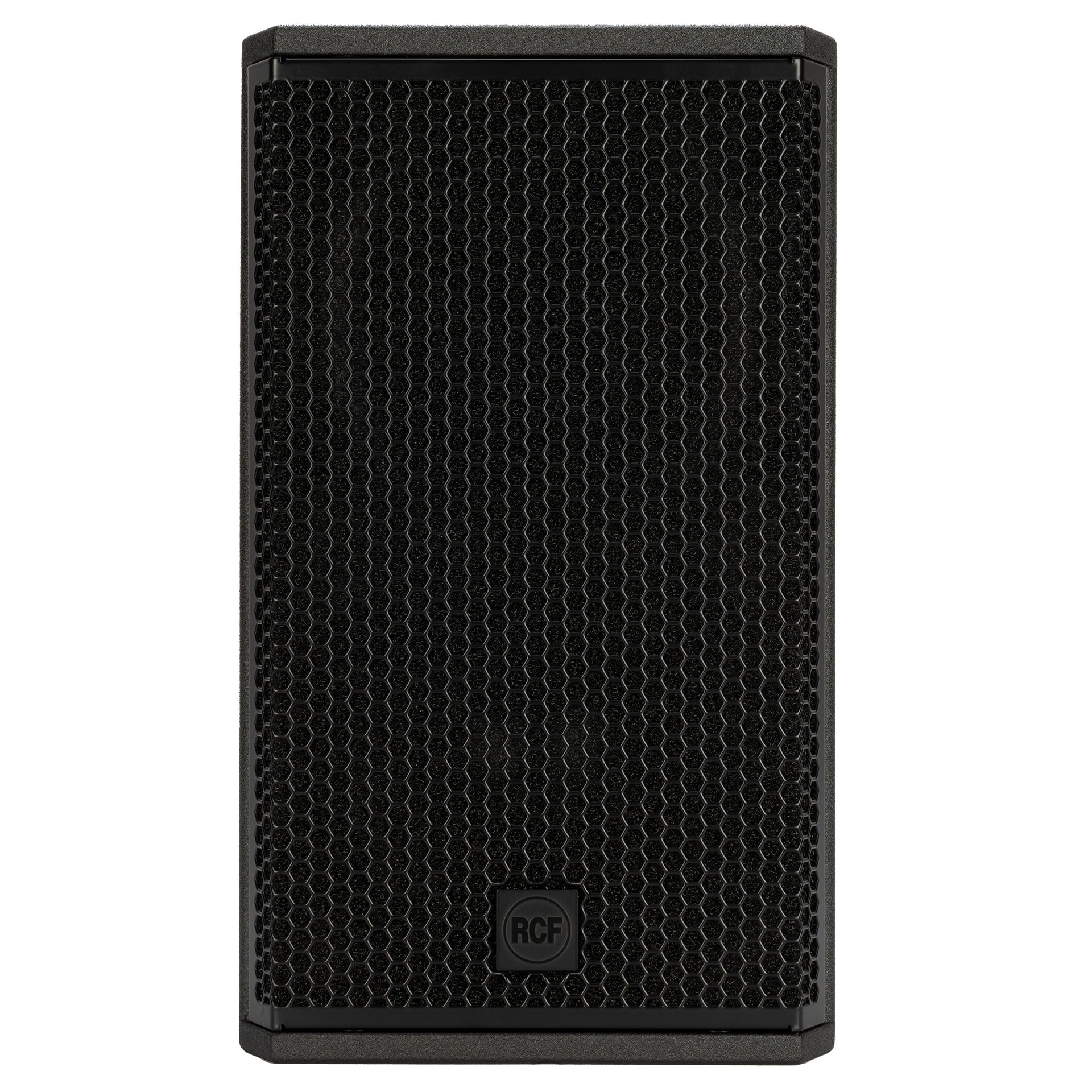

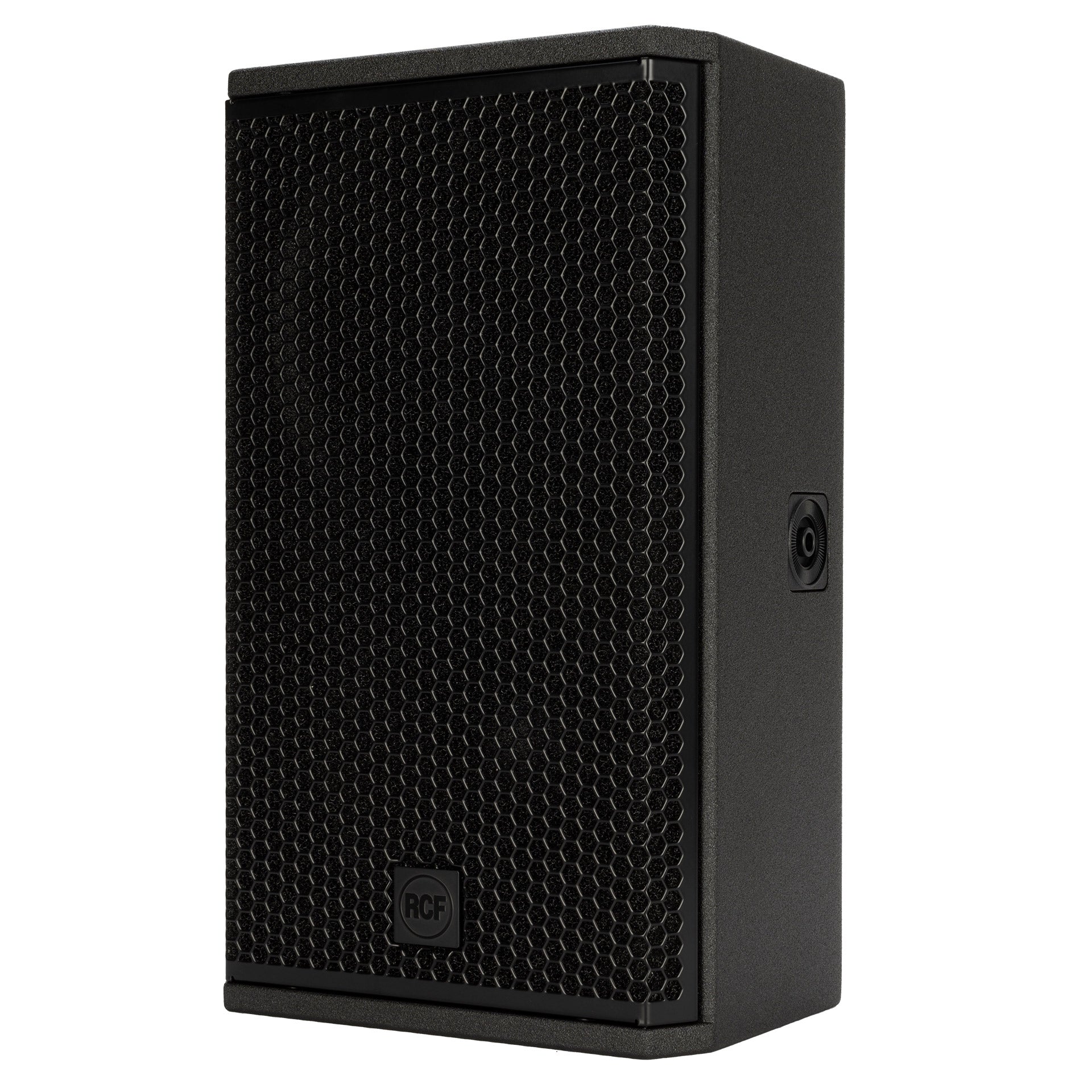

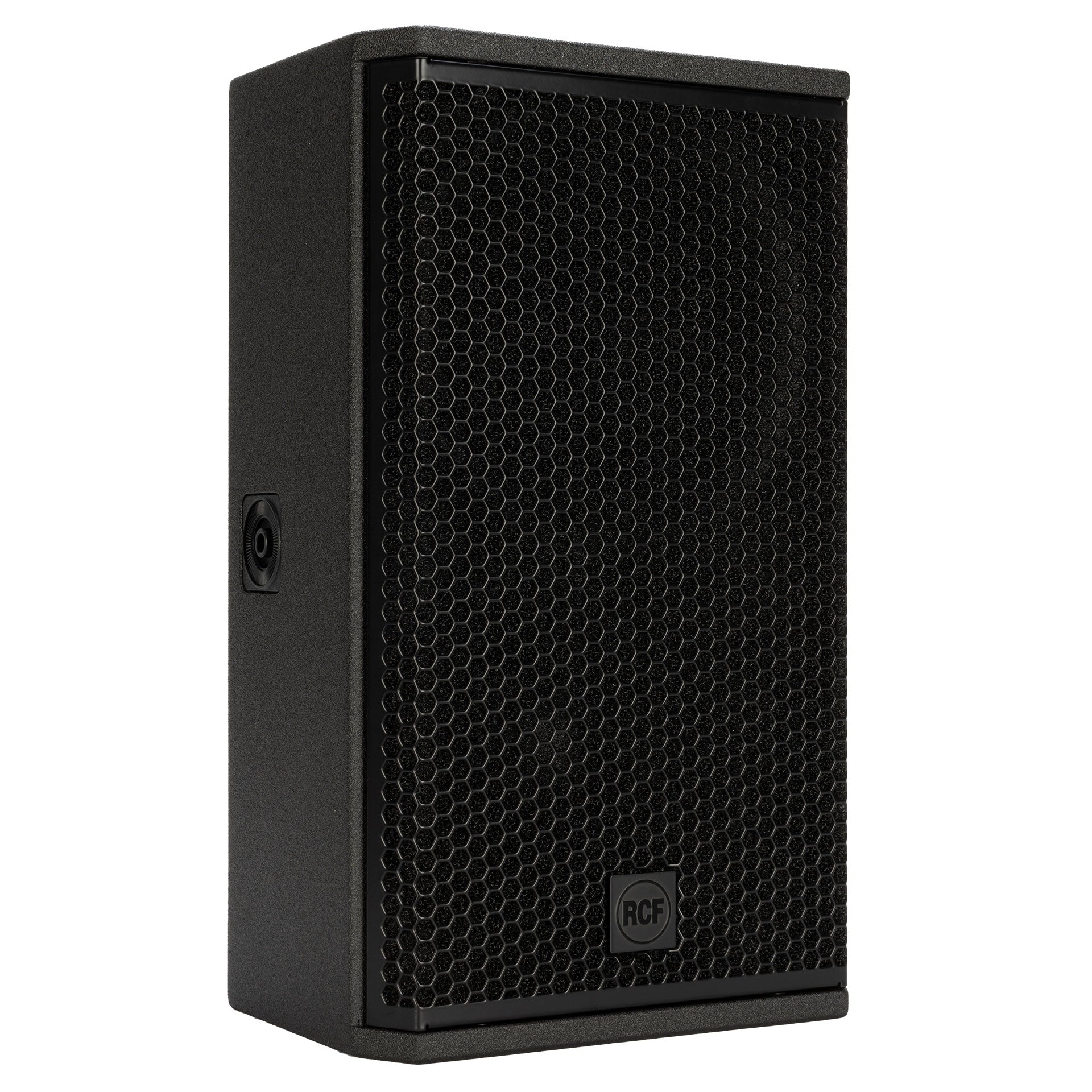

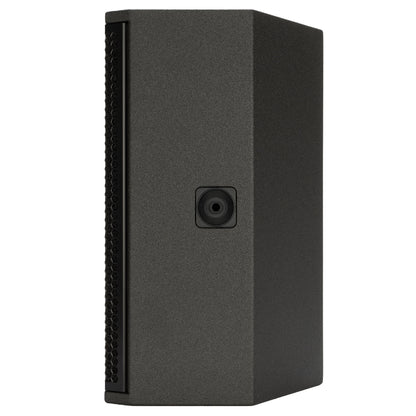

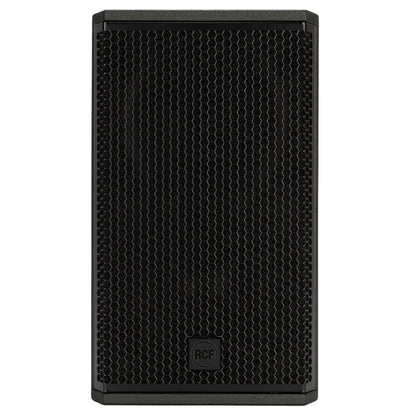

Active 2000W 10" 2-Way Speaker (RDNET Ready)

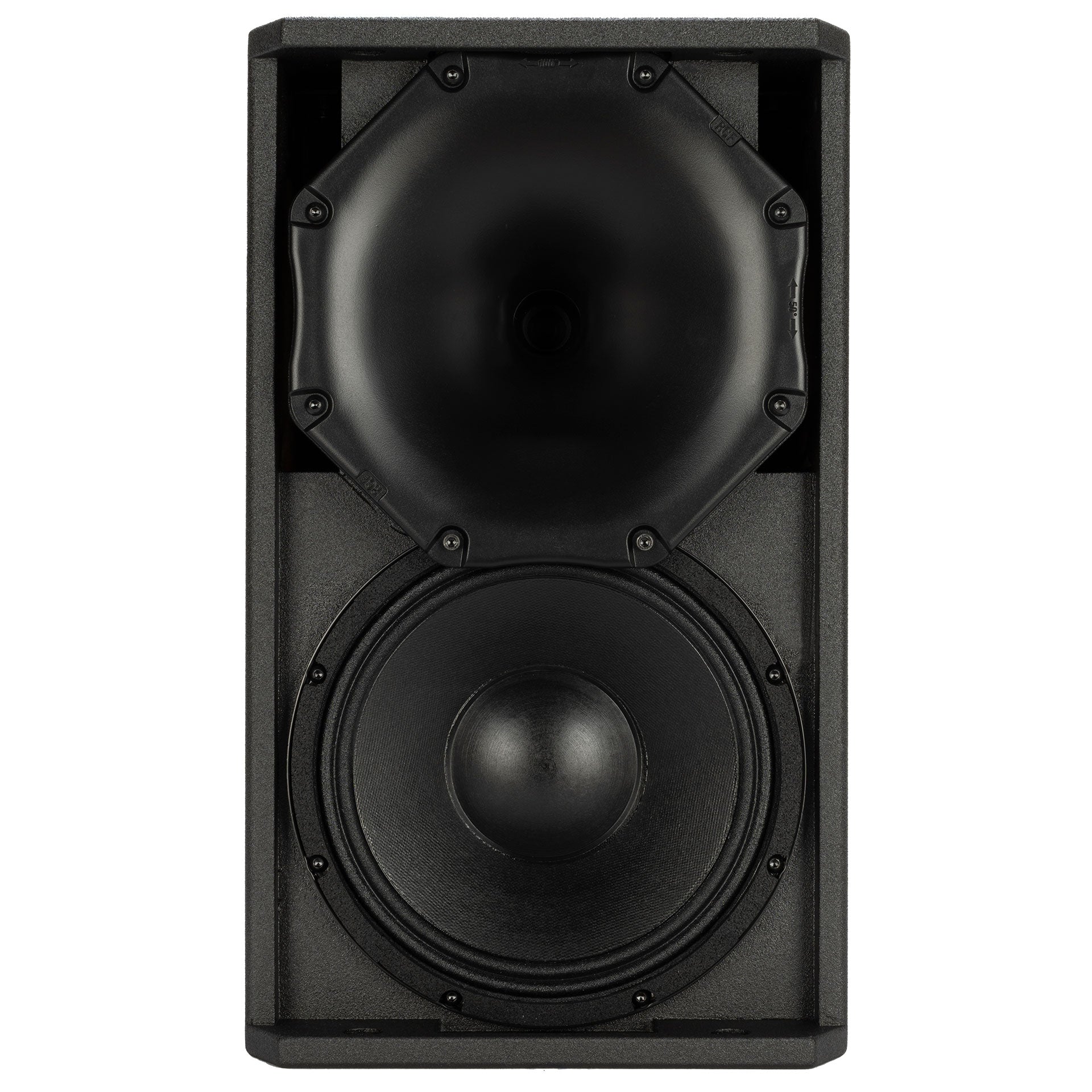

The KX 10-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features a 10” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 1.75” PKX dome, coupled to a 100° x 50° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 2000 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Fit and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
FEATURES
- 130 dB SPL Max
- Rotatable 100° x 50° TRW Horn
- 10’’ neodymium woofer, 2.5’’ voice coil
- 1,75’” PKX dome, neodymium compression driver
- 2 channel, 2000 W Class D Amplifier
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 60 Hz - 20000 Hz
-
Max SPL @ 1m: 130 dB
-
Horizontal coverage angle: 100°
-
Vertical coverage angle: 50°
TRANSDUCERS
-
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
-
Woofer: 10'' neo, 2.5'' v.c

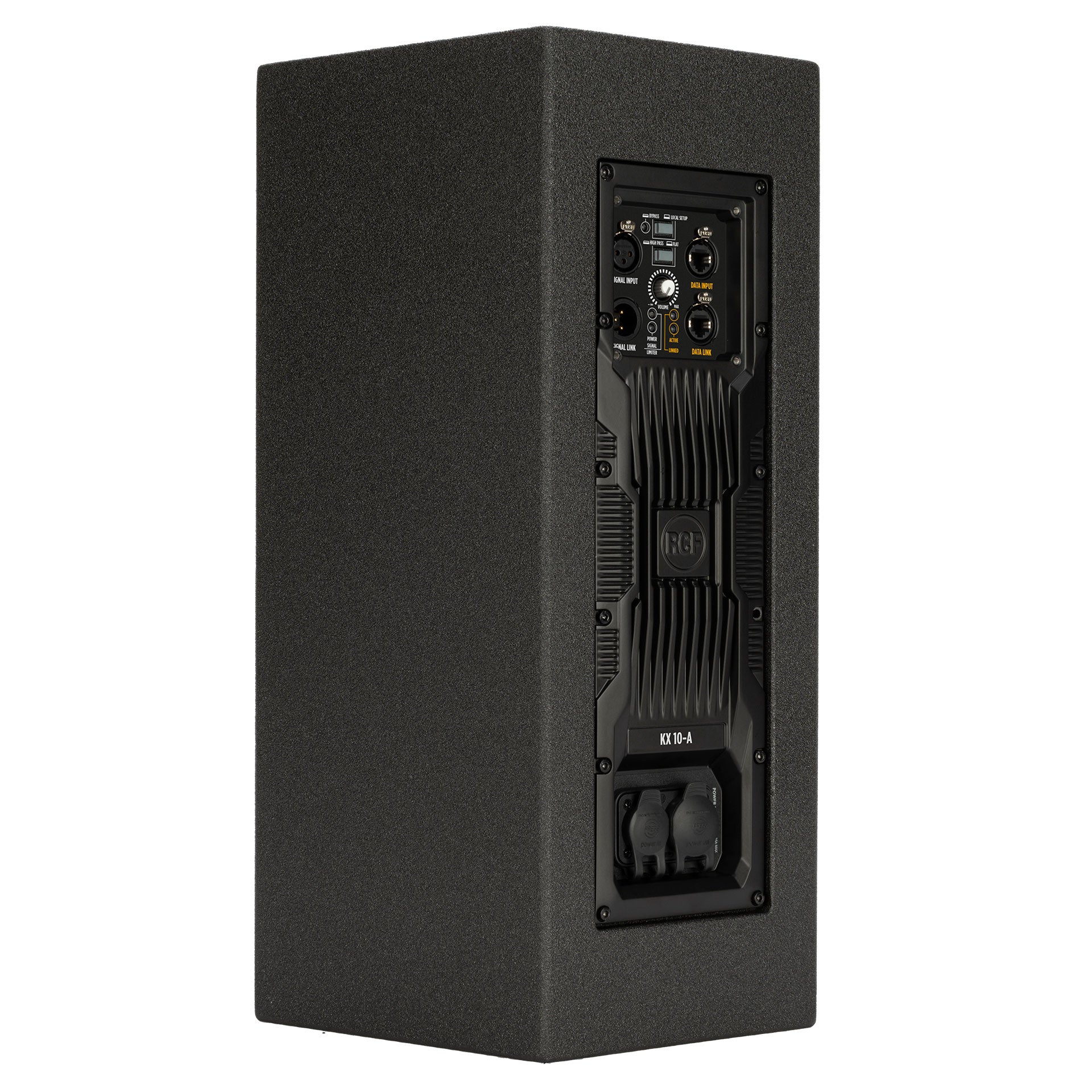

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-

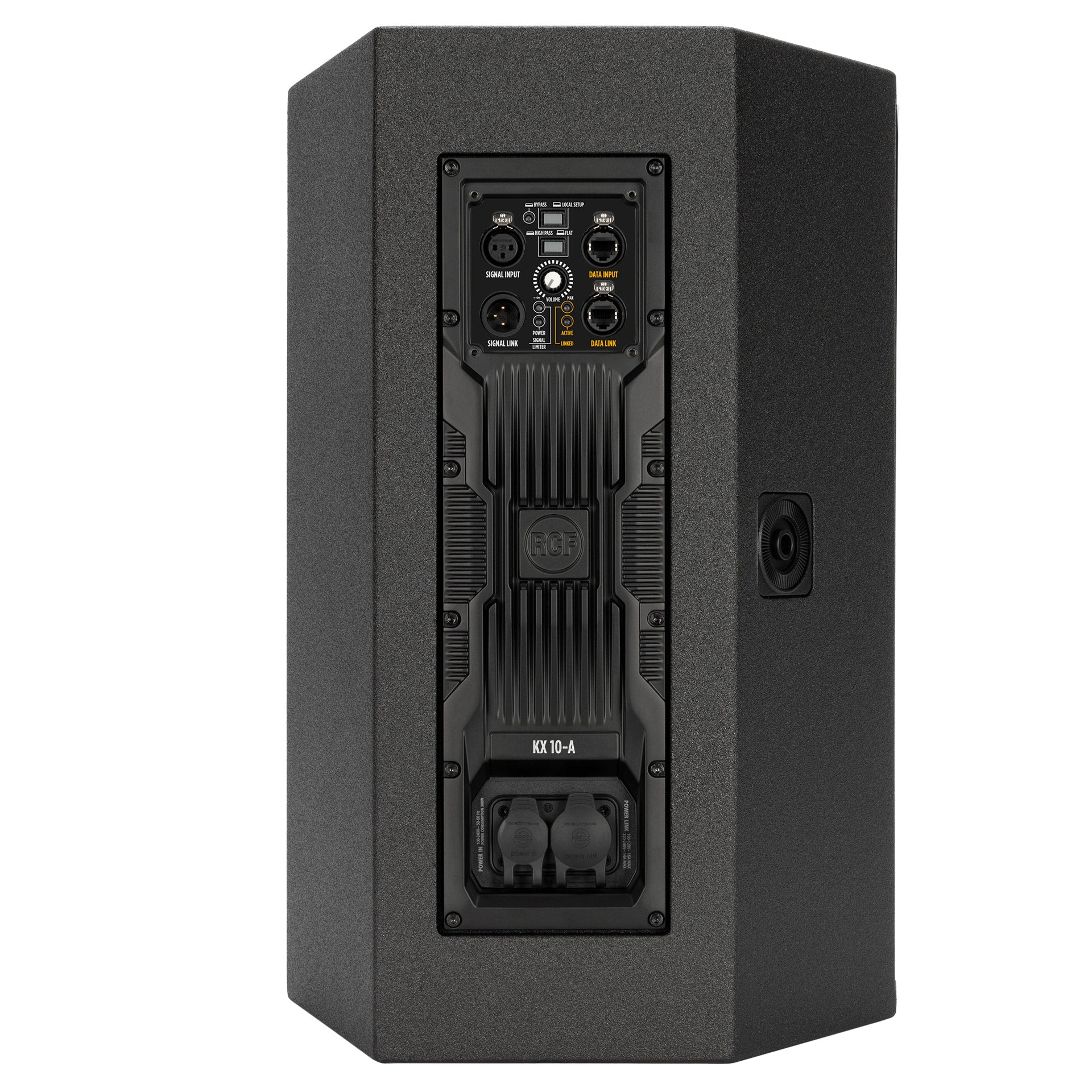

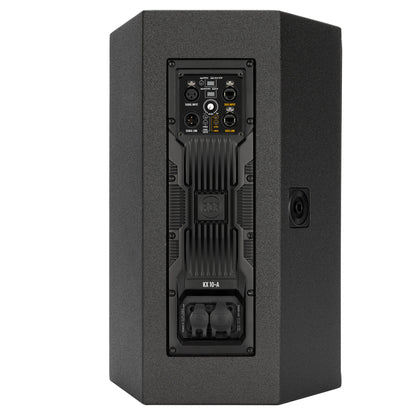

Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 1600 Hz
-
Protections: Thermal, HF
-
Limiter: Fast Limiter
-
Controls: Bypass, Linear/High Pass, Volume
-
RDNet: Onboard
POWER SECTION
-
Total Power: 2000 W Peak
-
High frequencies: 600 W Peak
-
Low frequencies: 1400 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-

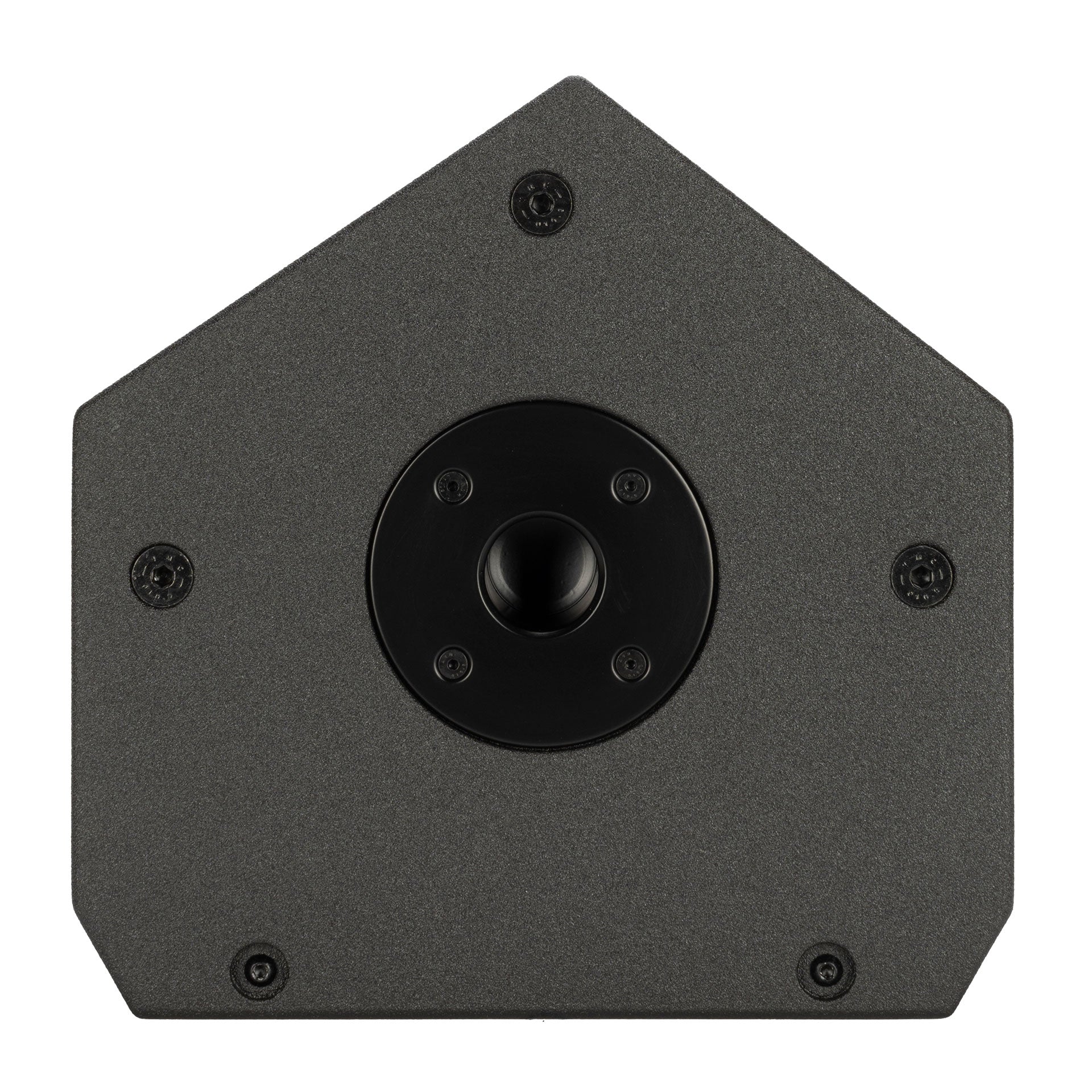

Hardware: 3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE
-

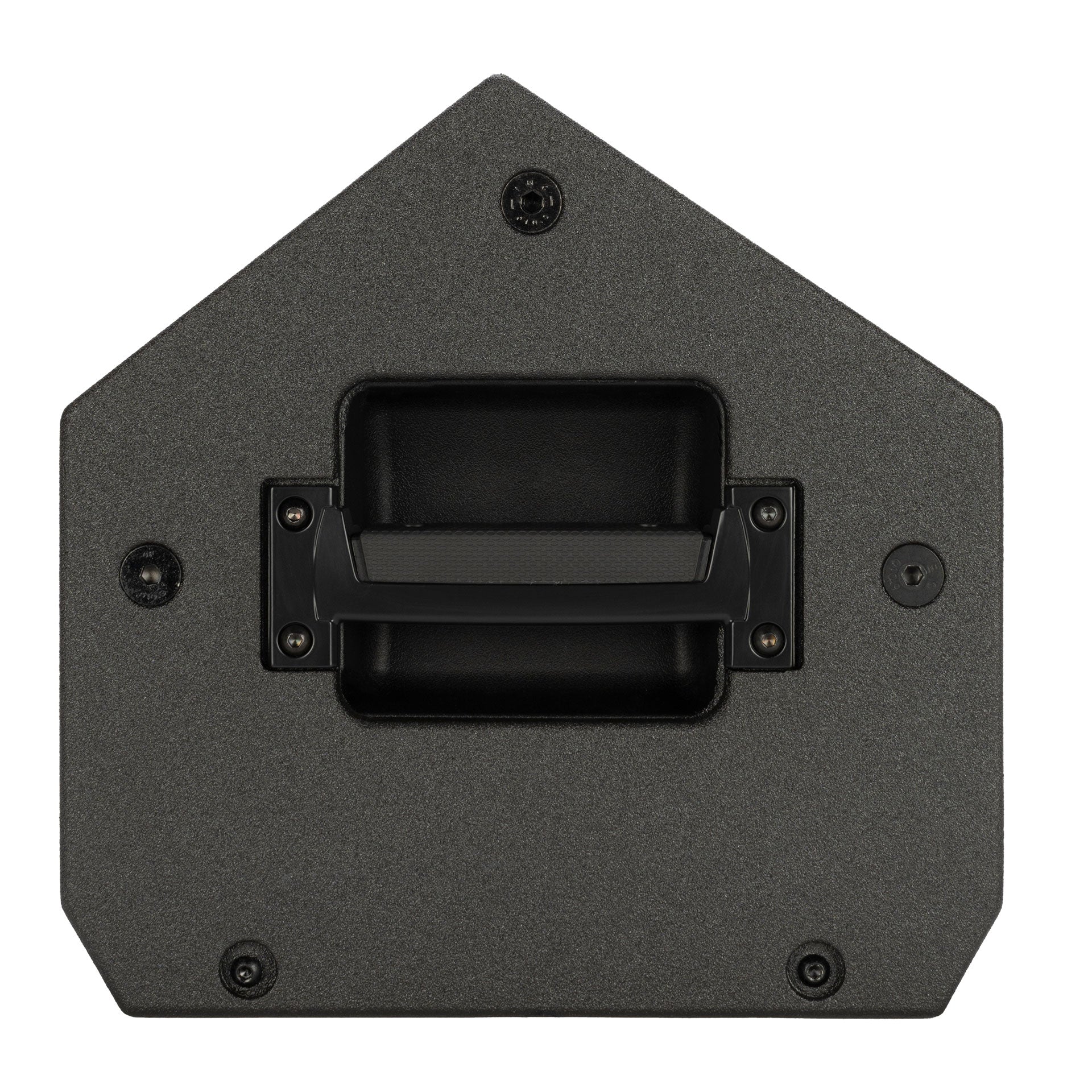

Handles: 1 TOP
-
Pole mount/Cap: 35 mm insert
-
Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 510 mm / 20.08 inches
-
Width: 300 mm / 11.81 inches
-
Depth: 300 mm / 11.81 inches
-
Weight: 14 kg / 30.86 lbs
SHIPPING INFORMATION
-
Package Height: 615 mm / 24.21 inches
-
Package Width: 355 mm / 13.98 inches
-
Package Depth: 355 mm / 13.98 inches
-
Package Weight: 15.5 kg / 34.17 lbs
