Description

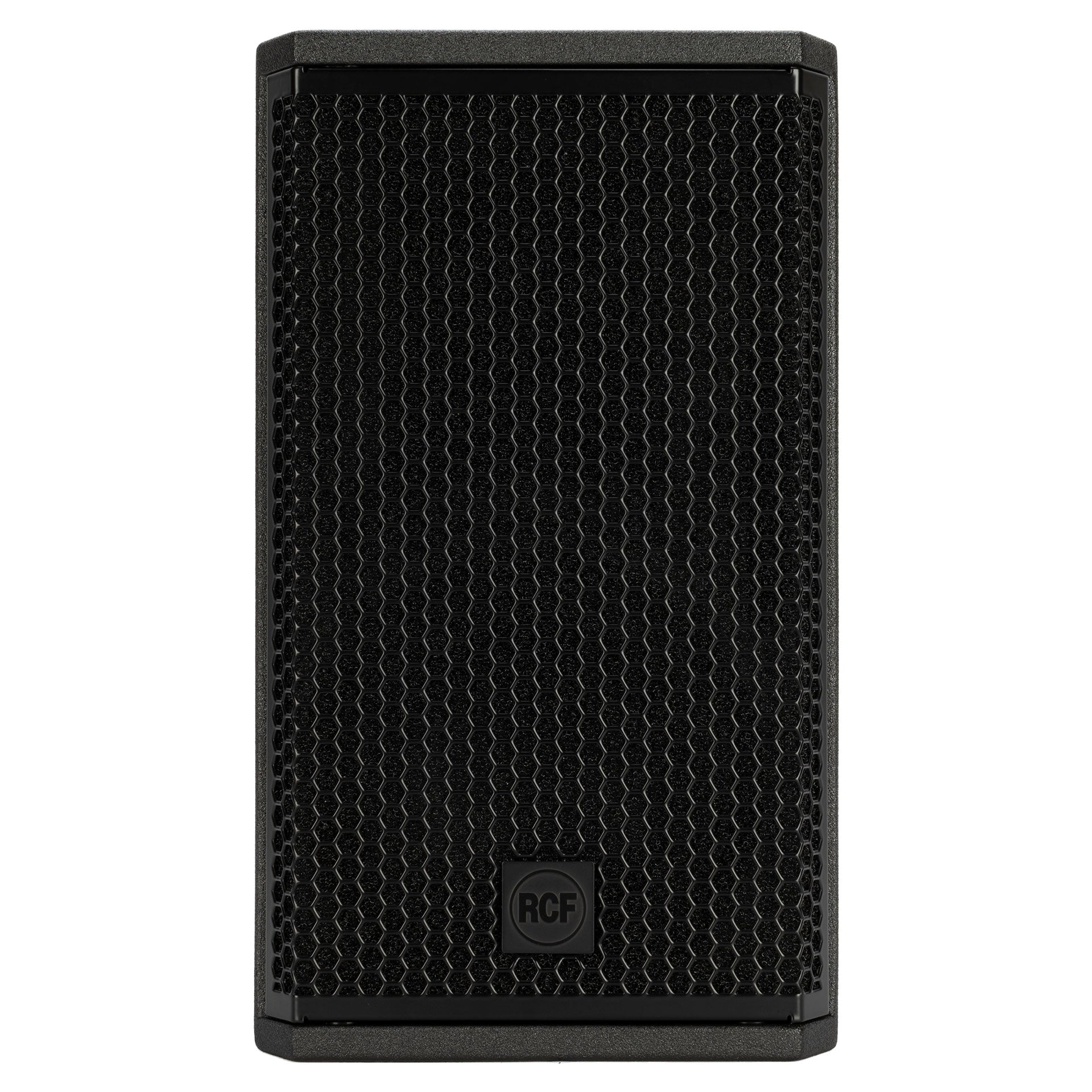

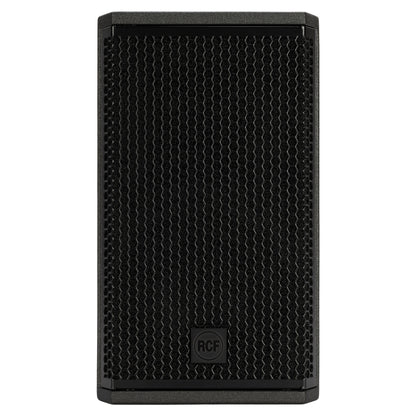

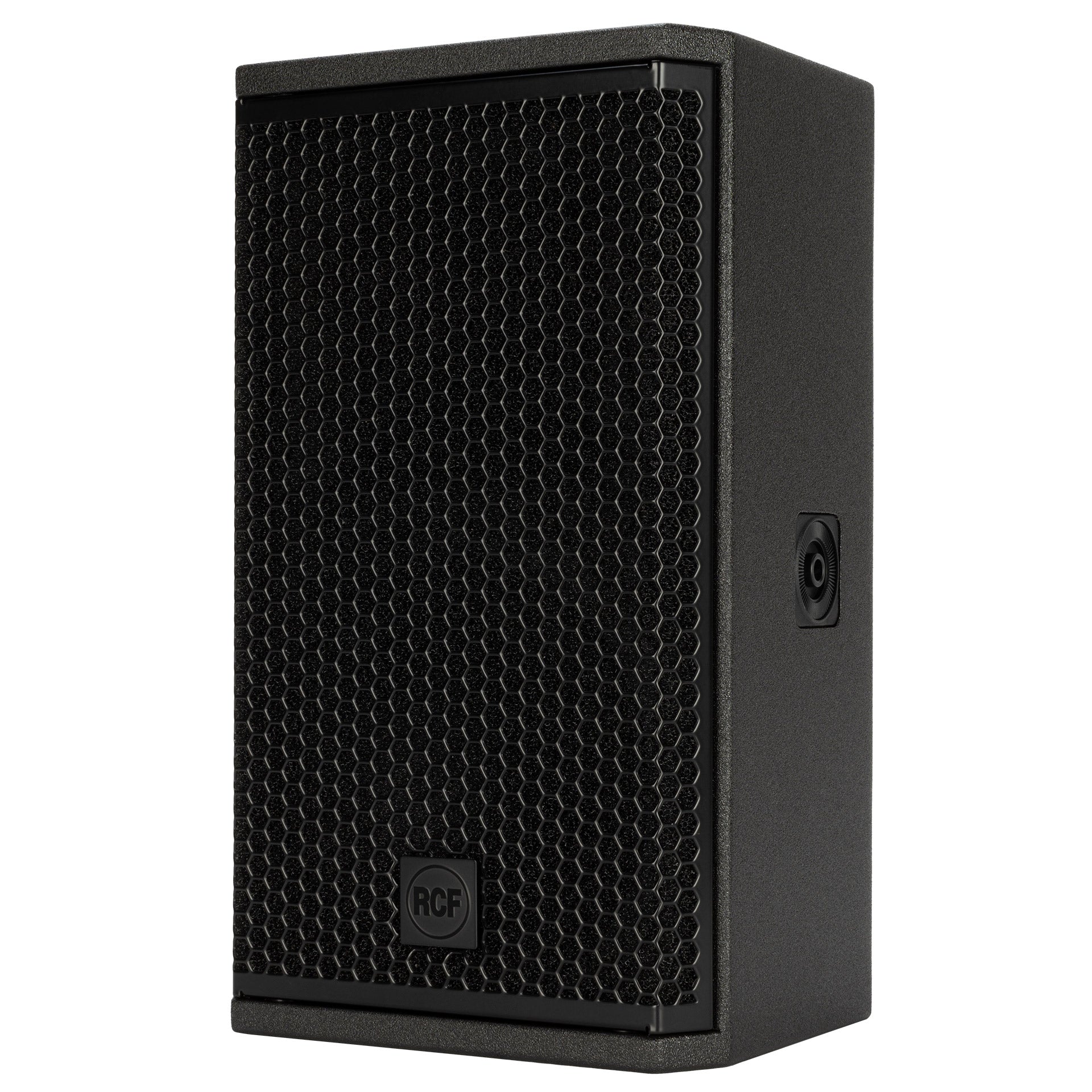

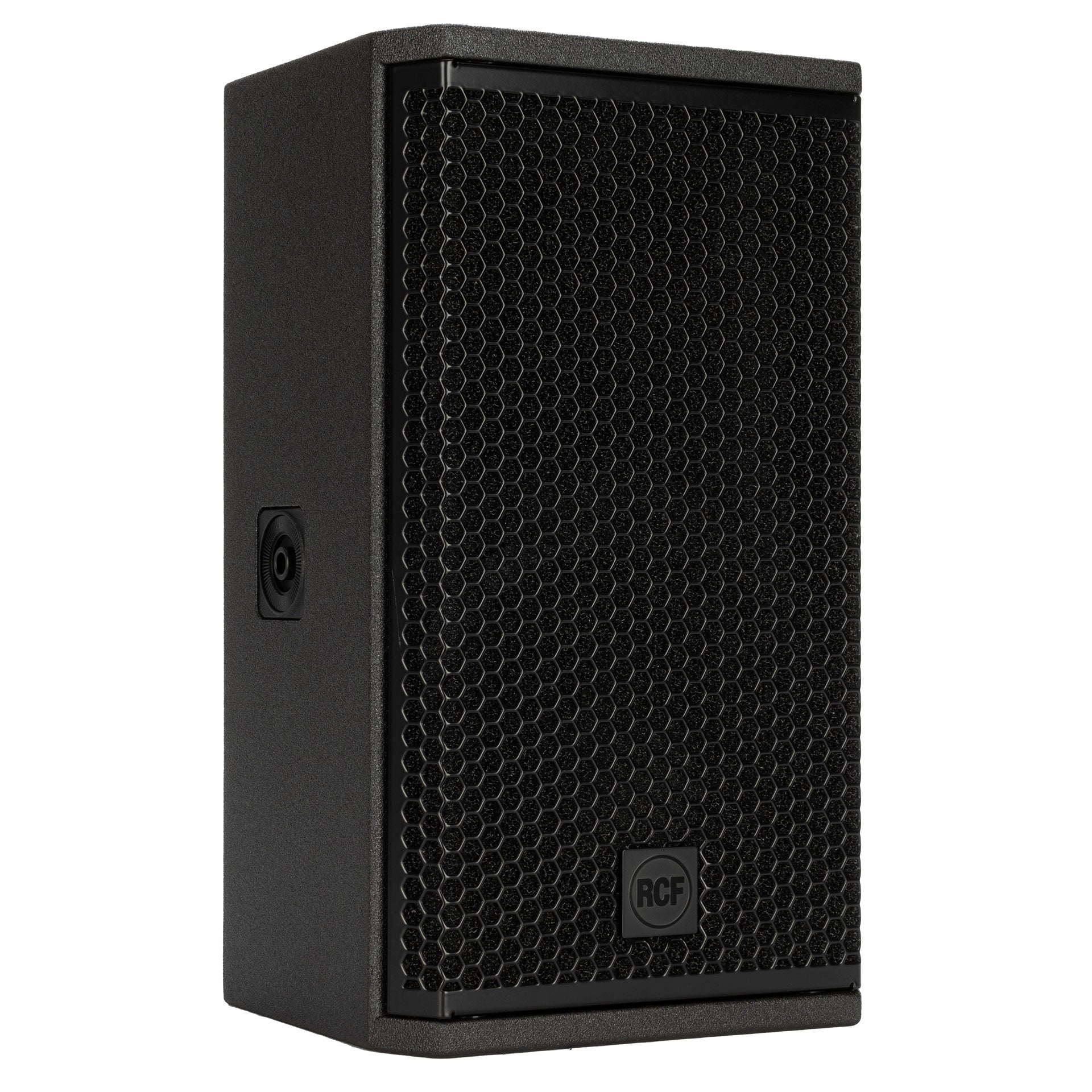

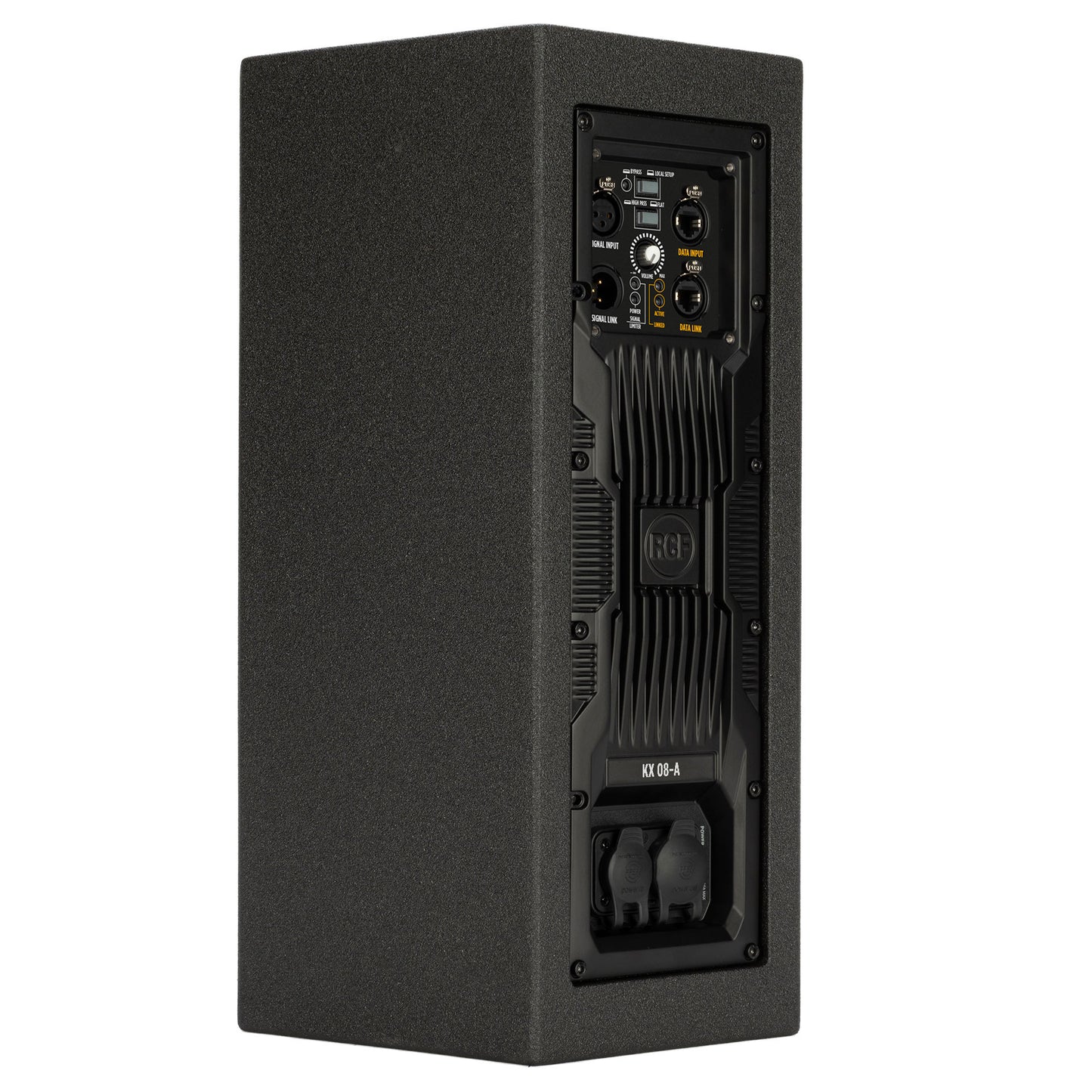

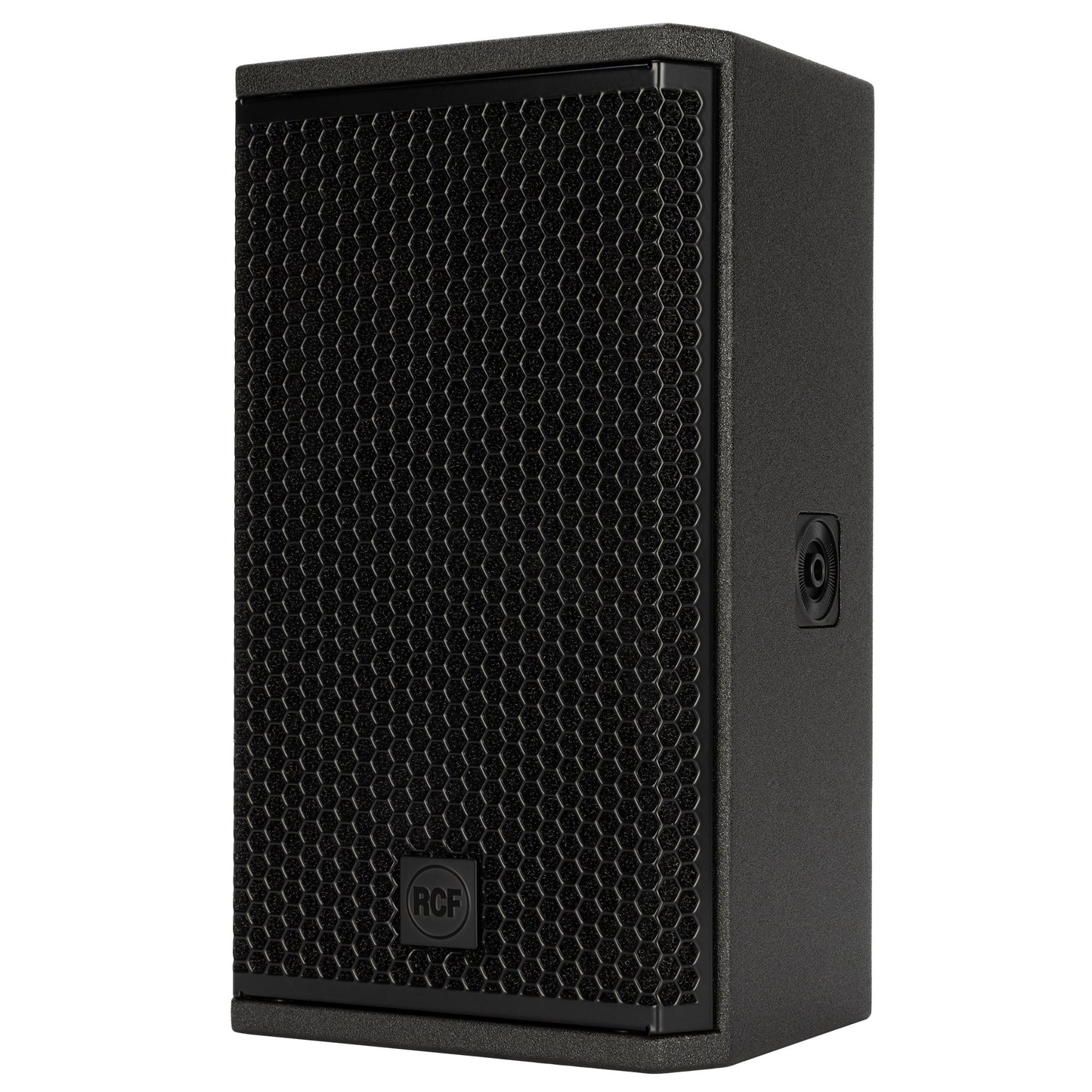

Active 2000W 8" 2-Way Speaker (RDNET Ready)

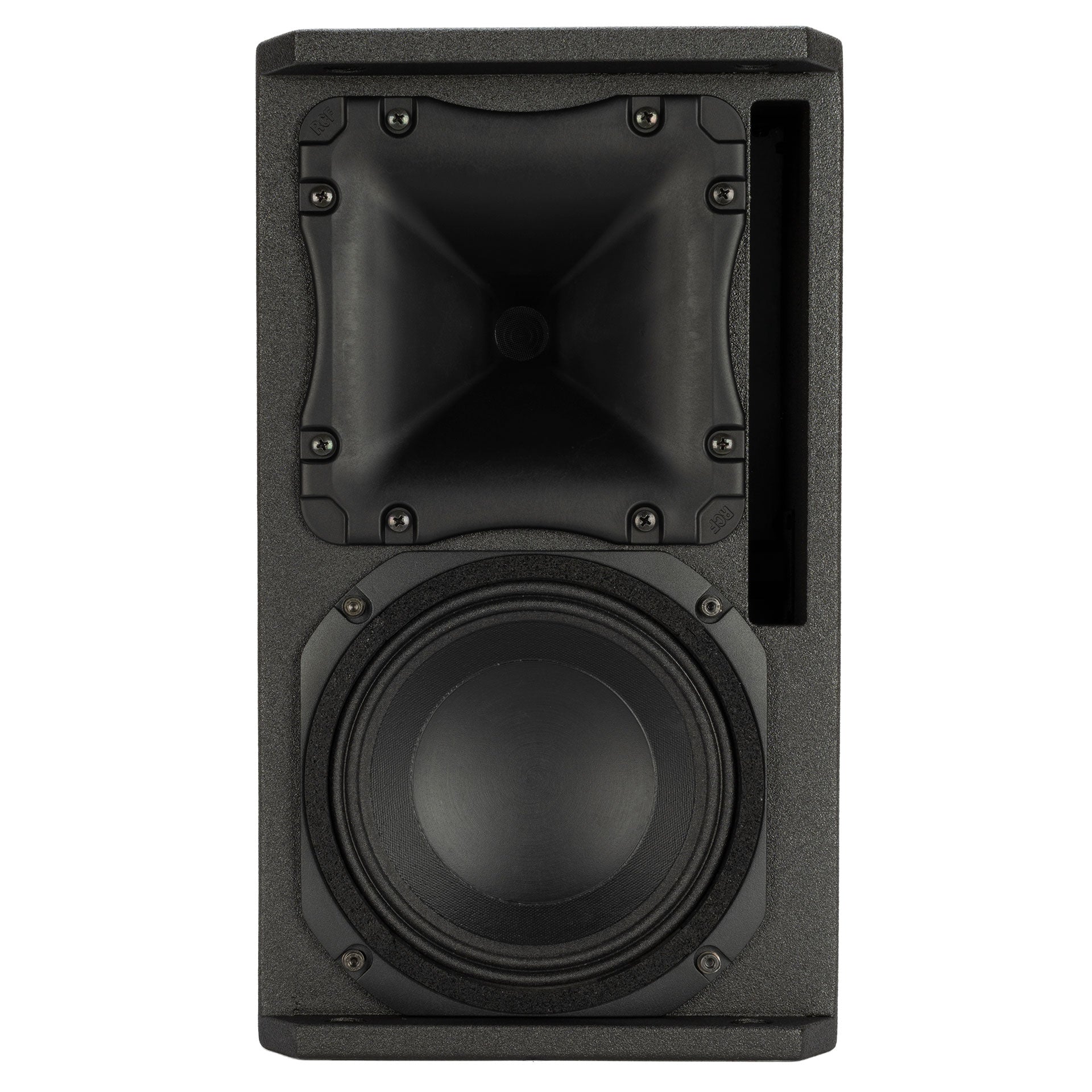

The KX 08-A is a compact, high-output 2-way active speaker system engineered for professional users, combining precise directivity, high SPL capability, and advanced system integration. The low-frequency section features an 8” neodymium driver in a bass-reflex design; the high-frequency section comprises a neodymium compression driver with a 1.75” PKX dome, coupled to a 90° x 70° True Resistive Waveguide, rotatable by 90° to ensure flexible coverage options. An integrated two-channel 2000 W Class D amplifier with proprietary DSP processing and remote management via RDNet enables optimal system performance. Its weatherproof, multifunctional enclosure with Quick Fit and M10 inserts supports versatile deployment for ground-stacked, pole-mounted, or flown applications.
FEATURES
- 128 dB SPL Max
- Rotatable 90° x 70° TRW horn
- 8’’ neodymium woofer, 2.5’’ voice coil
- 1,75’” PKX dome, neodymium compression driver
- Two-channel, 2000W Class-D amplifier
- DSP Processing with FiRPHASE and BMC
- RDNet Networked Management
- powerCON TRUE1 TOP mains connectors
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 65 Hz - 20000 Hz
-
Max SPL @ 1m: 128 dB
-
Horizontal coverage angle: 90°
-
Vertical coverage angle: 70°
TRANSDUCERS
-
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
-
Woofer: 1 x 8'' neo, 2.5'' v.c

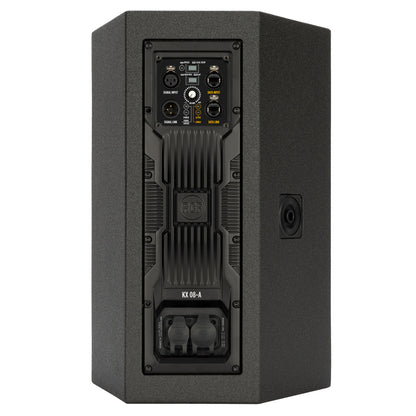

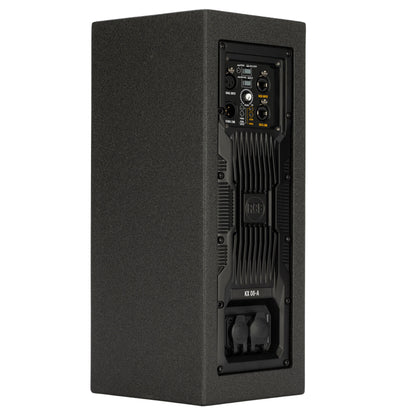

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: XLR, RDNet Ethercon
-
Output connectors: XLR, RDNet Ethercon
-
Input sensitivity: -2 dBu/+4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 1400Hz
-
Protections: Thermal, HF
-
Limiter: Fast Limiter
-
Controls: Bypass, Linear/High Pass, Volume
-
RDNet: Onboard
POWER SECTION
-
Total Power: 2000 W Peak
-
High frequencies: 600 W Peak
-
Mid frequencies: 1400 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood
-

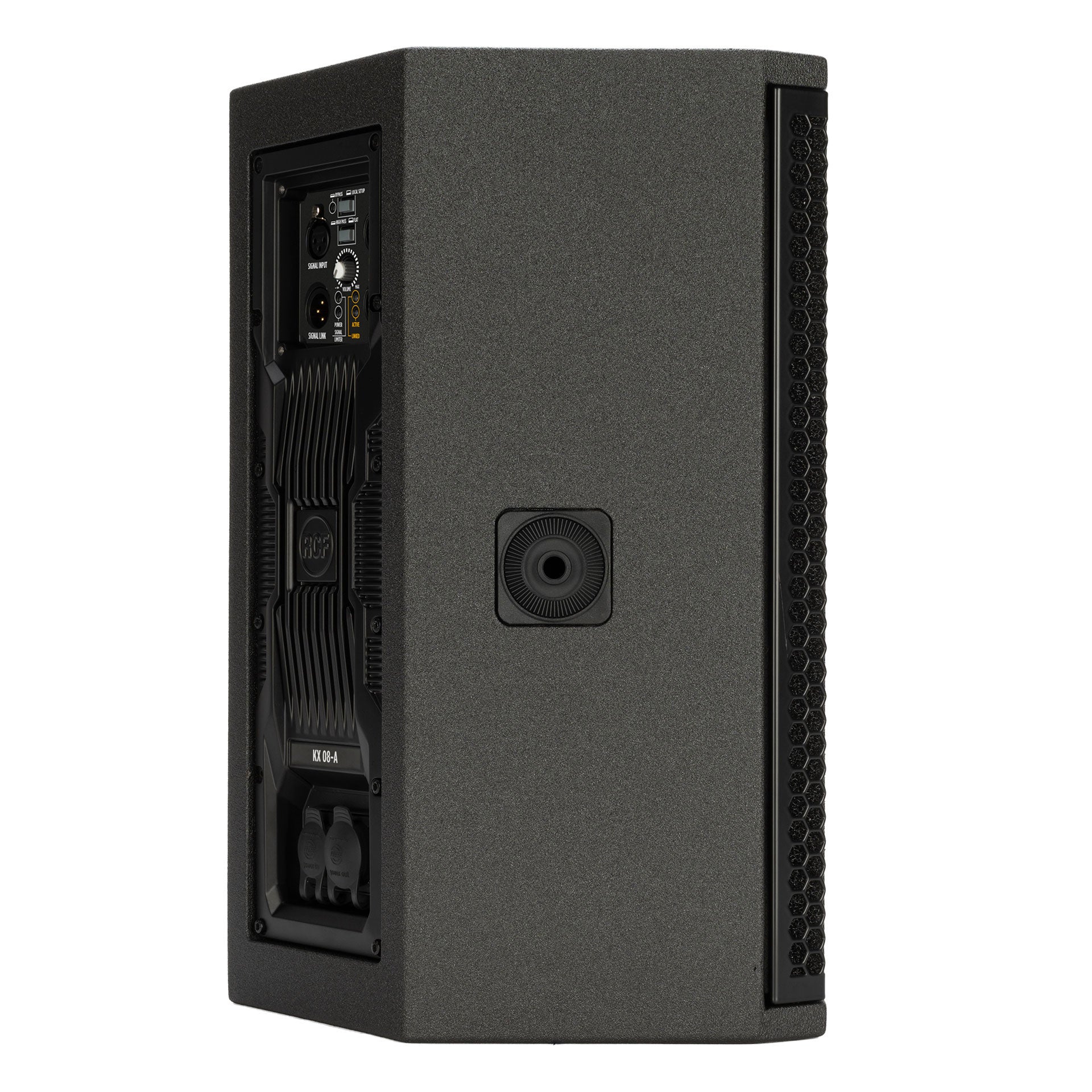

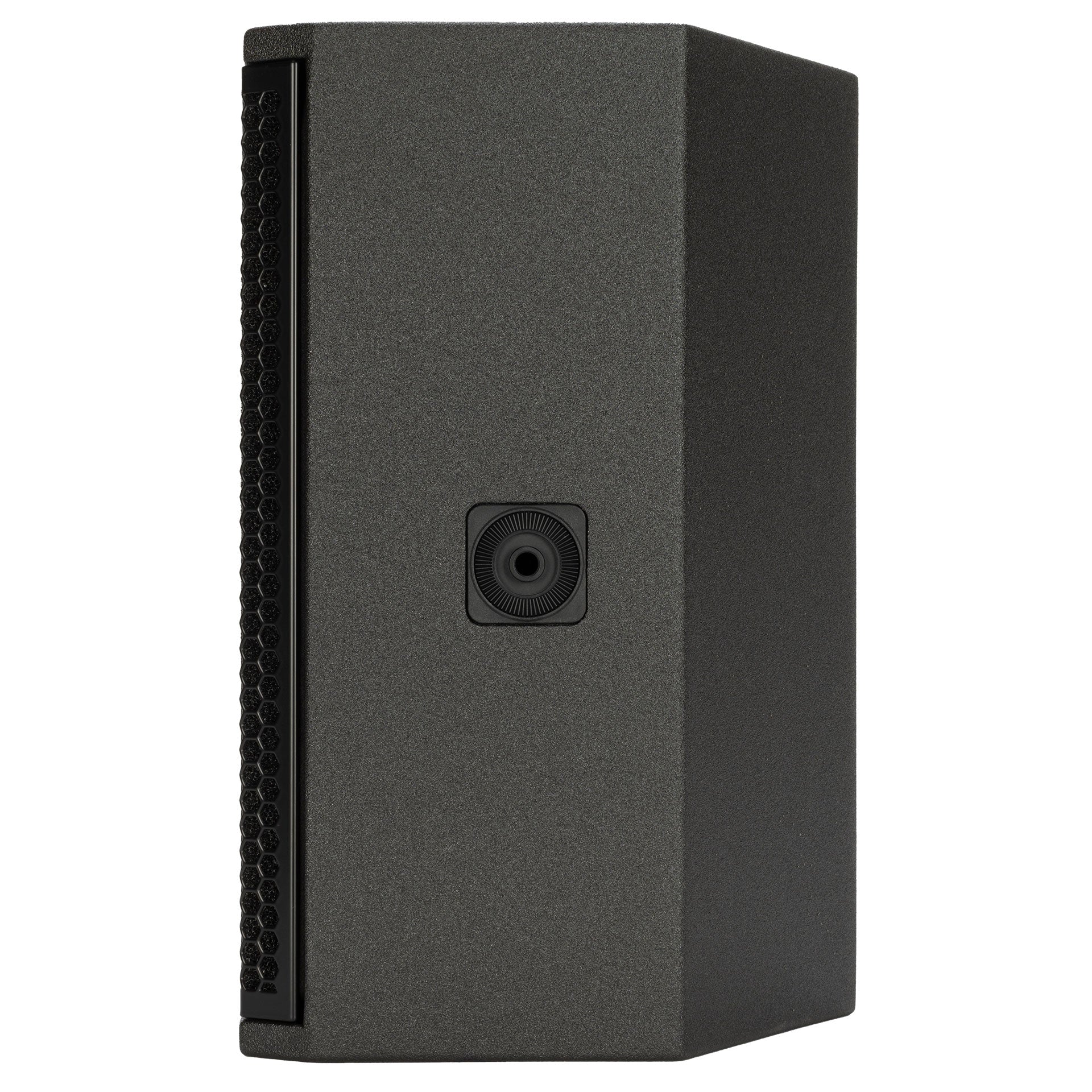

Hardware: 3X M10 TOP AND BOTTOM 2X PIN D.10 AND M10 SIDE
-

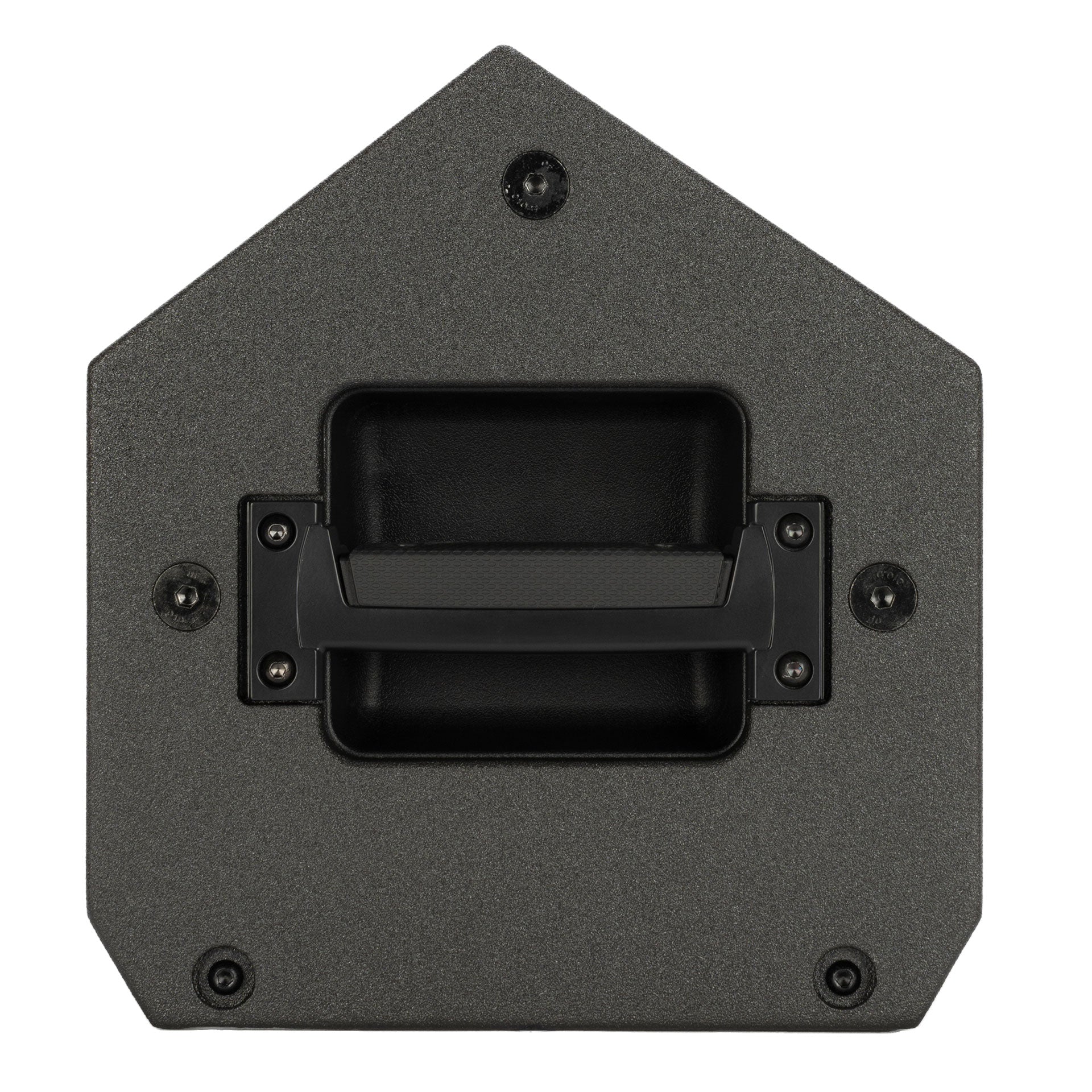

Handles: 1 TOP
-

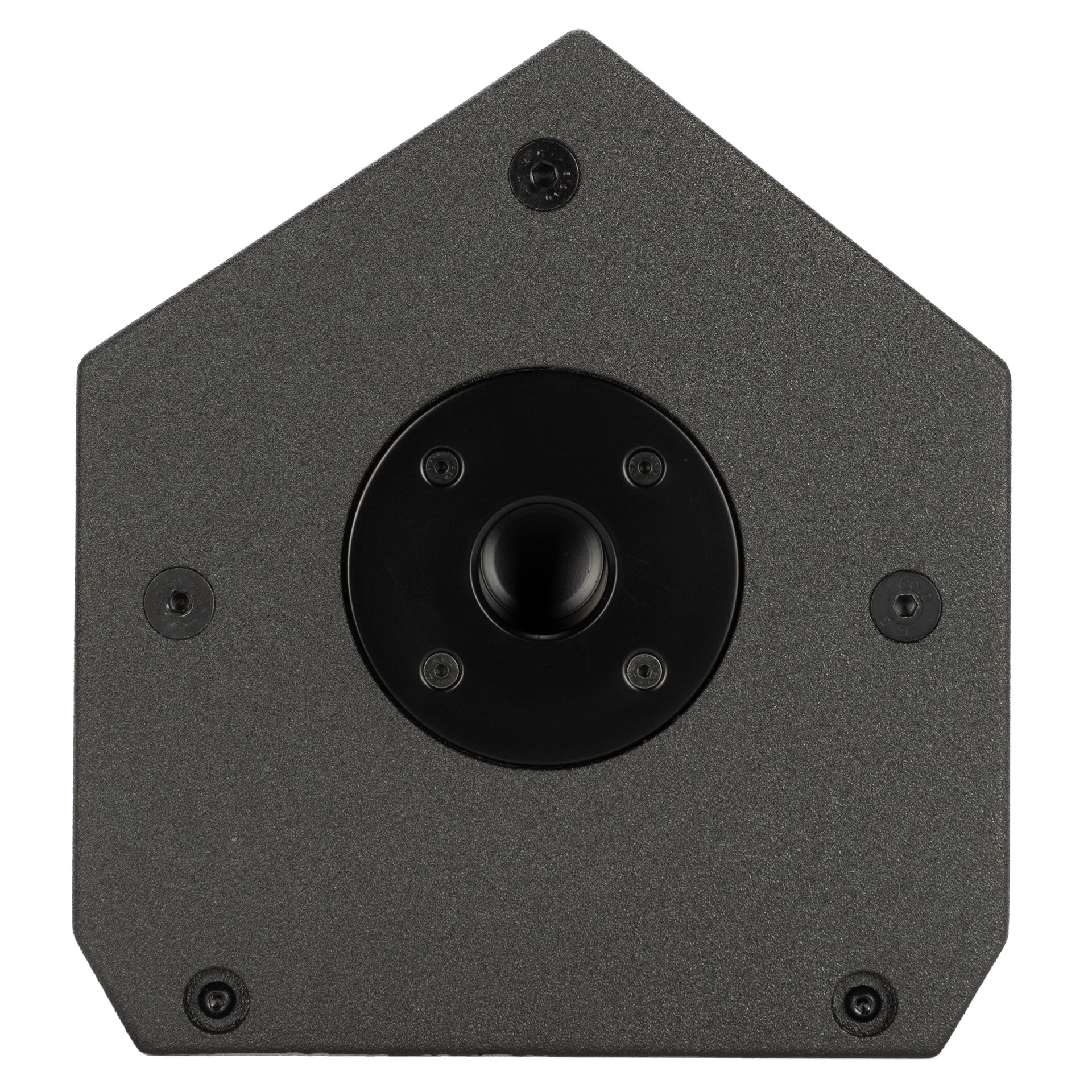

Pole mount/Cap: 35 mm insert
-
Grille: Steel with clothing
-
Color: Black
SIZE / WEIGHT
-
Height: 450 mm / 17.72 inches
-
Width: 260 mm / 10.24 inches
-
Depth: 285.4 mm / 11.24 inches
-
Weight: 11 kg / 24.25 lbs
SHIPPING INFORMATION
-
Package Height: 555 mm / 21.85 inches
-
Package Width: 345 mm / 13.58 inches
-
Package Depth: 315 mm / 12.4 inches
-
Package Weight: 12.5 kg / 27.56 lbs
