RCF HVL15-S W CUSTOM: Passive 12000W Dual 15" Bandpass Subwoofer (White)

RCF HVL15-S W CUSTOM: Passive 12000W Dual 15" Bandpass Subwoofer (White)

Write a review

SKU: HVL15-S W

Shipping calculated at checkout.

Available options

View full details

Description

CUSTOM: Passive 12000W Dual 15" Bandpass Subwoofer (White)

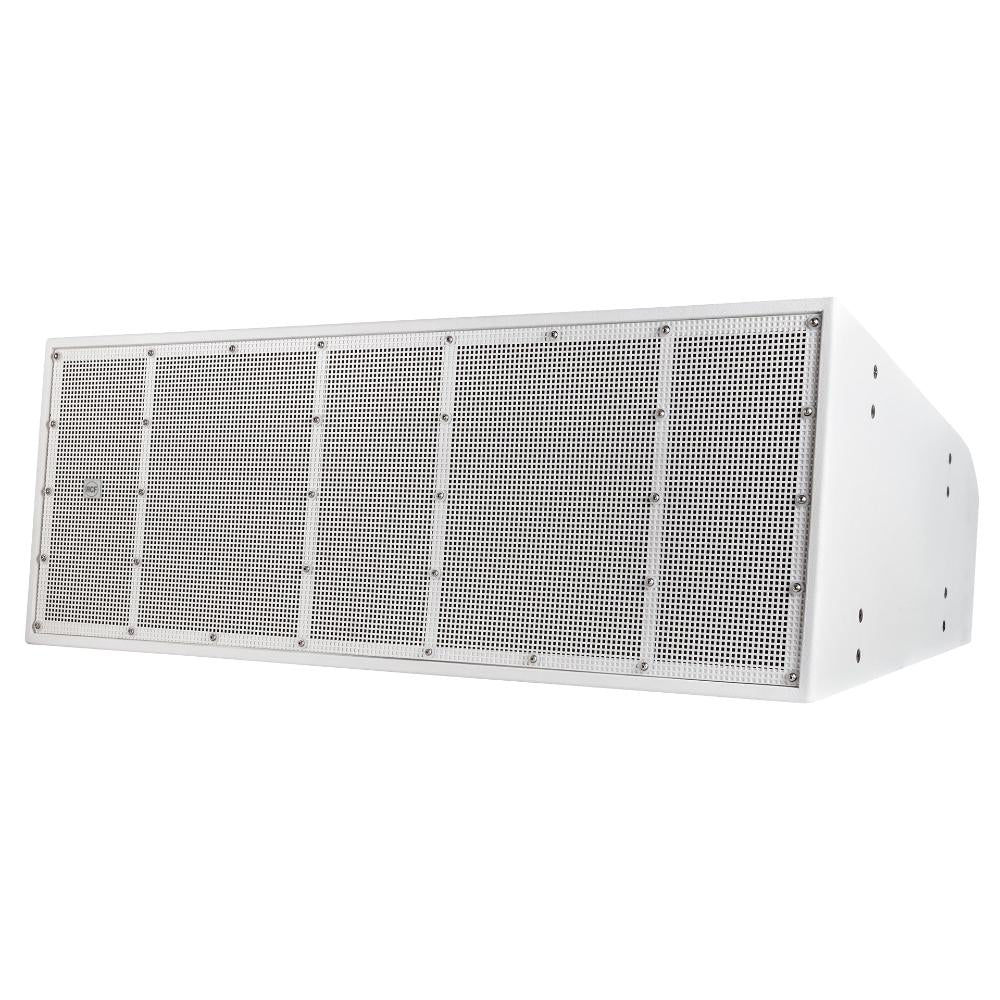

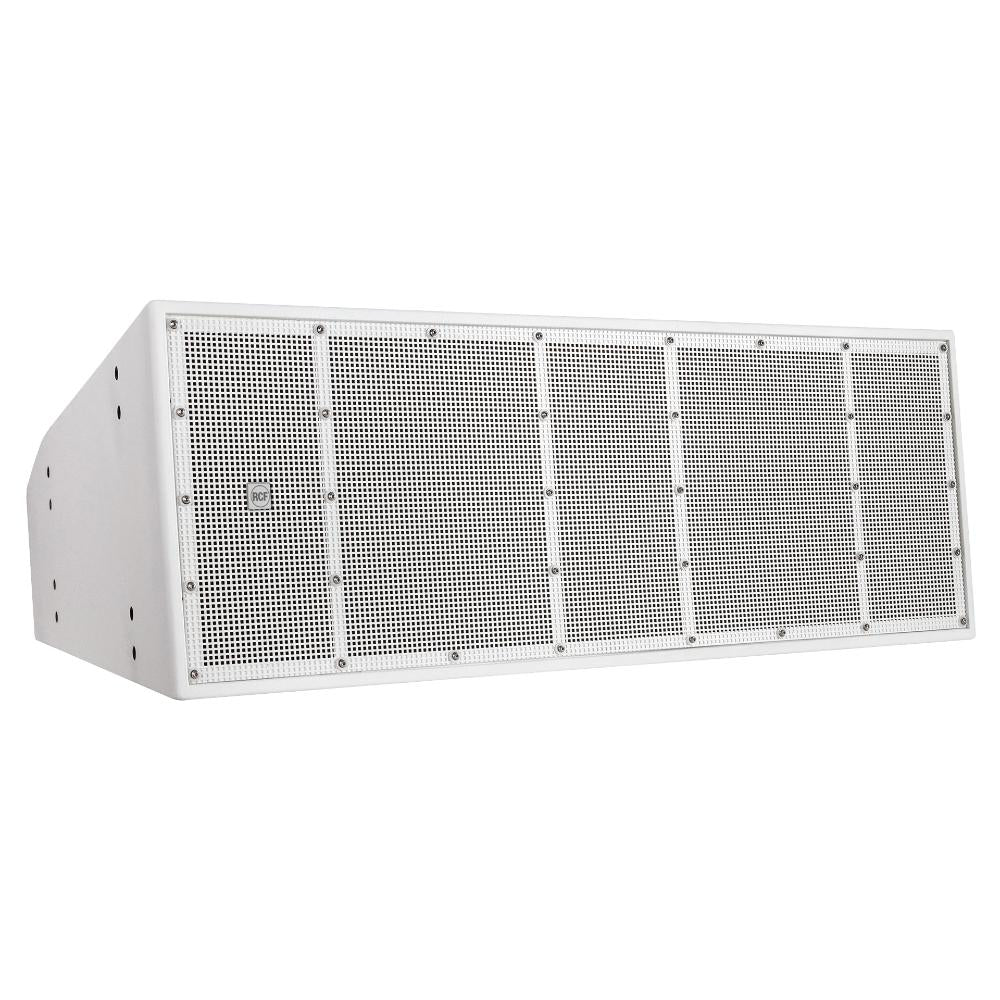

HVL 15-S is a double 15” subwoofer system for long-throw applications, outfitted with 2 x 15” woofers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-S provides very high output and accurate sound reproduction. The system can produce a max SPL of 133 dB, handling 3000 W. The enclosure is trapezoidal with a coupling angle of 15°. The cabinet is made of Baltic birch plywood, and the finishing is a waterproof, textured, polyurea coating. A heavy-duty, weatherproof barrier strip provides connections. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

Features

  • 3000 W power handling
  • 133 dB max SPL
  • 33 ÷ 180 Hz frequency range
  • 2 x 15" high-power woofers
  • Symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 33 Hz - 180 Hz
    Frequency Response (-3dB) 40 Hz - 150 Hz
    Max SPL @ 1m 133 dB
    Power section
    Amplification Bi-Amp
    Nominal Impedance LF 8 ohm
    Power Handling LF 1500 W
    Peak Power Handling LF 6000 W
    Sensitivity LF 97 dB
    Nominal Impedance LF2 8 ohm
    Power Handling LF2 1500 W
    Peak Power Handling LF2 6000 W
    Sensitivity LF2 97 dB
    Recommended Amplifiers XPS 16K, XPS 16KD, QPS 10K
    Transducers
    Woofer 2 x 15'', 4.0'' v.c
    Input/Output section
    Input connectors Screw Terminals
    Output connectors Screw Terminals
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood
    Hardware n° 8 x M20 on each side panel
    n° 8 x M20 on top and bottom panel
    Grille Steel
    Color White - RAL 9010, Black - RAL 9005
    Size / Weight
    Height 525 mm / 20.67 inches
    Width 1380 mm / 54.33 inches
    Depth 734 mm / 28.9 inches
    Weight 110 kg / 242.51 lbs
    Shipping information
    Package Height 840 mm / 33.07 inches
    Package Width 1405 mm / 55.31 inches
    Package Depth 545 mm / 21.46 inches
    Package Weight 120 kg / 264.55 lbs
