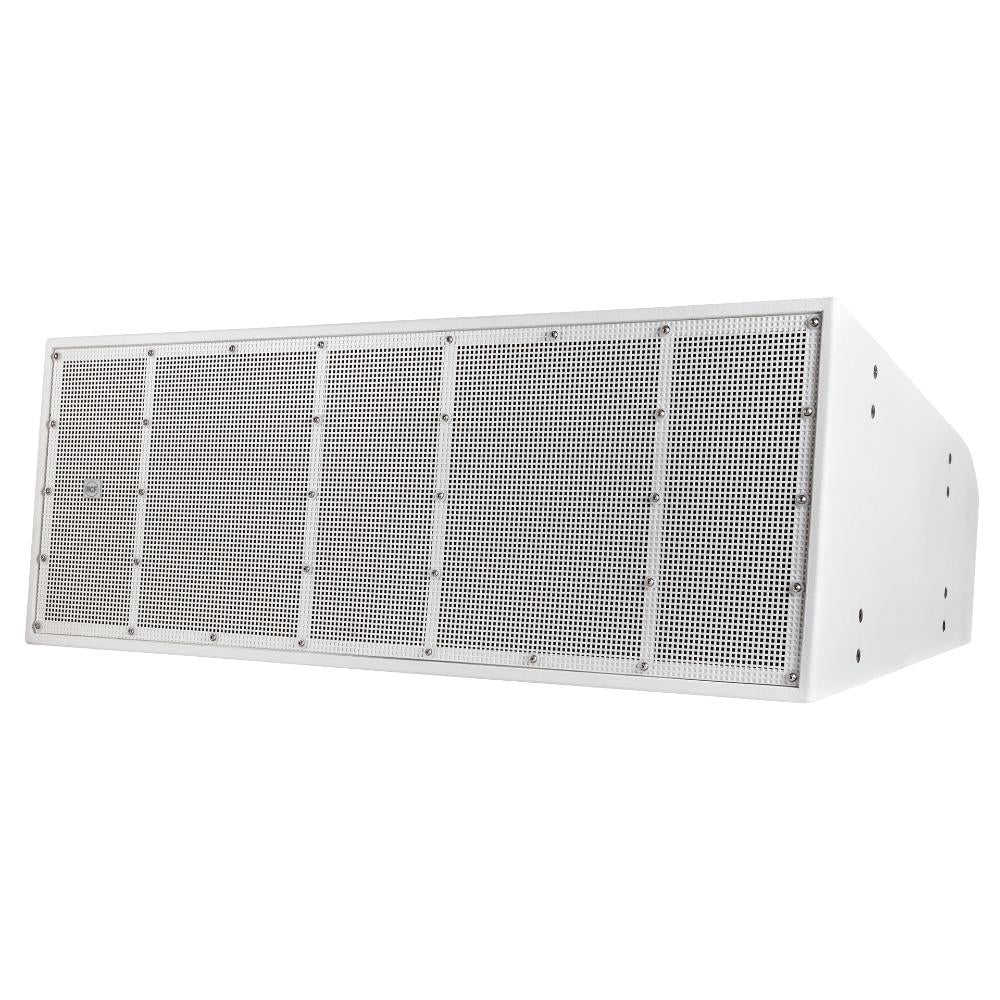

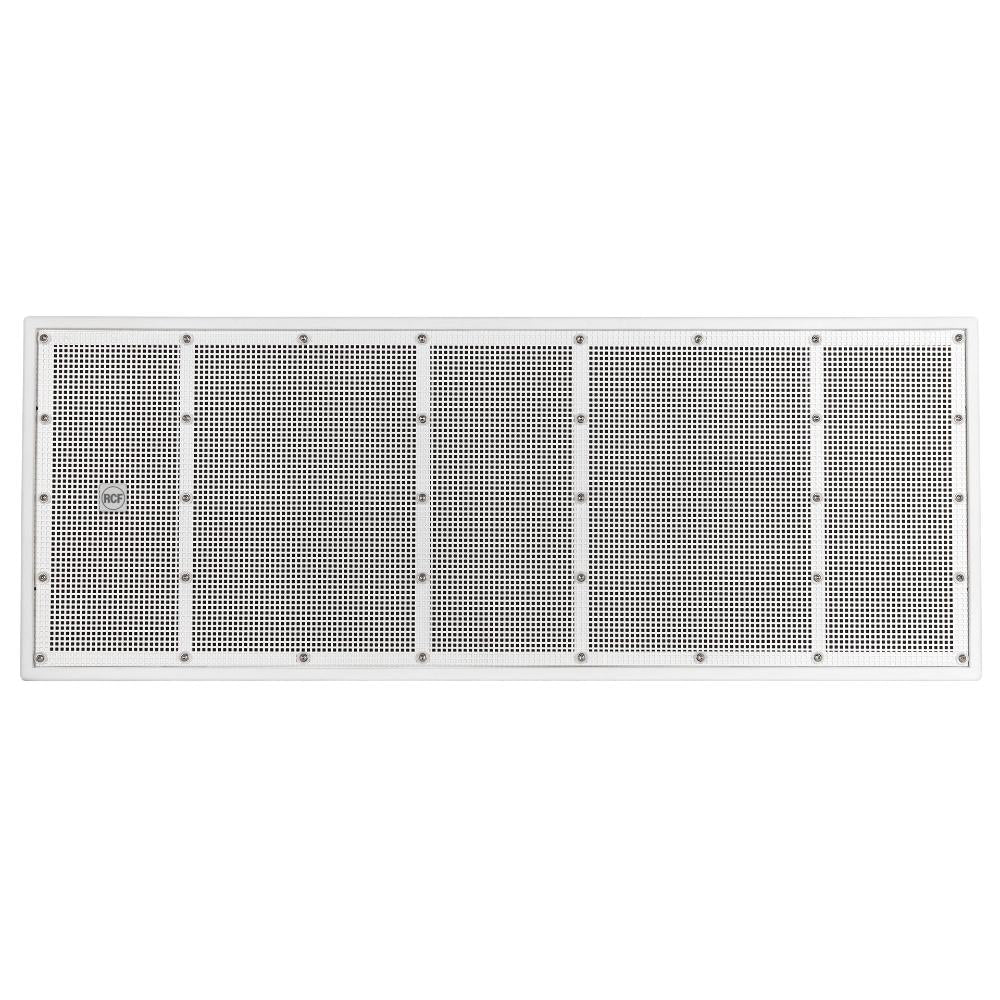

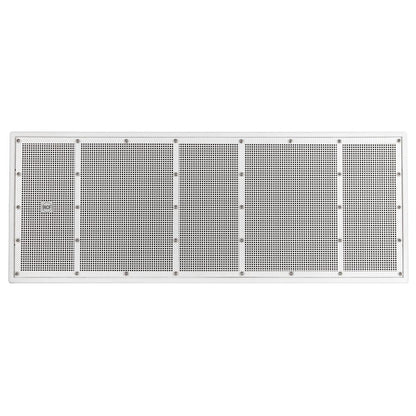

RCF HVL15-P1 W CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 60° x 30° Coverage (White)

RCF HVL15-P1 W CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 60° x 30° Coverage (White)

Write a review

SKU: HVL15-P1 W

Shipping calculated at checkout.

Available options

View full details

Description

CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 60° x 30° Coverage (White)

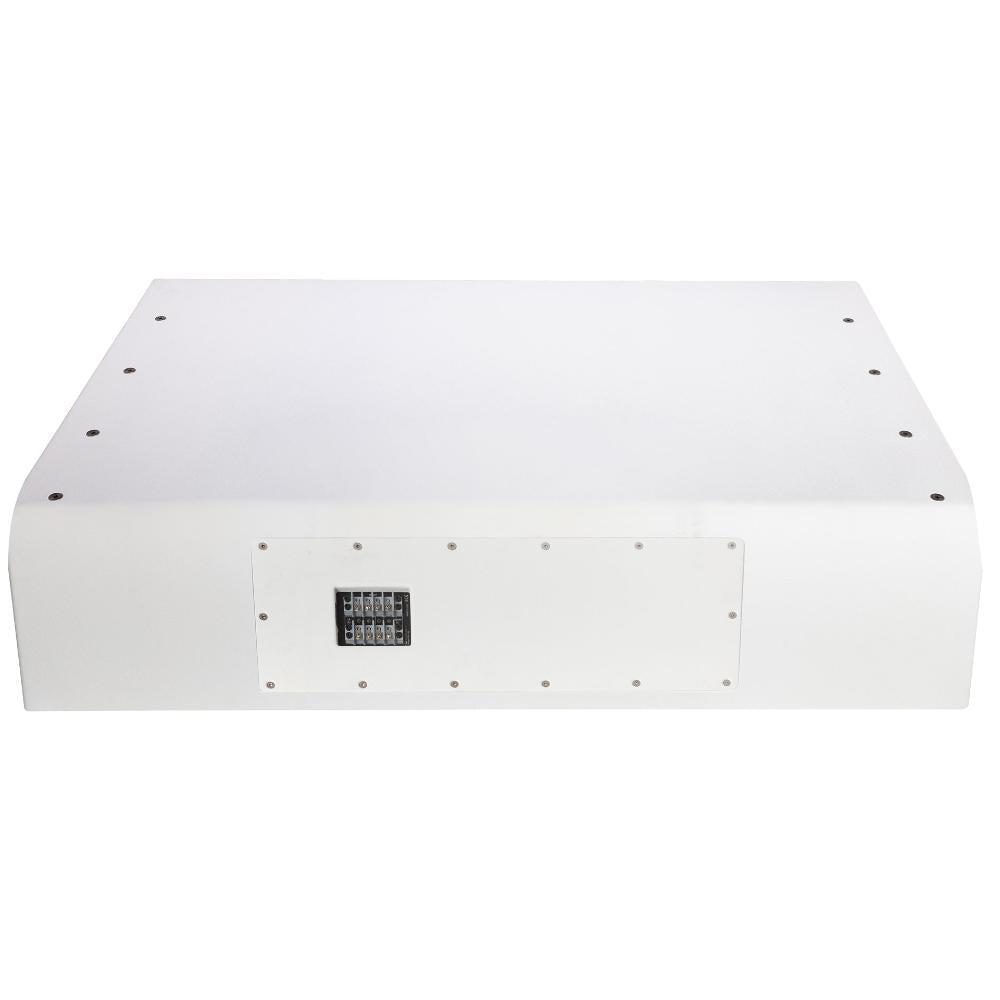

HVL 15-P1 is a three-way, bi-amp loudspeaker system for long-throw applications, outfitted with 2 x 15” woofers, 2 x 10” midranges, and 2 x 4.0” voice coil, titanium dome compression drivers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-P1 provides very high output and accurate sound and voice reproduction. The system, driven in bi-amped mode, can produce a max SPL of 145 dB MHF, handling 1000 W RMS (LF) + 900 W RMS (MHF). An internal passive filter provides crossover and equalization between the midranges and the compression drivers. The horizontal coverage is 60°, and the vertical coverage is 30°. A heavy-duty, weatherproof barrier strip provides connections. The cabinet is made of Baltic birch plywood. The finishing is a waterproof, textured, polyurea coating. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing. The back of the cabinet is shaped for under-balcony installation.

Features

  • 1000 W (LF) + 900 W (MHF) power handling
  • 148 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 60° x 30° coverage angles
  • Fully equipped with neodymium transducers
  • Bi-amped system with passive filter between MF and HF
  • Horn Loaded symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 43 Hz - 18000 Hz
    Frequency Response (-3dB) 59 Hz - 13000 Hz
    Max SPL @ 1m 148 dB
    Horizontal coverage angle 60°
    Vertical coverage angle 30°
    Directivity index Q 15
    Power section
    Amplification Bi-Amp
    Nominal Impedance LF 8 ohm
    Power Handling LF 1000 W
    Peak Power Handling LF 4000 W
    Sensitivity LF 97 dB
    Nominal Impedance MF+HF 8 ohm
    Power Handling MF+HF 900 W
    Peak Power Handling MF+HF 3600 W
    Sensitivity MF + HF 111 dB
    Protections MF+HF Dynamic Active Mosfet
    Crossover Frequencies 1000 Hz
    Recommended Amplifiers XPS 16K, XPS 16KD, QPS 10K
    Transducers
    Compression Driver 2 x 1.4'' neo, 4.0'' v.c
    Midrange 2 x 10'' neo, 3.0'' v.c
    Woofer 2 x 15'' neo, 3.5'' v.c
    Input/Output section
    Input connectors Screw Terminals
    Output connectors Screw Terminals
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood

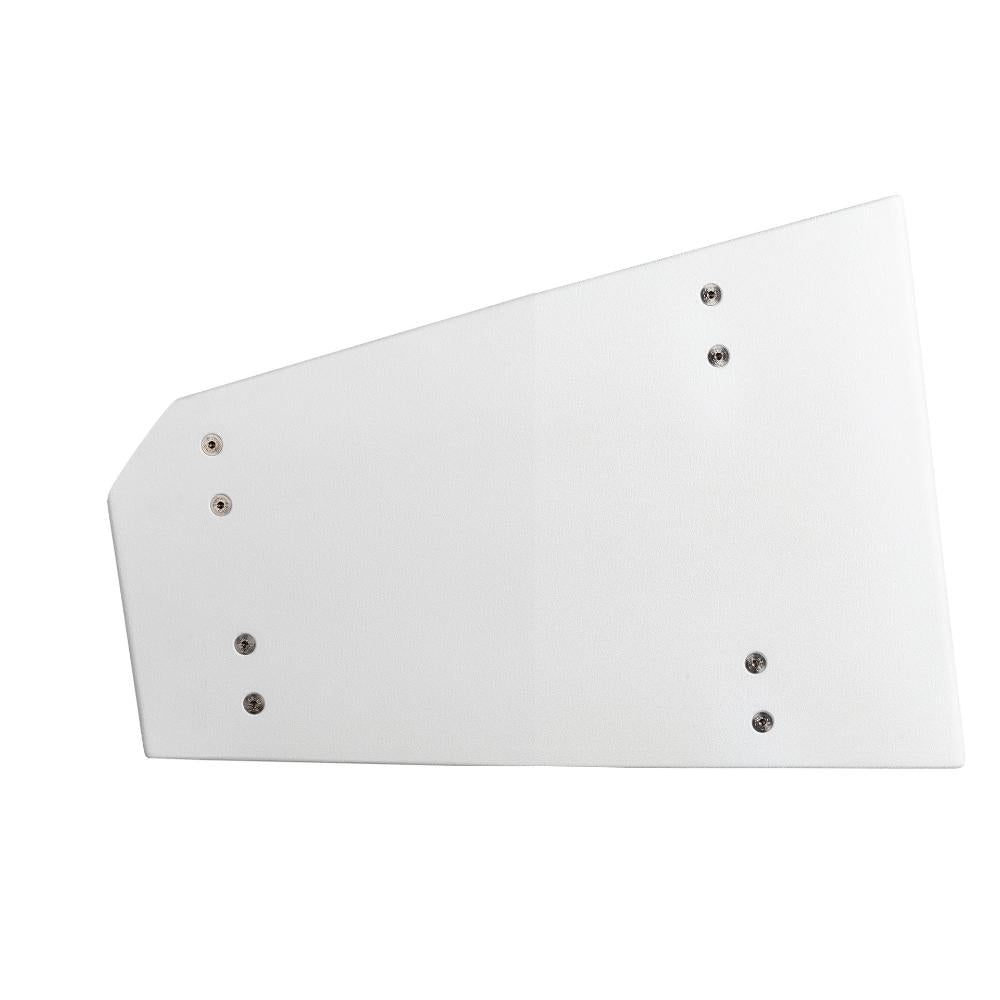

    Hardware n° 8 x M20 on each side panel
    n° 8 x M20 on top and bottom panel
    Grille Steel
    Color White - RAL 9010, Black - RAL 9005
    Size / Weight
    Height 525 mm / 20.67 inches
    Width 1380 mm / 54.33 inches
    Depth 734 mm / 28.9 inches
    Weight 110 kg / 242.51 lbs
    Shipping information
    Package Height 840 mm / 33.07 inches
    Package Width 1405 mm / 55.31 inches
    Package Depth 545 mm / 21.46 inches
    Package Weight 120 kg / 264.55 lbs
