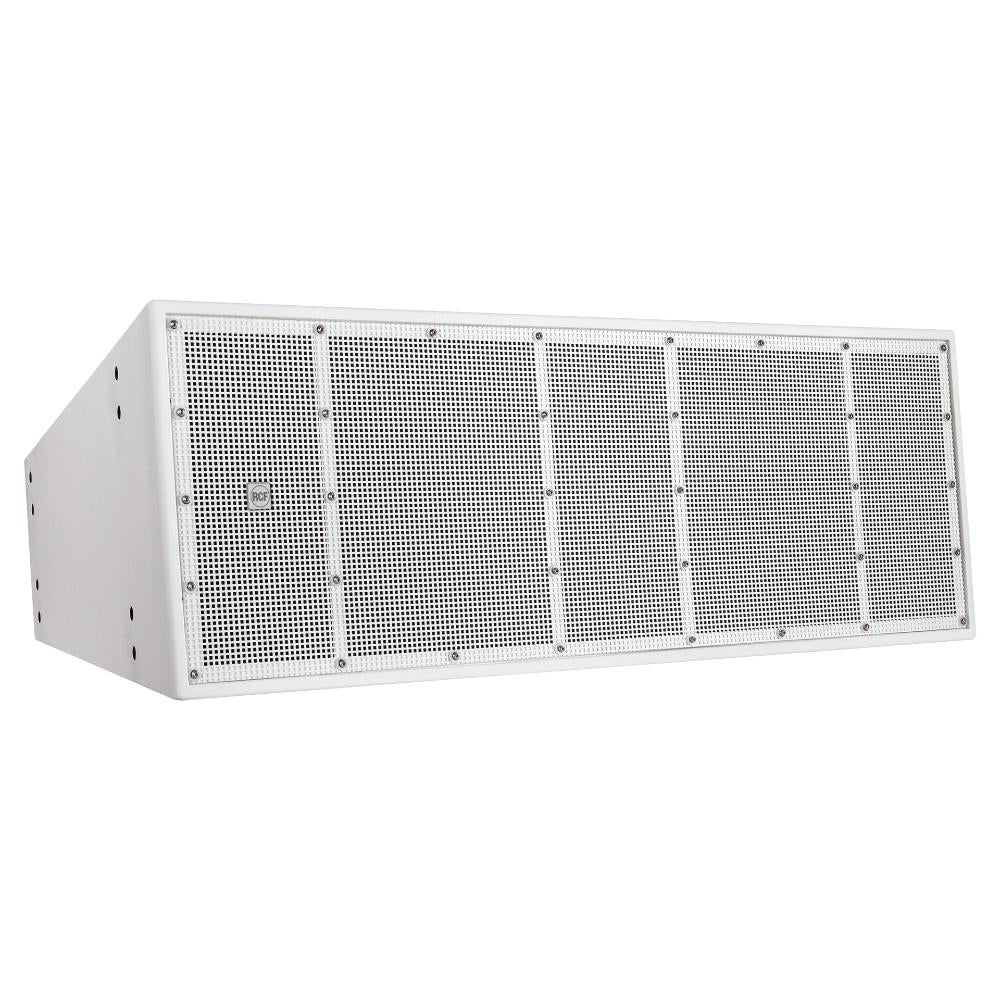

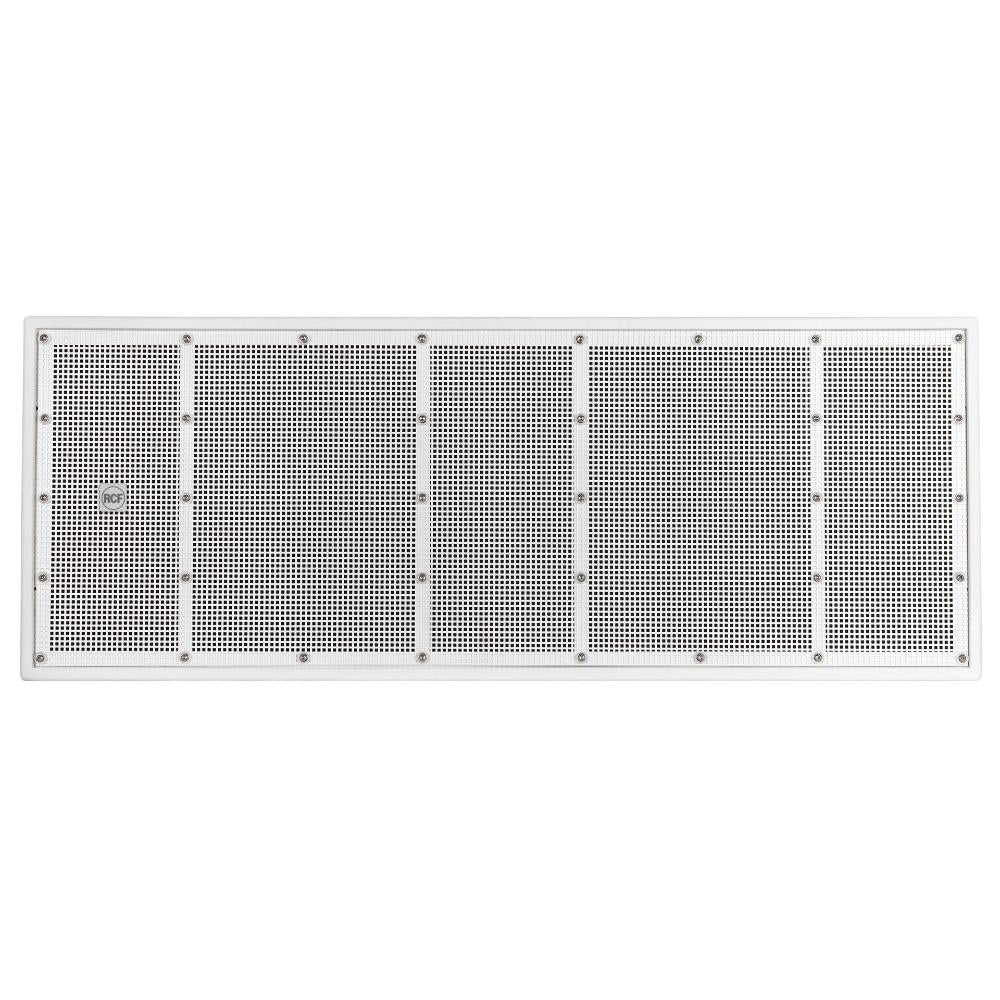

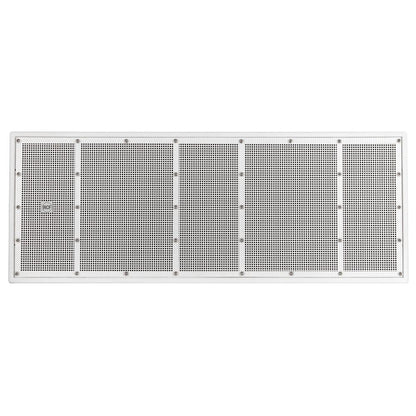

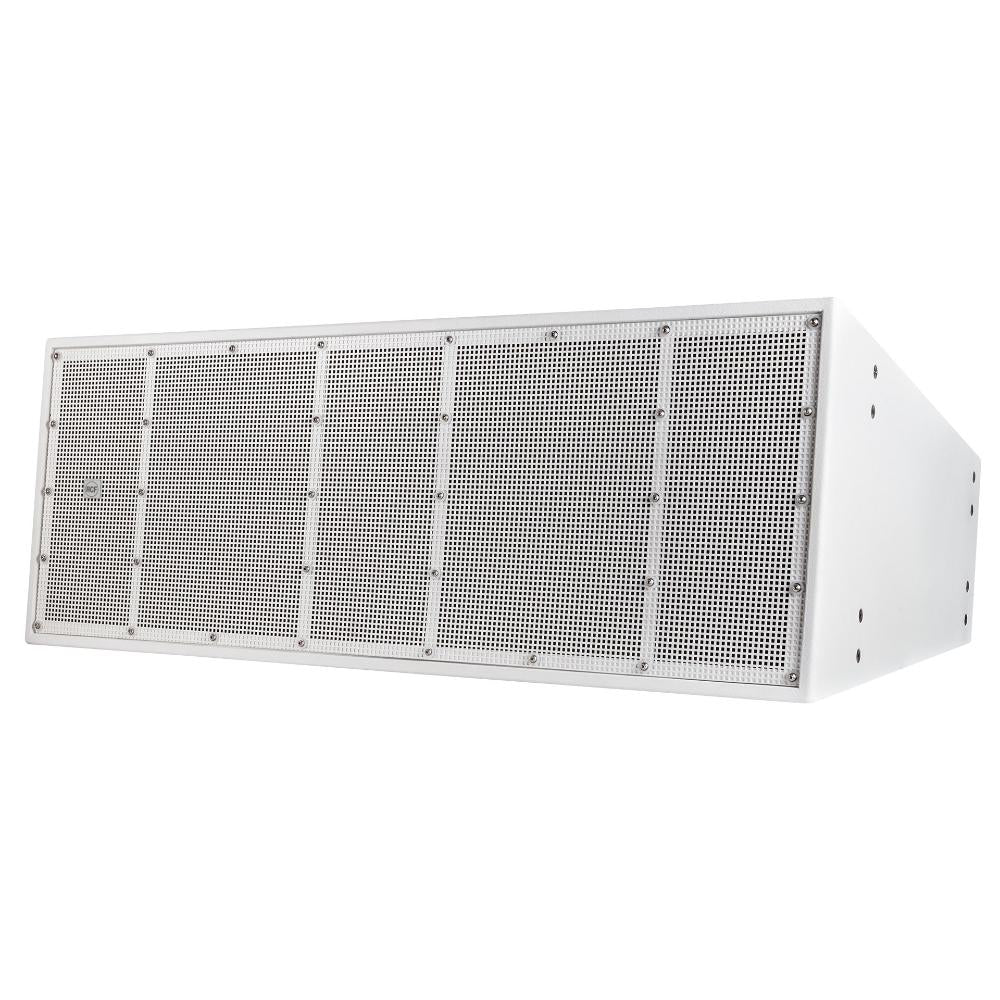

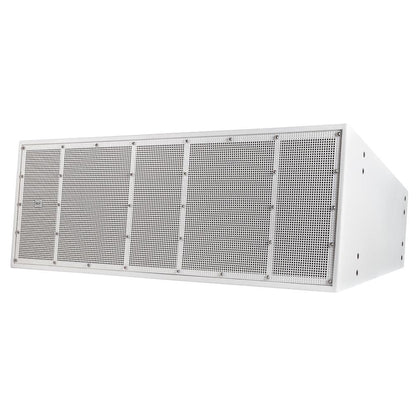

RCF HVL15-P W CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 45° x 15° Coverage (White)

RCF HVL15-P W CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 45° x 15° Coverage (White)

Write a review

SKU: HVL15-P W

Shipping calculated at checkout.

Available options

View full details

Description

CUSTOM: Passive 7600W Dual 15" Long Throw 3-Way Speaker - 45° x 15° Coverage (White)

HVL 15-P is a three-way, bi-amp loudspeaker system for long-throw applications, outfitted with 2 x 15” woofers, 2 x 10” midranges, and 2 x 4.0” voice coil, titanium dome compression drivers. Equipped with the latest generation of RCF precision transducers with powerful neodymium magnets, HVL 15-P provides very high output and accurate sound and voice reproduction. The system, driven in bi-amped mode, can produce a max SPL of 145 dB MHF, handling 1000 W RMS (LF) + 900 W RMS (MF+HF). An internal passive filter provides crossover and equalization between the midranges and the compression drivers. The horizontal coverage is 45°, and the vertical coverage is 15°. A heavy-duty, weatherproof barrier strip provides connections. The cabinet is made of Baltic birch plywood. The finishing is a waterproof, textured, polyurea coating. The grille is in epoxy coated heavy-duty steel with open-cell fibers and water repellent woven-fabric backing.

Features

  • 1000 W (LF) + 900 W (MF+HF) power handling
  • 148 dB max SPL
  • 43 ÷ 18000 Hz frequency range
  • 45° x 15° coverage angles
  • Fully equipped with neodymium transducers
  • Bi-amped system with passive filter between MF and HF
  • Horn Loaded symmetric design
  • Baltic birch plywood cabinet and steel grille
  • Weatherproof treatment

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 43 Hz - 18000 Hz
    Frequency Response (-3dB) 59 Hz - 13000 Hz
    Max SPL @ 1m 148 dB
    Horizontal coverage angle 45°
    Vertical coverage angle 15°
    Directivity index Q 18
    Power section
    Amplification Bi-Amp
    Nominal Impedance LF 8 ohm
    Power Handling LF 1000 W
    Peak Power Handling LF 4000 W
    Sensitivity LF 97 dB
    Nominal Impedance MF+HF 8 ohm
    Power Handling MF+HF 900 W
    Peak Power Handling MF+HF 3600 W
    Sensitivity MF + HF 111 dB
    Protections MF+HF Dynamic Active Mosfet
    Crossover Frequencies 1000 Hz
    Transducers
    Compression Driver 2 x 1.4'' neo, 4.0'' v.c
    Midrange 2 x 10'' neo, 3.0'' v.c
    Woofer 2 x 15'' neo, 3.5'' v.c
    Input/Output section

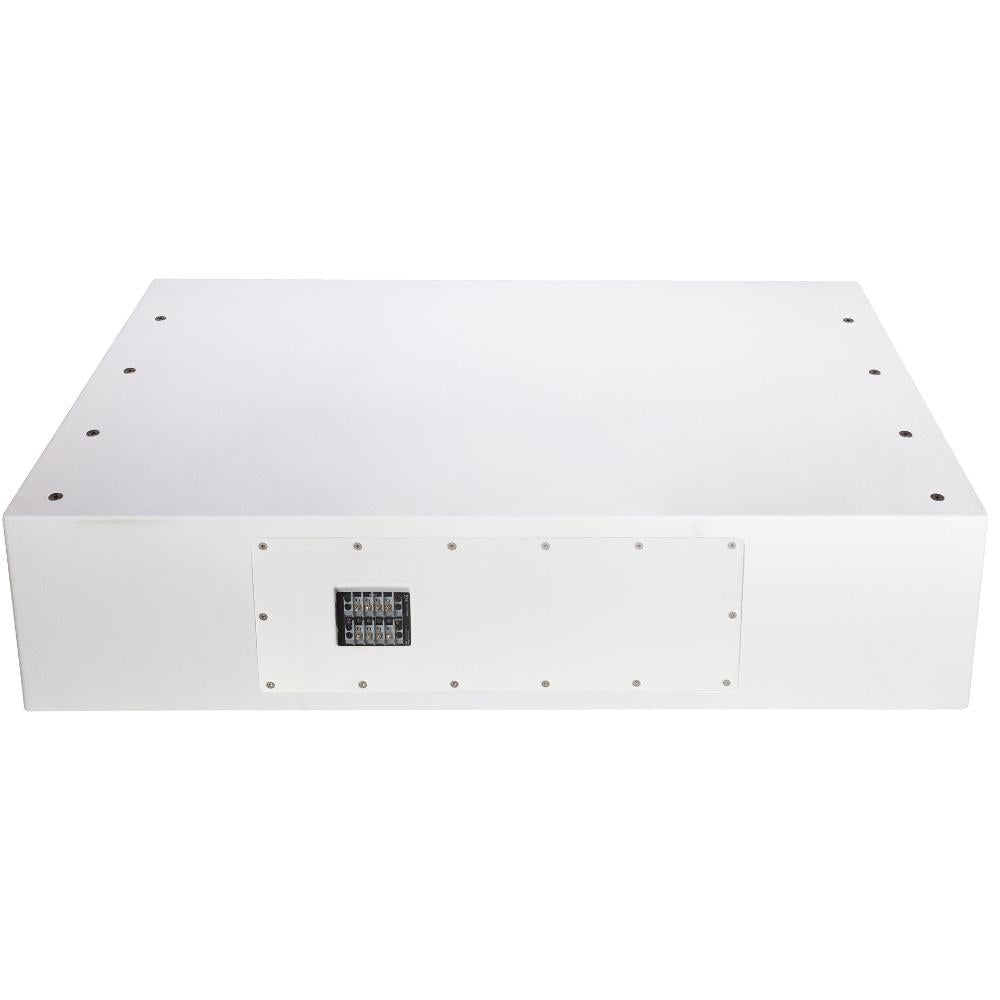

    Input connectors Screw Terminals
    Output connectors Screw Terminals
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material Baltic birch plywood

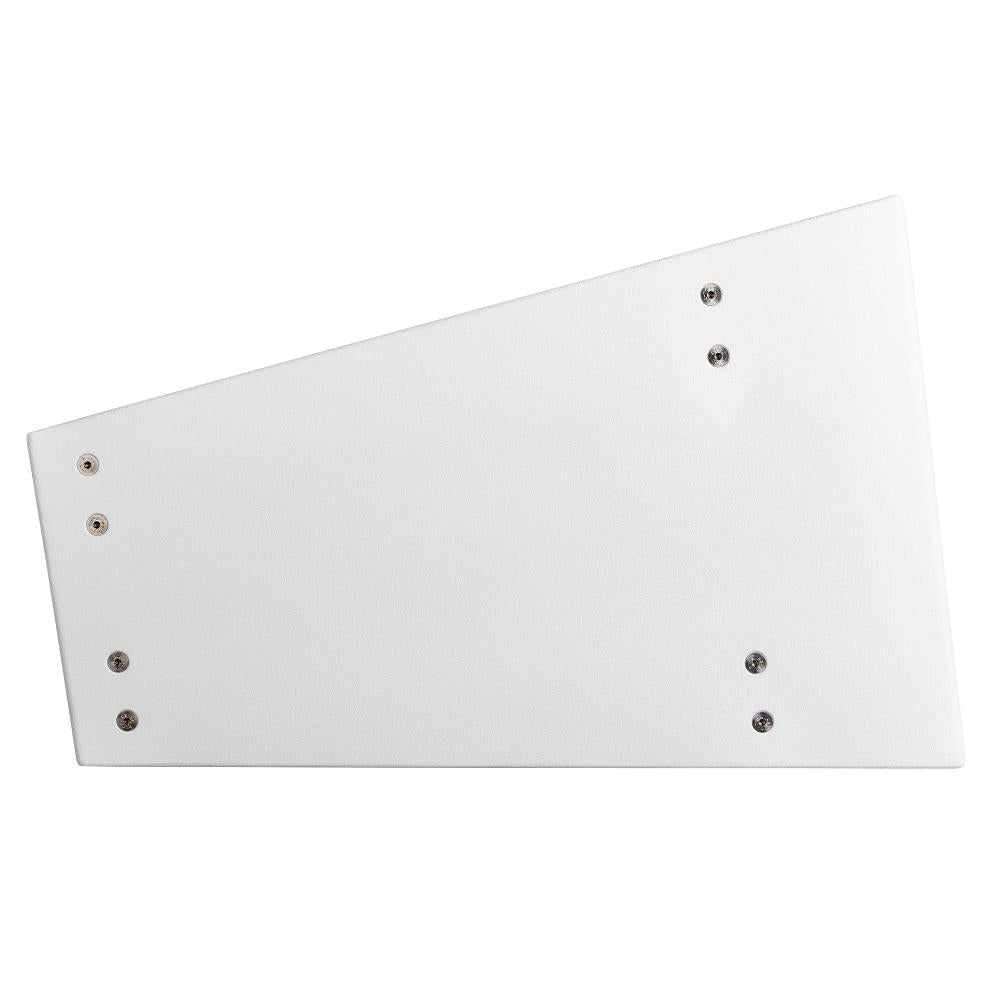

    Hardware n° 8 x M20 on each side panel
    n° 8 x M20 on top and bottom panel
    Grille Steel
    Color White - RAL 9010, Black - RAL 9005
    Size / Weight
    Height 525 mm / 20.67 inches
    Width 1382 mm / 54.41 inches
    Depth 815 mm / 32.09 inches
    Weight 115 kg / 253.53 lbs
    Shipping information
    Package Height 920 mm / 36.22 inches
    Package Width 1405 mm / 55.31 inches
    Package Depth 545 mm / 21.46 inches
    Package Weight 125 kg / 275.58 lbs
