Description

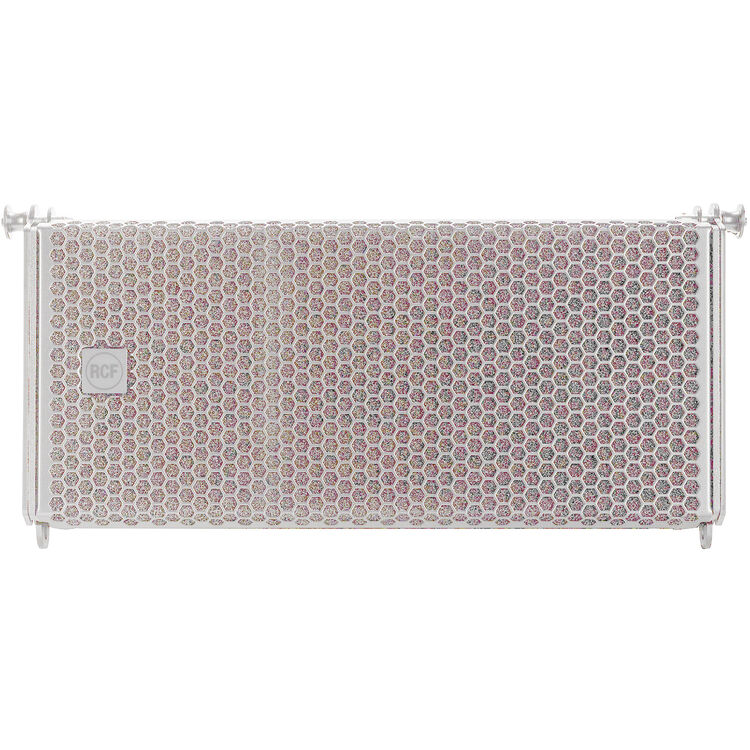

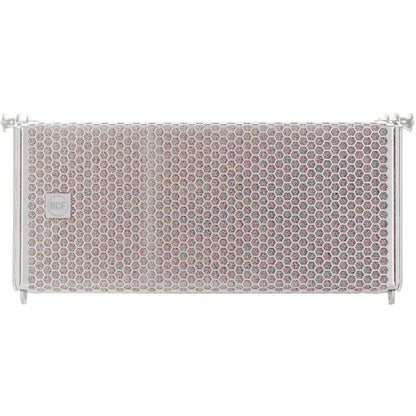

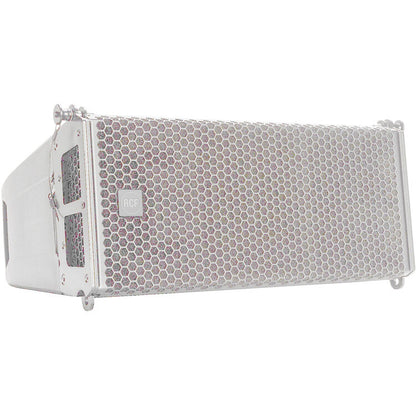

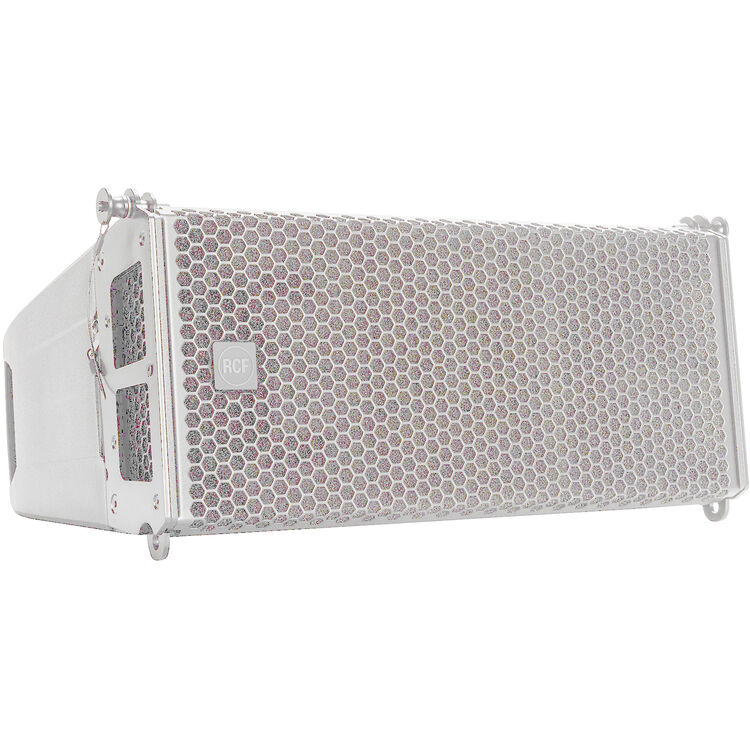

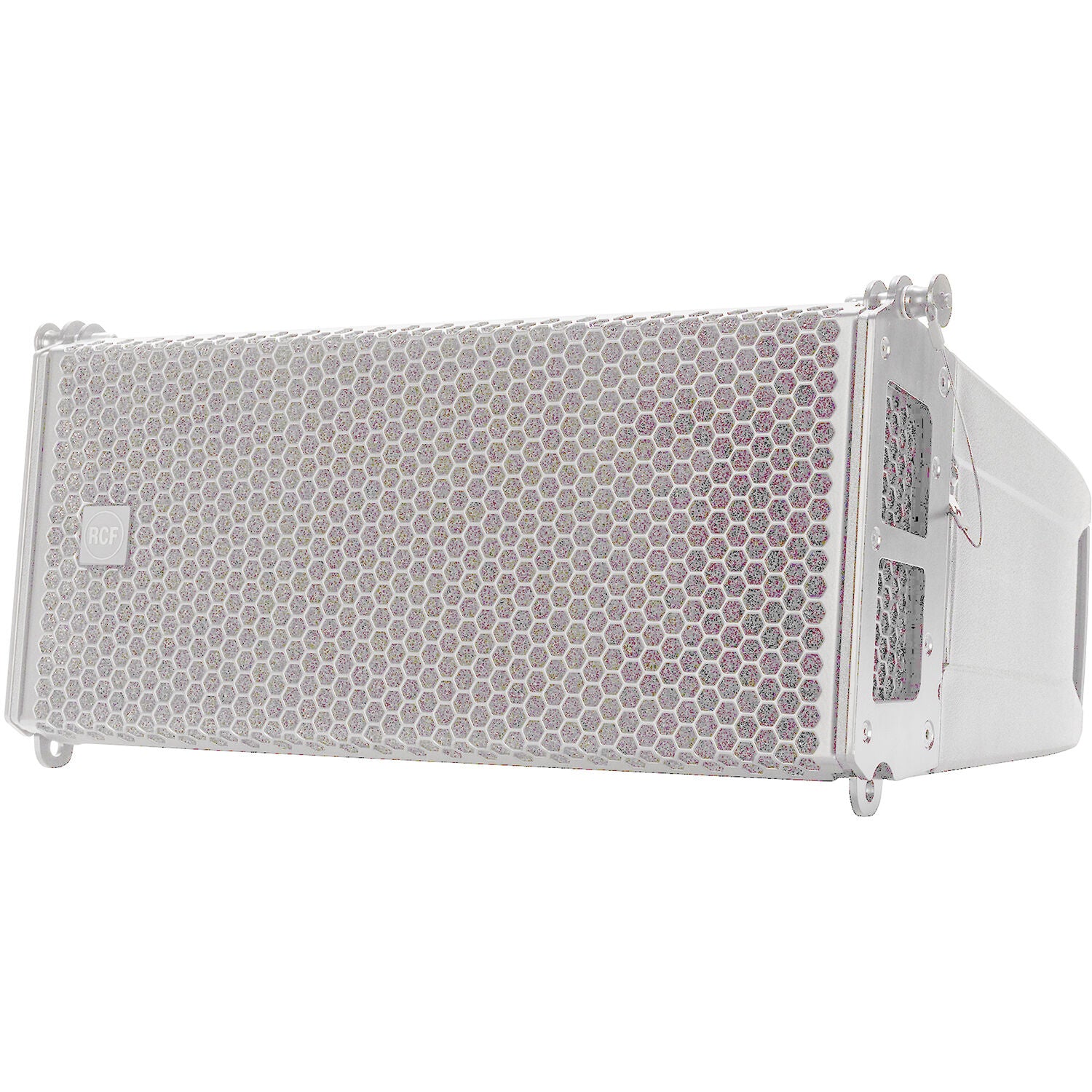

Passive 1000W Dual 6" Compact 2-Way Line Array (White)
The RCF HL 6 is an ultra-compact passive two-way full-range system for small and medium-sized spaces. The 1.75" neodymium compression driver with a constant-directivity waveguide design generates a horizontal constant-directivity coverage of 100 degrees over the entire vocal range with remarkable clarity. Two high-power 6" woofers deliver extended low-end up to 131 dB SPL for a wide range of applications, both alone, or in line-array configuration.
Features
1000W Peak Power Handling131 dB Max SPL65 ÷ 20000 Hz Frequency Range100° x 10° Coverage Angles1.75” Neodymium Compression Driver2 x 6” High-Powered Neodymium WoofersConstant Directivity WaveguideExtremely Low WeightSpecifications
| Acoustical specifications |
|---|
| Frequency Response (-10dB) |
65 Hz - 20000 Hz |
| Max SPL @ 1m |
131 dB |
| Horizontal coverage angle |
100° |
| Vertical coverage angle |
10° |
| Directivity index Q |
16 |
| Power section |
|---|
| Amplification |
Full Range |
| Nominal Impedance |
16 ohm |
| Power Handling |
250 W |
| Peak Power Handling |
1000 W PEAK |
| Protections |
Dynamic Active Mosfet |
| Crossover Frequencies |
900 Hz |
| Transducers |
|---|
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
2 x 6.0'' neo, 2.0'' v.c |

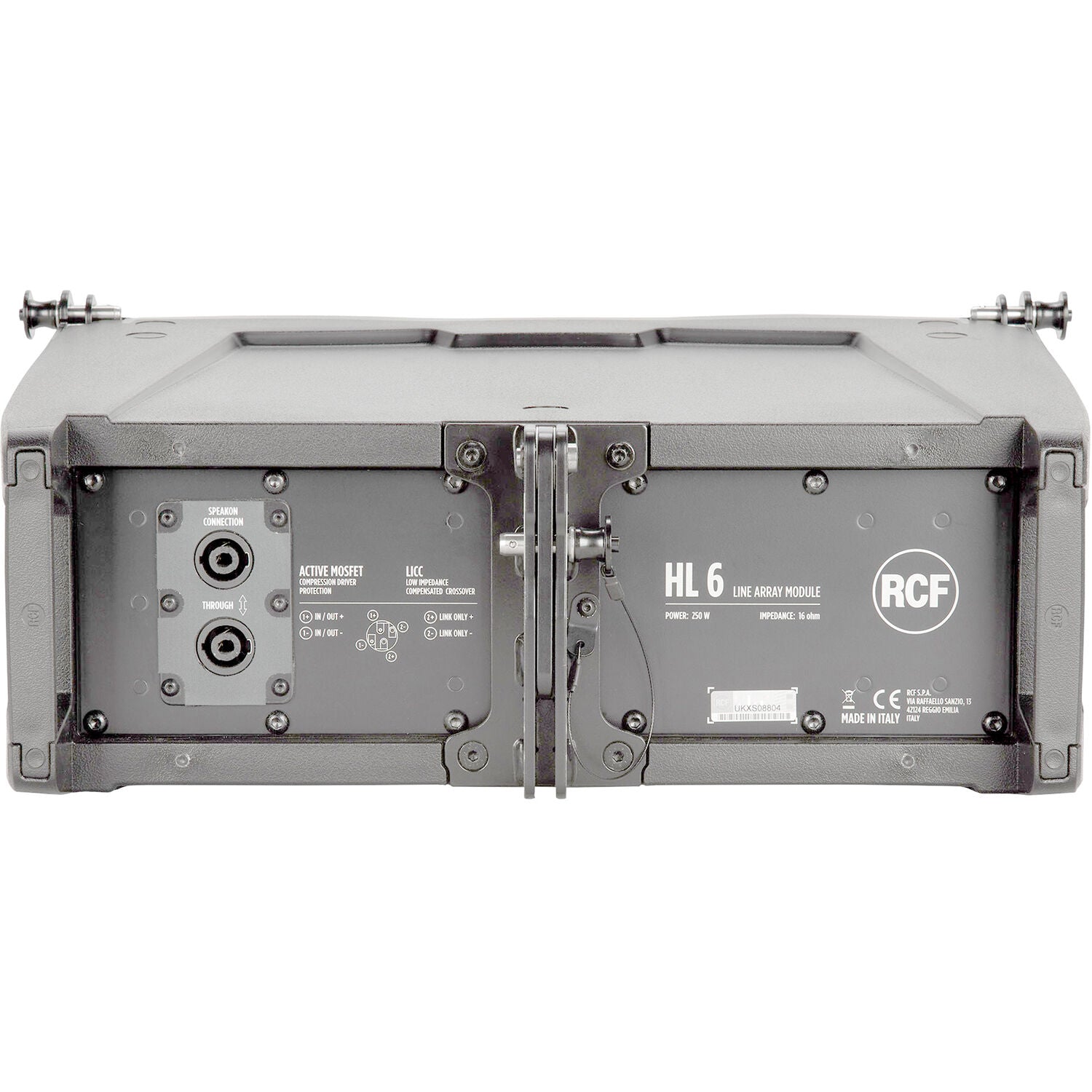

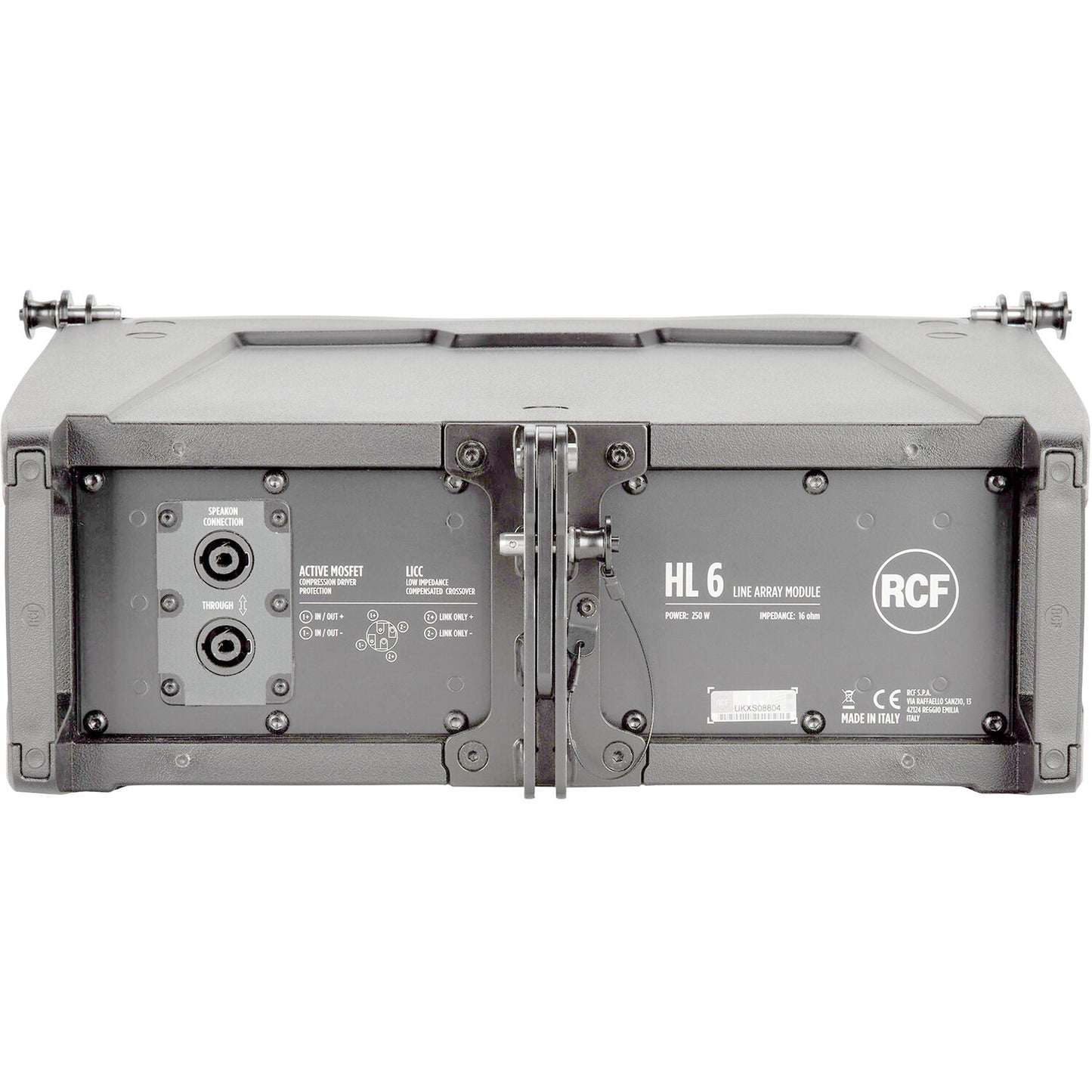

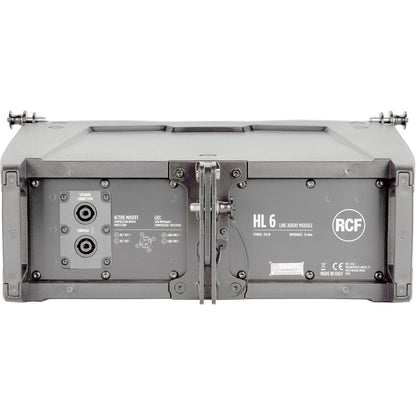

| Input/Output section |
|---|
| Input connectors |
Speakon |
| Output connectors |
Speakon |
| Standard compliance |
|---|
| Safety agency |
CE compliant |
| Physical specifications |
|---|
| Cabinet/Case Material |
PP Composite |
| Hardware |
Integrated array mechanics |
| Handles |
2 on the rear panel |
| Grille |
Steel |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
|---|
| Height |
237 mm / 9.33 inches |
| Width |
470 mm / 18.5 inches |
| Depth |
377 mm / 14.84 inches |
| Weight |
11.8 kg / 26.01 lbs |
| Shipping information |
|---|
| Package Height |
260 mm / 10.24 inches |
| Package Width |
550 mm / 21.65 inches |
| Package Depth |
425 mm / 16.73 inches |
| Package Weight |
13.3 kg / 29.32 lbs |
