RCF HF94 Throat: 1"/1.4", 90°X40°, 250X250mm, Cut-off 500Hz

RCF HF94 Throat: 1"/1.4", 90°X40°, 250X250mm, Cut-off 500Hz

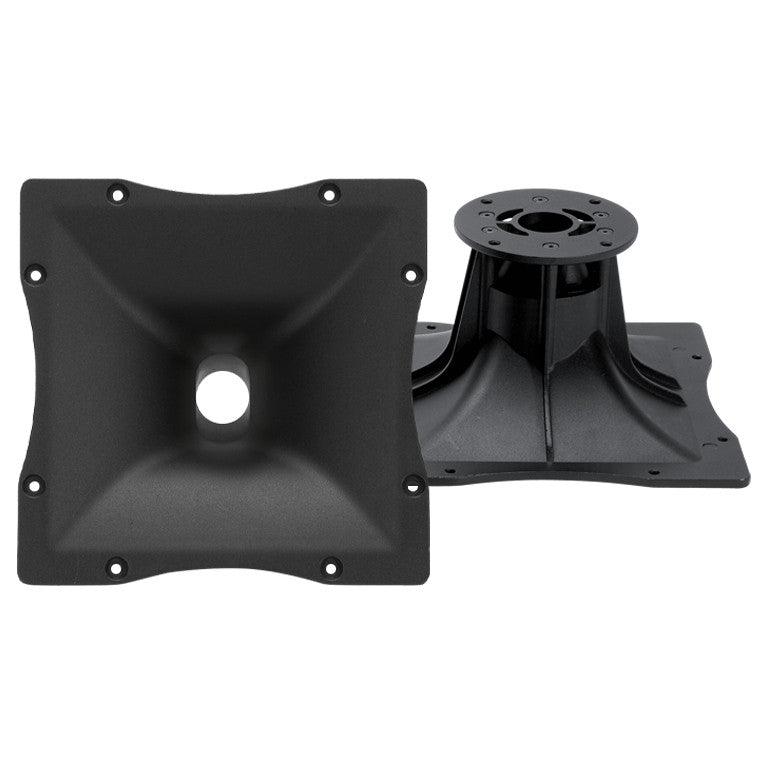

PRECISION TRANSDUCERS HF94 PRO HF HORN

Features

• 1-inch/1.4 inch Throat Adaptor
• 90° x 40° Constant Directivity Coverage
• Loading down to 500 Hz
• Thick Aluminum Body for best heat dissipation in conjuntion to Neodimium Compression Drivers

Specifications

General

• Throat Diameter: 25-36 mm / 1.0 - 1.4 inch
• Horizontal coverage angle: 90°
• Vertical coverage angle: 40°
• Cut-off Frequency: 500 Hz
• Material: Aluminum

Mounting

• Overall height: 250 mm / 9.84 inches
• Overall width: 250 mm / 9.84 inches
• Overall depth: 135 mm / 5.31 inches
• Baffle Cut-out height: 205 mm / 8.07 inches
• Baffle Cut-out width: 205 mm / 8.07 inches
• Mounting: 4 x 7 mm holes, interaxes 101 mm/76 mm

Standard compliance

• Safety agency: CE compliant

Physical

• Color: Black

Size / Weight

• Height: 142 mm / 5.59 inches
• Diameter: 250 mm / 9.84 inches
• Weight: 1.12 kg / 2.47 lbs
