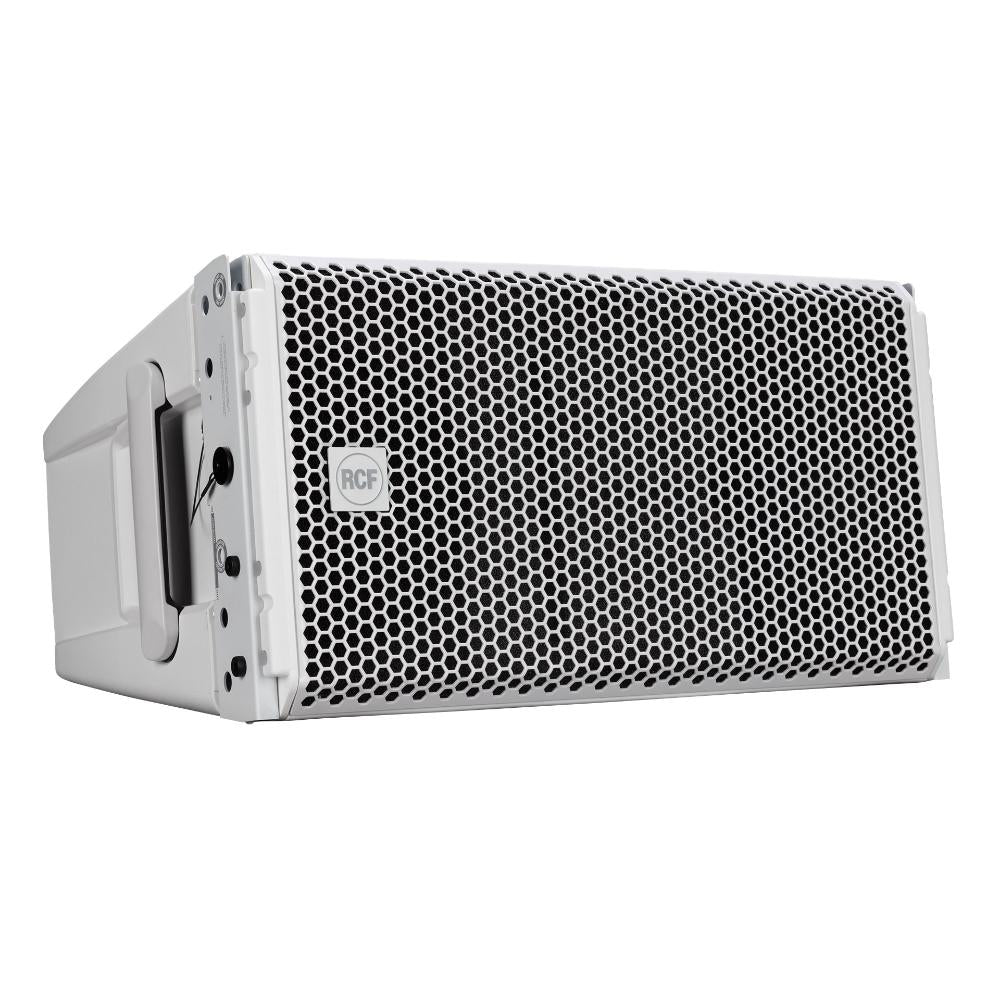

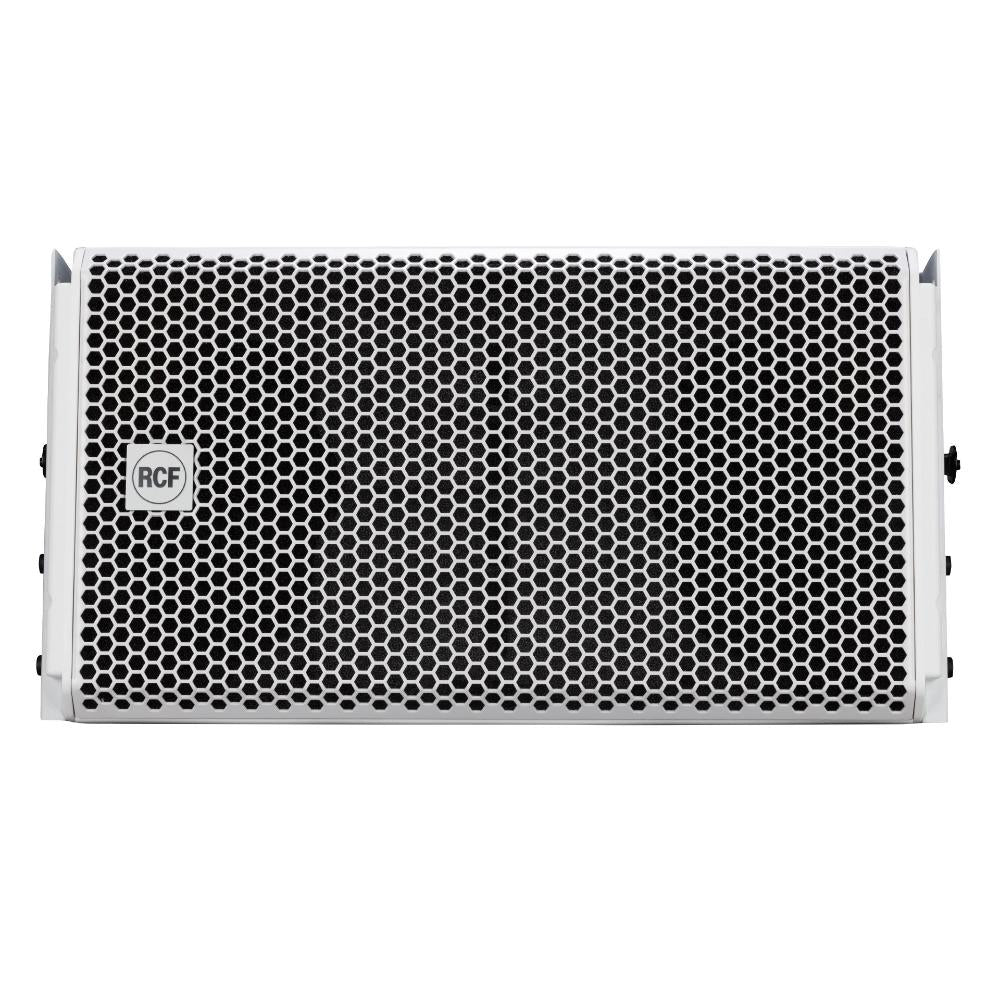

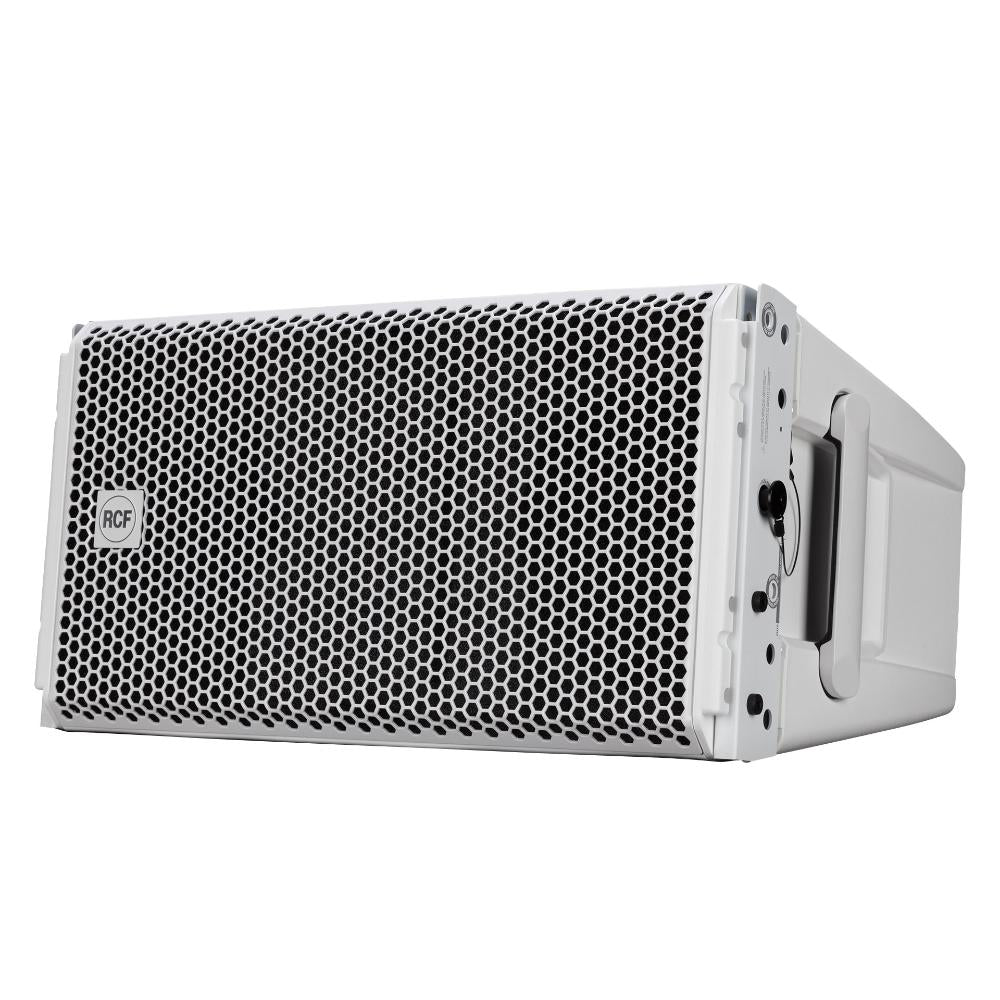

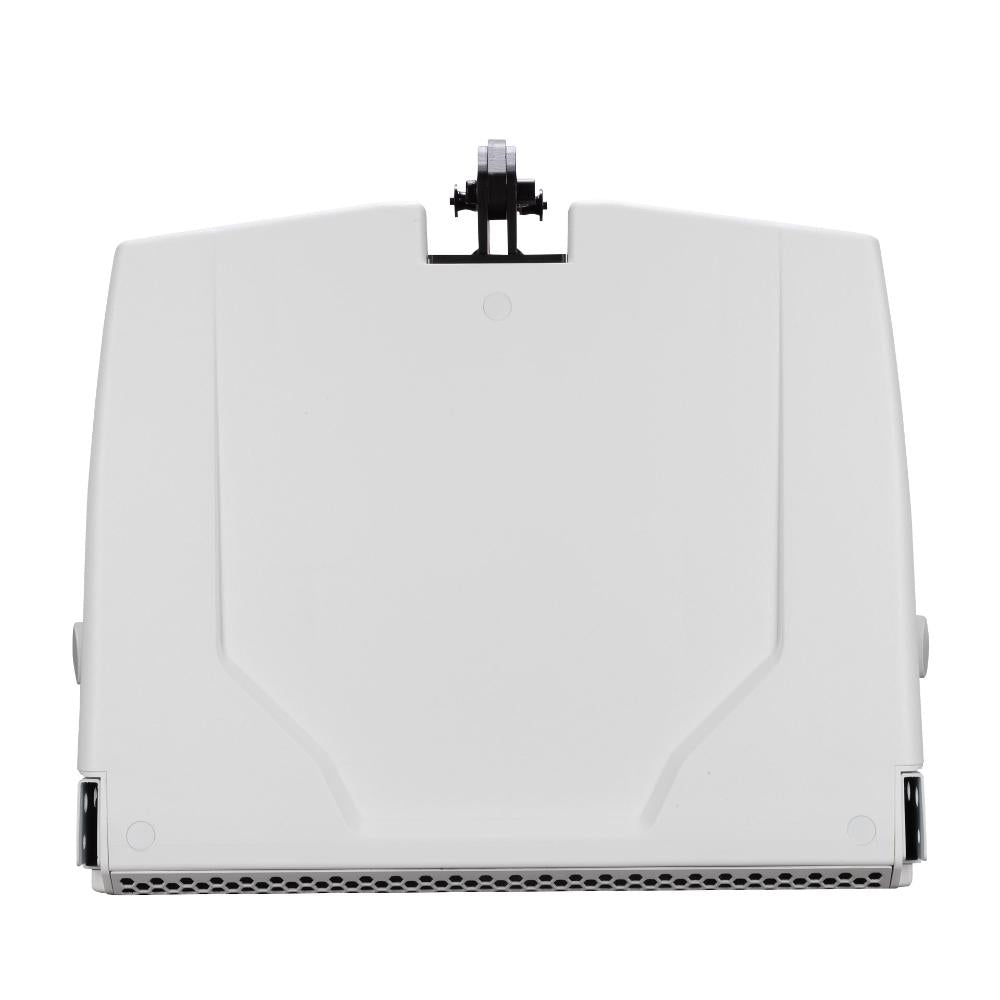

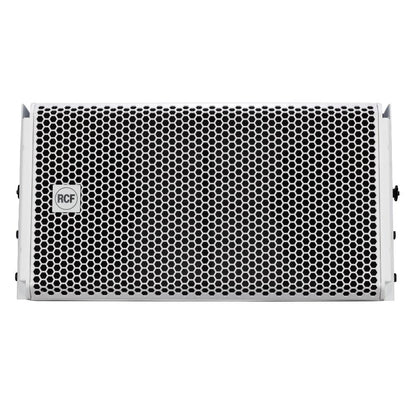

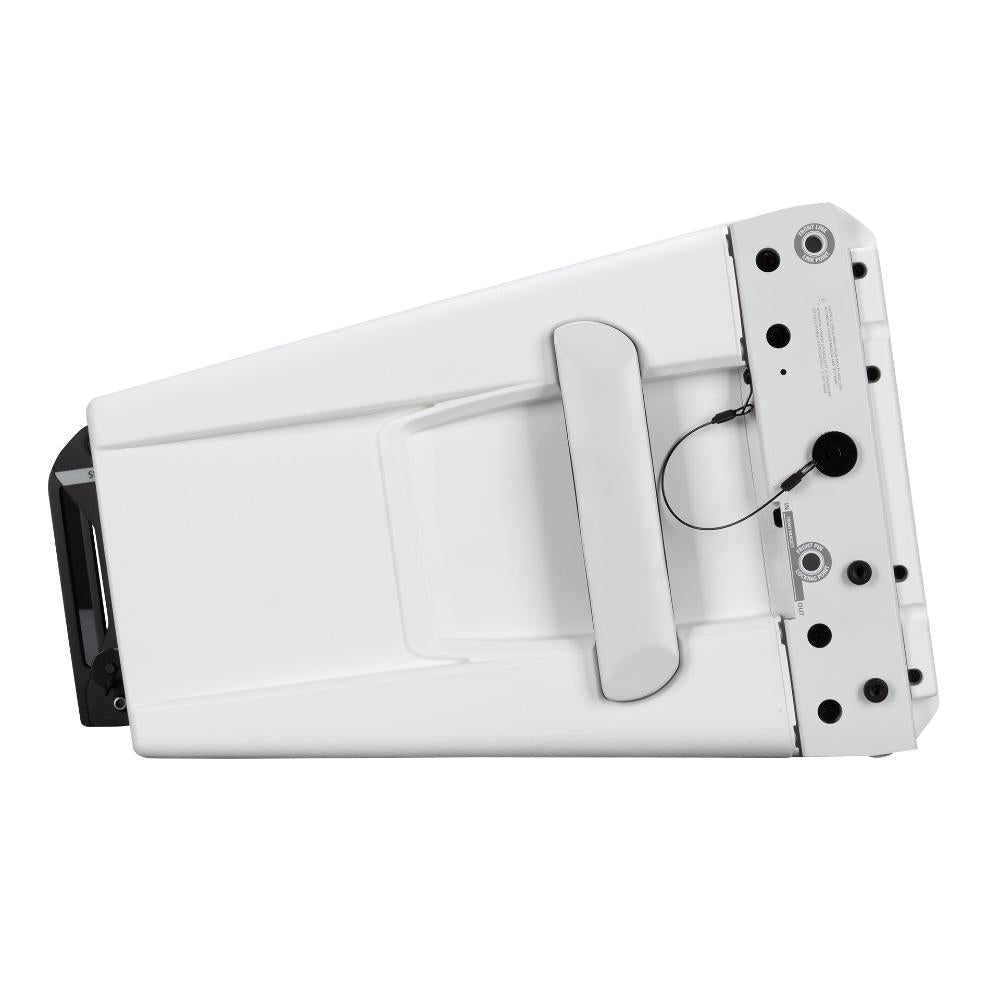

RCF HDL28A W Active 2200W Dual 8" Compact 2-Way Line Array (White)
RCF HDL28A W Active 2200W Dual 8" Compact 2-Way Line Array (White)
SKU: HDL28A W
Available options
Description
Active 2200W Dual 8" Compact 2-Way Line Array (White)
The RCF HDL 28-A is a compact bi-amped 2-way active touring system for a wide range of applications, both indoors and outdoors, with an emphasis on vocal intelligibility. It features two 8-inch woofers and an impressive 3-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. Following the HDL 30-A philosophy, the HDL 28-A shares the composite material cabinet, the zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 135 decibels SPL max. The RCF HDL28-A features state of the art RCF transducers with lightweight neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying.The HDL 36-AS is the ideal flyable bass complement for the HDL 28-A array system.
Features
Specifications
| Acoustical specifications | |
|---|---|
| Frequency Response | 50 Hz - 20000 Hz |
| Max SPL @ 1m | 135 dB |
| Horizontal coverage angle | 100° |
| Vertical coverage angle | 15° |
| Transducers | |
| Compression Driver | 1 x 1.4'' neo, 3.0'' v.c |
| Woofer | 2 x 8'' neo, 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | XLR, RDNet Ethercon |
| Output connectors | XLR, RDNet Ethercon |
| Input sensitivity | +4 dBu |
| Processor section | |
| Crossover Frequencies | 750 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Preset, RDNet bypass |
| RDNet | Onboard |
| Power section | |
| Total Power | 2200 W Peak, 1100 W RMS |
| High frequencies | 600 W Peak, 300 W RMS |
| Low frequencies | 1600 W Peak, 800 W RMS |
| Cooling | Forced |
| Connections | Powercon IN/OUT |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Hardware | Array fittings |
| Handles | 2 Side |
| Grille | Steel |
| Color | Black, White |
| Size / Weight | |
| Height | 294 mm / 11.57 inches |
| Width | 569 mm / 22.4 inches |
| Depth | 491 mm / 19.33 inches |
| Weight | 20.6 kg / 45.42 lbs |
| Shipping information | |
| Package Height | 375 mm / 14.76 inches |
| Package Width | 650 mm / 25.59 inches |
| Package Depth | 500 mm / 19.69 inches |
| Package Weight | 23.6 kg / 52.03 lbs |
