Description

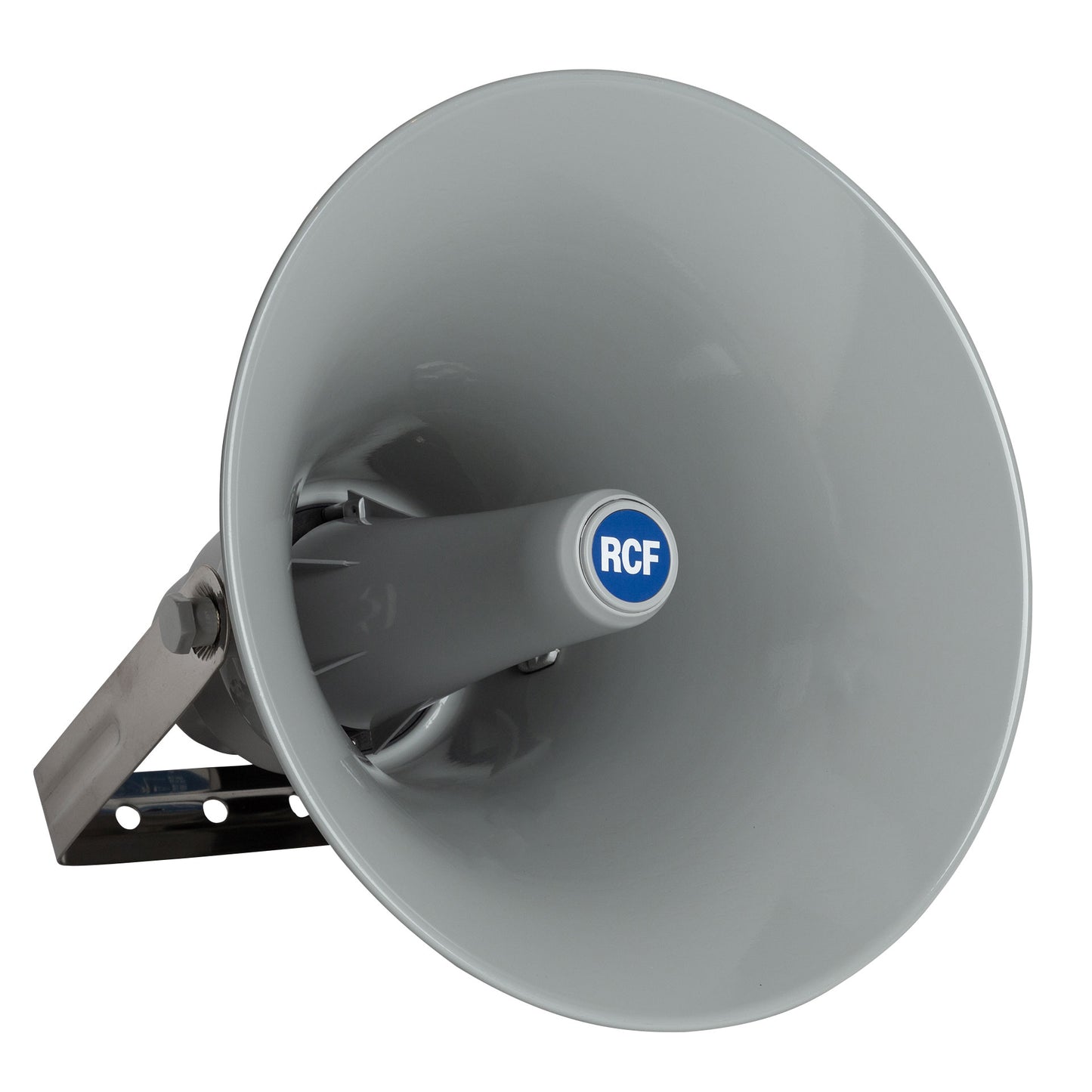

Passive 70/100V 50W RoundPaging Horn (IP 66)
The HD 410/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion.The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
FEATURES

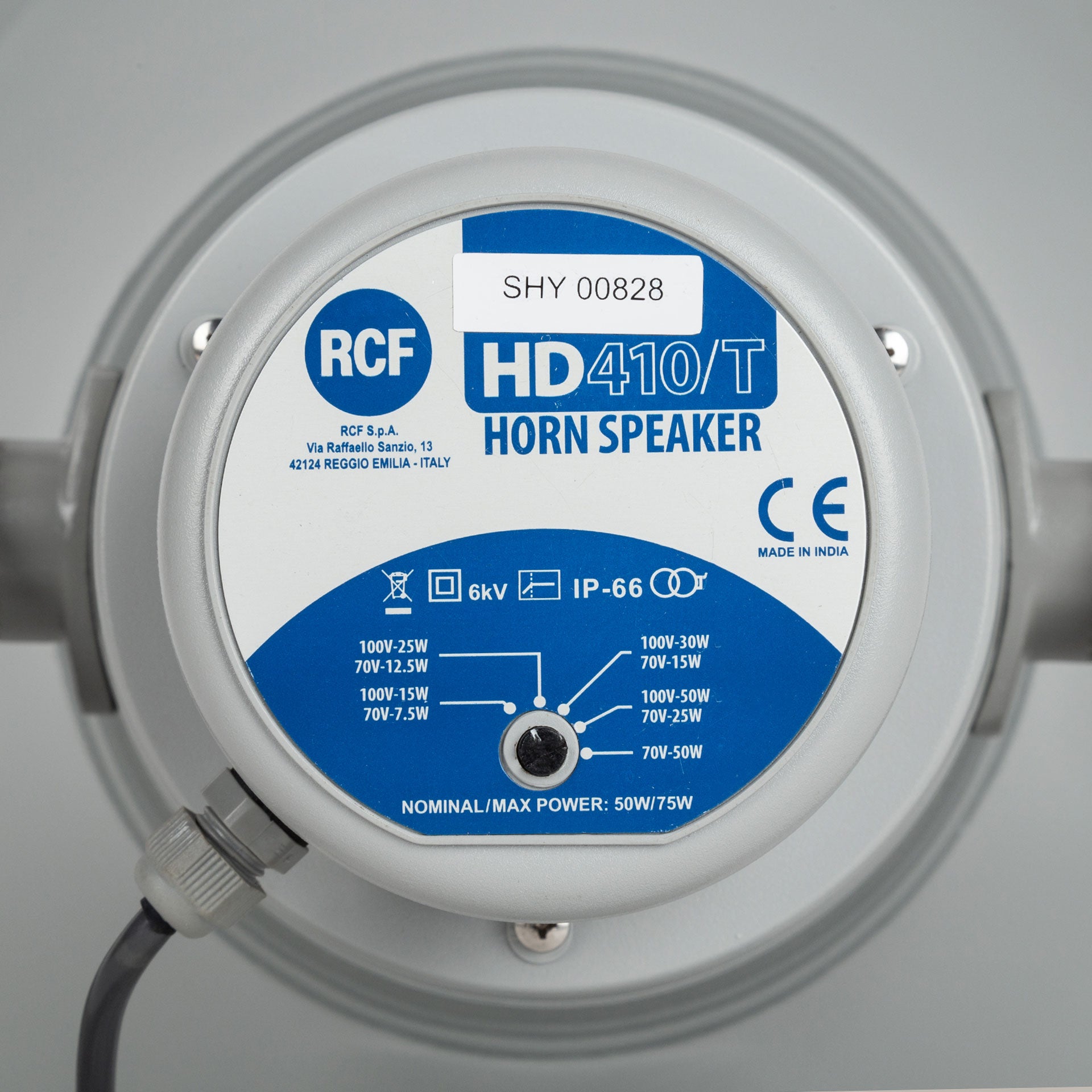

- Built-in line transformer with multitap power selector on rear cover
- Hi-pass filter for protecting driver against out-of-range low-freq
- IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
- Aluminum flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
- Colour RAL 7035
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 180 Hz - 7000 Hz
-
Max SPL @ 1m: 130 dB
-
Coverage angle: 90°
-
System Sensitivity: 112 dB
POWER SECTION
-
Amplification: Full Range
-
Power Handling: 50 W
-
Peak Power Handling: 200 W PEAK
TRANSDUCERS
-
Compression Driver: 1 x 2.0''
INPUT/OUTPUT SECTION
-
Input connectors: Cable
-
Output connectors: Cable
-
Constant Voltage Transformer: 70/100 V
-
Power selection 1: 50 W - 200 ohm
-
Power selection 2: 30 W - 333 ohm
-
Power selection 3: 25 W - 400 ohm
-
Power selection 4: 15 W - 667 ohm
-
Power selection 5: 7.5 W - 1333 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 66
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Aluminum
-

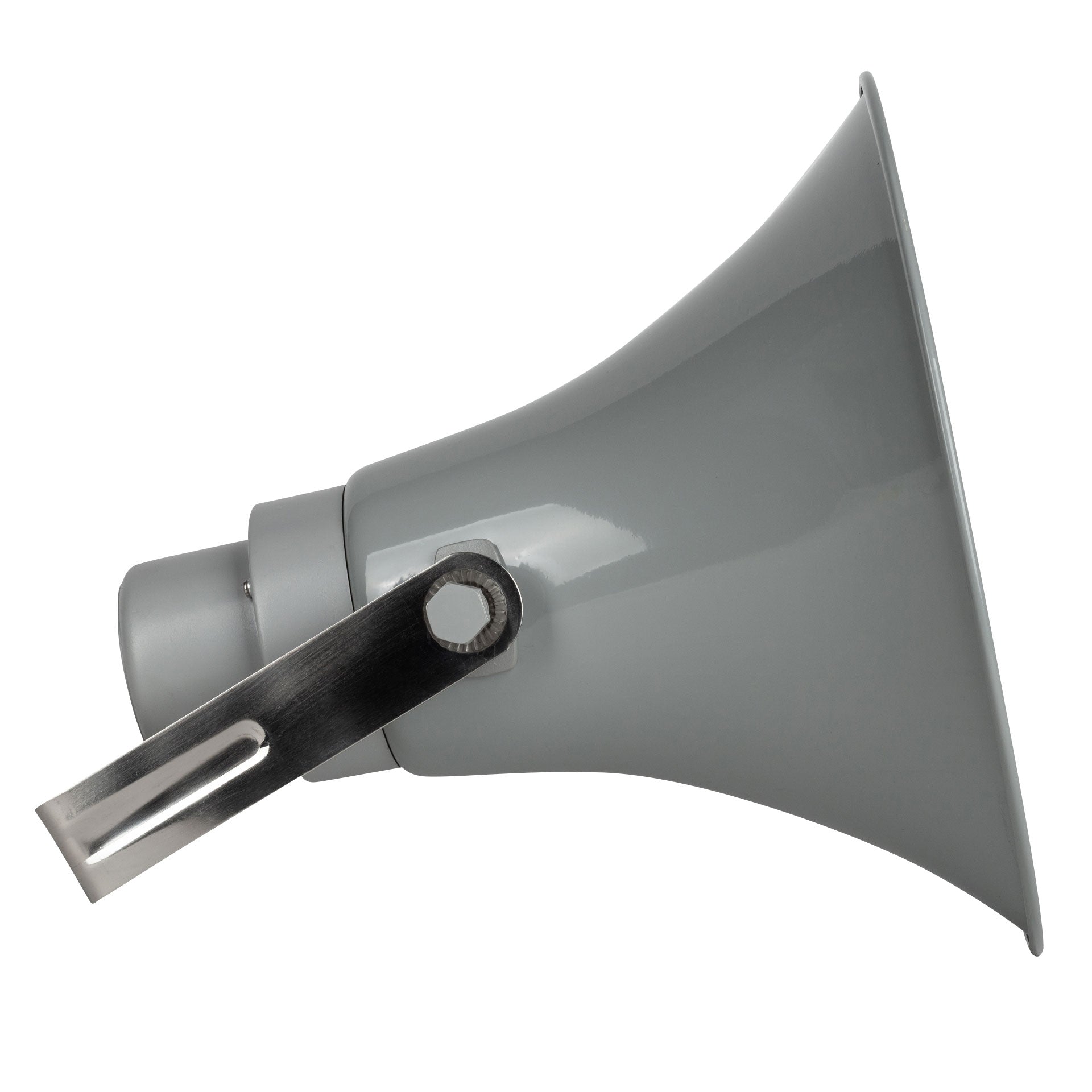

Hardware: Stainless steel U bracket
-
Color: Grey - RAL 7035
SIZE / WEIGHT
-
Depth: 393 mm / 15.47 inches
-
Diameter: 430 mm / 16.93 inches
-
Weight: 3.57 kg / 7.87 lbs
SHIPPING INFORMATION
-
Package Height: 415 mm / 16.34 inches
-
Package Width: 420 mm / 16.54 inches
-
Package Depth: 430 mm / 16.93 inches
-
Package Weight: 6.06 kg / 13.36 lbs
