Description

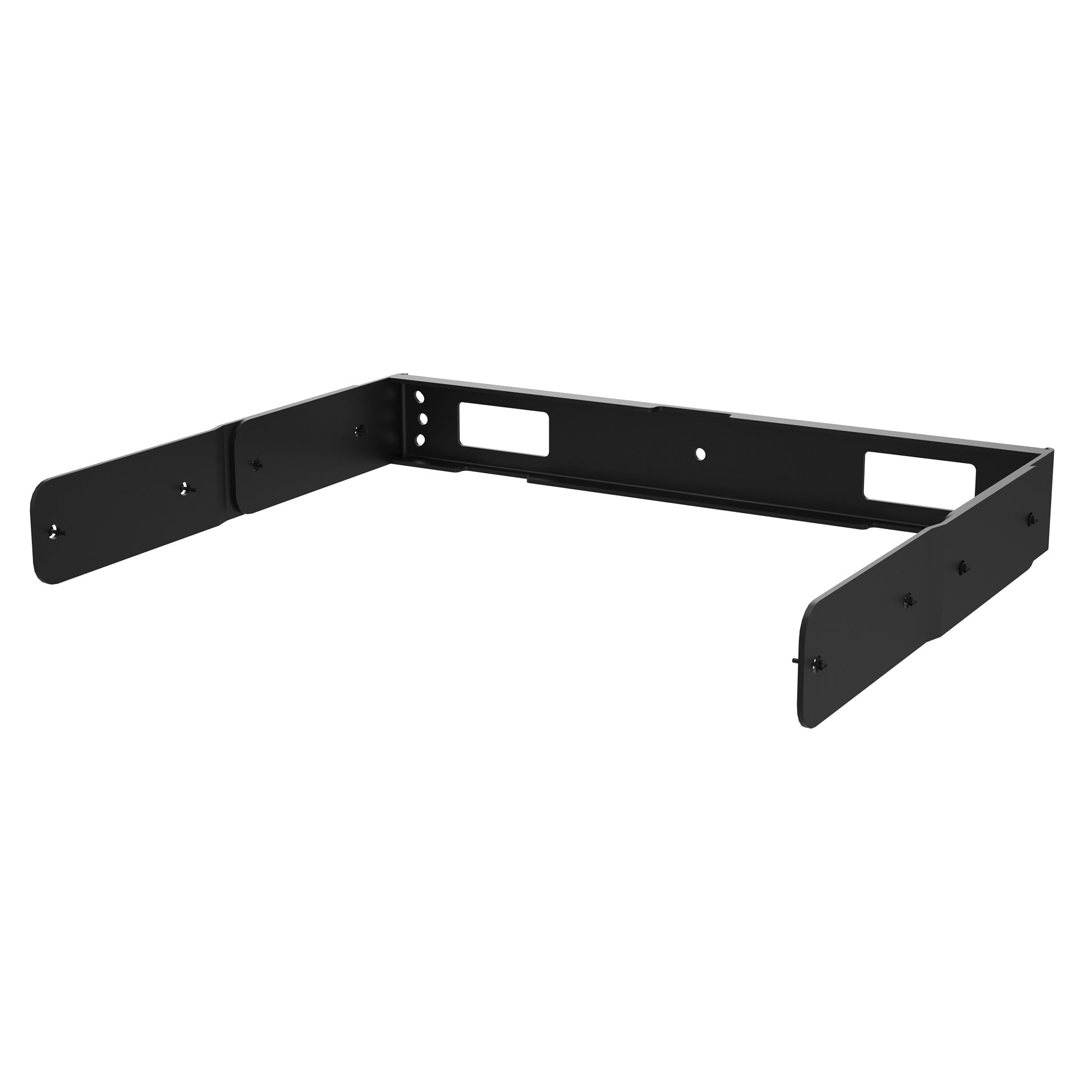

Vertical Bracket for SUB808-AS

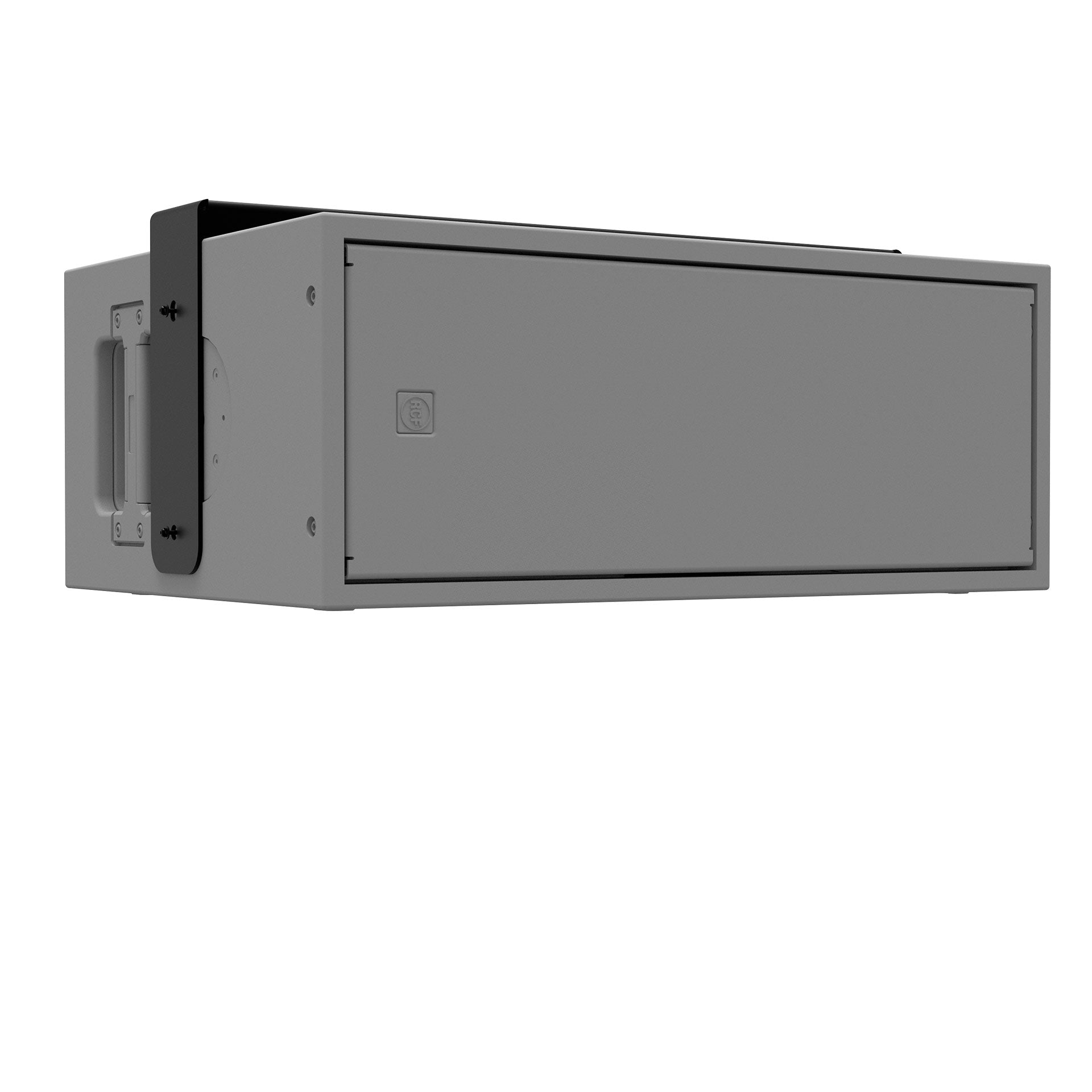

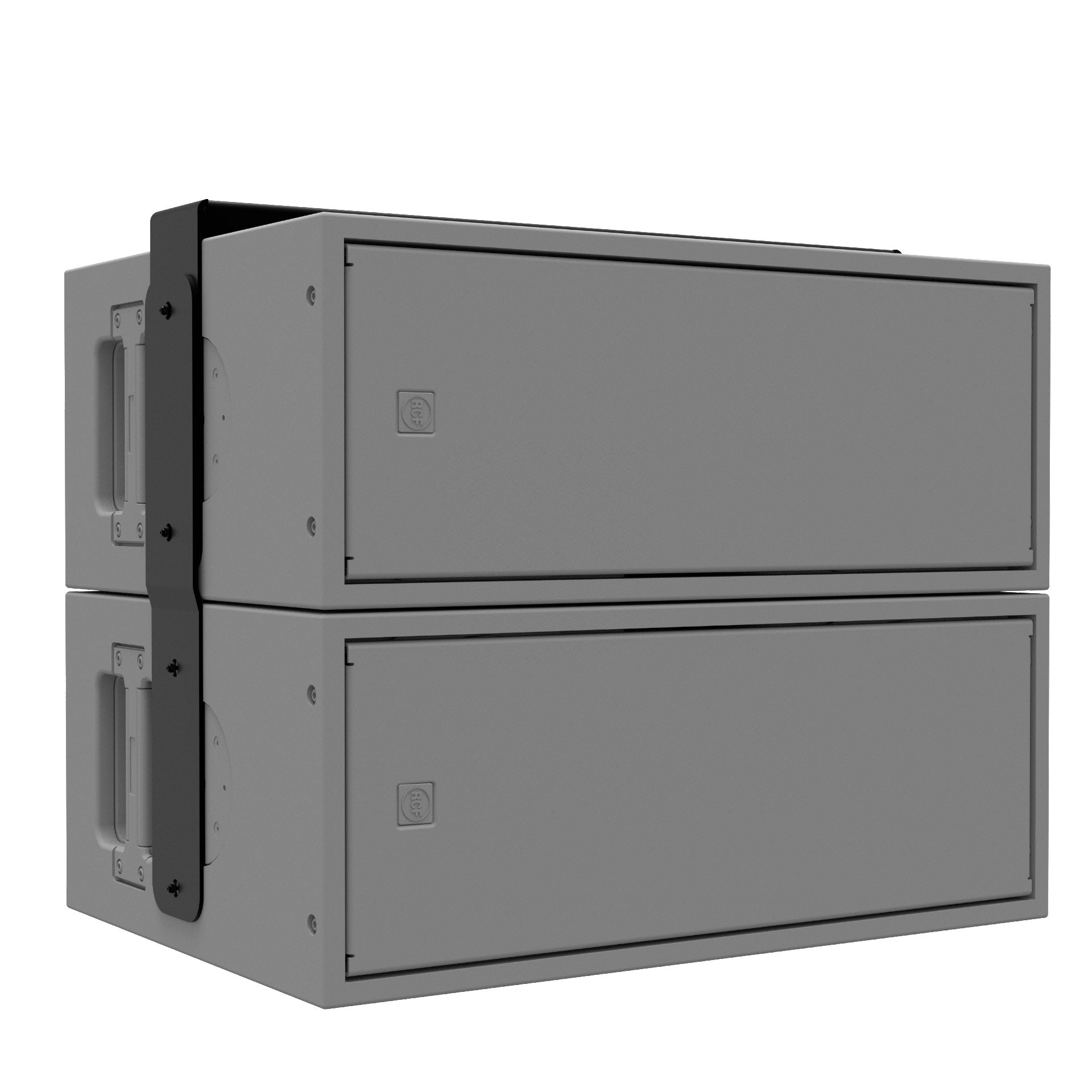

Horizontal bracket for wall or ceiling mounting of one or two SUB 808-AS models.
FEATURES
- Engineered for high-load stability in both wall-mounted and under-ceiling horizontal configurations.
- Constructed from reinforced steel to safely support the combined weight of up to two units.
Specifications
GENERAL SPECIFICATIONS
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Steel
-
Color: Black
SIZE / WEIGHT
-
Height: 250 mm / 9.84 inches
-
Width: 611 mm / 24.06 inches
-
Depth: 80 mm / 3.15 inches
-
Weight: 5.5 kg / 12.13 lbs
SHIPPING INFORMATION
-
Package Height: 90 mm / 3.54 inches
-
Package Width: 340 mm / 13.39 inches
-
Package Depth: 670 mm / 26.38 inches
-
Package Weight: 6.5 kg / 14.33 lbs
