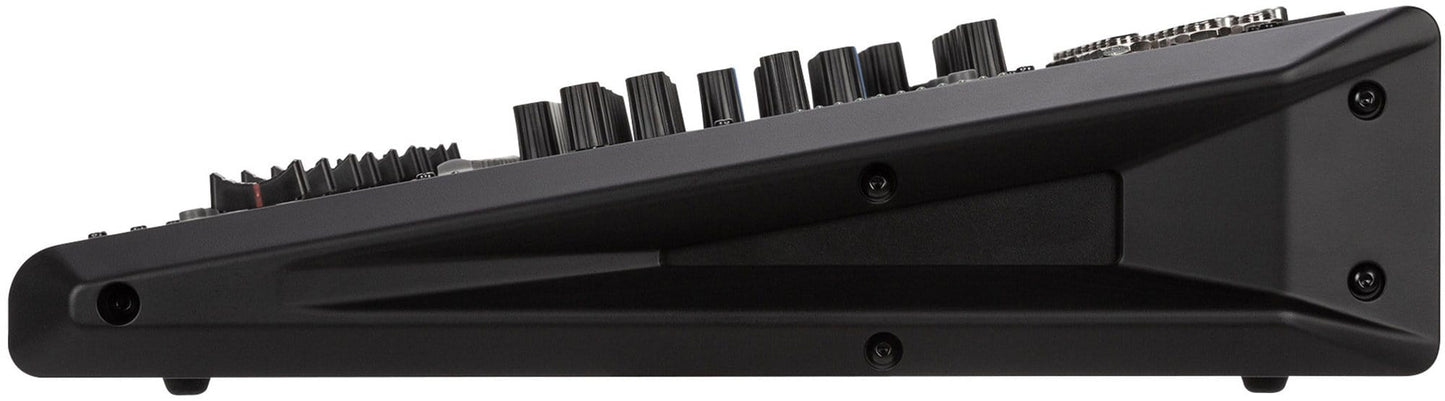

RCF F12-XR 12 Channel Mixer with FX and Recording

More RCF products

Write a review Q&A SKU: F12-XR Solotech ID#: 71611
1 of 7
Regular price $429.00 USD
or as low as $11.91 per month. Additional restrictions may apply.

Solotech Loyalty points

You will receive 429 points. Learn more about our loyalty program

Available options

Product attributes

  • Free shipping
You can get it quickly!

This isn't something we usually keep in stock, but we can typically get it very quickly from the vendor. Please place your order, and we'll let you know when to expect it.

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

RCF F12-XR 12 Channel Mixer with FX and Recording

The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.

Features:

  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 4 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply

Specifications:

  • Electrical specifications
    • Frequency Response: 20 Hz ÷ 20 kHz
    • THD+N, 20dB gain, 0dBu out (% A-Weighted): <0,02% A-Weighted
    • Power supply: Internal
    • Voltage requirements: 100 V - 240 V
    • Power consumption (W): 24 W
  • Inputs
    • Gain Range: 0 dB ÷ -50 dB
    • Gain Selection: 20 dB ÷ -30 dB
    • HI-Z Line Inputs Impedance (MOhm): 1 Mohm
    • HI-Z Line Inputs: 1
    • Input Noise Level (dBu A-Weighted): -124 dBu A-Weighted
    • Mic Inputs Impedance (KOhm): 14 kohm
    • Line: 4
    • Line Input Impedance (kOhm): 21 kohm
    • Low Cut: 80 Hz
    • Mic: 6
    • Phantom Power +48V: Yes
    • Stereo Line: 4
    • Stereo Line Gain Selection: 20 dB ÷ -30 dB
    • Stereo Line Input Impedance: 15 kohm
  • Outputs
    • Main MIX: 1
    • Control Room: Yes
    • FX Send: 1
    • AUX Send: 1
    • AUX output: 2
    • Group Out: 1
    • Phones: 1
  • Outputs specifications
    • Main Out Level (dBu): 28 dBu
    • Aux Out Level (dBu): 28 dBu
    • Group Out Level (dBu): 28 dBu
    • Phones Out impedance (Ohm): 150 ohm
  • Compressors
    • RCF Compressors: n° 4 Single Control Compressors on Channels 1 to 4
  • EQ
    • Input Channels EQ: 2 Shelving / 1 Generic
    • Description:
      • High: +/-15 dB @ 10 kHz Shelving
      • Mid: +/-15 dB @ 1,250 kHz Bell
      • Low: +/-15 dB @ 100 Hz Shelving
  • Auxiliary sends
    • AUX: 1 PRE/POST
    • FX POST: 1
  • Internal Effects
    • Send Effects: 1
  • USB audio
    • Type: B
    • Play trk: 2
    • Rec trk: 2
    • Supported Sample Rate (kHz): 44.1, 48.0 kHz
  • Other features
    • Footswitch: Yes
  • Standard compliance
    • CE marking: Yes
  • Physical specifications
    • Cabinet/Case Material: Metal
    • Color: Black
  • Size
    • Depth: 355 mm / 13.98 inches
    • Height: 97 mm / 3.82 inches
    • Weight: 4.5 kg / 9.92 lbs
    • Width: 373 mm / 14.69 inches
  • Shipping informations
    • Package Depth: 425 mm / 16.73 inches
    • Package Height: 140 mm / 5.51 inches
    • Package Weight: 5.5 kg / 12.13 lbs
    • Package Width: 400 mm / 15.75 inches
