Description

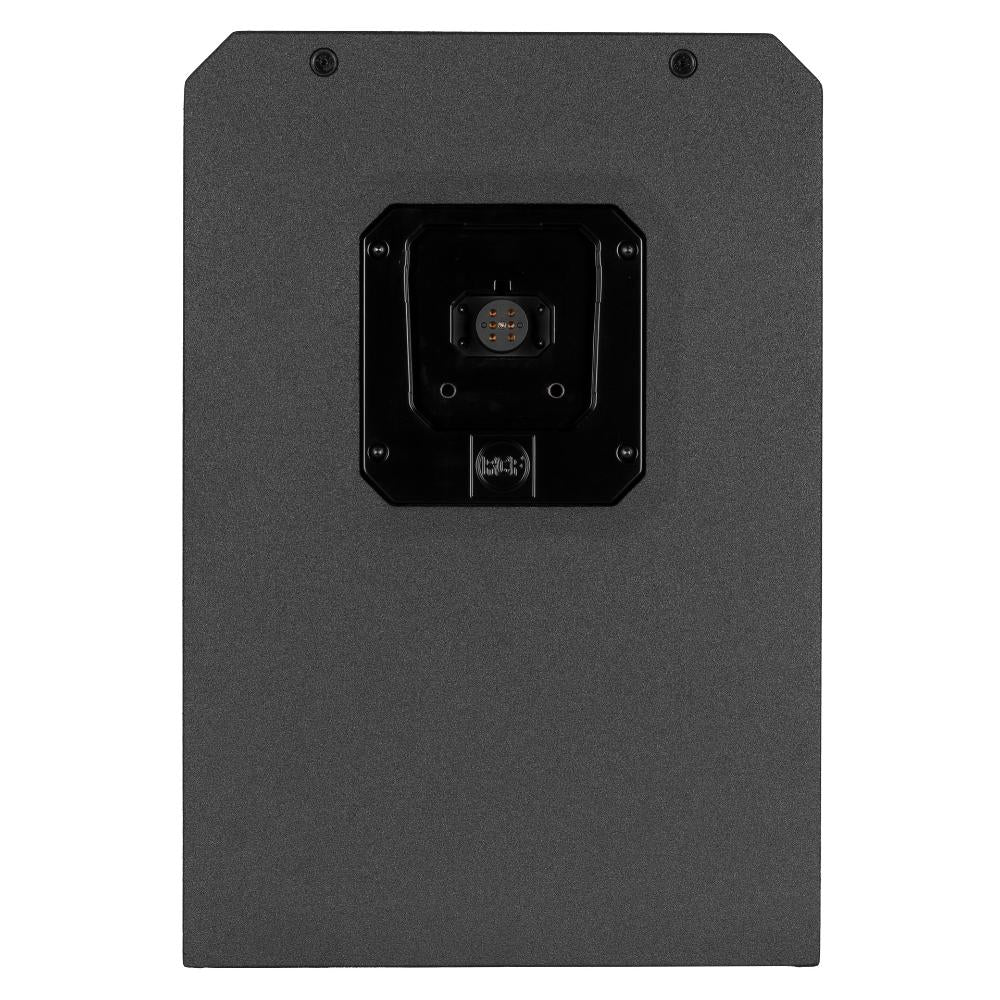

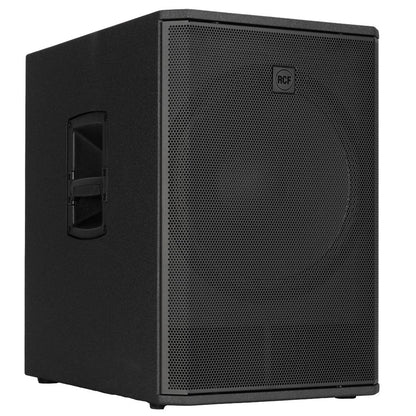

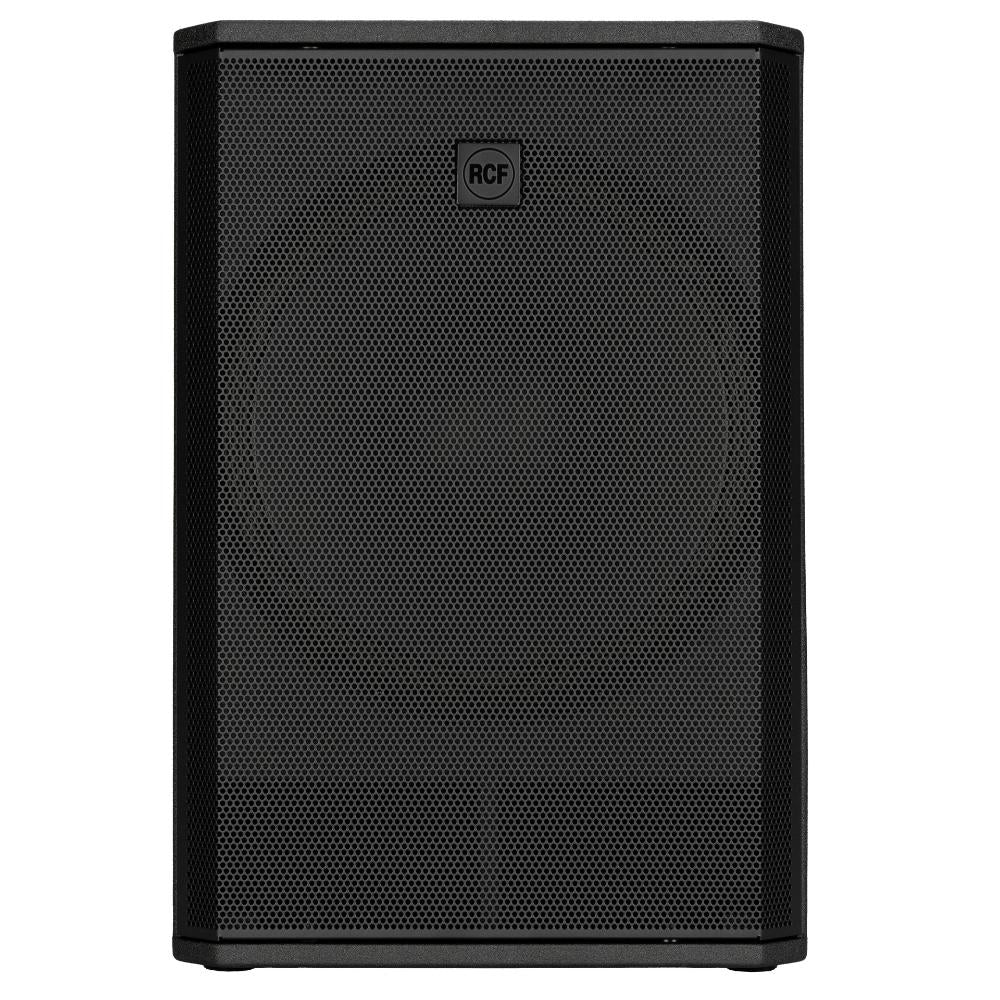

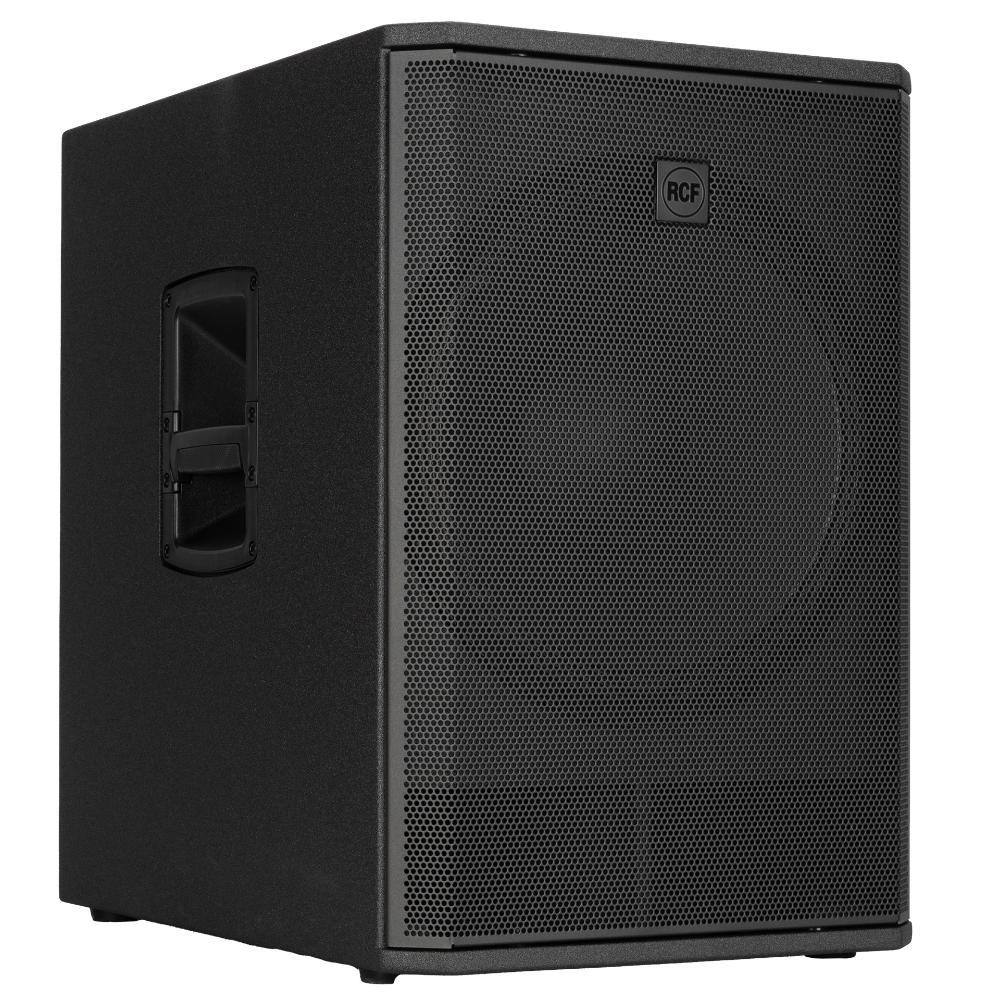

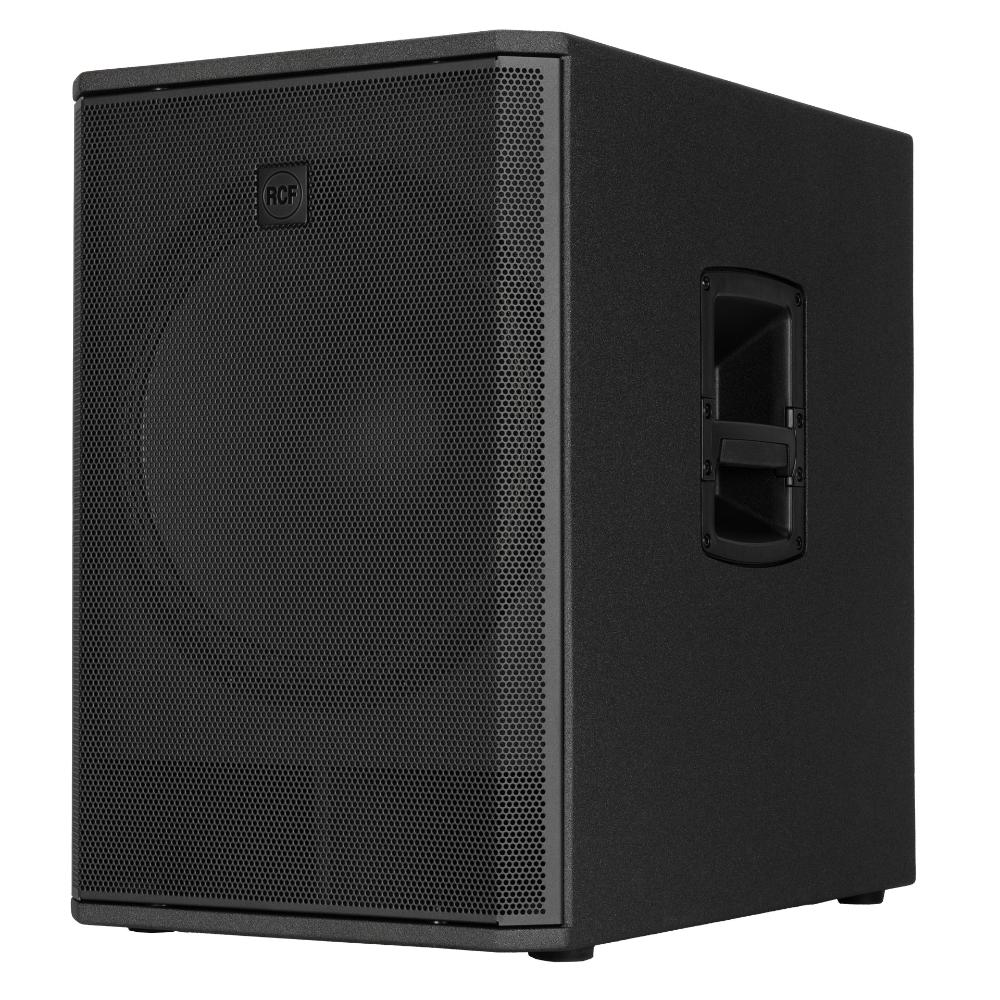

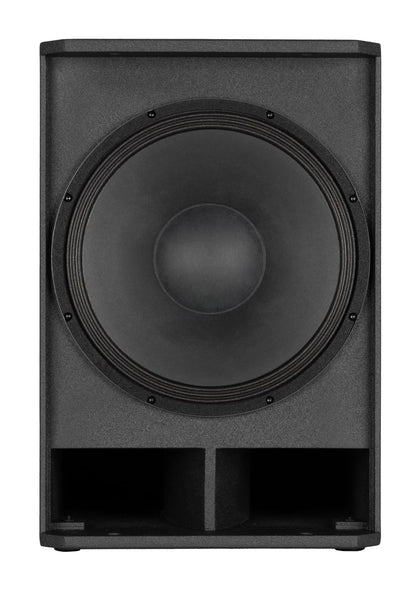

Active 15" Subwoofer w/ DSP for EVOX V15
The EVOX V15 is a professional three-way active column loudspeaker designed to deliver clarity, output, and reliability in demanding live sound applications. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide ensures wide, coherent coverage, while ten 4” midrange transducers deliver precise vocal definition. A high-power 15” woofer in a bass-reflex enclosure provides deep, controlled lows. Powered by a 3500 W dual-channel Class-D amplifier, the system achieves 133 dB SPL with touring-grade dynamics. Part of the EVOX Series, the V15 combines RCF transducer and DSP technology in a sleek format, offering natural sound and straightforward deployment for bands, DJs, and live events.
Features
133 dB Max SPL 3500 W Class-D Amplifier - Built-In DSP 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide 10 X 4” Mid-Range Neo Transducers 15” RCF Precision Low-Frequency Woofer Enhanced Coverage And Clarity Composite Column, Plywood Woofer Enclosure PowerCon True1-TOP Mains Connector Top Speaker Padded Carrying Bag IncludedSpecifications
| Acoustical specifications |
|---|
| Frequency Response |
35 Hz - 20000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
40° |
| Transducers |
|---|
| Compression Driver |
1 x 1.0'' neo, 1.75'' v.c |
| Fullrange |
10 x 4.0'' neo, 1.0'' v.c |
| Woofer |

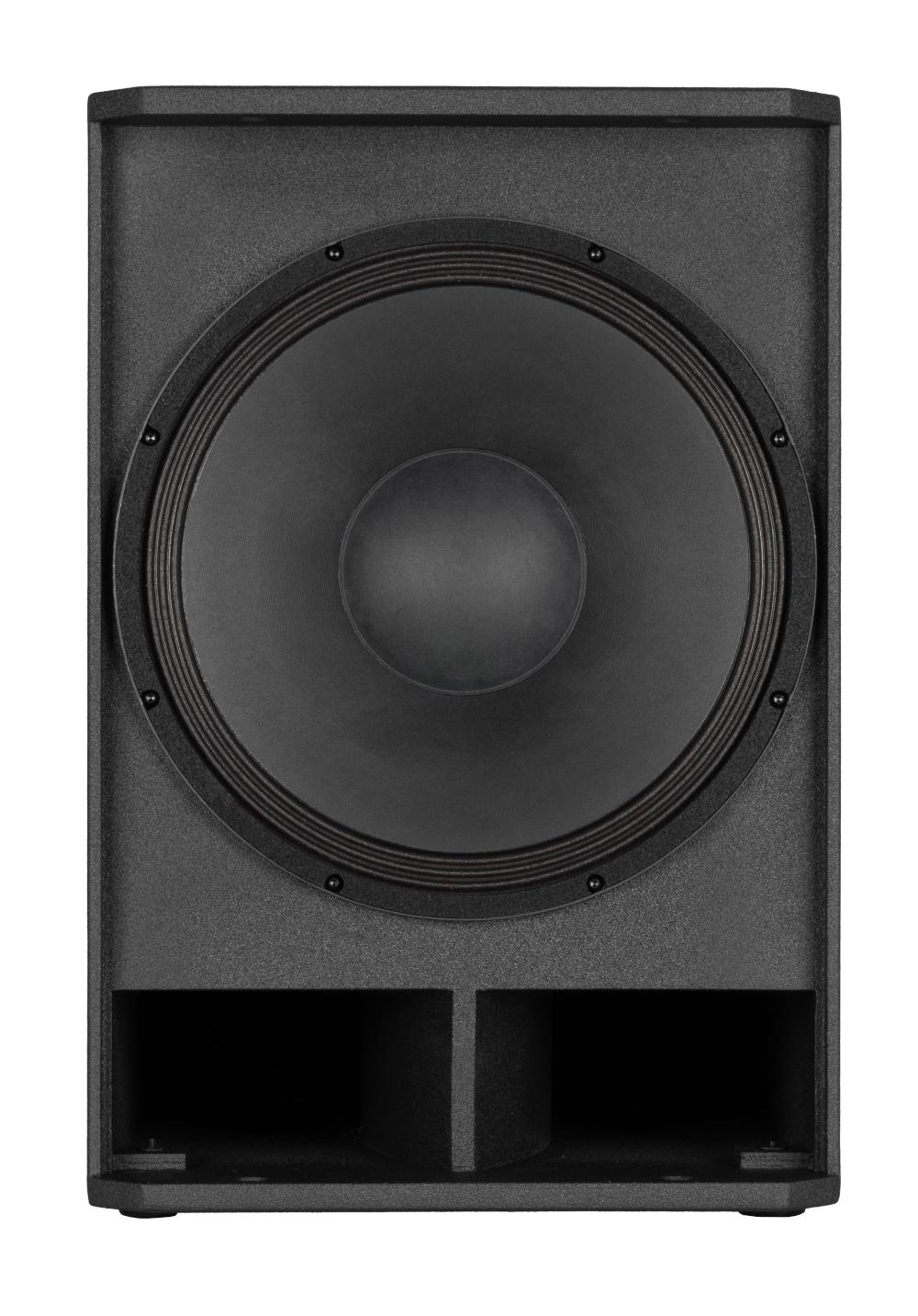

15'', 3.0'' v.c |
| Input/Output section |
|---|
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
+4 dBu |
| Processor section |
|---|
| Crossover Frequencies |
160/1600 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Volume, Presets: LINEAR, LIVE, CLUB, VOICE |
| Power section |
|---|
| Total Power |
3500 W Peak |
| High frequencies |
1500 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |

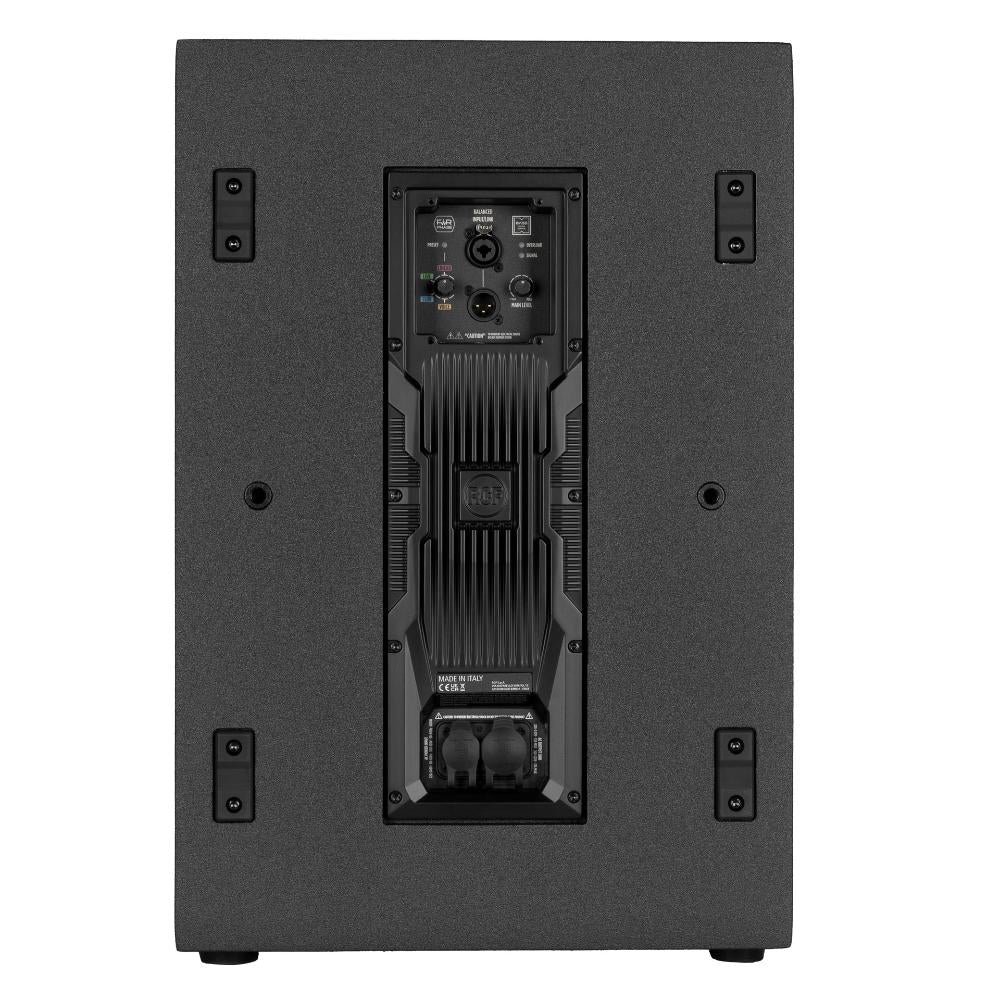

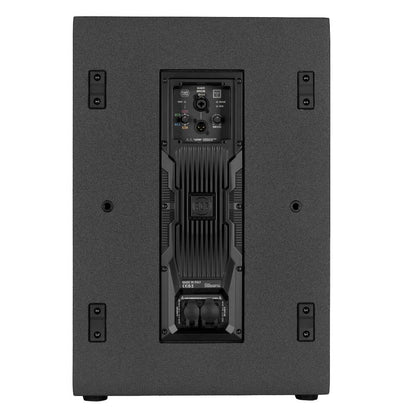

| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
|---|
| Safety agency |
CE compliant |
| Physical specifications |
|---|
| Cabinet/Case Material |
Baltic birch plywood/PP Composite |
| Handles |

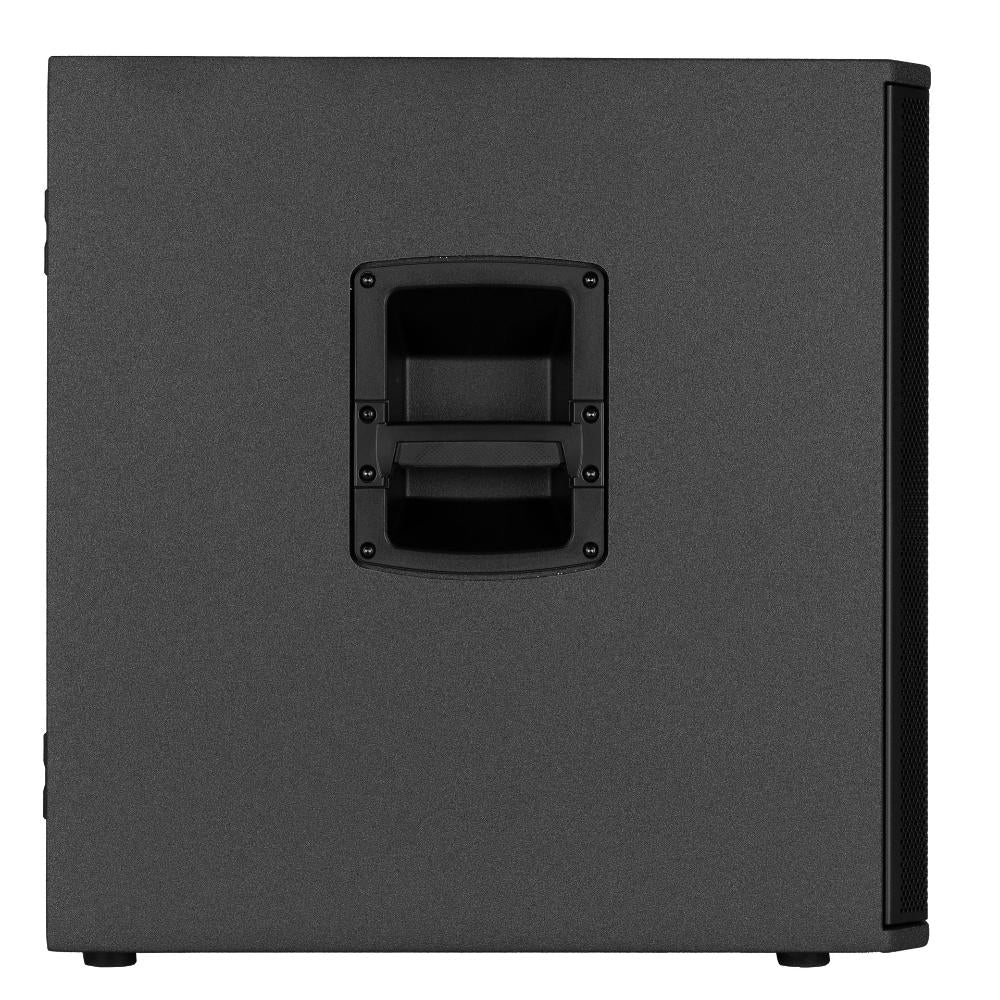

One handle each side of the subwoofer |
| Grille |
Steel |
| Color |
Black, White - RAL 9003 |
| Size / Weight |
|---|
| Height |
2223 mm / 87.52 inches |
| Width |
410 mm / 16.14 inches |
| Depth |
605 mm / 23.82 inches |
| Weight |
44.4 kg / 97.89 lbs |
| Shipping information |
|---|
| Package Height |
690 mm / 27.17 inches |
| Package Width |
650 mm / 25.59 inches |
| Package Depth |
450 mm / 17.72 inches |
| Package Weight |
53.2 kg / 117.29 lbs |
