Description

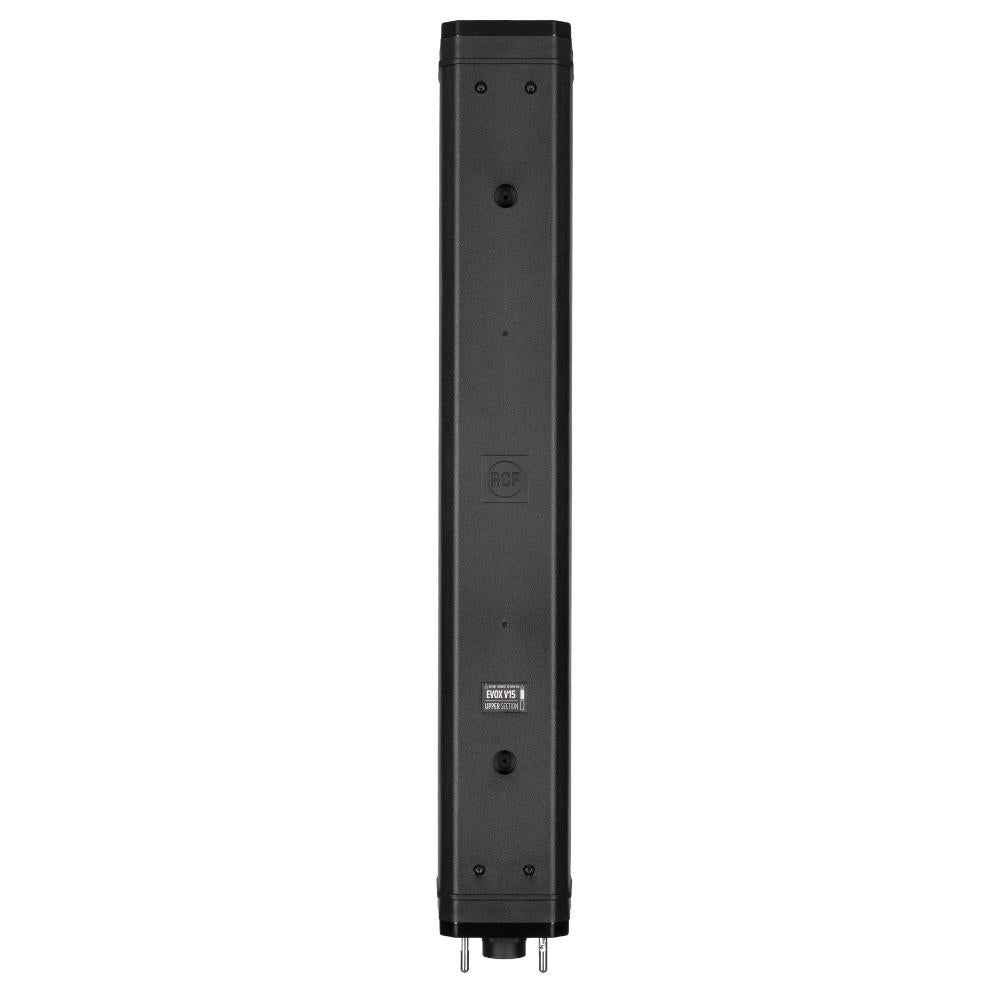

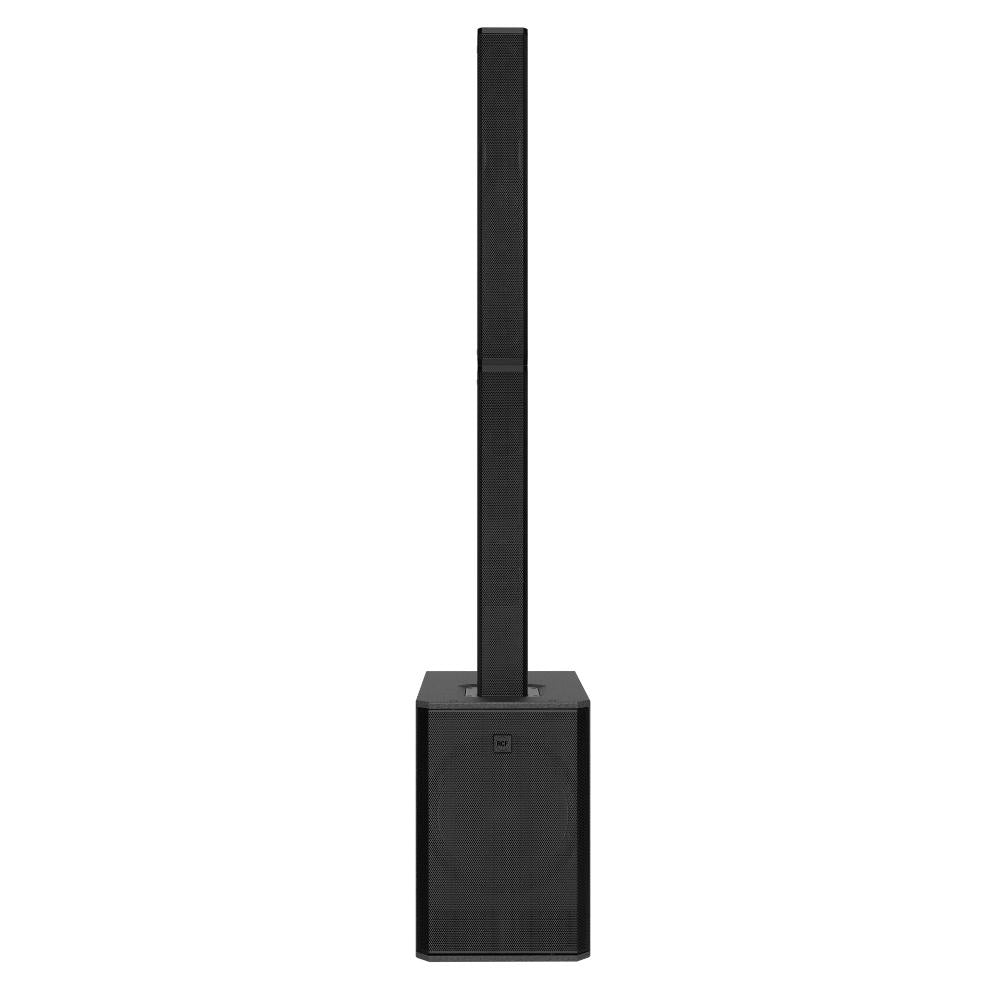

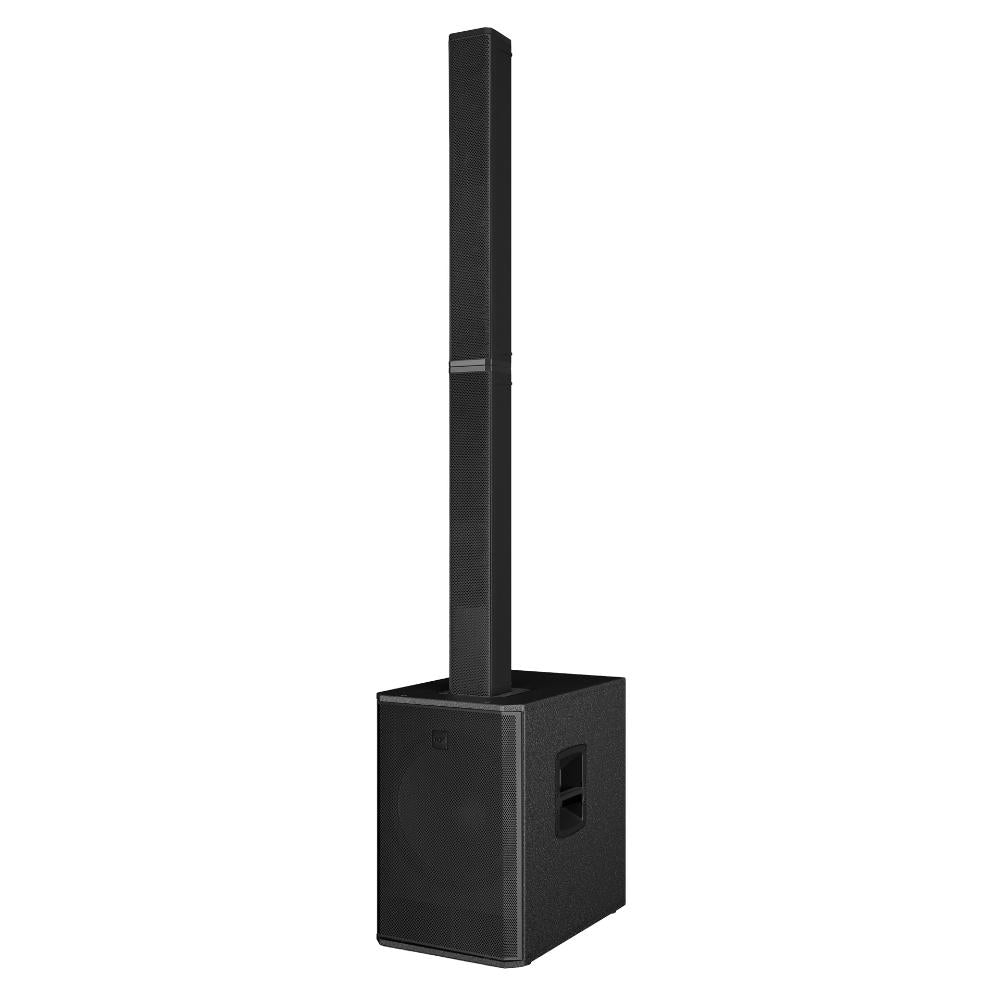

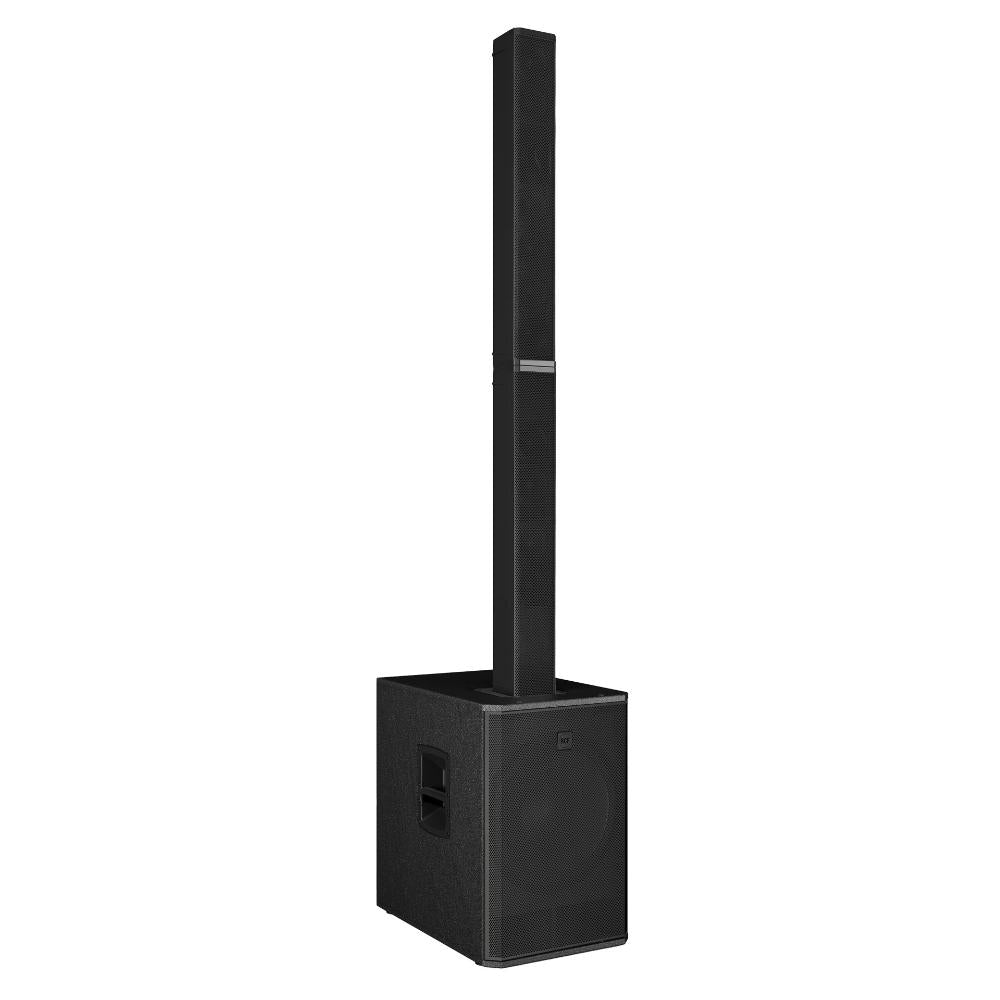

Active Three-Way Portable Column PA System

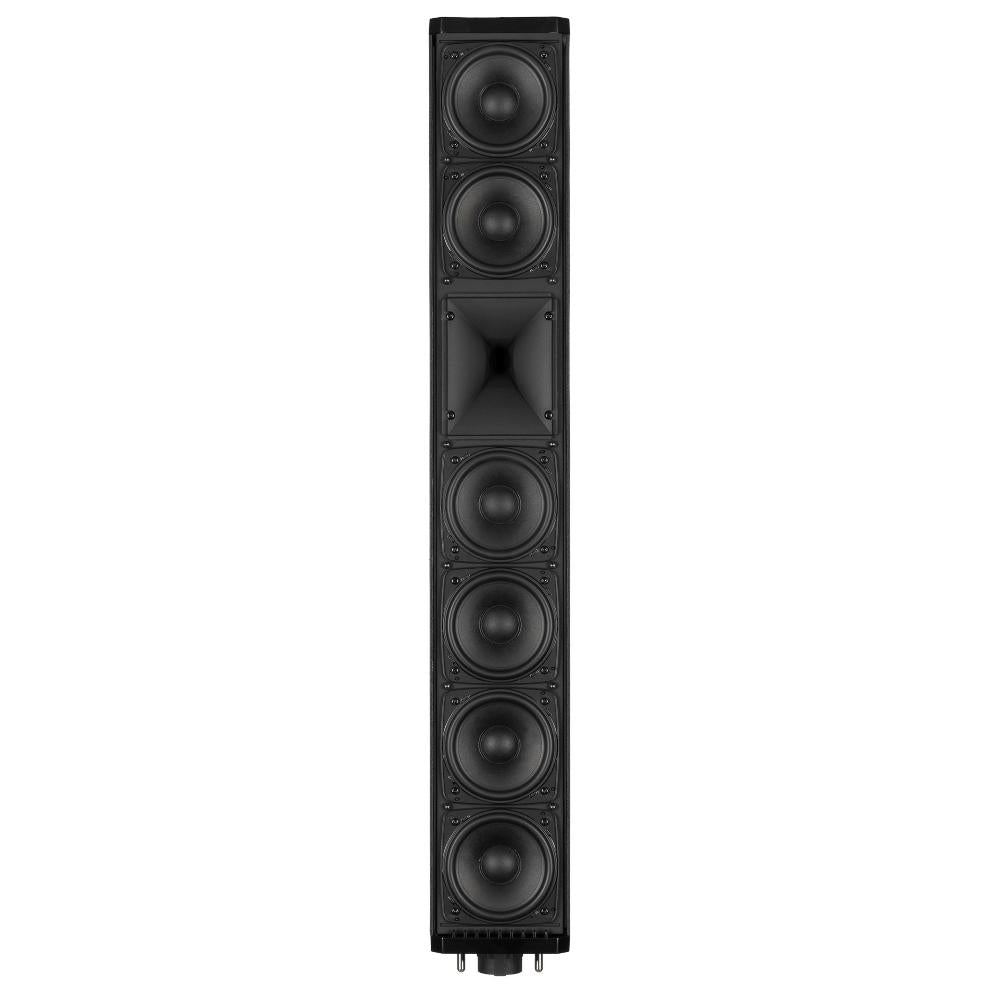

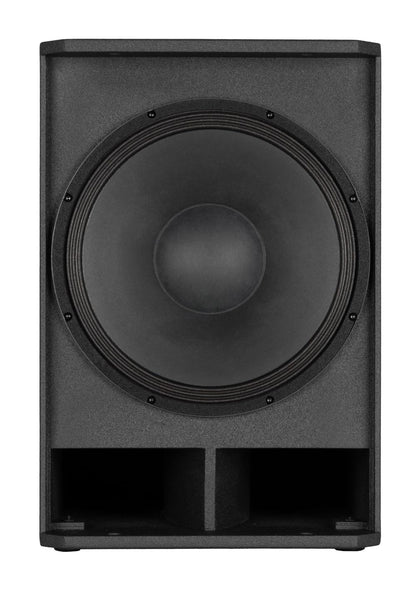

The EVOX V15 is a professional three-way active column loudspeaker designed to deliver clarity, output, and reliability in demanding live sound applications. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide ensures wide, coherent coverage, while ten 4” midrange transducers deliver precise vocal definition. A high-power 15” woofer in a bass-reflex enclosure provides deep, controlled lows. Powered by a 3500 W dual-channel Class-D amplifier, the system achieves 133 dB SPL with touring-grade dynamics. Part of the EVOX Series, the V15 combines RCF transducer and DSP technology in a sleek format, offering natural sound and straightforward deployment for bands, DJs, and live events.
FEATURES
- 133 dB Max SPL
- 3500 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 10 X 4” Mid-Range Neo Transducers
- 15” RCF Precision Low-Frequency Woofer
- Enhanced Coverage And Clarity

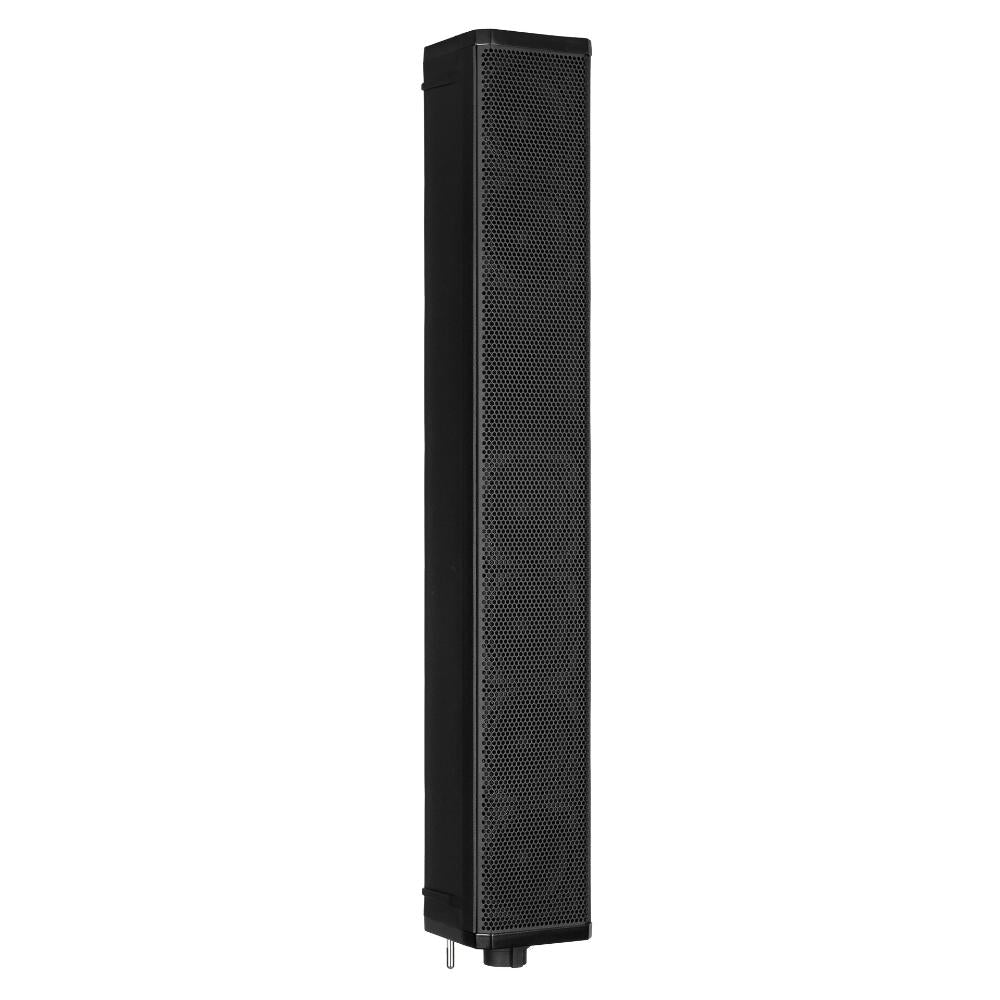

- Composite Column, Plywood Woofer Enclosure
- PowerCon True1-TOP Mains Connector
- Top Speaker Padded Carrying Bag Included
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response: 35 Hz - 20000 Hz
-
Max SPL @ 1m: 133 dB
-
Horizontal coverage angle: 120°
-
Vertical coverage angle: 40°
TRANSDUCERS
-
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
-

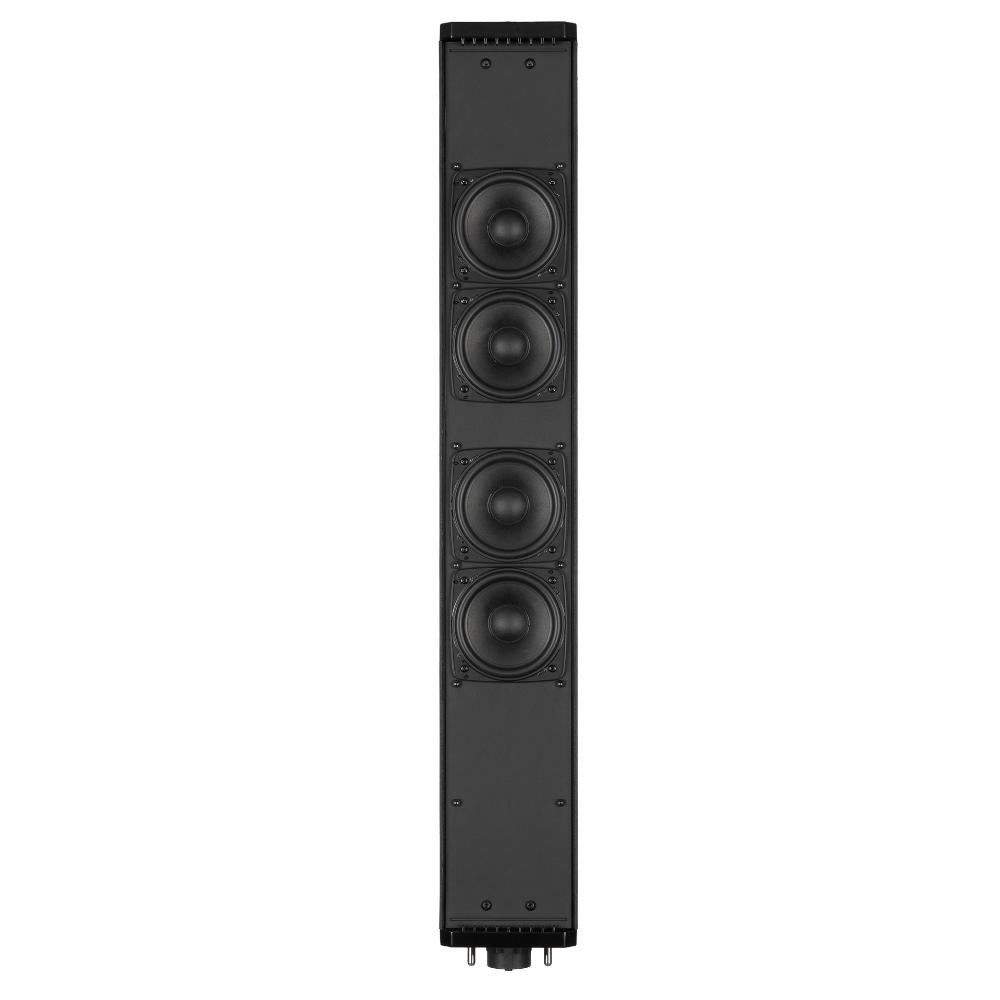

Fullrange: 10 x 4.0'' neo, 1.0'' v.c
-

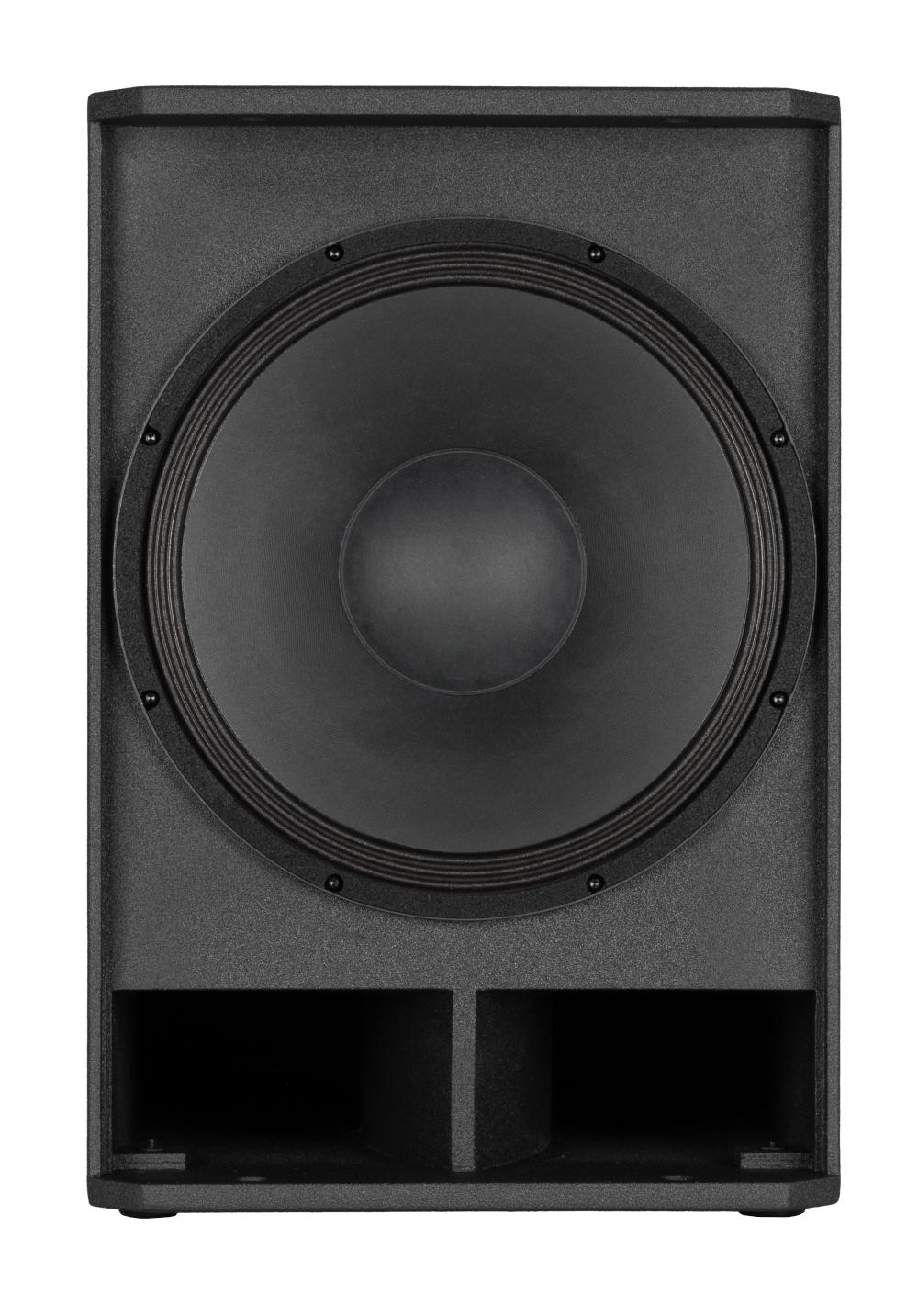

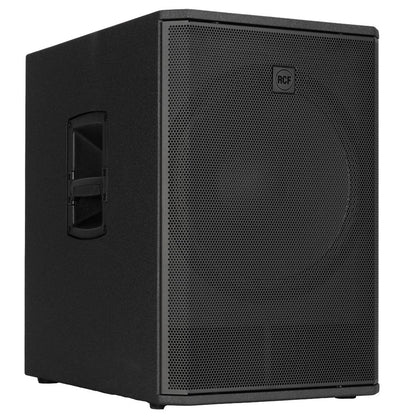

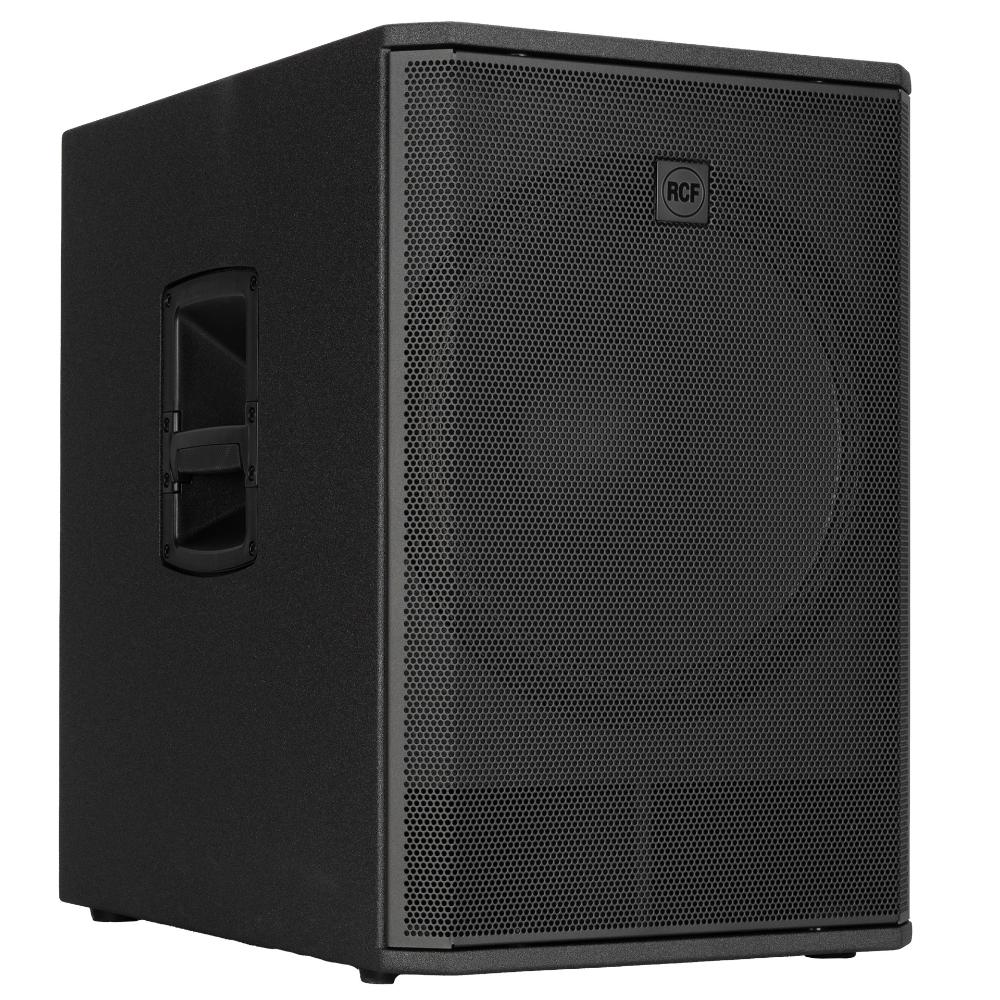

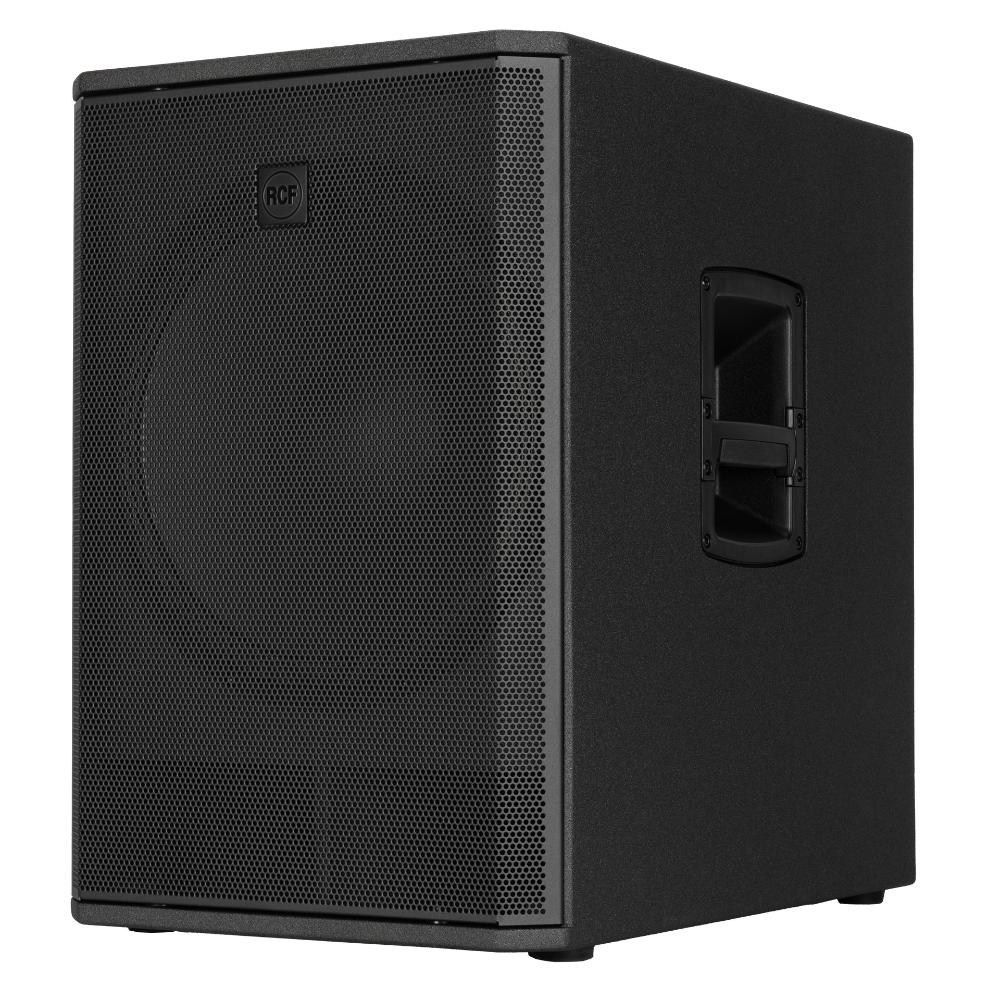

Woofer: 15'', 3.0'' v.c

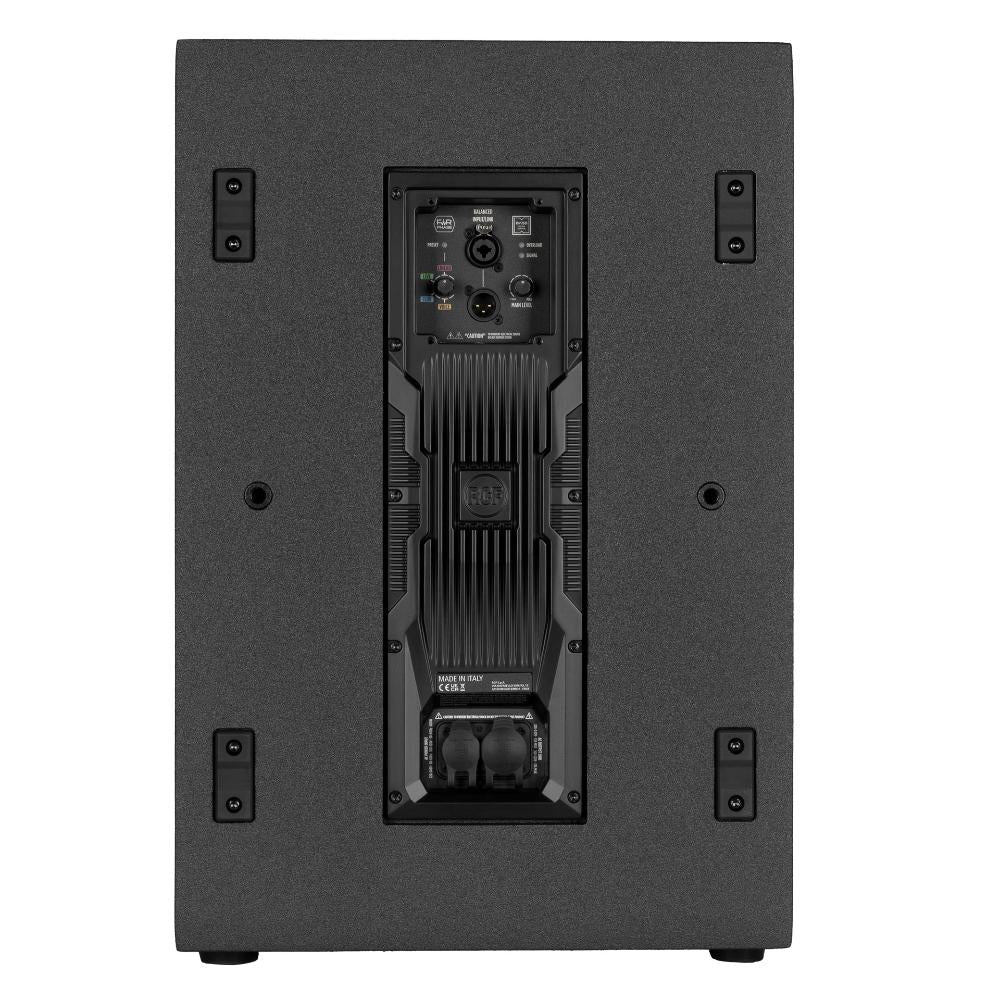

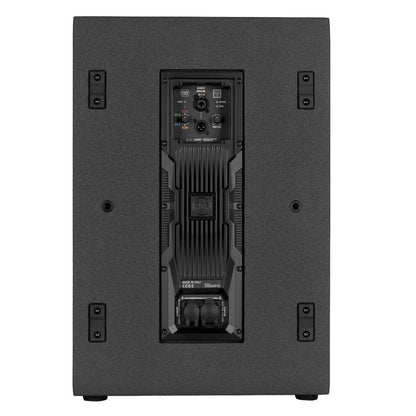

INPUT/OUTPUT SECTION
-
Input signal: bal/unbal
-
Input connectors: Combo XLR/Jack
-
Output connectors: XLR
-
Input sensitivity: +4 dBu
PROCESSOR SECTION
-
Crossover Frequencies: 160/1600 Hz
-
Protections: Thermal, RMS
-
Limiter: Soft Limiter
-
Controls: Volume, Presets: LINEAR, LIVE, CLUB, VOICE
POWER SECTION
-
Total Power: 3500 W Peak
-
High frequencies: 1500 W Peak
-
Low frequencies: 2000 W Peak
-
Cooling: Convection
-
Connections: Powercon TRUE1 TOP IN/OUT
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Baltic birch plywood/PP Composite
-

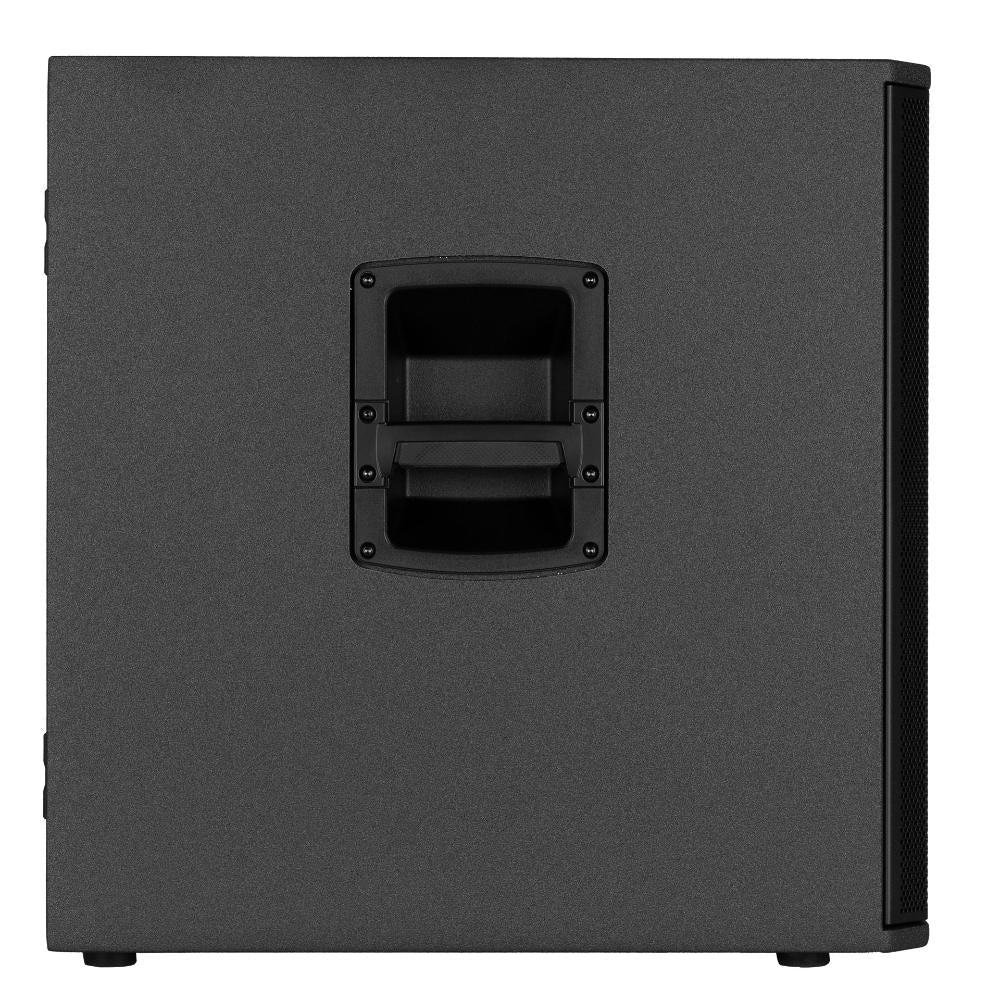

Handles: One handle each side of the subwoofer
-
Grille: Steel
-
Color: Black, White - RAL 9003
SIZE / WEIGHT
-
Height: 2223 mm / 87.52 inches
-
Width: 410 mm / 16.14 inches
-
Depth: 605 mm / 23.82 inches
-
Weight: 44.4 kg / 97.89 lbs
SHIPPING INFORMATION
-
Package Height: 690 mm / 27.17 inches
-
Package Width: 650 mm / 25.59 inches
-
Package Depth: 450 mm / 17.72 inches
-
Package Weight: 53.2 kg / 117.29 lbs
