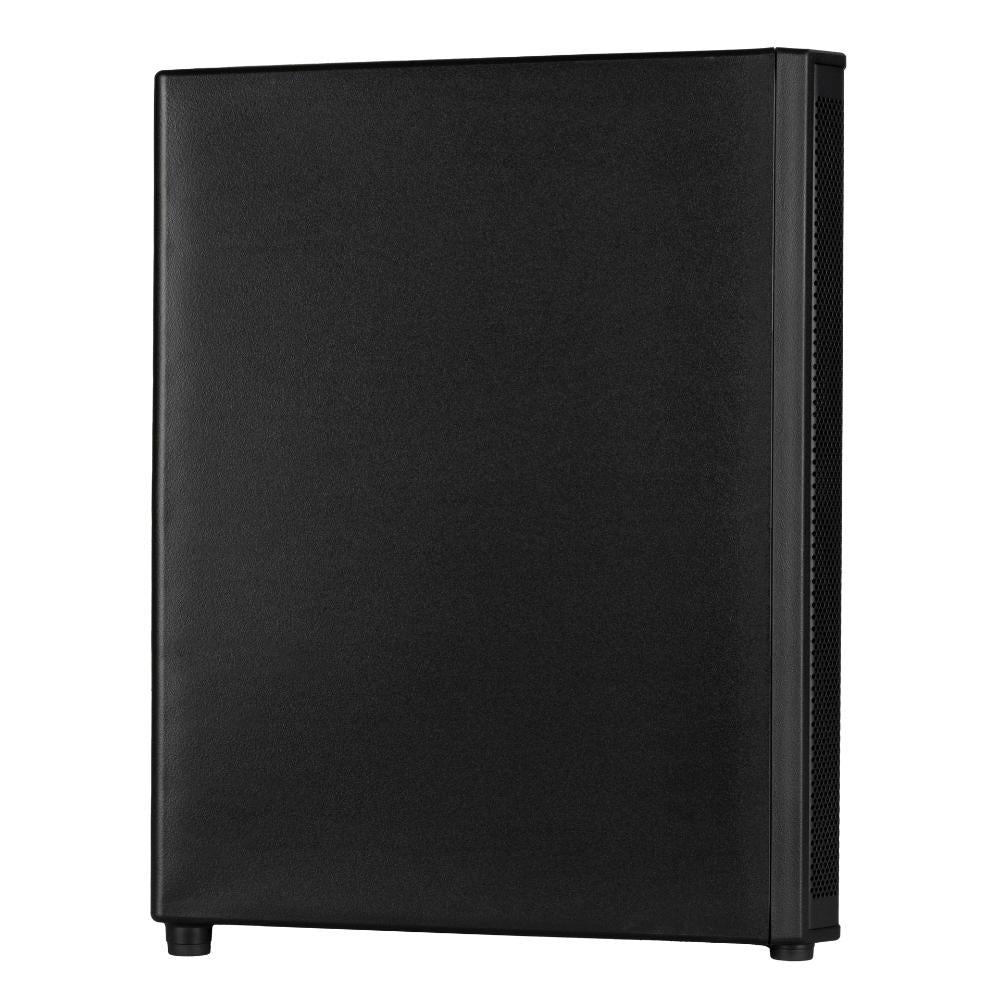

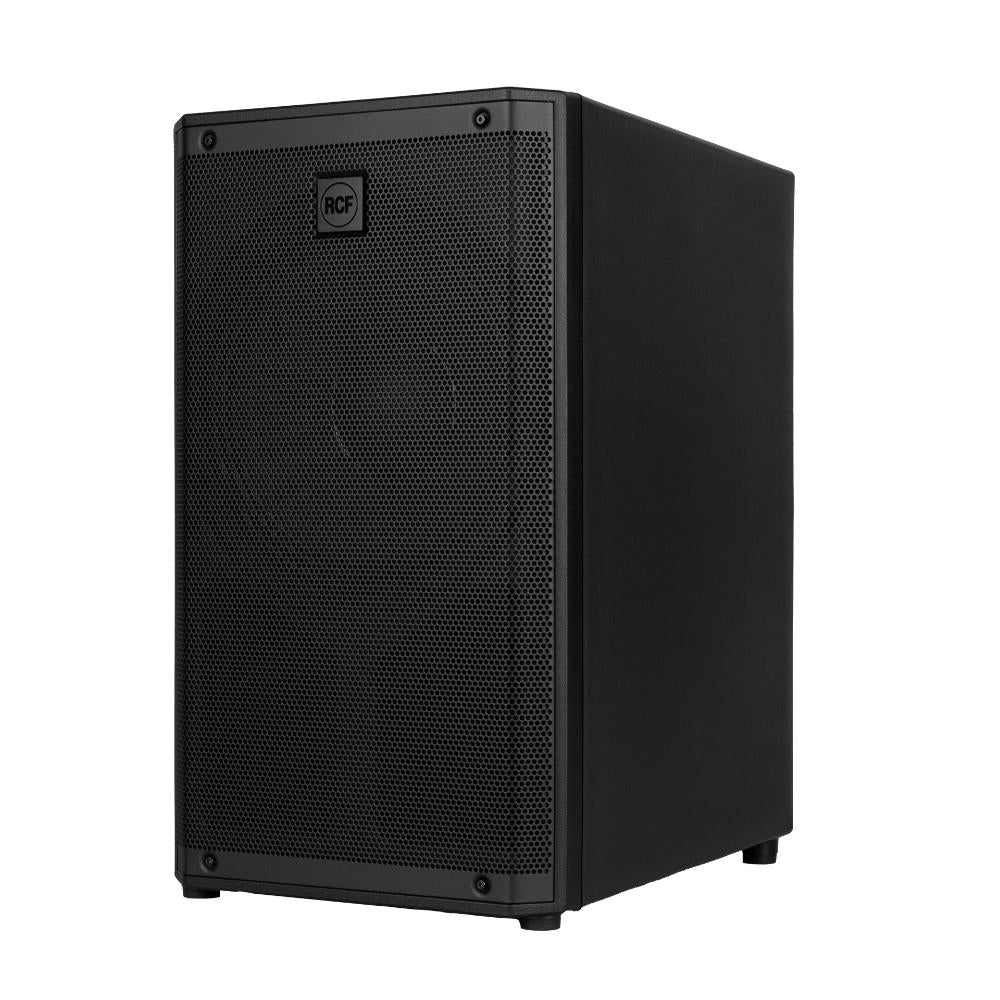

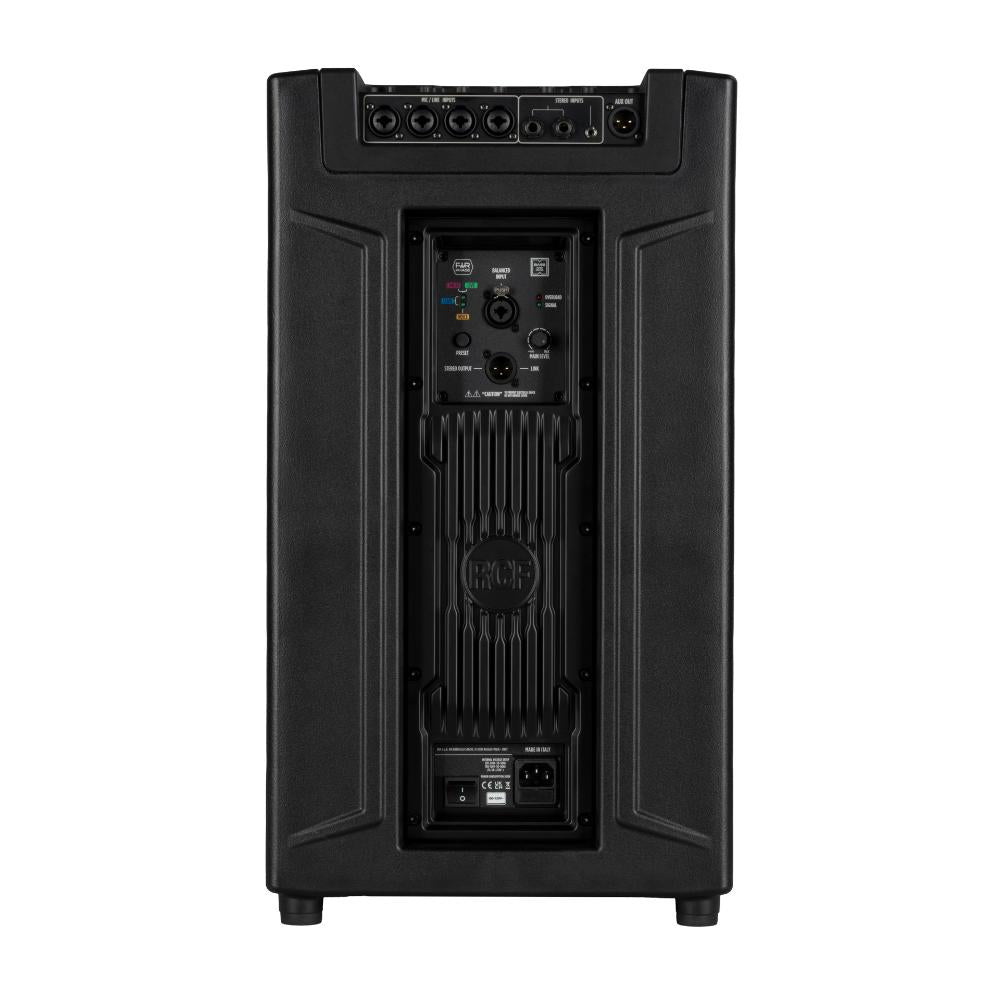

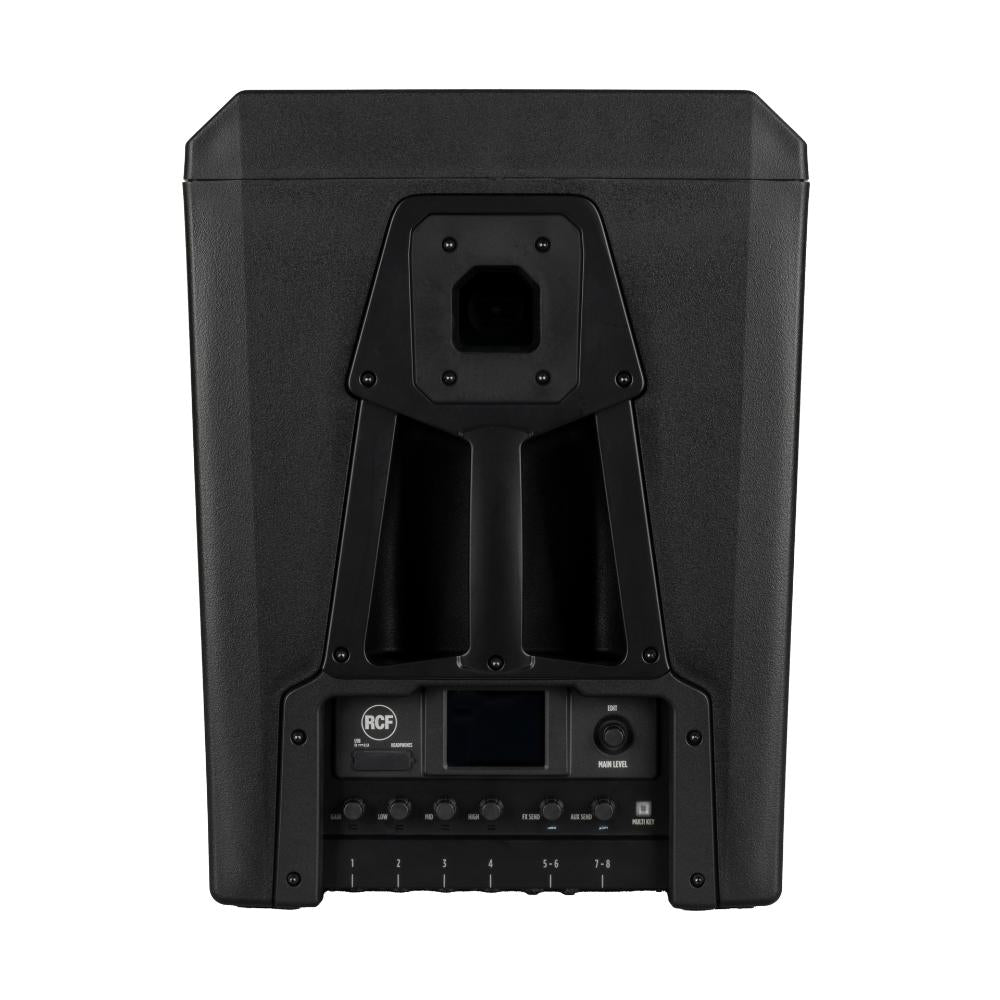

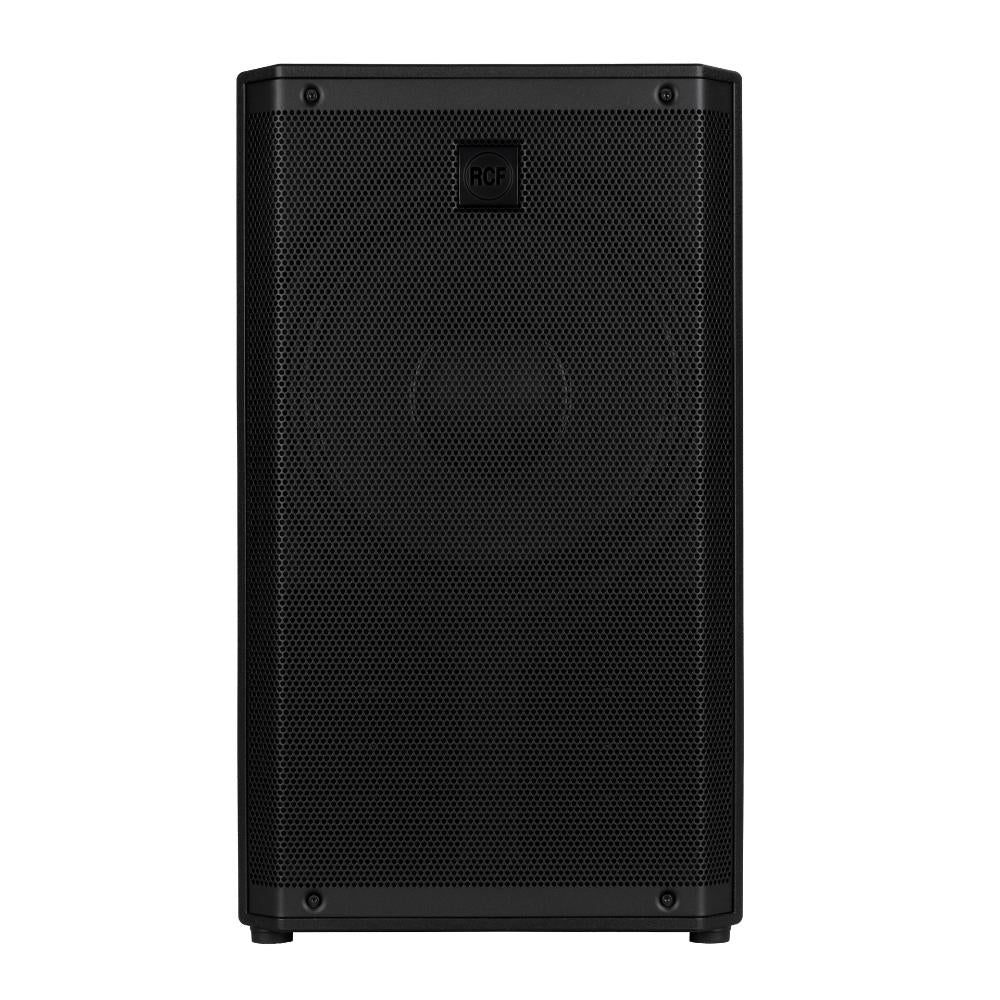

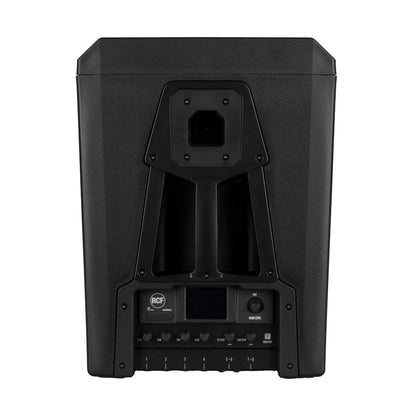

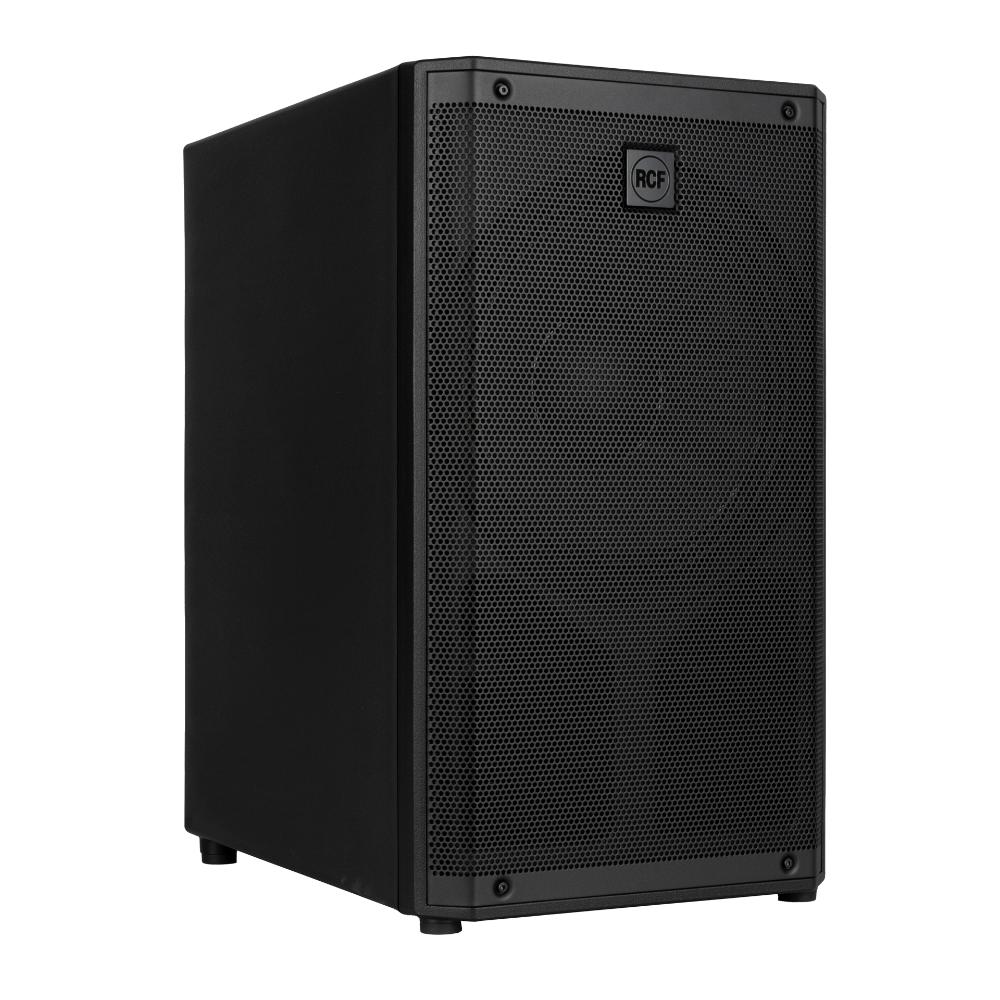

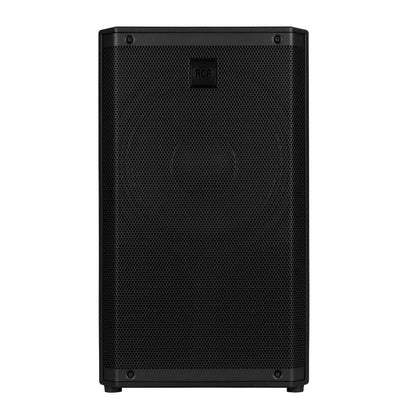

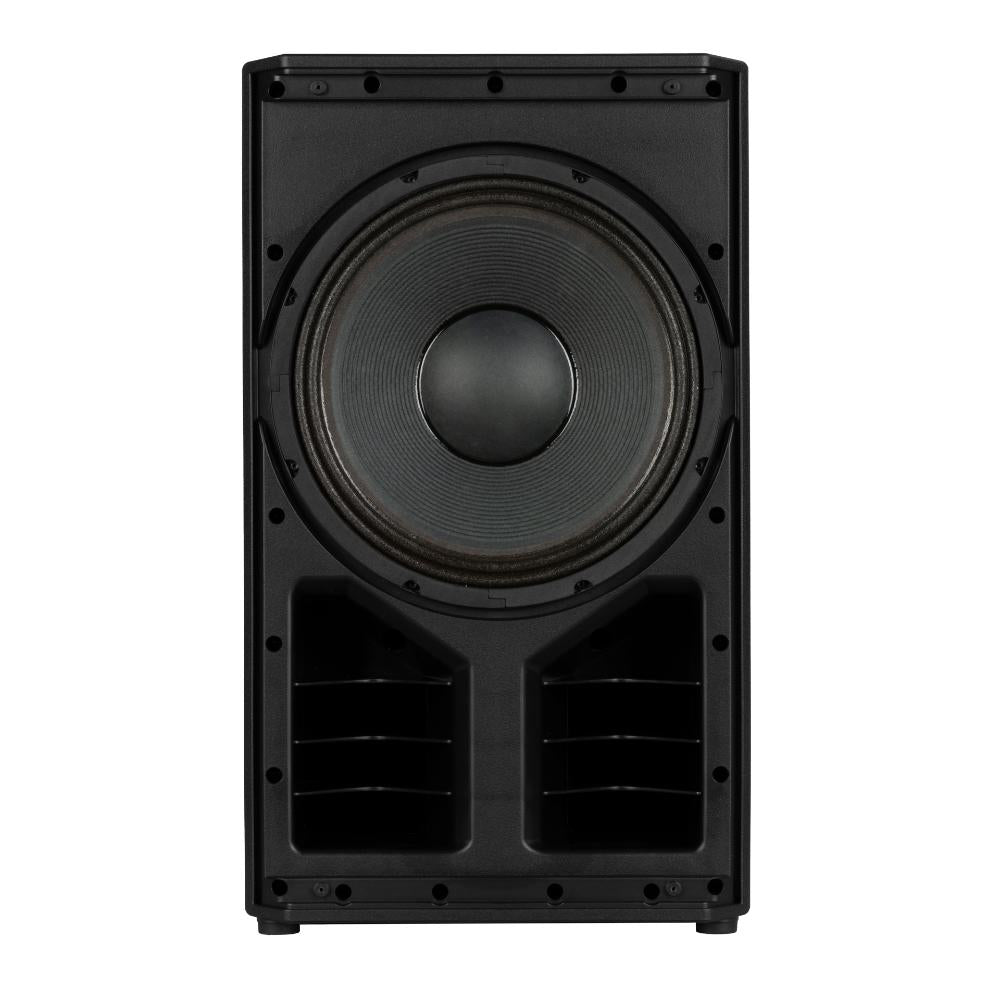

RCF EVOX-JMIX9-SUB Active 12" Subwoofer w/ 8 Channel Mixer, Bluetooth & DSP for EVOX JMIX9 System
RCF EVOX-JMIX9-SUB Active 12" Subwoofer w/ 8 Channel Mixer, Bluetooth & DSP for EVOX JMIX9 System
SKU: EVOX-JMIX9-SUB
Shipping calculated at checkout.
Available options
Description
Active 12" Subwoofer w/ 8 Channel Mixer, Bluetooth & DSP for EVOX JMIX9 System
EVOX JMIX9 is a 3-way active portable column system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control via the JMixRemote app. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It features combo inputs, stereo/aux out, EQ, reverb, phantom power and output delay up to 135 ms. *Class 2 Bluetooth® device. Audio stream is guaranteed within a 10-meter range.
Features
Specifications
| Acoustical specifications | |
|---|---|
| Frequency Response | 40 Hz - 20000 Hz |
| Max SPL @ 1m | 130 dB |
| Horizontal coverage angle | 120° |
| Vertical coverage angle | 40° |
| Transducers | |
| Compression Driver | 1 x 0.75'' neo, 1.75'' v.c |
| Fullrange | 6 x 3.0'' neo, 1.0'' v.c |
| Woofer | 1 x 12'', 2.5'' v.c |
| Input/Output section | |
| Input signal | bal/unbal |
| Input connectors | Combo XLR/Jack |
| Output connectors | XLR |
| Input sensitivity | -2 dBu/+4 dBu |
| Processor section | |
| Crossover Frequencies | 200 Hz/1800 Hz |
| Protections | Thermal, RMS |
| Limiter | Soft Limiter |
| Controls | Digital mixer controlled by touch screen and encoders |
| Power section | |
| Total Power | 2100 W Peak |
| High frequencies | 700 W Peak |
| Low frequencies | 1400 W Peak |
| Cooling | Convection |
| Connections | VDE |
| Electronic specifications | |
| Frequency Response | 20 Hz - 20 Hz |
| THD+N, 20dB gain, 0dBu out | 0.003% A-Weighted |
| Processing | |
| Processing Channels | 8 |
| Signal Processing | 32 Bit |
| A/D-D/A conversion | 24 Bit @ 48.0 kHz |
| Dynamic range | 114 |
| Inputs | |
| Mic | 4 |
| Remote Controlled Storable Gain | Yes |
| Gain Range | 0 dB - 36 dB |
| Input Noise Level | -114 dBu A-Weighted |
| Mic Inputs Impedance | 3 kohm |
| Low Cut | 20 Hz - 400 Hz |
| Phantom Power +48V | Yes |
| Mono Line | 4 |
| Gain Selection | 0 dB - 36 dB |
| Line Input Impedance | 10 kohm |
| A/D Dynamic range | 120 dB |
| Stereo Line | 2 |
| Gain Selection | 0 dB - 0 dB |
| Stereo Line Input Impedance (kOhm) | 24 kohm |
| Outputs | |
| Main MIX | 1 |
| FX Send | 1 |
| AUX Send | 1 |
| AUX Output | 1 |
| Phones | 1 |
| Outputs specifications | |
| Main Out Impedance | 150 ohm |
| Main Out Level | 20 dBu |
| Aux Out Impedance (ohm) | 150 ohm |
| Aux Out Level | 20 dBu |
| Phones Out impedance (ohm) | 100 ohm |
| Phones Out Level | 20 dBm |
| D/A Dynamic Range | 118 dB |
| Compressors | |
| RCF Compressors | Compressors on MIC/LINE CH1 to CH4 Inputs |
| EQ | |
| Input Channels EQ | 1 Semi Parametric / 2 Shelving |
| Description | 3 Band EQ: High and Low band shelving, MID band peak on INPUT 8 Band EQ: 6 Full Parametric, 1 High Shelving and HPF 12dB/Oct on amplifier and MAIN output. |
| Auxiliary sends | |
| AUX | 1 PRE/POST |
| FX POST | 1 |
| Internal Effects | |
| Send Effects | 1 |
| Mastering processors | |
| Main OUT processors | 1 |
| Main OUT type | MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT. |
| Electrical specifications | |
| Power supply | Internal |
| Standard compliance | |
| Safety agency | CE compliant |
| Physical specifications | |
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole mount/Cap | Quick-fit socket |
| Grille | Steel |
| Color | Black, White - RAL 9003 |
| Size / Weight | |
| Height | 2080 mm / 81.89 inches |
| Width | 350 mm / 13.78 inches |
| Depth | 460 mm / 18.11 inches |
| Weight | 26.6 kg / 58.64 lbs |
| Shipping information | |
| Package Height | 676 mm / 26.61 inches |
| Package Width | 451 mm / 17.76 inches |
| Package Depth | 581 mm / 22.87 inches |
| Package Weight | 32.5 kg / 71.65 lbs |
