Description

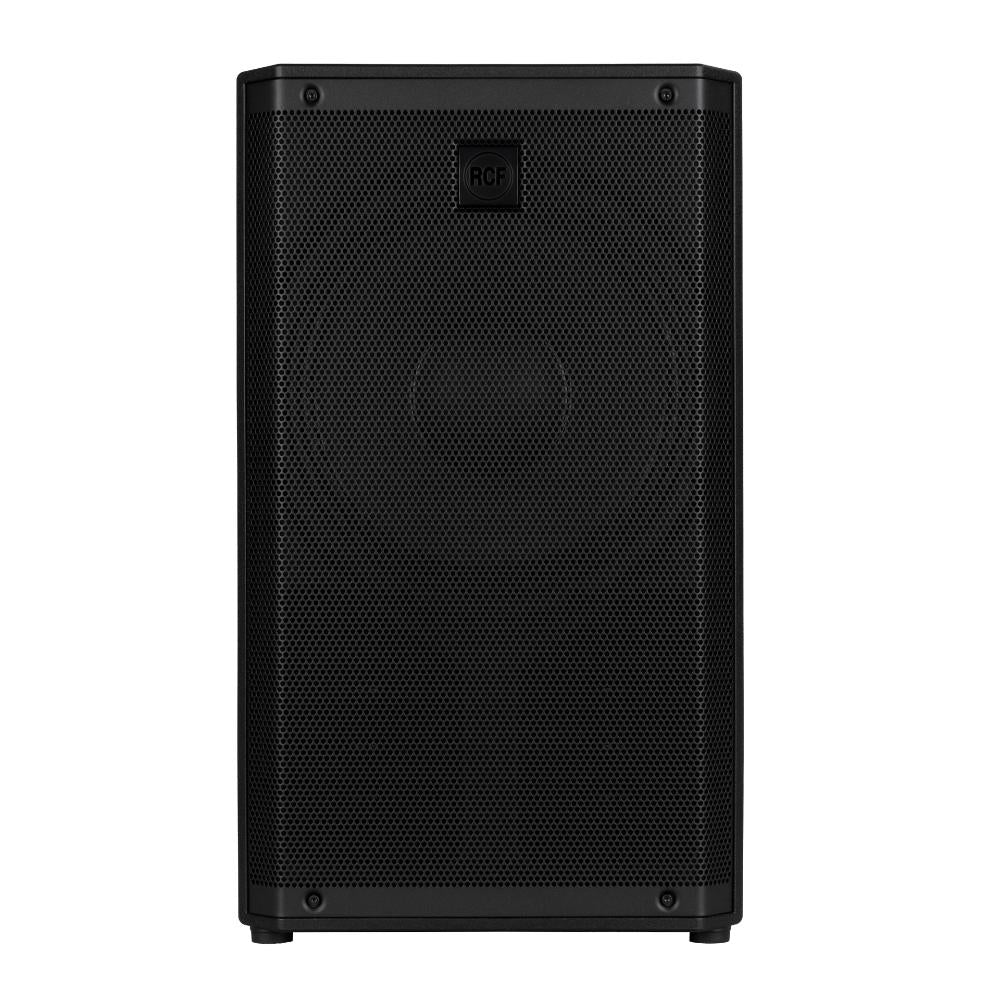

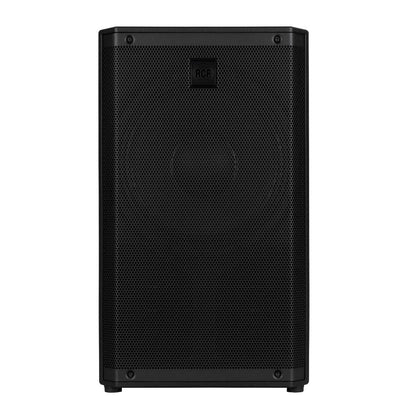

Active 12" Subwoofer w/ DSP for EVOX J9 System
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
Features
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers

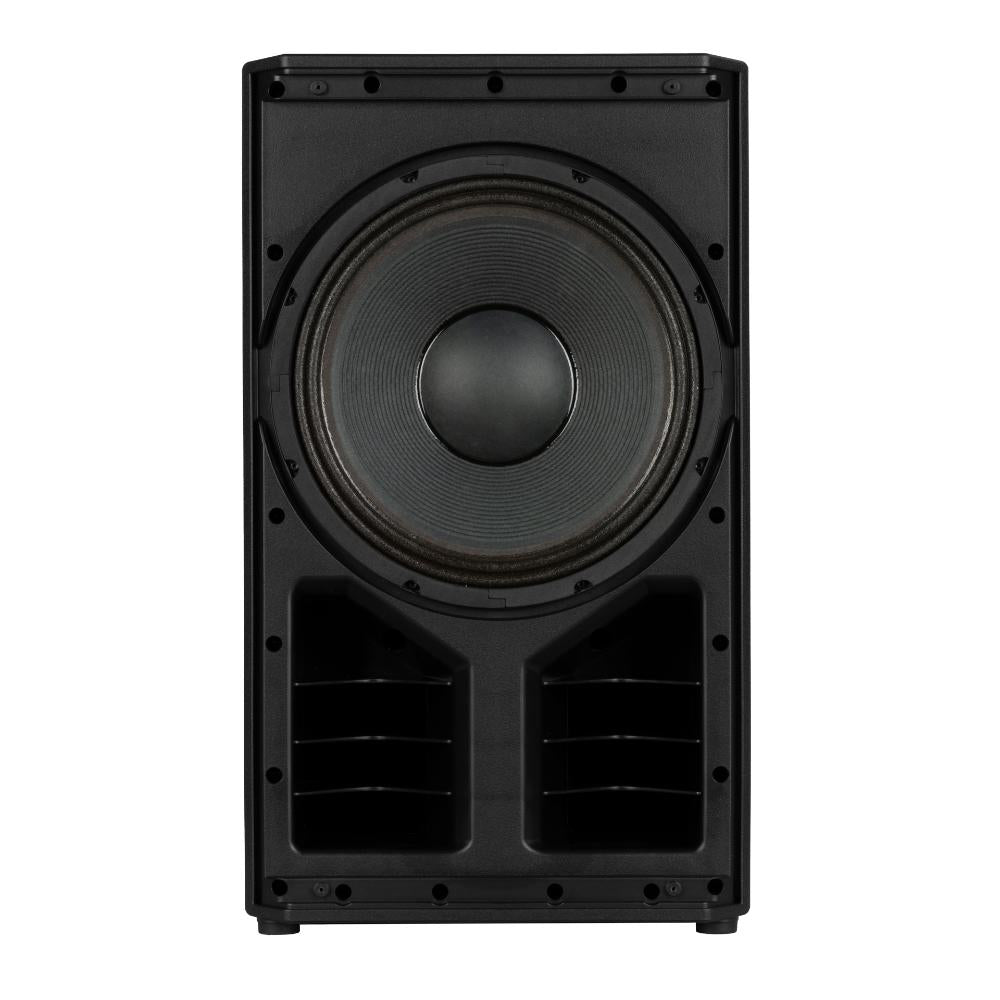

- 12” High-Power Woofer
- Enhanced Coverage And Clarity
- Composite Cabinet With Aluminum Stand Mount
- Sleek, Road-Ready Design
- Top Speaker Padded Carrying Bag Included
- J9 Sub: 20,2 kg - 44.53 lb / J9 Top: 5.8 kg - 12.78 lb
Specifications
| Acoustical specifications |
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
130 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
40° |
| Transducers |
| Compression Driver |
1 x 0.75'' neo, 1.75'' v.c |
| Fullrange |
6 x 3.0'' neo, 1.0'' v.c |
| Woofer |
1 x 12'', 2.5'' v.c |

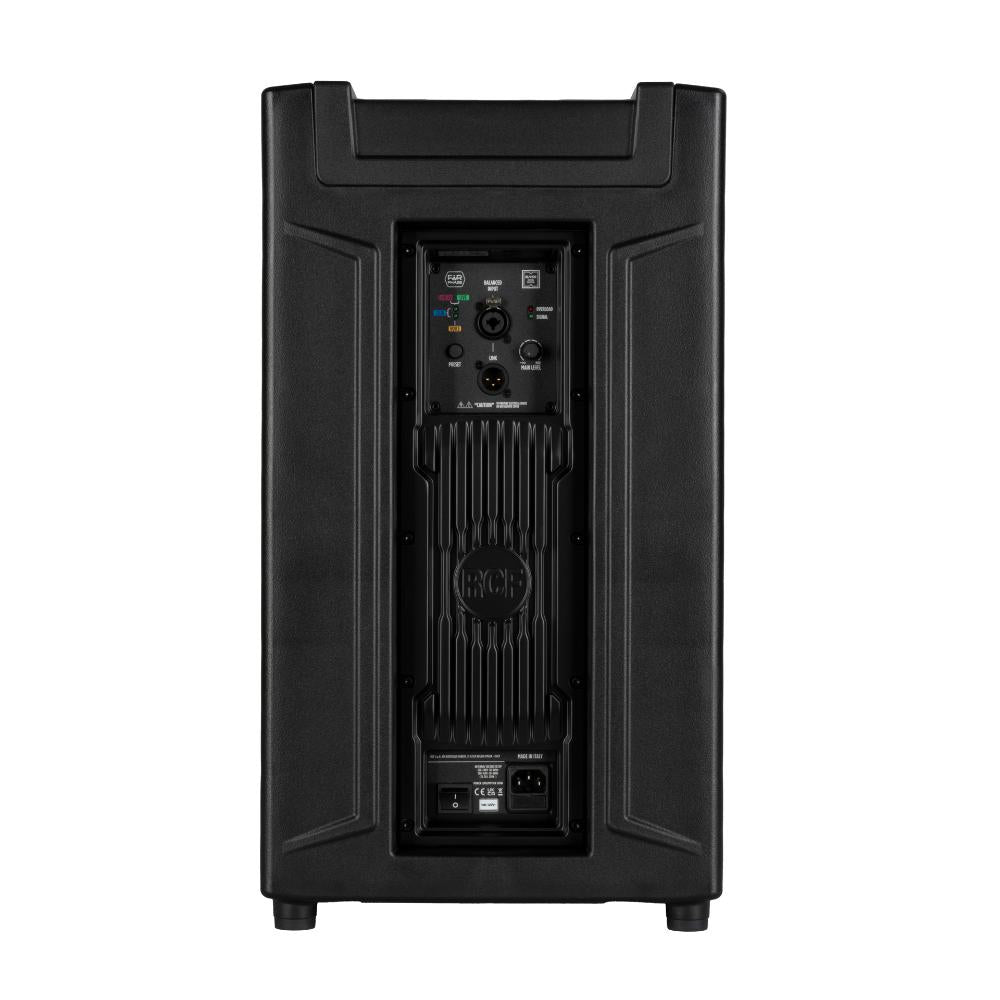

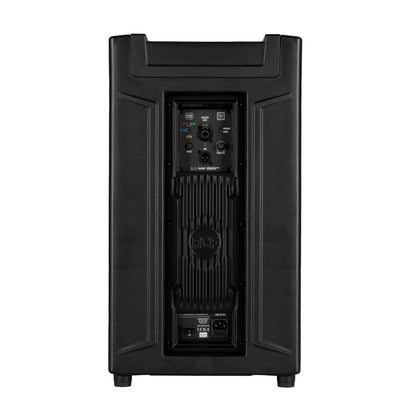

| Input/Output section |
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
-2 dBu/+4 dBu |
| Processor section |
| Crossover Frequencies |
200 Hz/1800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| Power section |
| Total Power |
2100 W Peak |
| High frequencies |
700 W Peak |
| Low frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Standard compliance |
| Safety agency |
CE compliant |
| Physical specifications |
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |
| Pole mount/Cap |
Quick-fit socket |
| Grille |
Steel |
| Color |
Black, White - RAL 9003 |
| Size / Weight |
| Height |
2080.1 mm / 81.89 inches |
| Width |
350 mm / 13.78 inches |
| Depth |
462.6 mm / 18.21 inches |
| Weight |
26 kg / 57.32 lbs |
| Shipping information |
| Package Height |
680 mm / 26.77 inches |
| Package Width |
490 mm / 19.29 inches |
| Package Depth |
460 mm / 18.11 inches |
| Package Weight |
32 kg / 70.55 lbs |
