Description

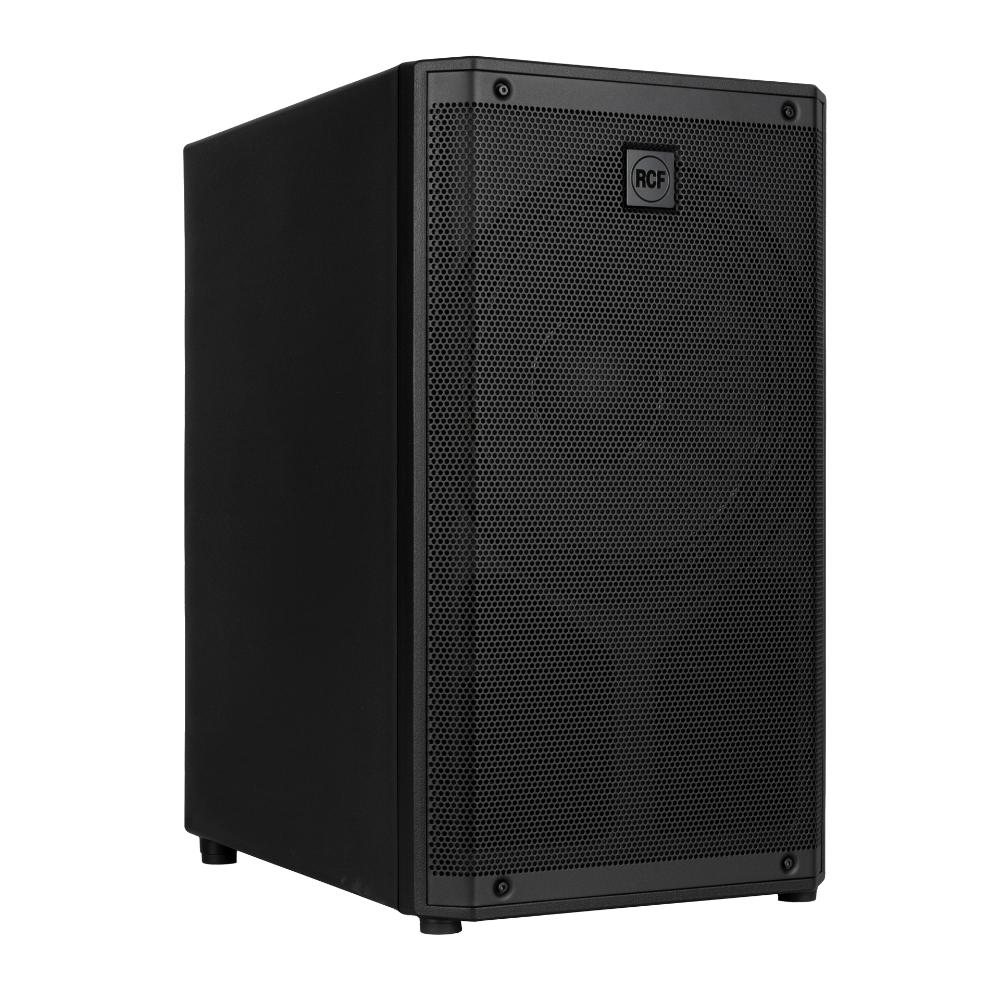

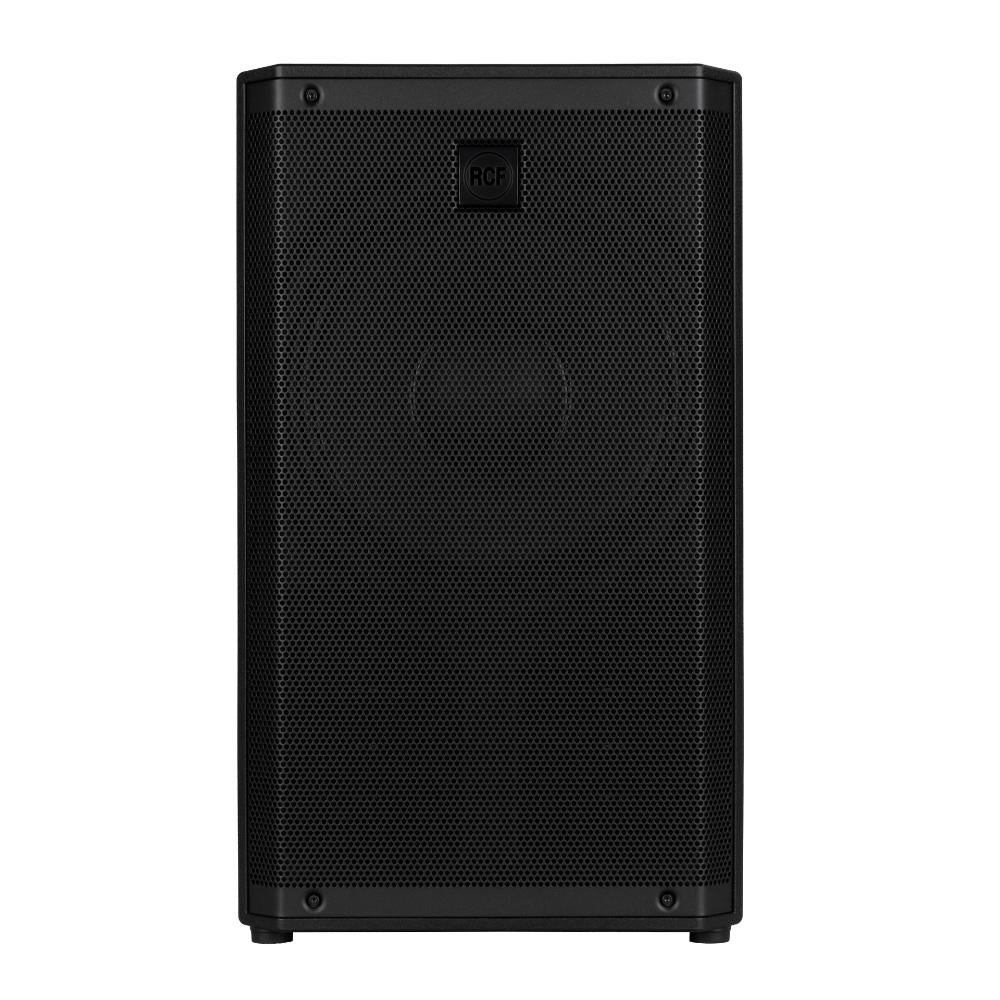

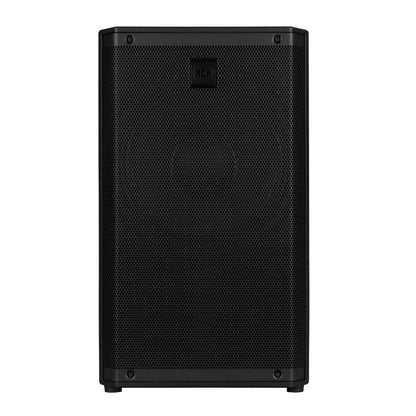

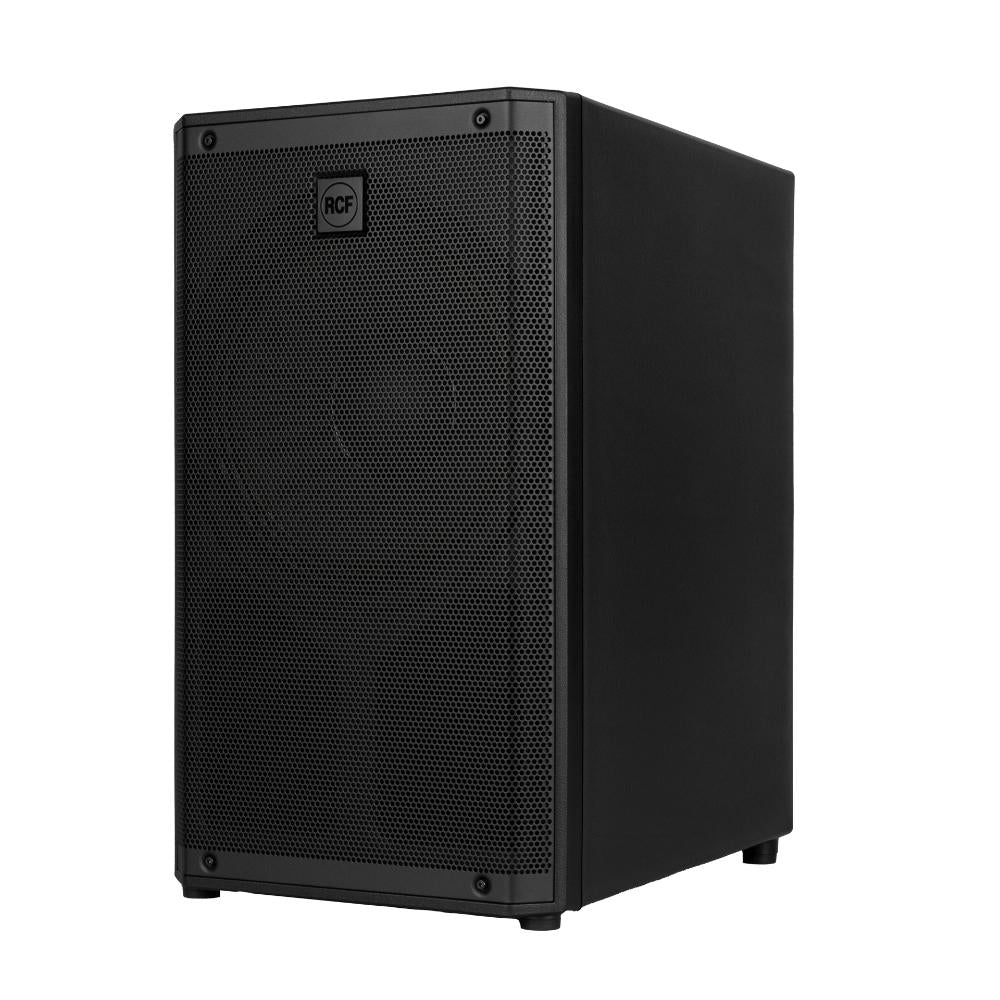

Active 12" Subwoofer w/ DSP for EVOX J11 System
EVOX J11 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 12 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 3500W onboard dual-channel Class-D amplifier, EVOX J11 delivers an impressive 132 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.
Features
132 dB Max SPL 3500 W Class-D Amplifier - Built-In DSP 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide 12 × 3” Full-Range Neo Transducers 12” High-Power Woofer Enhanced Coverage And Clarity Composite Cabinet Sleek, Road-Ready Design Top Speaker Padded Carrying Bag Included J11 Sub: 20,6 kg - 45.42 lb / J11 Top: 8.4 kg - 18.52 lbSpecifications
| Acoustical specifications |
|---|
| Frequency Response |
37 Hz - 20000 Hz |
| Max SPL @ 1m |
132 dB |
| Horizontal coverage angle |
120° |
| Vertical coverage angle |
40° |
| Transducers |
|---|
| Compression Driver |
1 x 0.75'' neo, 1.75'' v.c |
| Fullrange |
12 x 3.0'' neo, 1.0'' v.c |

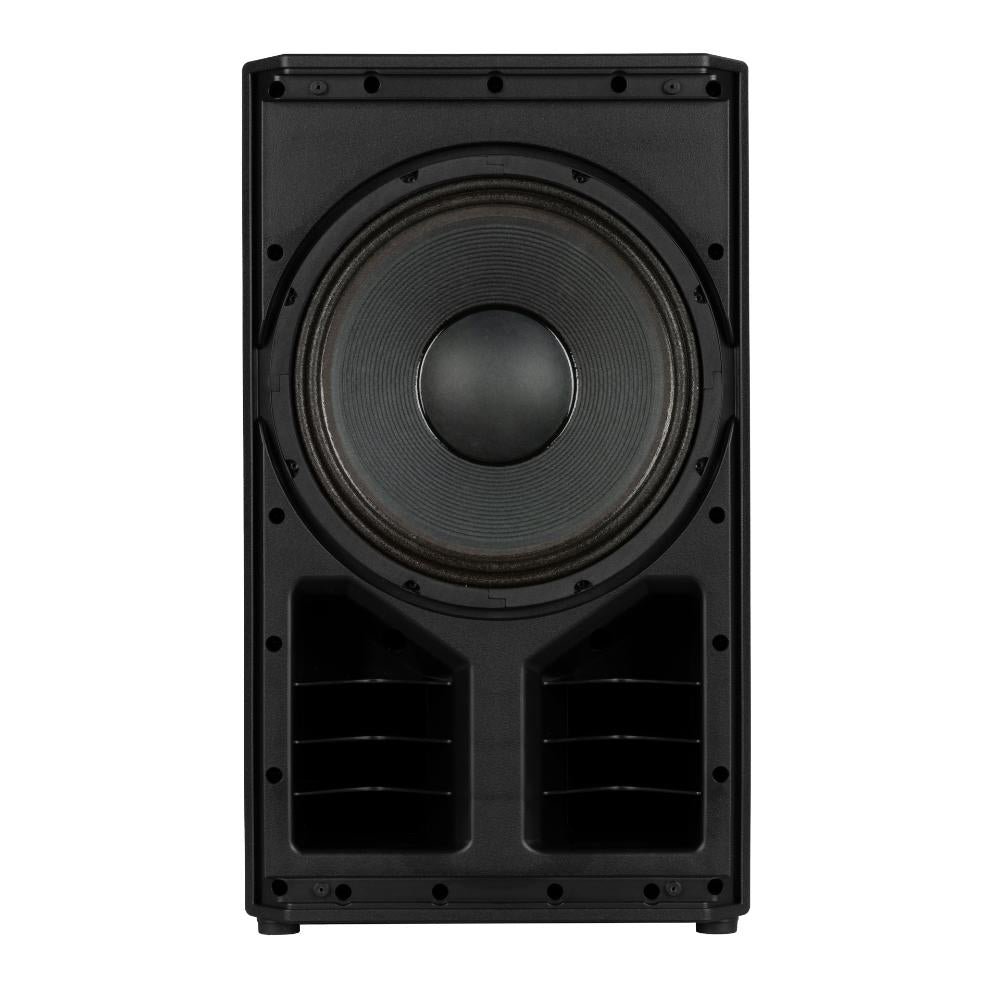

| Woofer |
1 x 12'', 2.5'' v.c |

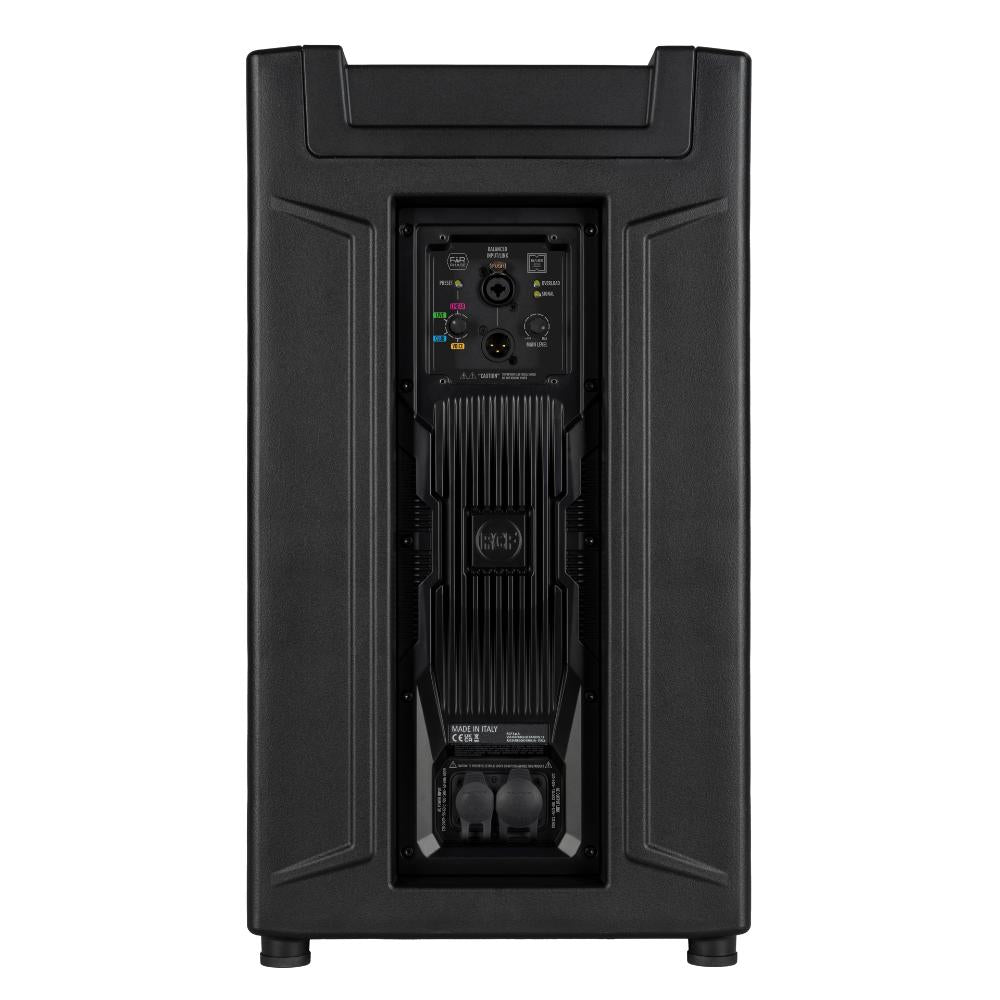

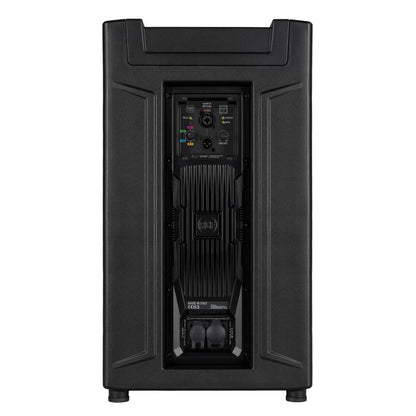

| Input/Output section |
|---|
| Input signal |
bal/unbal |
| Input connectors |
Combo XLR/Jack |
| Output connectors |
XLR |
| Input sensitivity |
+4 dBu |
| Processor section |
|---|
| Crossover Frequencies |
160 Hz/1800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Volume, Presets: LINEAR/LIVE, CLUB, VOICE |
| Power section |
|---|
| Total Power |
3500 W Peak |
| High frequencies |
1500 W Peak |
| Low frequencies |
2000 W Peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard compliance |
|---|
| Safety agency |
CE compliant |
| Physical specifications |
|---|
| Cabinet/Case Material |
PP Composite |
| Handles |
1 Top |

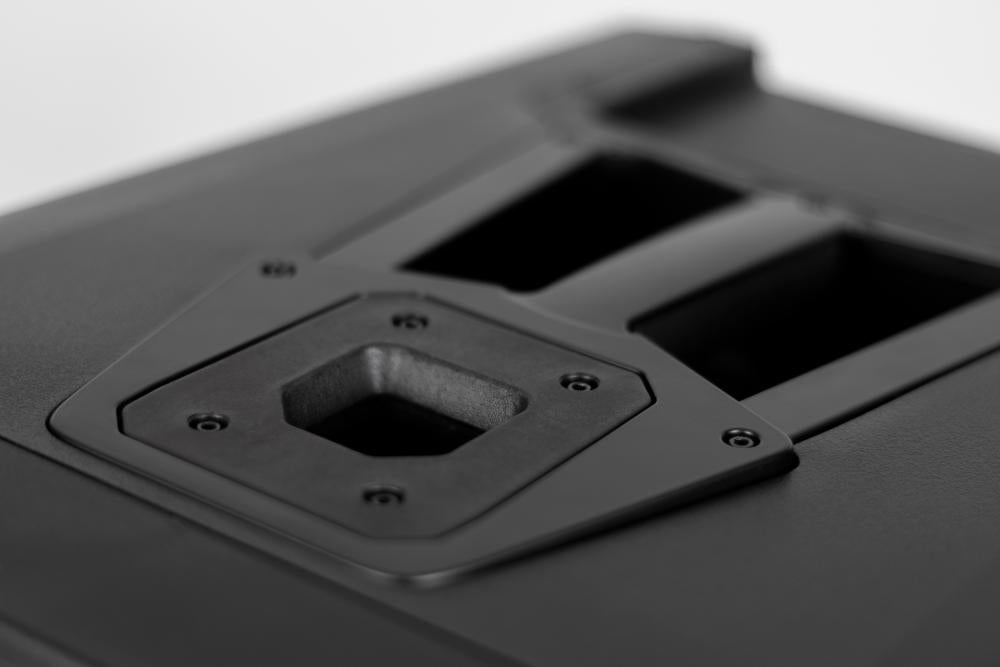

| Pole mount/Cap |
Quick-fit socket |
| Grille |
Steel |
| Color |
Black, White - RAL 9003 |
| Size / Weight |
|---|
| Height |
2080 mm / 81.89 inches |
| Width |
350 mm / 13.78 inches |
| Depth |
463 mm / 18.23 inches |
| Weight |
29 kg / 63.93 lbs |
| Shipping information |
|---|
| Package Height |
676 mm / 26.61 inches |
| Package Width |
451 mm / 17.76 inches |
| Package Depth |
581 mm / 22.87 inches |
| Package Weight |
35 kg / 77.16 lbs |
