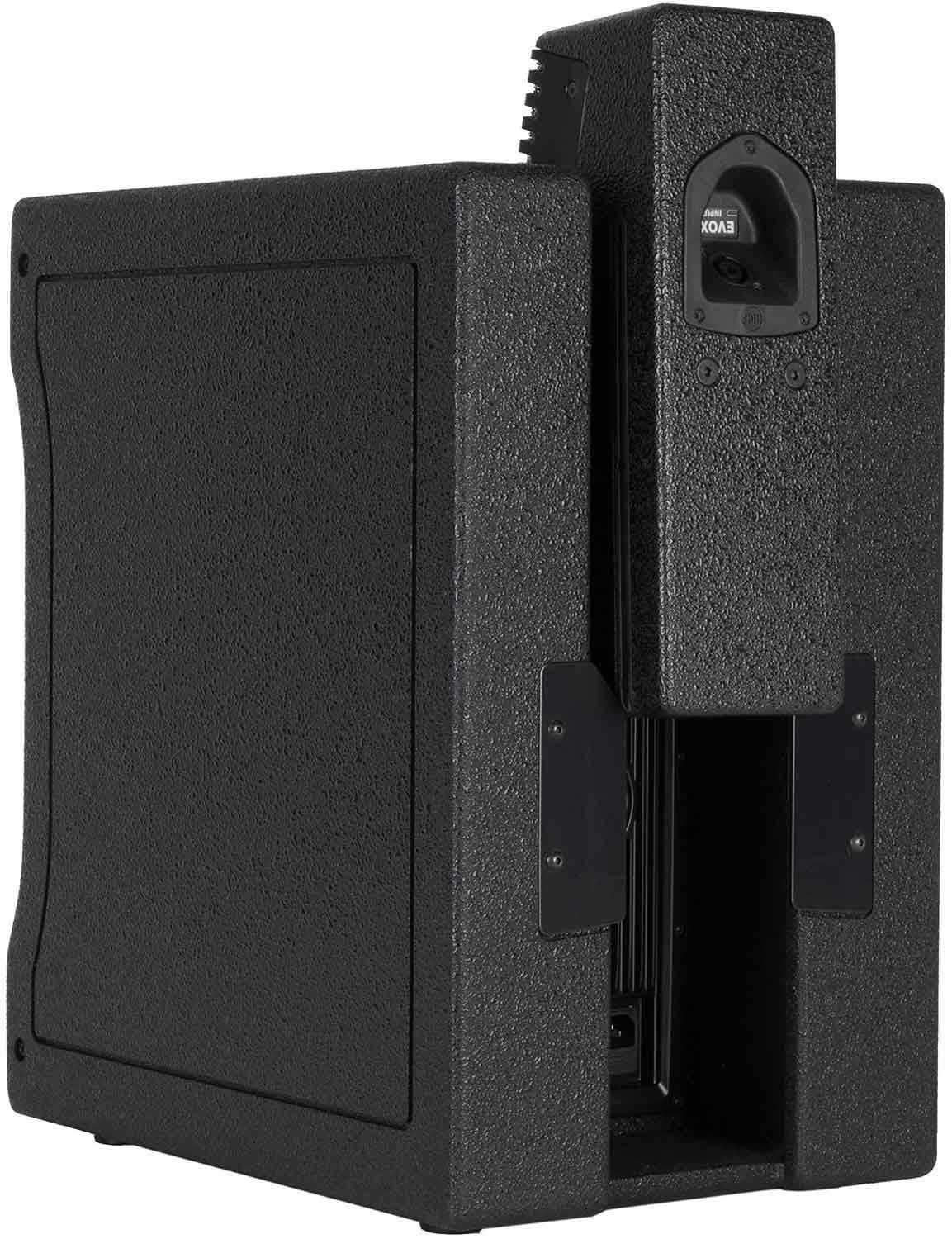

RCF EVOX-5 Powered Portable PA system
Evox 5 is a portable compact size sound reinforcement system. Evox 5 combines the quality and reliability of RCF transducers with a very high amplification power. The system features five 2.0" full range transducers in the line source satellite and a deep sounding 10" woofer in a bass reflex enclosure. The system is designed to be the perfect portable solution for live music and DJs. The unique vocal attitude and portability make Evox 5 the perfect tool for presentations, corporate events and congresses.
Featues:- 800 Watt
- 125 dB max SPL
- 45 Hz 20 kHz frequency response
- 10" Woofer, 2.0" v.c.
- 5 x 2" Ultra compact fullrange, 1.0 v.c.
- 120° x 30° slightly tilted pattern control
- Innovative DSP processing
- Pole mountable, easy set-up and transportation
- ACOUSTICAL SPECIFICATIONS
- Frequency Response -3 dB: 45 Hz ÷ 20 Hz
- Max SPL: 125 dB
- Horizontal coverage angle: 120°
- Vertical coverage angle: 30°
- Fullrange: 5 x 2", 1.0" v.c.
- Woofer: 10", 2.0" v.c.
- Input connectors: Jack-XLR male
- Output connectors: XLR female
- Input sensitivity: -2 dBu / + 4 dBu
- Crossover frequencies: 220 Hz
- Protections: thermal, rms
- Limiter: Soft limiter
- Controls: Volume, EQ, phase, xover
- AMPLIFIER SPECIFICATIONS
- Total power: 800 W PEAK
- High frequencies: 200 W PEAK
- Low frequencies: 600 W PEAK
- Total power: 400 W RMS
- High frequencies: 100 W RMS
- Low frequencies: 300 W RMS
- Cooling: Convection
- Connections: VDE connector
- Cabinet Material: Baltic birch plywood
- Hardware: 2 x M6
- Handles: 1 top
- Pole Mount/Cap: Yes
- Colour: black
- Height: 490/19.29 mm/inch
- Width: 288/11.34 mm/inch
- Depth: 427/16.81 mm/inch
- Net Weight: 19.2/42.32 kg/lbs
