Description

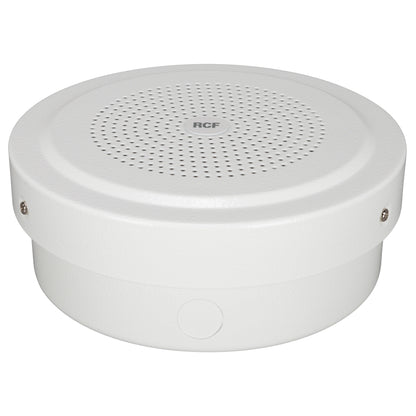

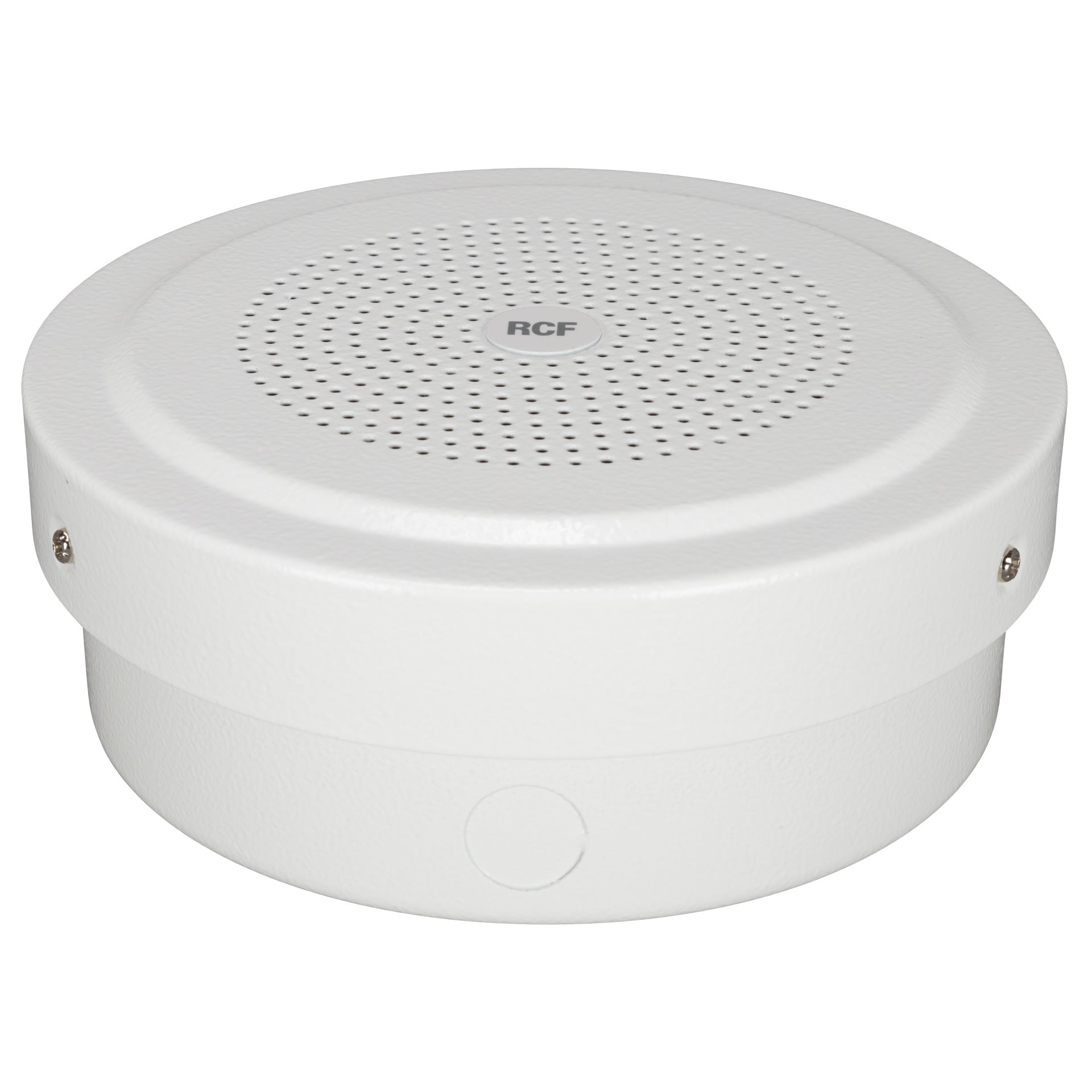

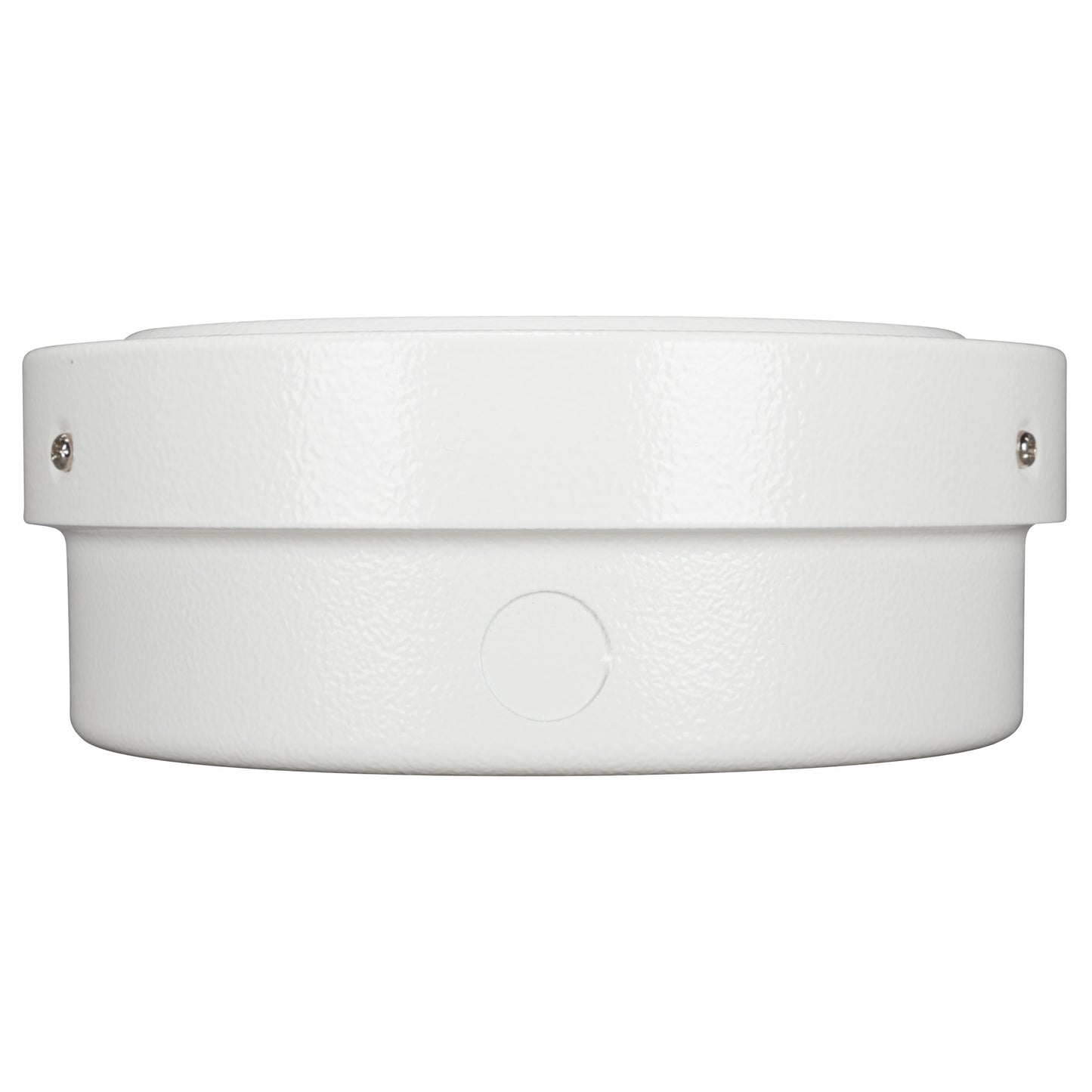

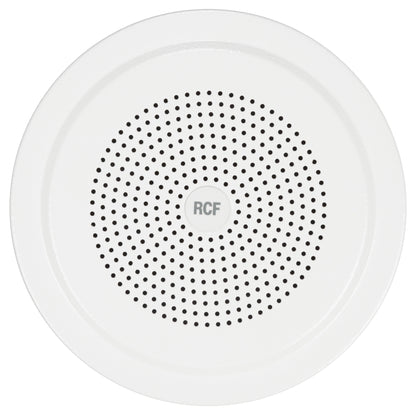

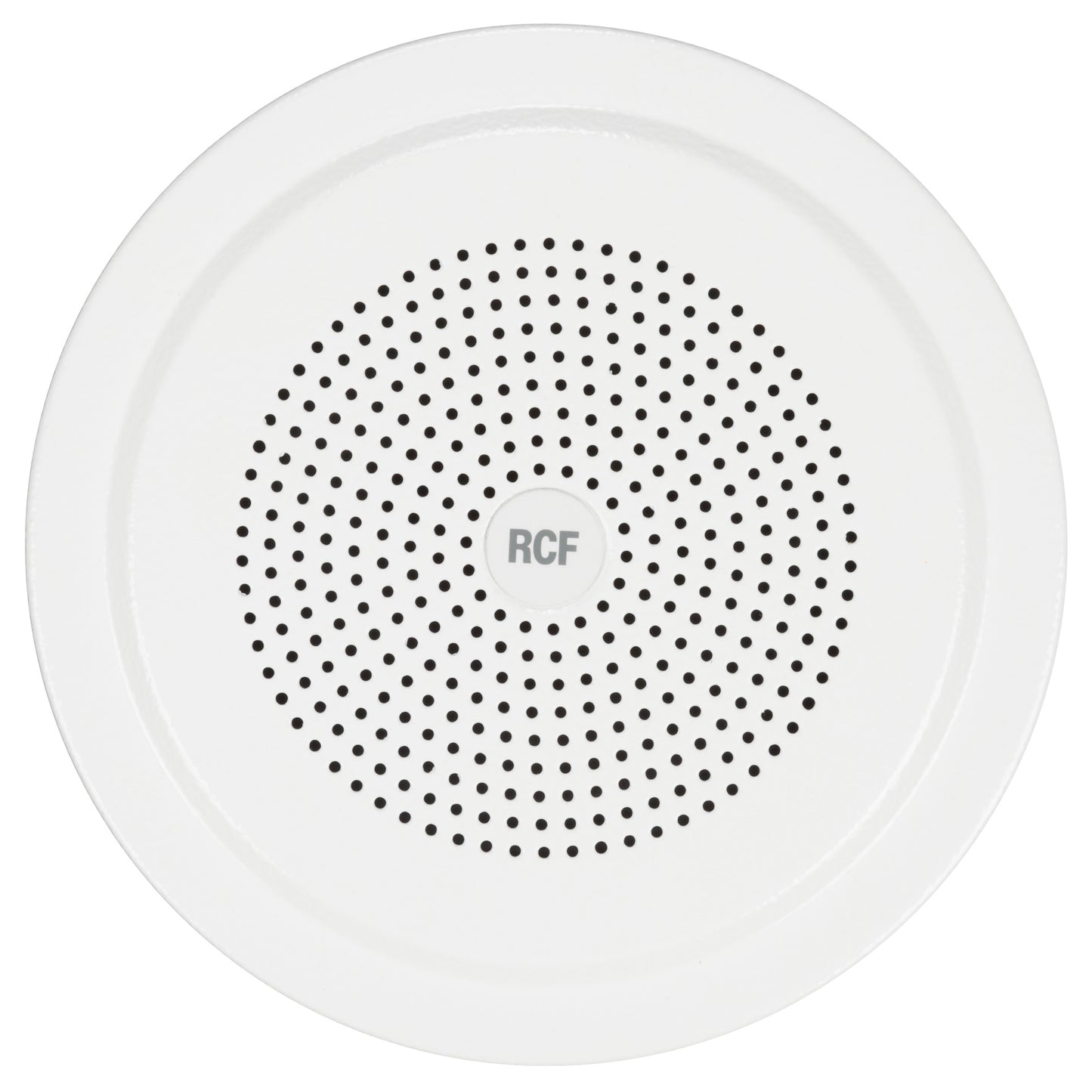

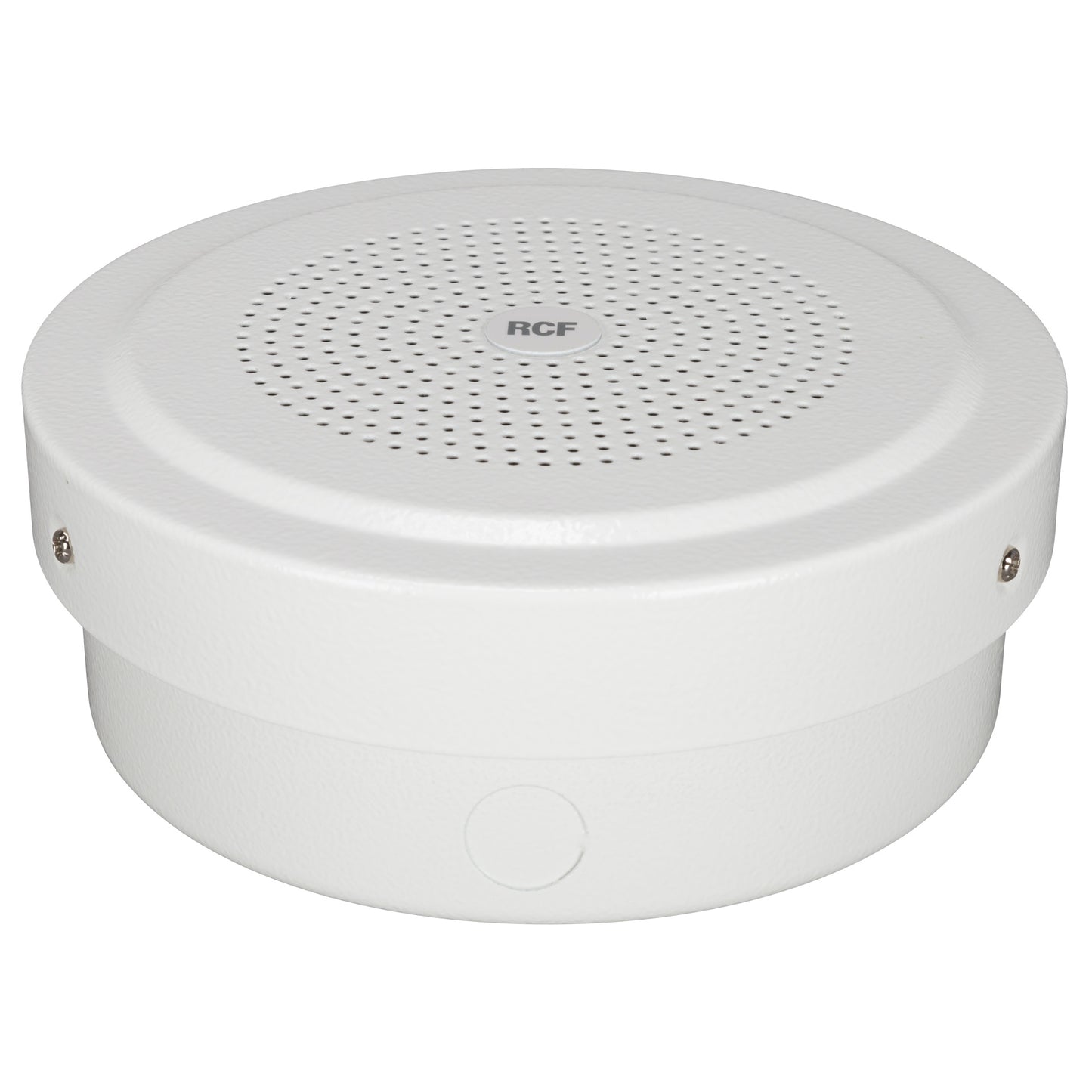

5" Twin-Cone Ceiling Flush/Semi Flush Mounting Speaker, White, 6W, 70-100V - EN54-24

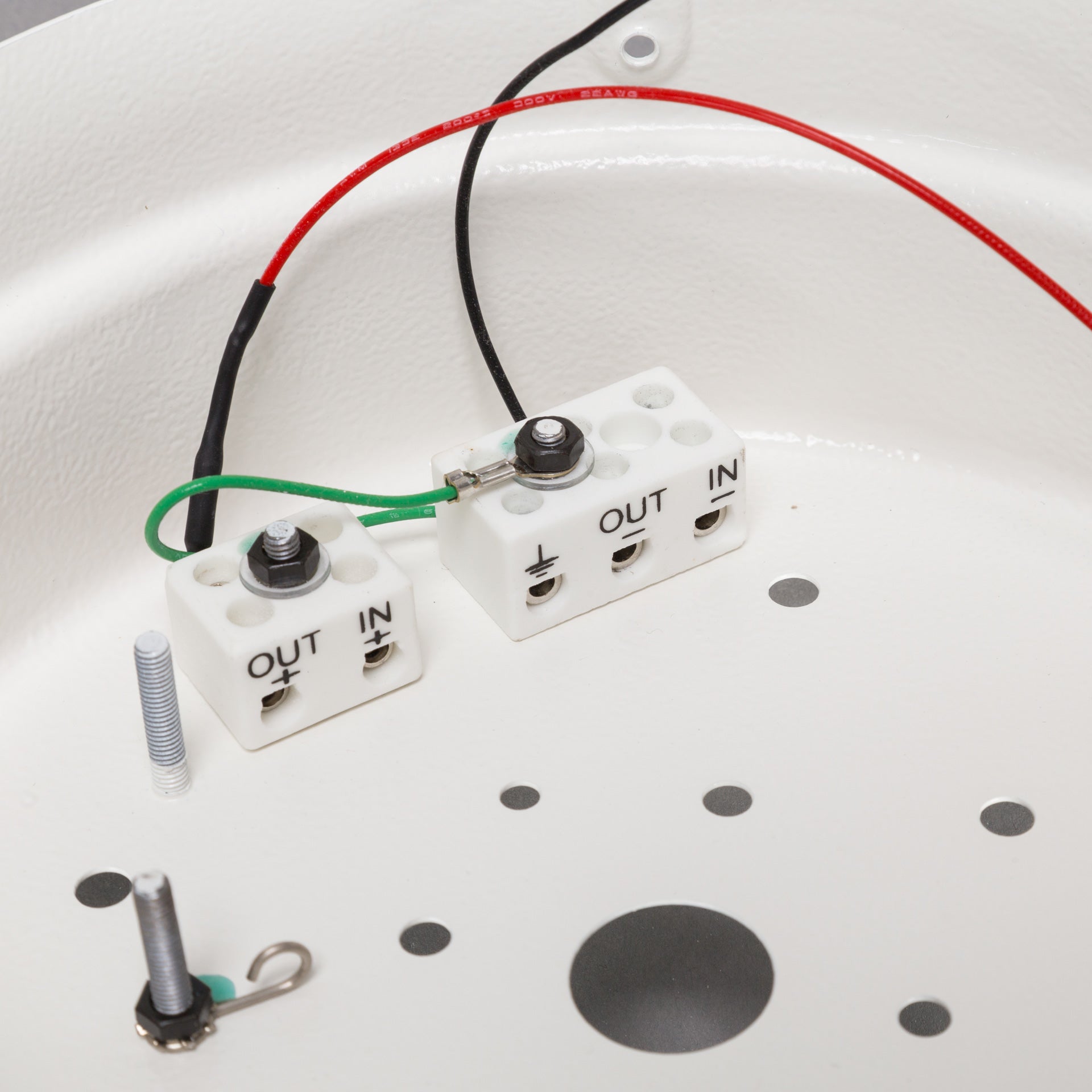

DU 60EN is a universal speaker designed for wall and ceiling installation. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
FEATURES
- 5" fullrange transducer.
- Power selectable (100 V): 6 W – 3 W – 1.5 W – 0.75 W.
- 94 dB sensitivity.
- Colour white RAL 9016.
- Steel body and grille.
- In/out ceramic terminal block.
- Thermal fuse protection.
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 100 Hz - 20000 Hz
-
Max SPL @ 1m: 100 dB
-
Max SPL @ 4m: 88 dB
-
Coverage angle: 180°
-
System Sensitivity: 94 dB
-
System Sensitivity 1W @ 4m: 82 dB
POWER SECTION
-
Power Handling: 6 W
-
Peak Power Handling: 24 W PEAK
-
Protections: Thermal fuse
-
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
INPUT/OUTPUT SECTION
-
Input connectors: Ceramic screw terminals
-
Output connectors: Ceramic screw terminals
-
Constant Voltage Transformer: 100 V
-
Power selection 1: 6 W - 1667 ohm
-
Power selection 2: 3 W - 3333 ohm
-
Power selection 3: 1.5 W - 6667 ohm
-
Power selection 4: 0.75 W - 13333 ohm
STANDARD COMPLIANCE
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 1488-CPR-0488/W
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Metal
-
Grille: Steel
-
Color: White - RAL 9016
SIZE / WEIGHT
-
Depth: 75 mm / 2.95 inches
-
Diameter: 195 mm / 7.68 inches
-
Weight: 1.61 kg / 3.55 lbs
SHIPPING INFORMATION
-
Package Height: 120 mm / 4.72 inches
-
Package Width: 230 mm / 9.06 inches
-
Package Depth: 230 mm / 9.06 inches
-
Package Weight: 1.84 kg / 4.06 lbs
