Description
Unidirectional Sound Projectors - 5" 10W (IP55) - EN54-24

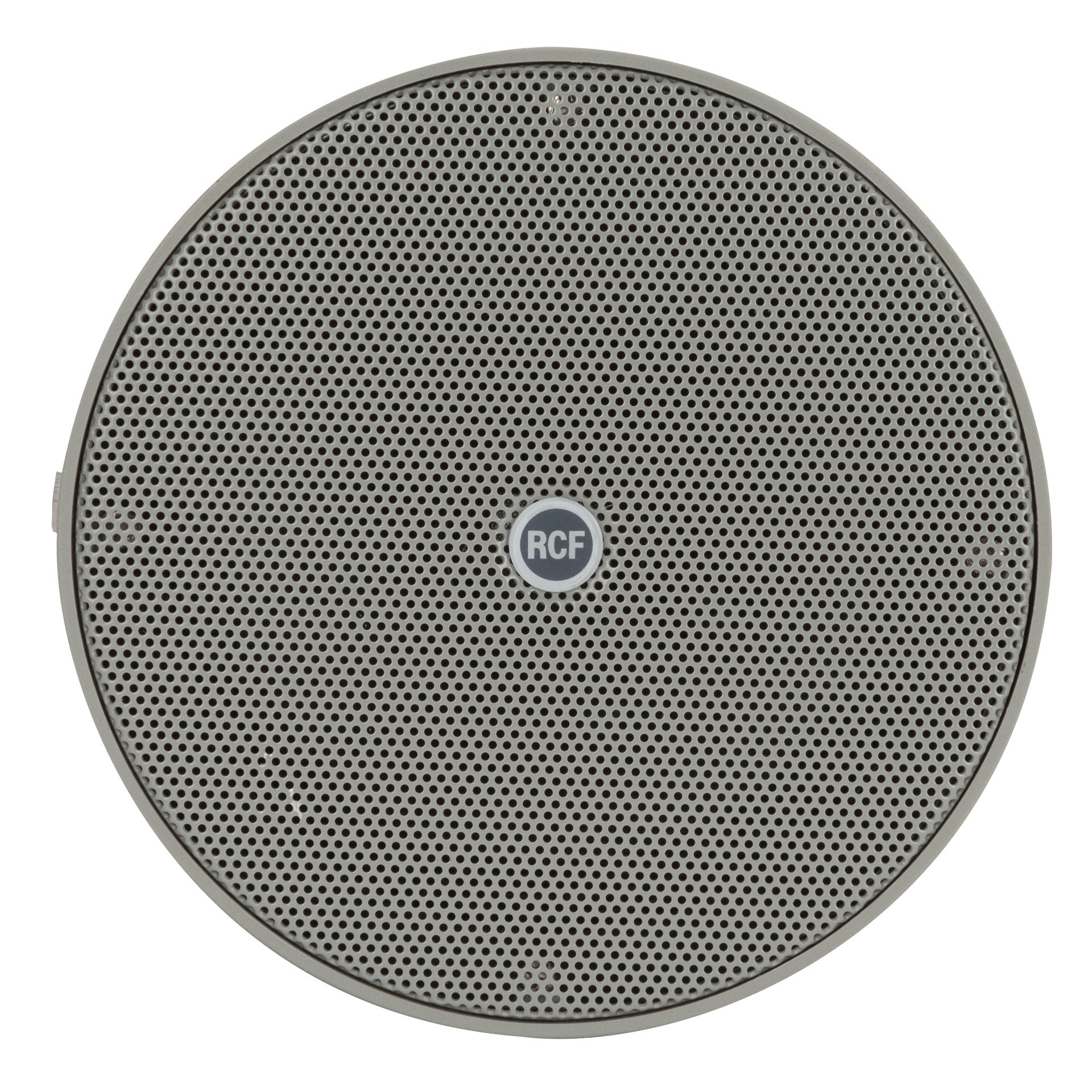

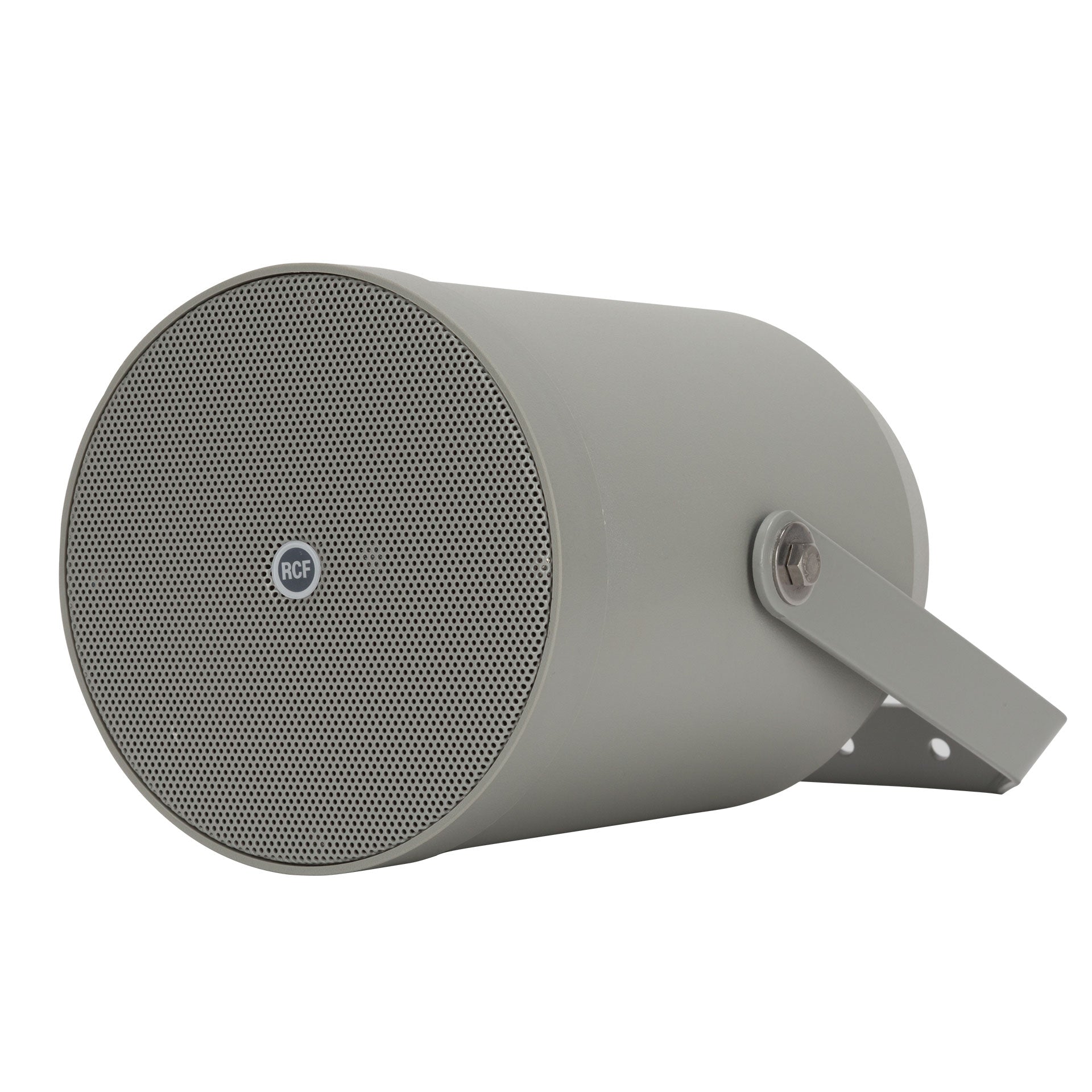

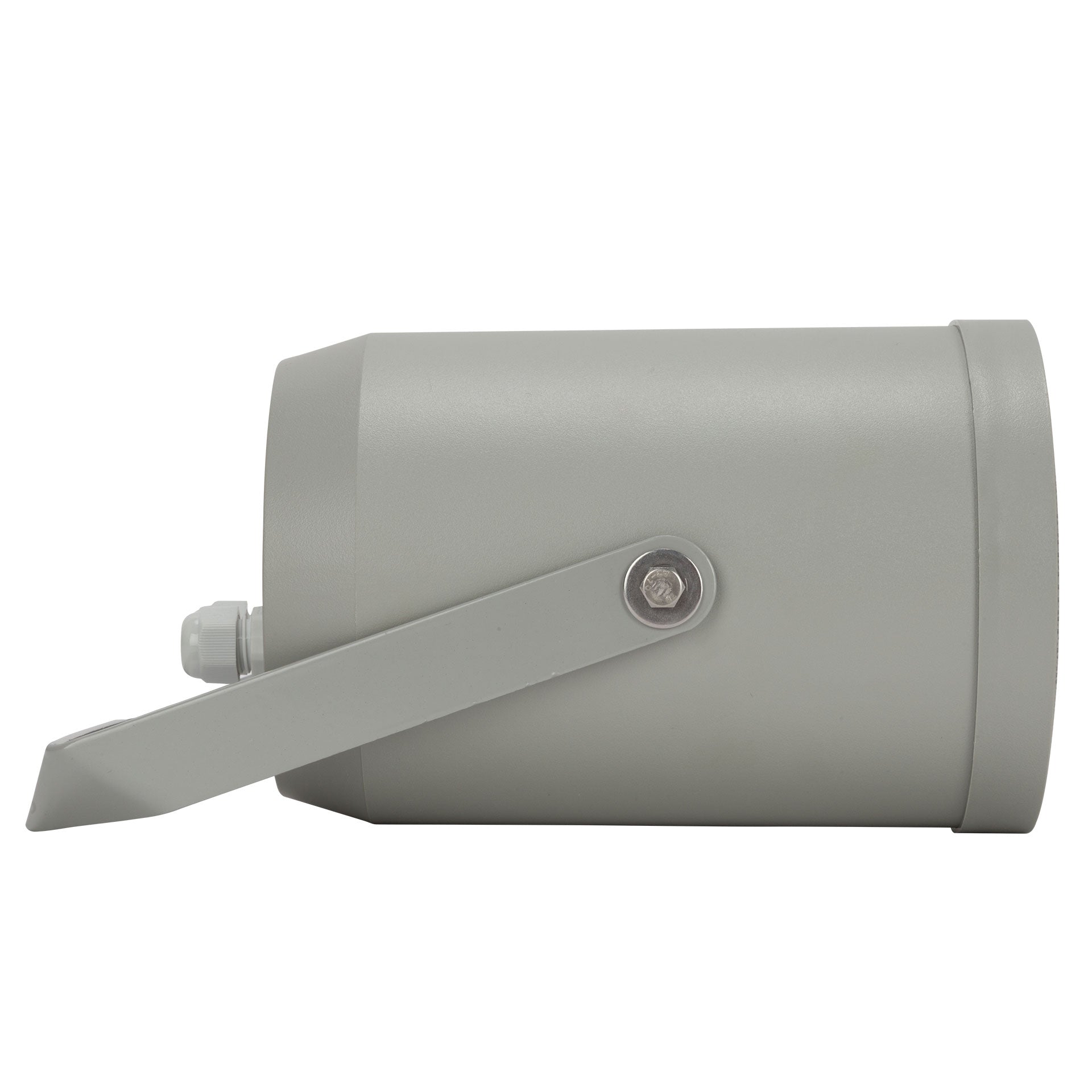

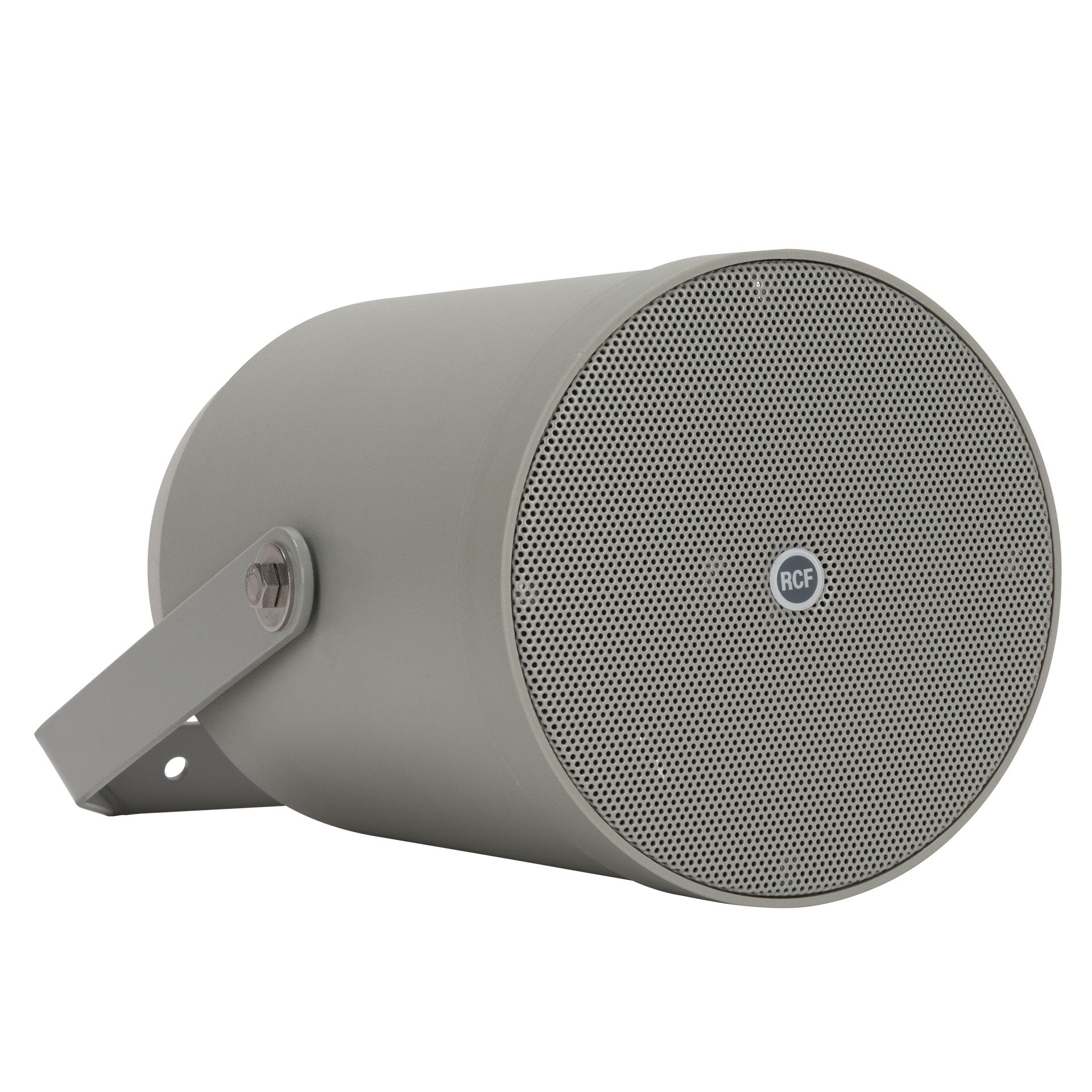

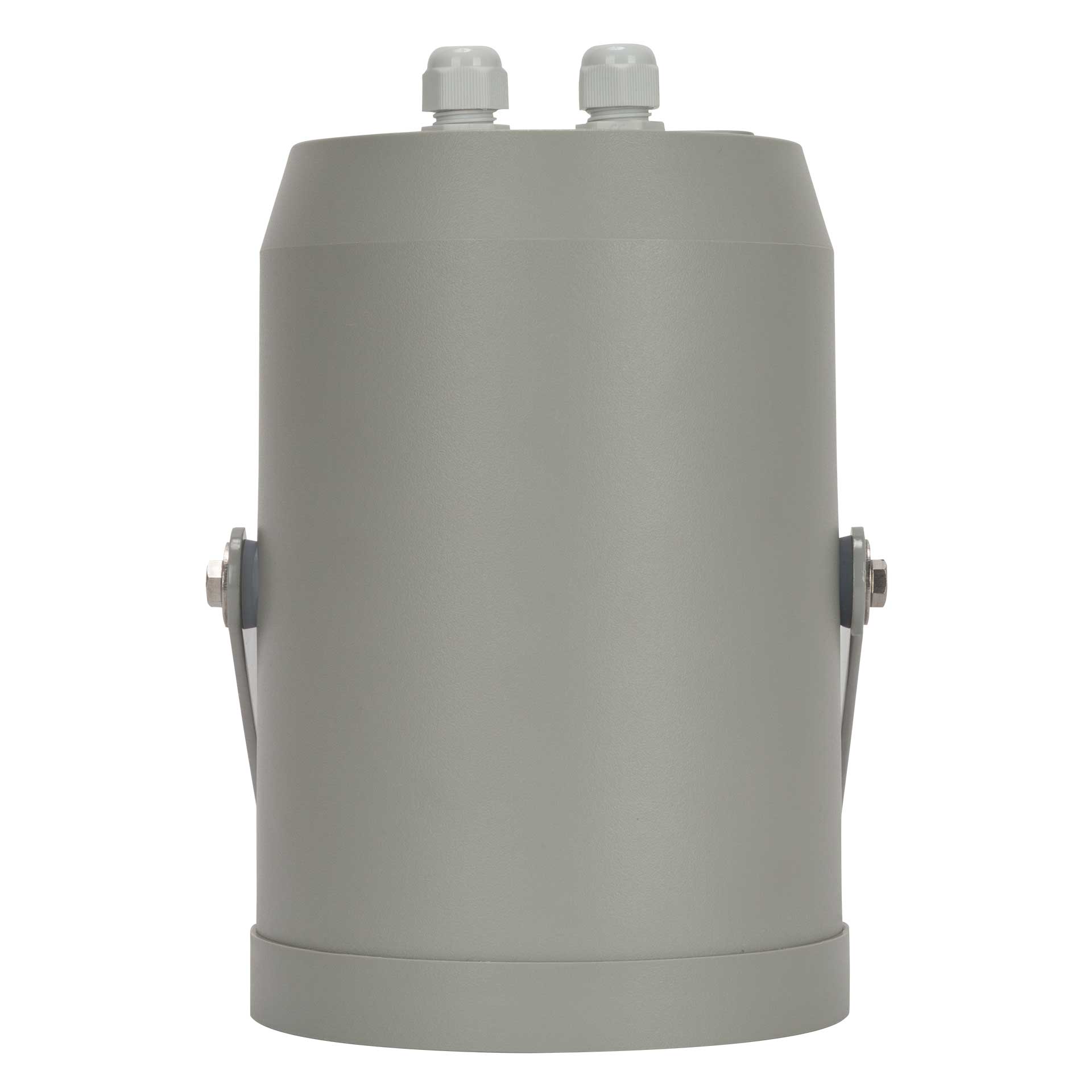

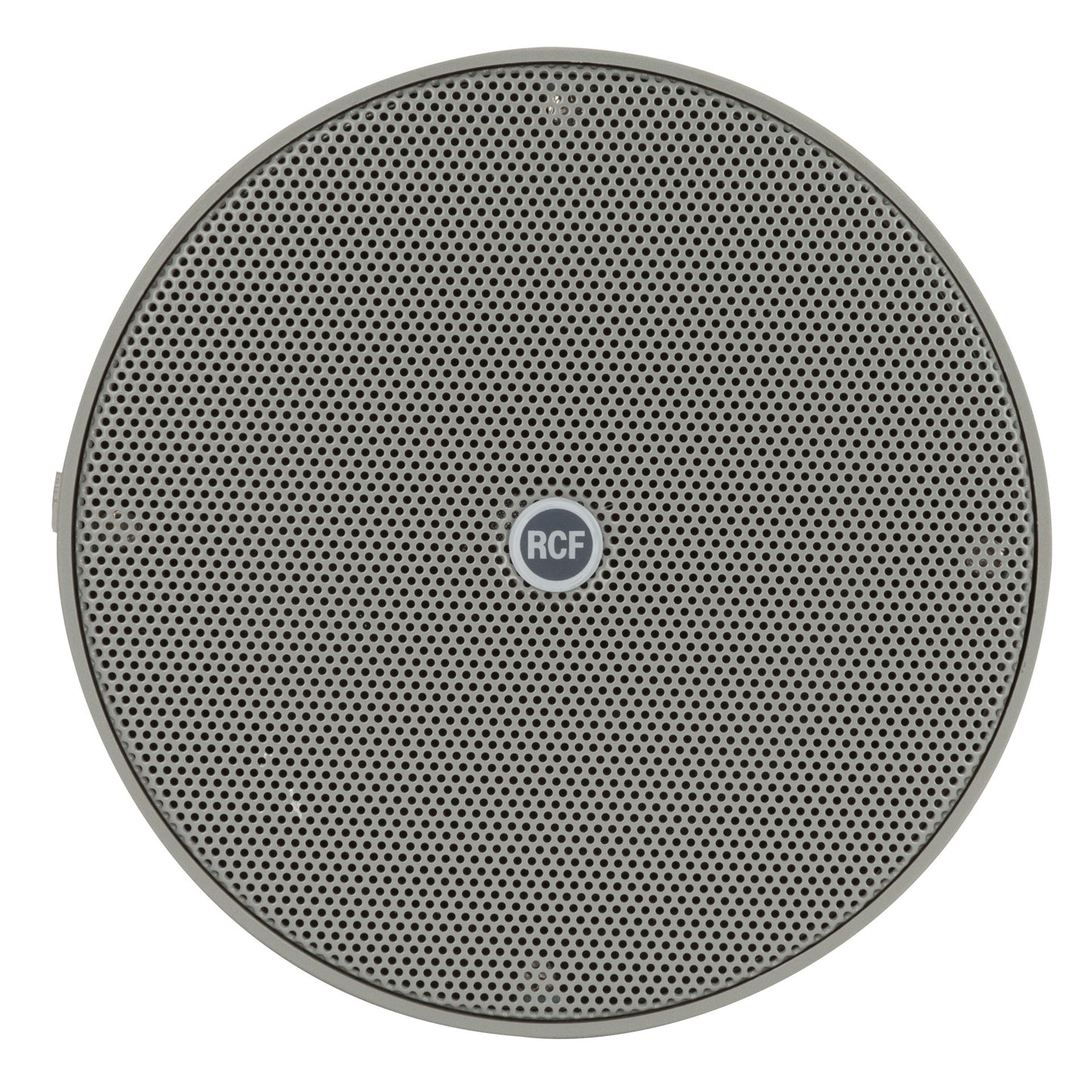

DP 4EN is a unidirectional sound projector featuring an elegant aesthetic and easy orientation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a cylindrical plastic body with aluminium grille and U-bracket support. Thanks to its IP55 protection grade, it can be installed both indoor and outdoor.
FEATURES
- 4" fullrange transducer.
- Power selectable (100 V): 10 W – 5 W – 2.5 W.
- 91 dB sensitivity.
- Colour grey RAL 7035.
- Flameproof ABS body, aluminium grille and bracket.

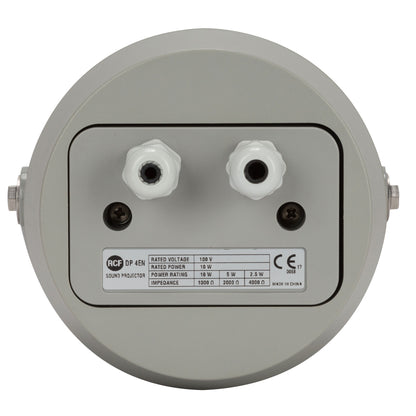

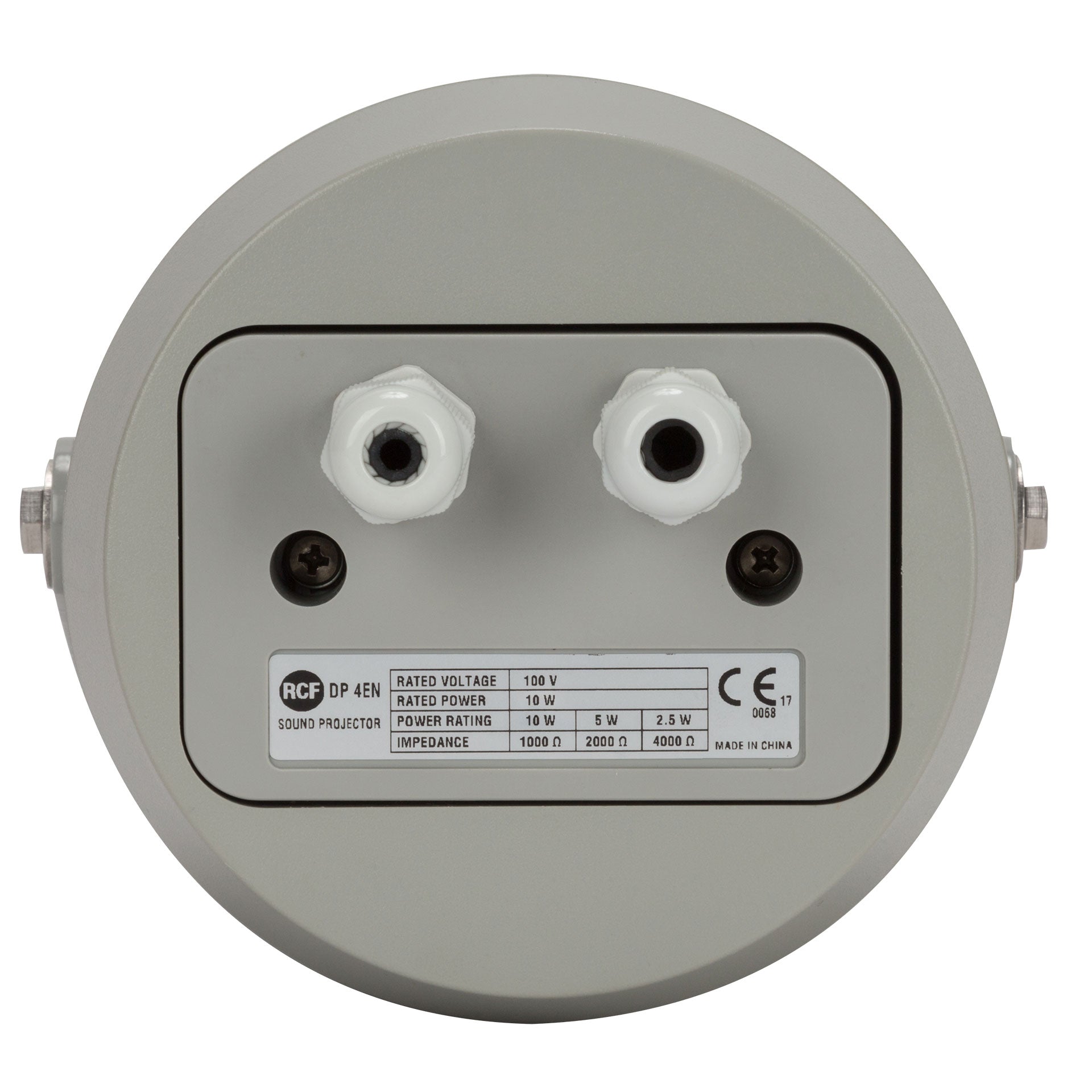

- In/out ceramic terminal block.
- Thermal fuse protection.
- Protection grade IP55.
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 180 Hz - 16000 Hz
-
Max SPL @ 1m: 101 dB
-
Max SPL @ 4m: 89 dB
-
Coverage angle: 180°
-
System Sensitivity: 91 dB
-
System Sensitivity 1W @ 4m: 79 dB
POWER SECTION
-
Power Handling: 10 W
-
Peak Power Handling: 40 W PEAK
-
Protections: Thermal fuse
-
Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000
TRANSDUCERS
INPUT/OUTPUT SECTION
-
Input connectors: Ceramic screw terminals
-
Output connectors: Ceramic screw terminals
-
Constant Voltage Transformer: 100 V
-
Power selection 1: 10 W - 1000 ohm
-
Power selection 2: 5 W - 2000 ohm
-
Power selection 3: 2.5 W - 4000 ohm
STANDARD COMPLIANCE
-
IP protection grade: IP 55
-
Safety agency: CE compliant
-
EN54-24 certified: Yes
-
CPR number: 0068-CPR-085/2017
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: ABS
-
Grille: Aluminium
-
Color: Grey - RAL 7035
SIZE / WEIGHT
-
Depth: 200 mm / 7.87 inches
-
Diameter: 137 mm / 5.39 inches
-
Weight: 1.7 kg / 3.75 lbs
SHIPPING INFORMATION
-
Package Height: 290 mm / 11.42 inches
-
Package Width: 190 mm / 7.48 inches
-
Package Depth: 160 mm / 6.3 inches
-
Package Weight: 2.1 kg / 4.63 lbs
