RCF DP 1420EN Unidirectional Sound Projector, Alu., IP 36, 20W, 70-100V - BS5839-8 - EN54-24

Unidirectional Sound Projector, Alu., IP 36, 20W, 70-100V - BS5839-8 - EN54-24

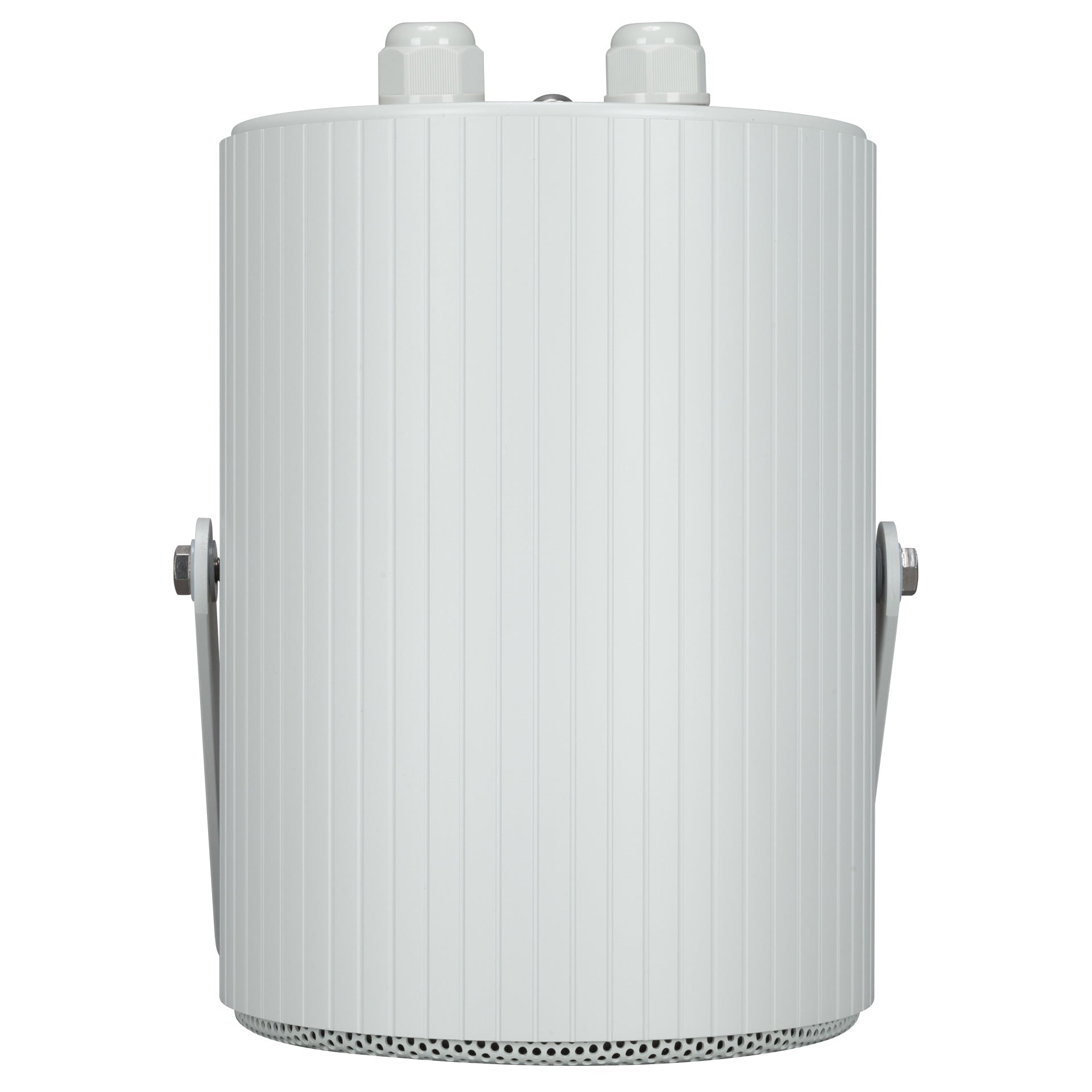

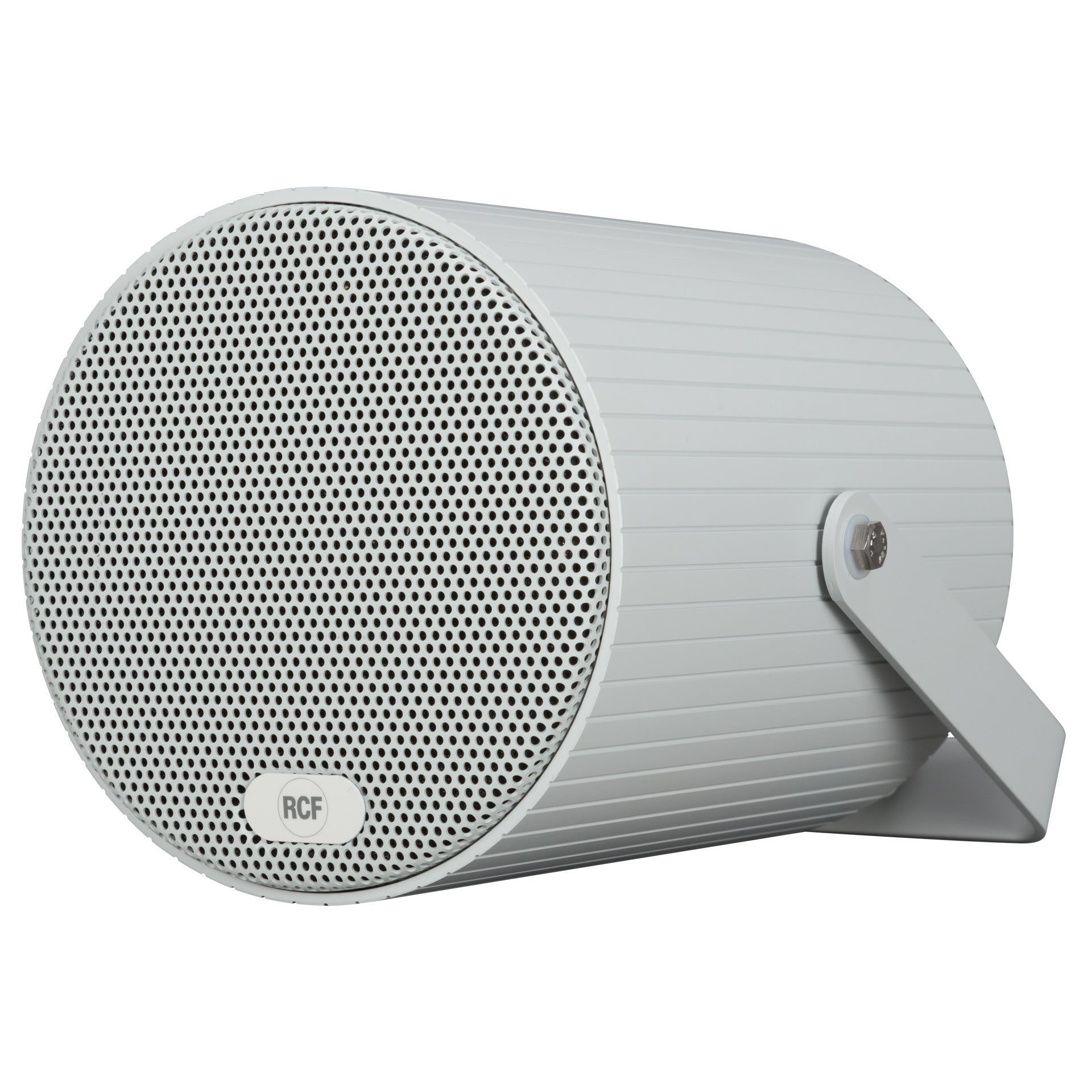

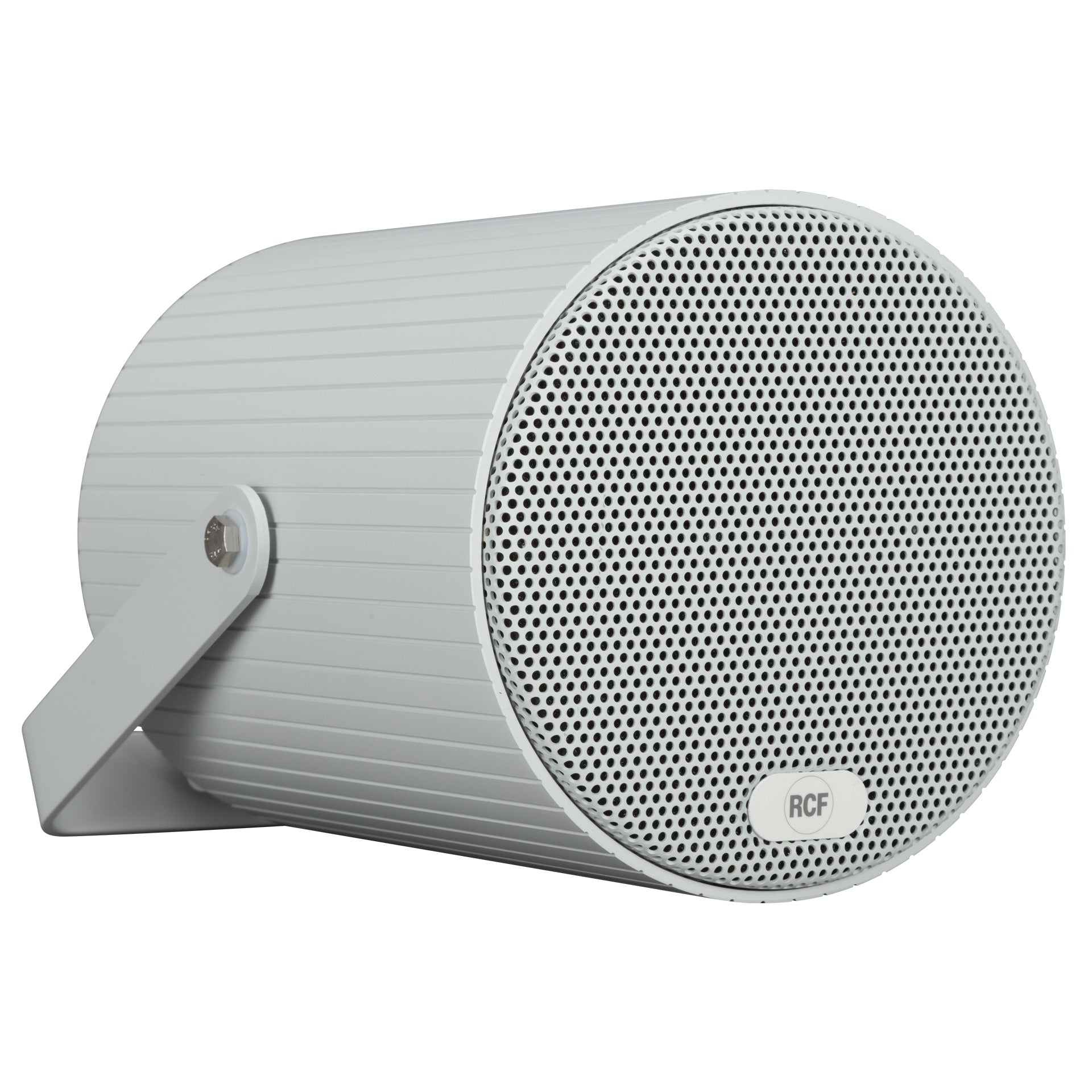

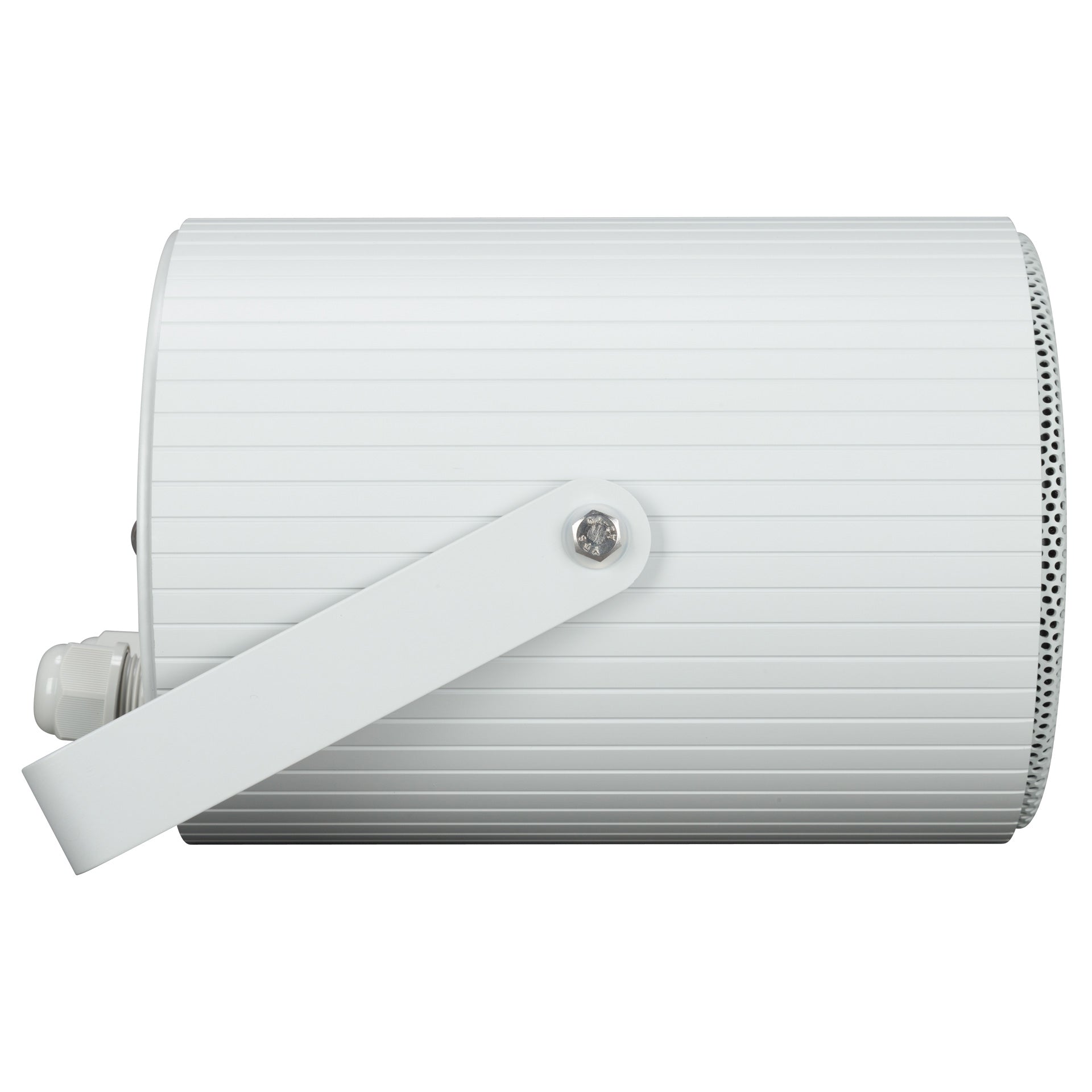

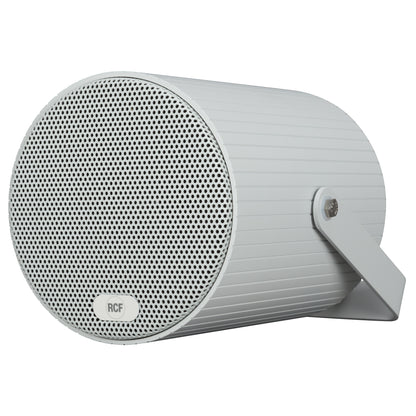

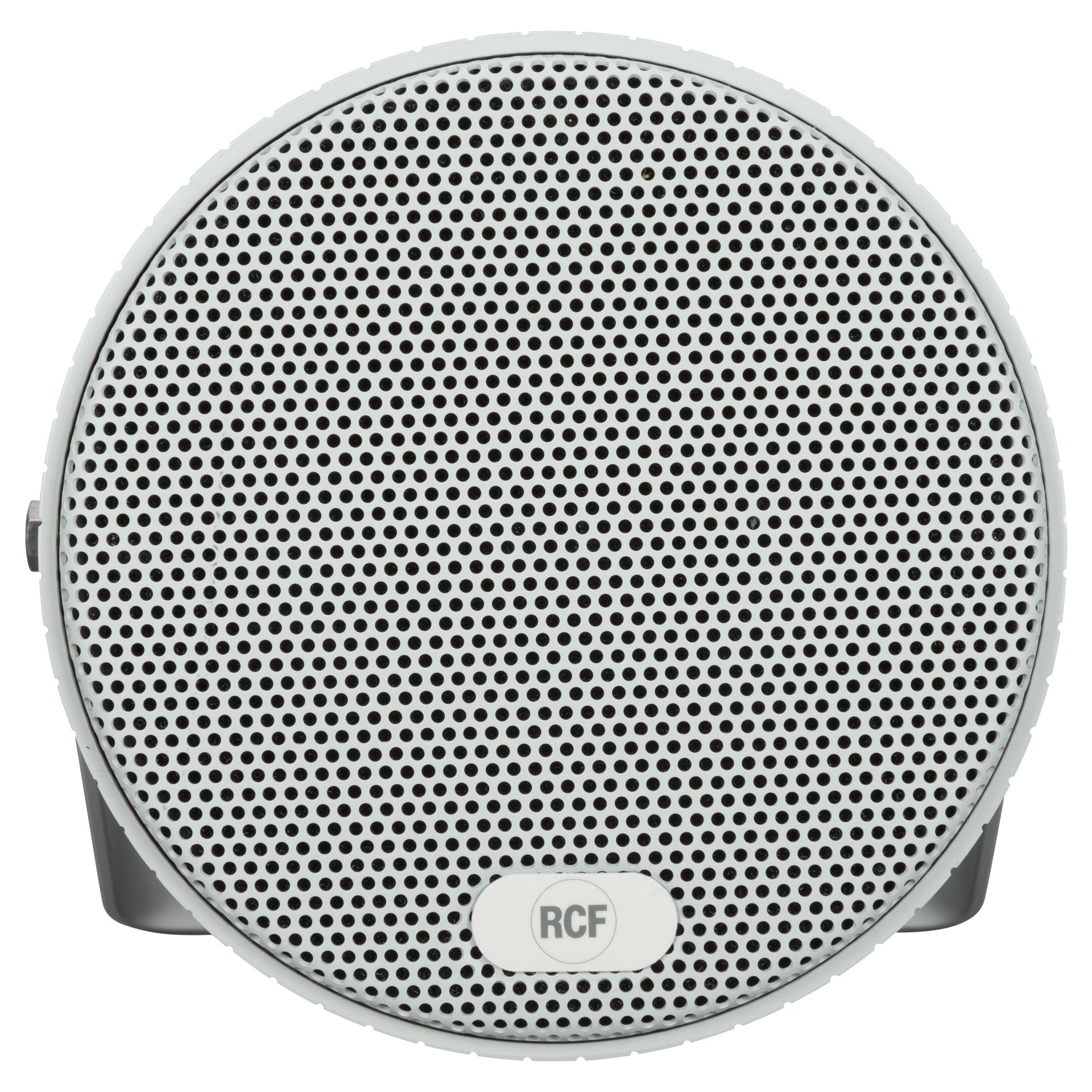

DP 1420EN is a unidirectional sound projector featuring an elegant aesthetic and easy installation, suitable for the sonorization of commercial and industrial environments where a good sound quality and high intelligibility and efficiency are required. It features a aluminium cylindrical body, grille and bracket. Ground screw available (if needed). Thanks to its IP66 protection grade, it can be installed both indoor and outdoor.

FEATURES

• 5" fullrange transducer.
• Power selectable (100 V): 20 W – 10 W – 5 W – 2.5 W – 1.25 W.
• 92 dB sensitivity.
• Colour grey RAL 7035.
• Aluminium body, grille and bracket.
• In/out ceramic terminal block.
• Thermal fuse protection.
• Protection grade IP66.

Specifications

ACOUSTICAL SPECIFICATIONS

• Frequency Response (-10dB): 160 Hz - 20000 Hz
• Max SPL @ 1m: 105 dB
• Max SPL @ 4m: 93 dB
• Coverage angle: 155°
• System Sensitivity: 92 dB
• System Sensitivity 1W @ 4m: 80 dB

POWER SECTION

• Power Handling: 20 W
• Peak Power Handling: 80 W PEAK
• Protections: Thermal fuse
• Recommended Amplifiers: DXT 3000, DXT 4000, DXT 7000

TRANSDUCERS

• Fullrange: 1 x 5.0''

INPUT/OUTPUT SECTION

• Input connectors: Ceramic screw terminals
• Output connectors: Ceramic screw terminals

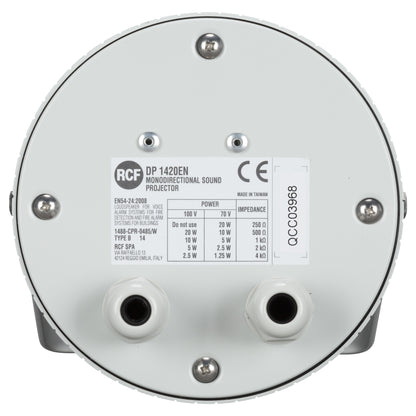

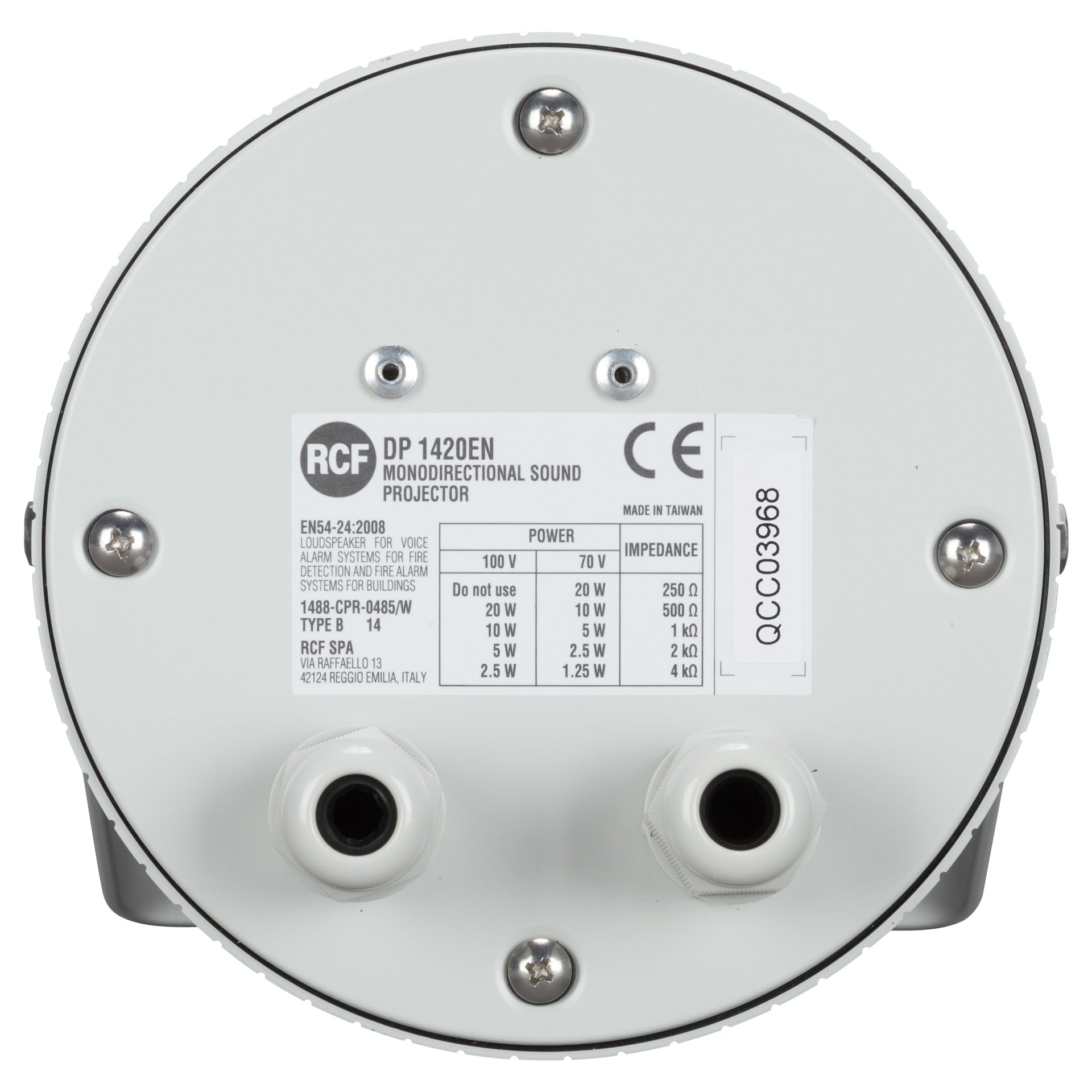

• Constant Voltage Transformer: 70/100 V
• Power selection 1: 20 W - 500 ohm
• Power selection 2: 10 W - 1000 ohm
• Power selection 3: 5 W - 2000 ohm
• Power selection 4: 2.5 W - 4000 ohm
• Power selection 5: 1.25 W - 8000 ohm

STANDARD COMPLIANCE

• IP protection grade: IP 66
• Safety agency: CE compliant
• EN54-24 certified: Yes
• CPR number: 1488-CPR-0485/W

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Aluminum
• Hardware: Aluminium bracket
• Grille: Aluminium
• Color: Grey - RAL 7035

SIZE / WEIGHT

• Depth: 200 mm / 7.87 inches
• Diameter: 146 mm / 5.75 inches
• Weight: 2.73 kg / 6.02 lbs

SHIPPING INFORMATION

• Package Height: 260 mm / 10.24 inches
• Package Width: 160 mm / 6.3 inches
• Package Depth: 160 mm / 6.3 inches
• Package Weight: 2.73 kg / 6.02 lbs
