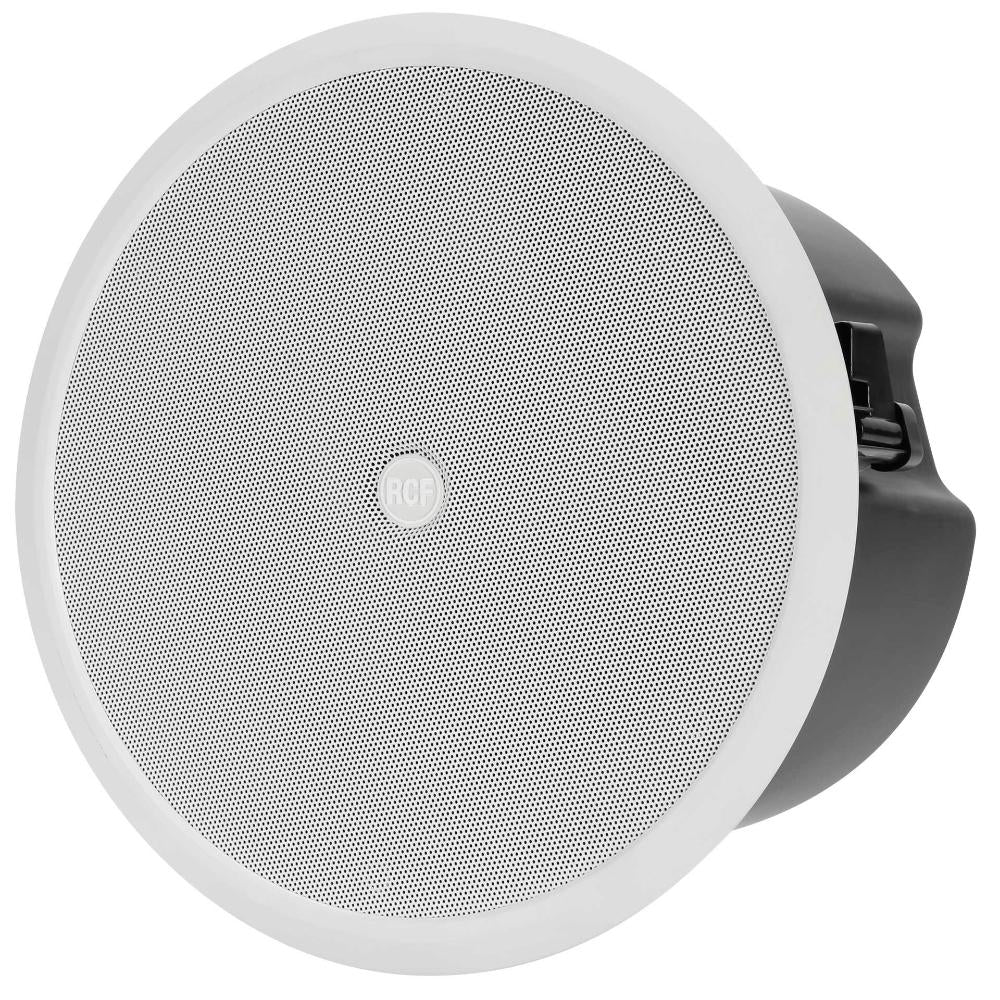

RCF CMR-S-60T-W Passive 320W 6.5" 2-Way Ceiling Subwoofer w/ Transformer - 8 ?, 70/100V (White)

RCF CMR-S-60T-W Passive 320W 6.5" 2-Way Ceiling Subwoofer w/ Transformer - 8 ?, 70/100V (White)

Write a review

SKU: CMR-S-60T-W

$579.00
$579.00
Sale Sold out
Shipping calculated at checkout.

Available options

View full details

Description

Passive 320W 6.5" 2-Way Ceiling Subwoofer w/ Transformer - 8 ?, 70/100V (White)

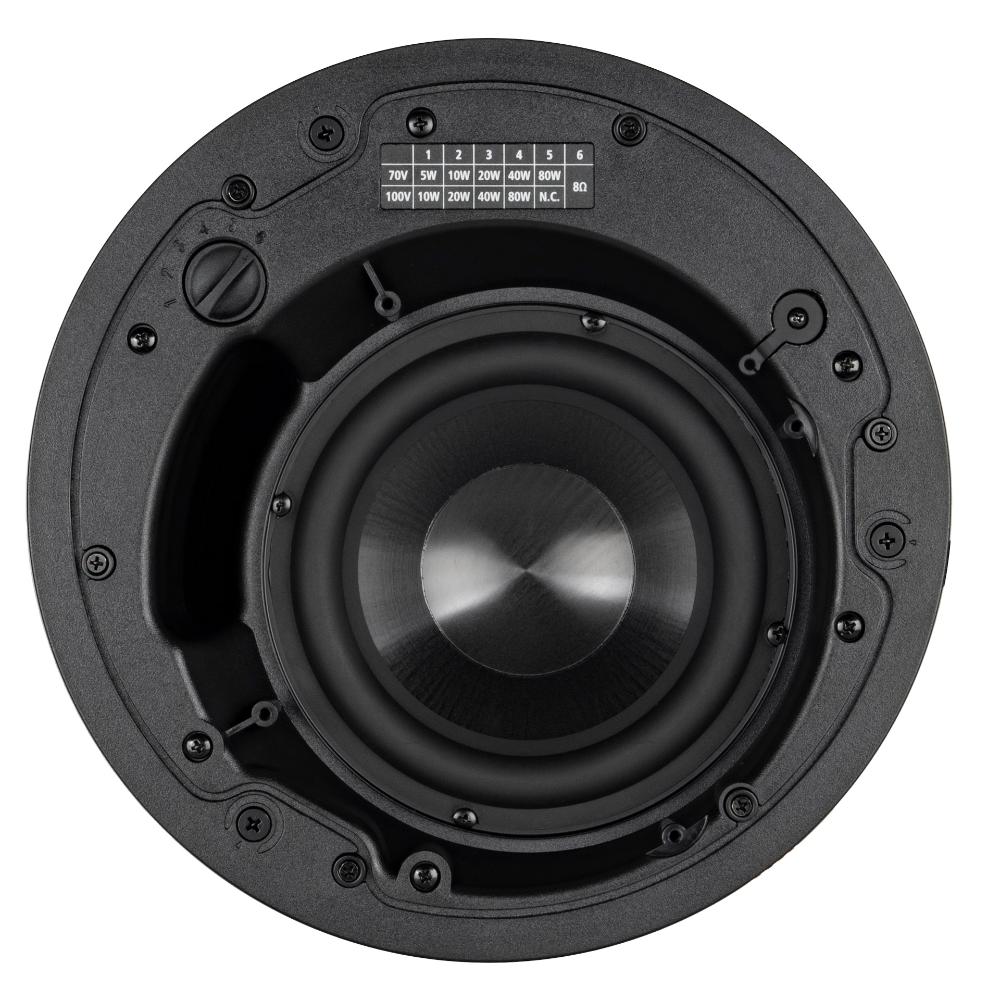

CMR-S 60T is a ceiling subwoofer, suitable for a wide range of applications. Thanks to its elegant and discreet design and refined finishes, it is suitable for all environmental and architectural conditions. Featuring a 6.5’’ woofer and 80 W RMS power, it is also equipped with a transformer for connection to constant voltage lines (70/100 V). The high quality of its transducer guarantees faithful and precise low frequencies reproduction and allows to reach truly remarkable sound pressure levels for such compact product. The connection is simple and safe thanks to the removable four-pole screw terminals. The front grille is fixed by magnets and can therefore be easily removed to access the power rotary switch (the line transformer allows selection among five power rates).

Features

  • 80 W RMS power handling
  • 109 dB max SPL
  • 45 ÷ 250 Hz frequency range
  • 180° omnidirectional coverage angle
  • 6.5" high power woofer, 1.5'' v.c.
  • Self extinguishing plastic body and metal backcan
  • Steel magnetic front grille

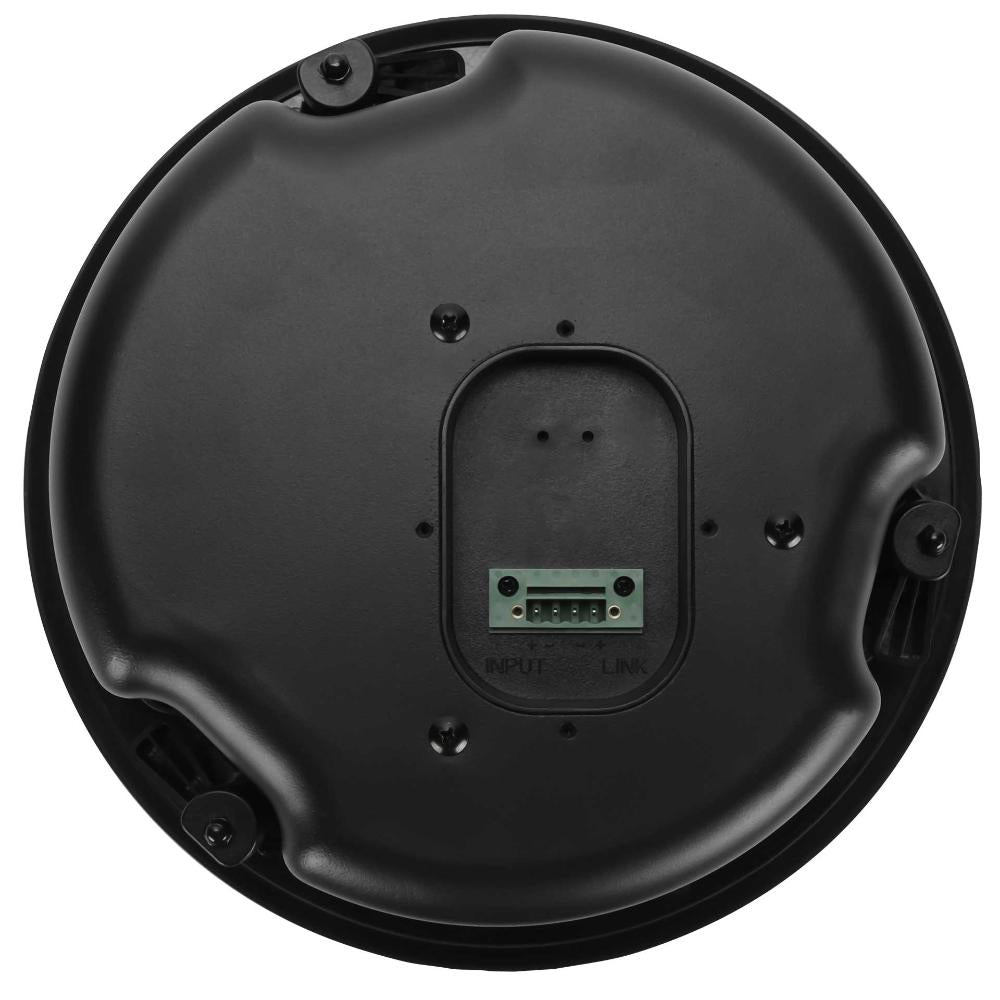

  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

    • Specifications

    Acoustical specifications
    Frequency Response (-10dB) 45 Hz - 250 Hz
    Max SPL @ 1m 109 dB
    Coverage angle 180°
    System Sensitivity 89 dB
    Power section
    Amplification Full Range
    Nominal Impedance 8 ohm
    Power Handling 80 W RMS
    Peak Power Handling 320 W PEAK
    Protections Bulb lamp
    Recommended Amplifiers XPS SERIES, KPS SERIES, DMA SERIES
    Transducers
    Woofer 1 x 6.5'', 1.5'' v.c
    Input/Output section
    Input connectors Euroblock
    Output connectors Euroblock
    Constant Voltage Transformer 70/100 V
    Power selection 1 80 W - 125 ohm
    Power selection 2 40 W - 250 ohm
    Power selection 3 20 W - 500 ohm
    Power selection 4 10 W - 1000 ohm
    Power selection 5 5 W - 2000 ohm
    Standard compliance
    Safety agency CE compliant
    Physical specifications
    Cabinet/Case Material ABS
    Hardware Steel backcan
    Grille Steel
    Color White - RAL 9003
    Size / Weight
    Depth 202 mm / 7.95 inches
    Recessed Depth 193 mm / 7.6 inches
    Diameter 300 mm / 11.81 inches
    Cut out diameter 260 mm / 10.24 inches
    Weight 4.5 kg / 9.92 lbs
    Shipping information
    Package Height 280 mm / 11.02 inches
    Package Width 362 mm / 14.25 inches
    Package Depth 362 mm / 14.25 inches
    Package Weight 6 kg / 13.23 lbs
