Description
(2) Passive 60W 2.5" Ceiling Speakers (Contains White & Black Grills) - 16

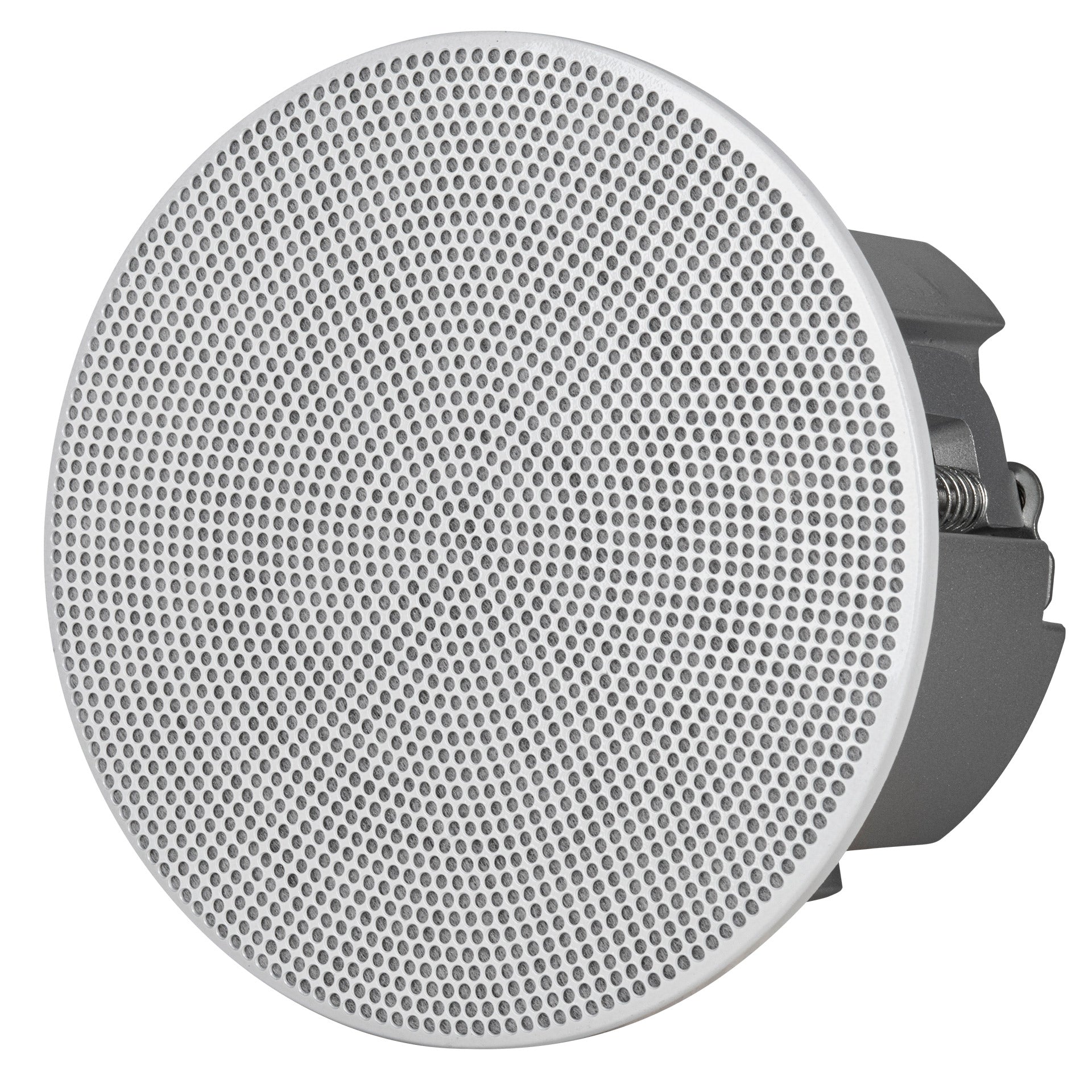

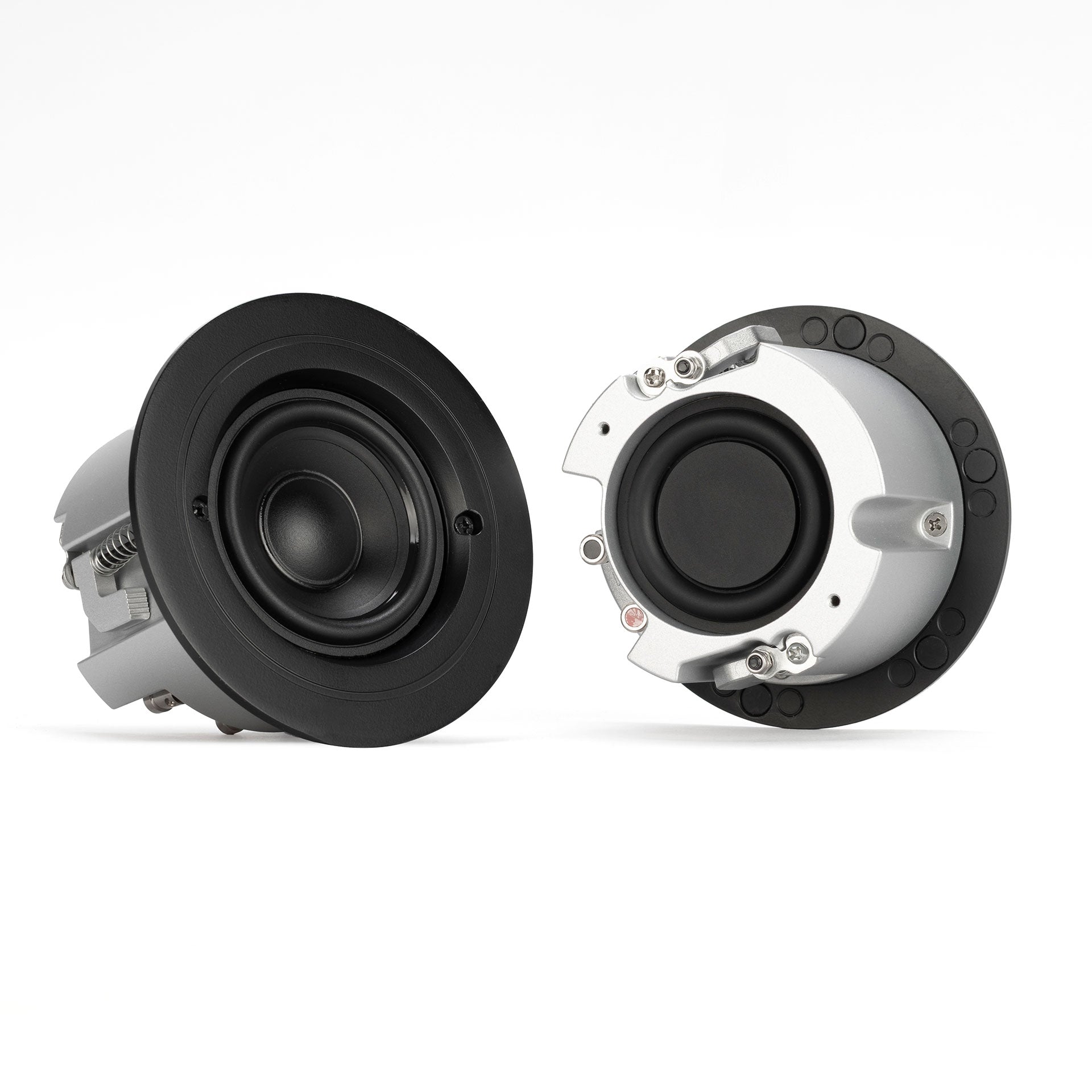

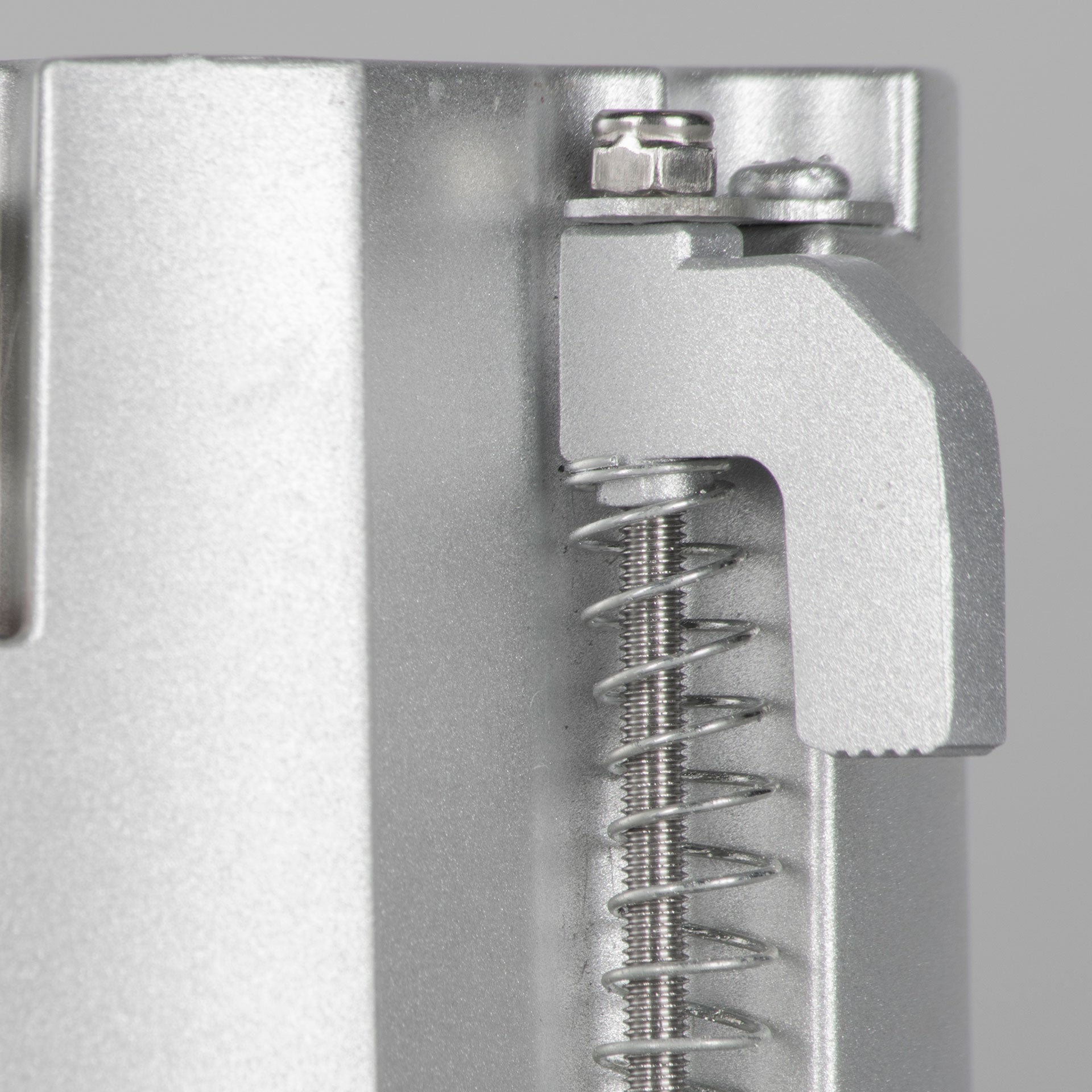

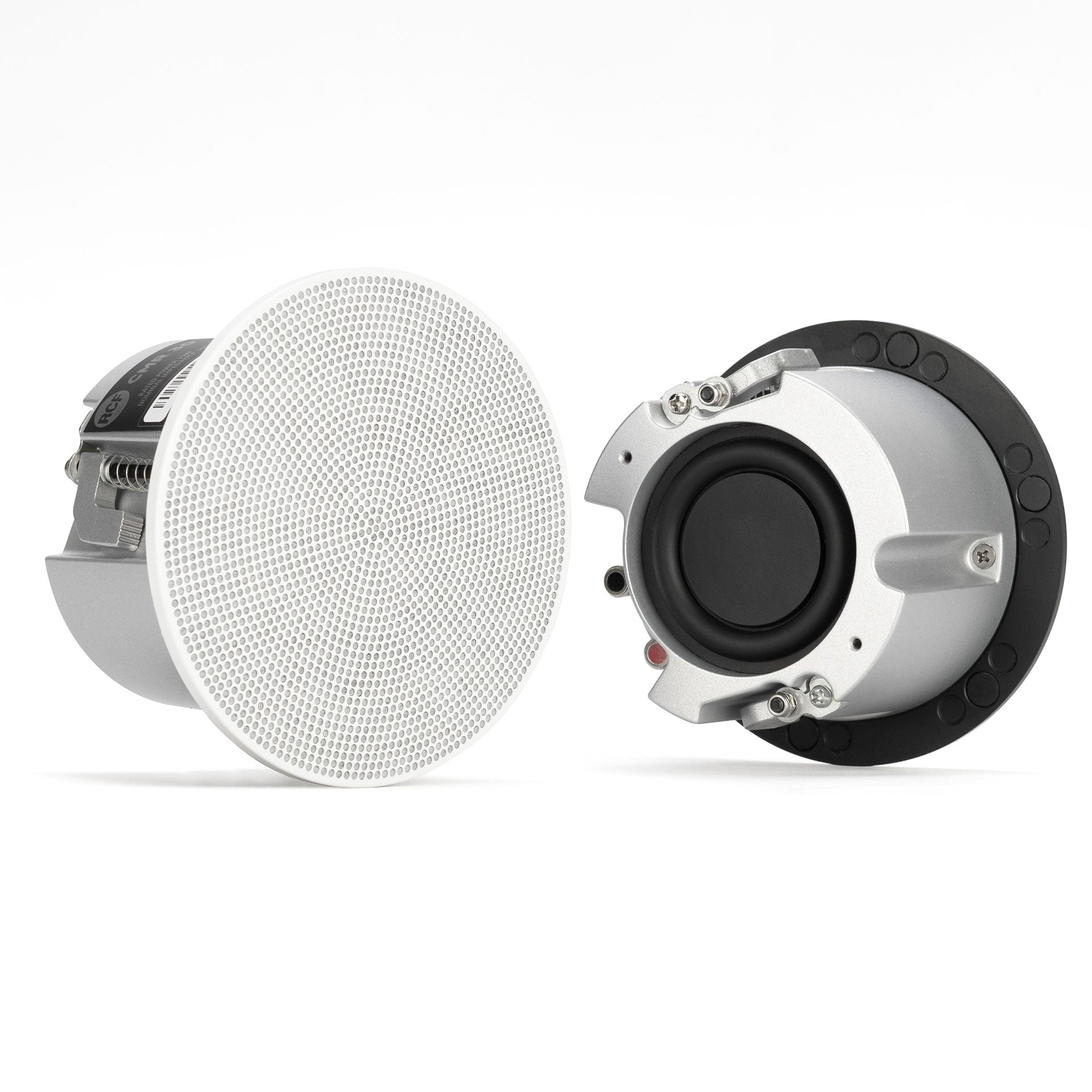

CMR 30 is a full-range, in-ceiling speaker designed to meet a wide variety of needs, from delivering clear background music in retail spaces to ensuring intelligible speech in meeting rooms. Thanks to its elegant, discreet design and accurate details, this multipurpose speaker effortlessly pairs with any building’s aesthetic. The high-quality transducer guarantees precise reproduction across the entire frequency band and provides impressive sound pressure levels for such a compact loudspeaker. Additionally, the bottom passive radiator enhances low frequencies, making it ideal for music playback. Installation is straightforward using two clamps, and the magnetic grille—supplied in both white and black— offers a seamless finish.
FEATURES
- 15W RMS power handling
- 104 dB max SPL
- 70 ÷ 20000 Hz frequency range
- Omnidirectional directivity

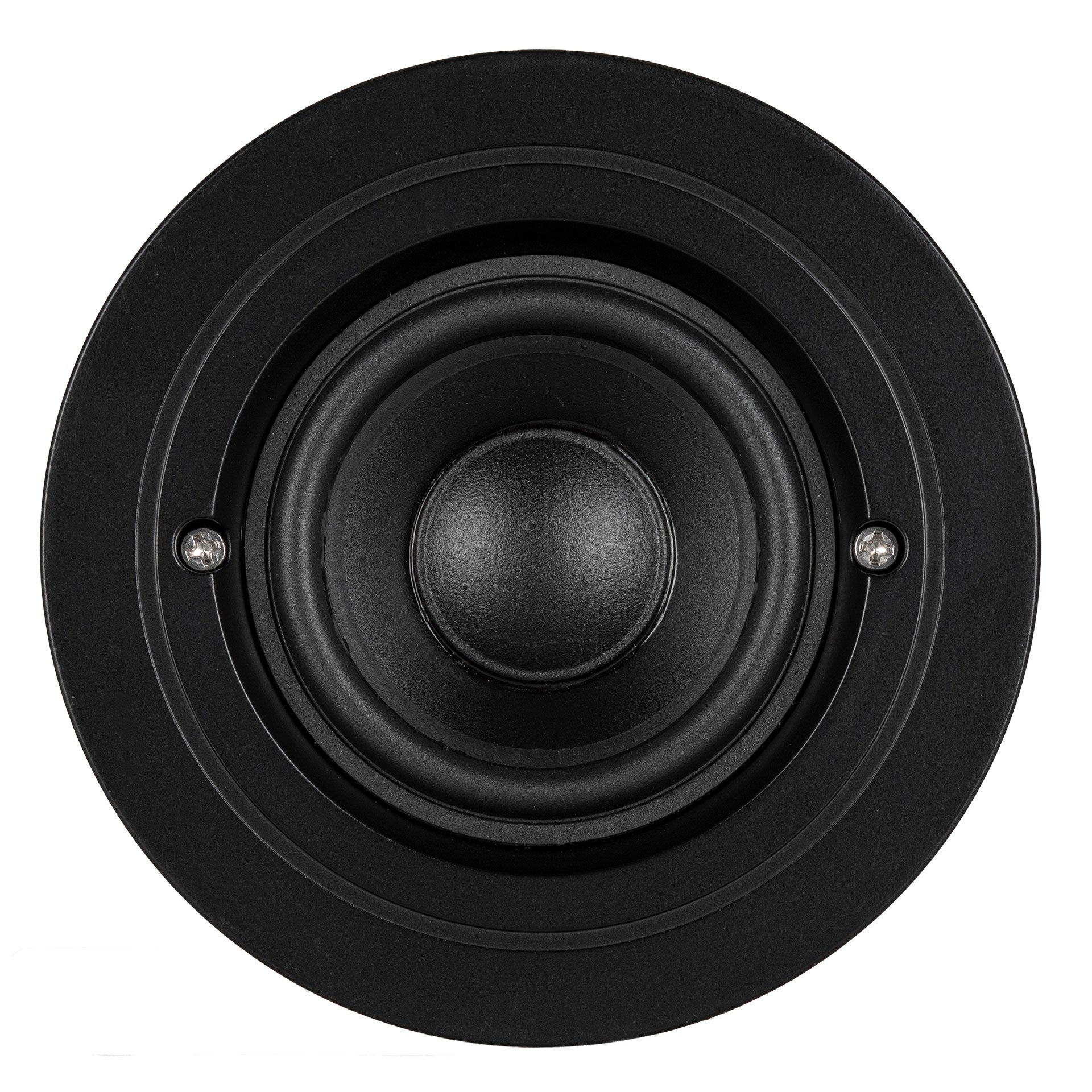

- 2.5" full range transducer

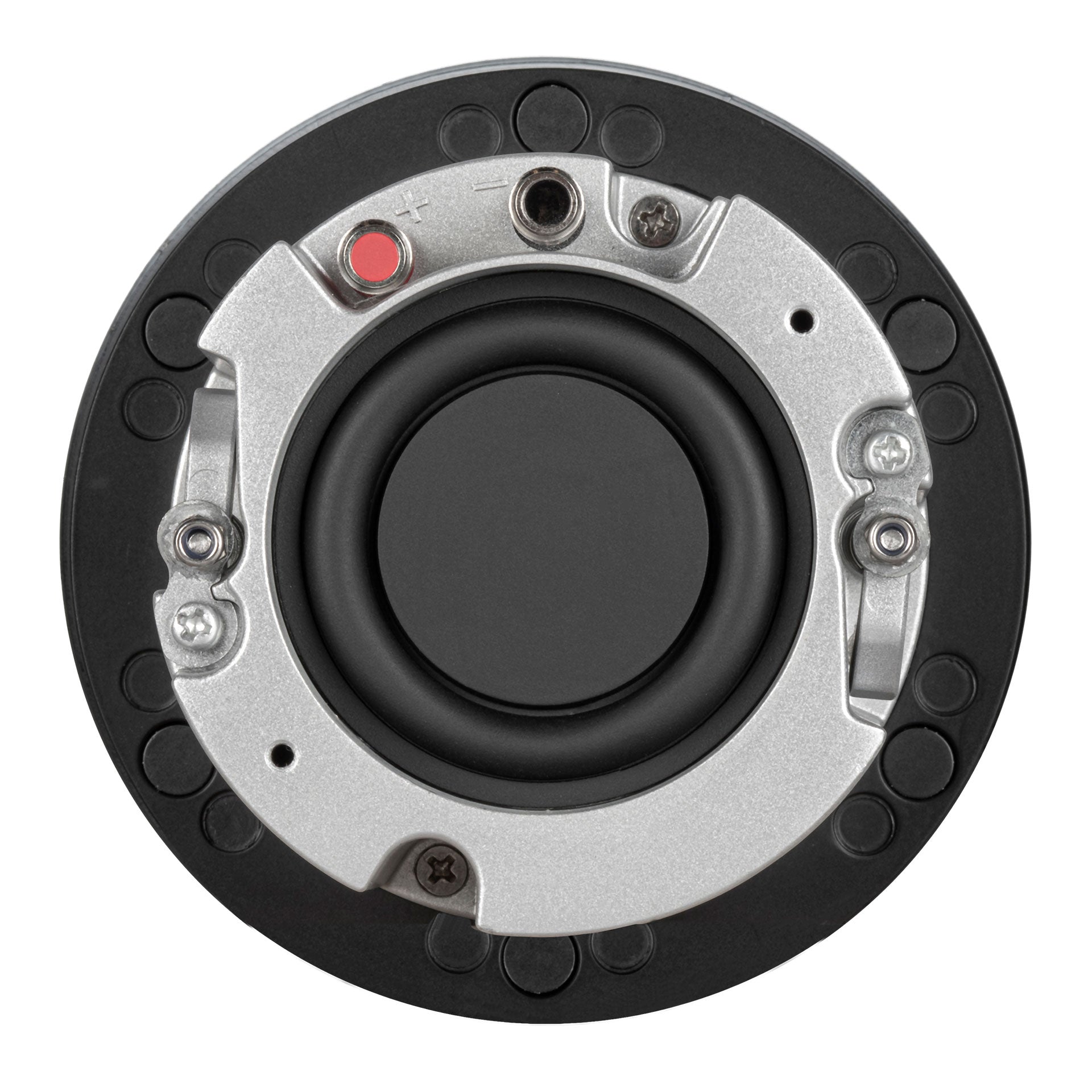

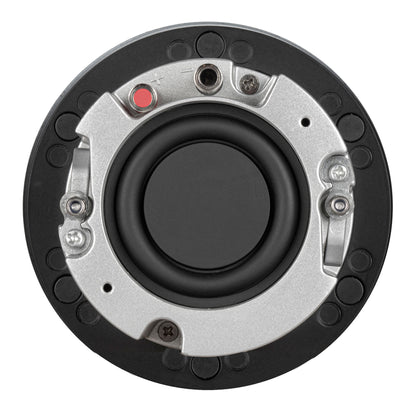

- Passive radiator for low frequencies emphasis
- Aluminum body

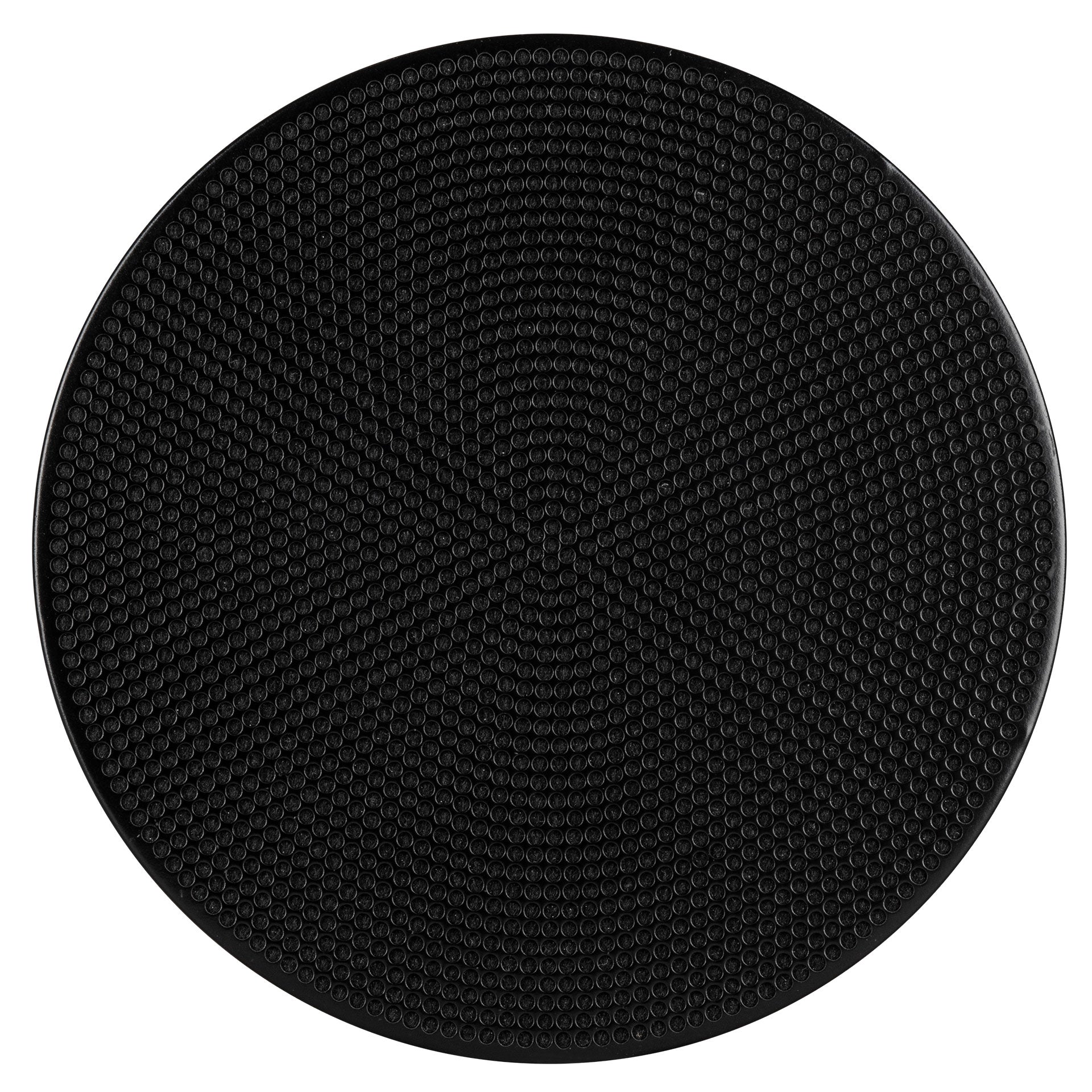

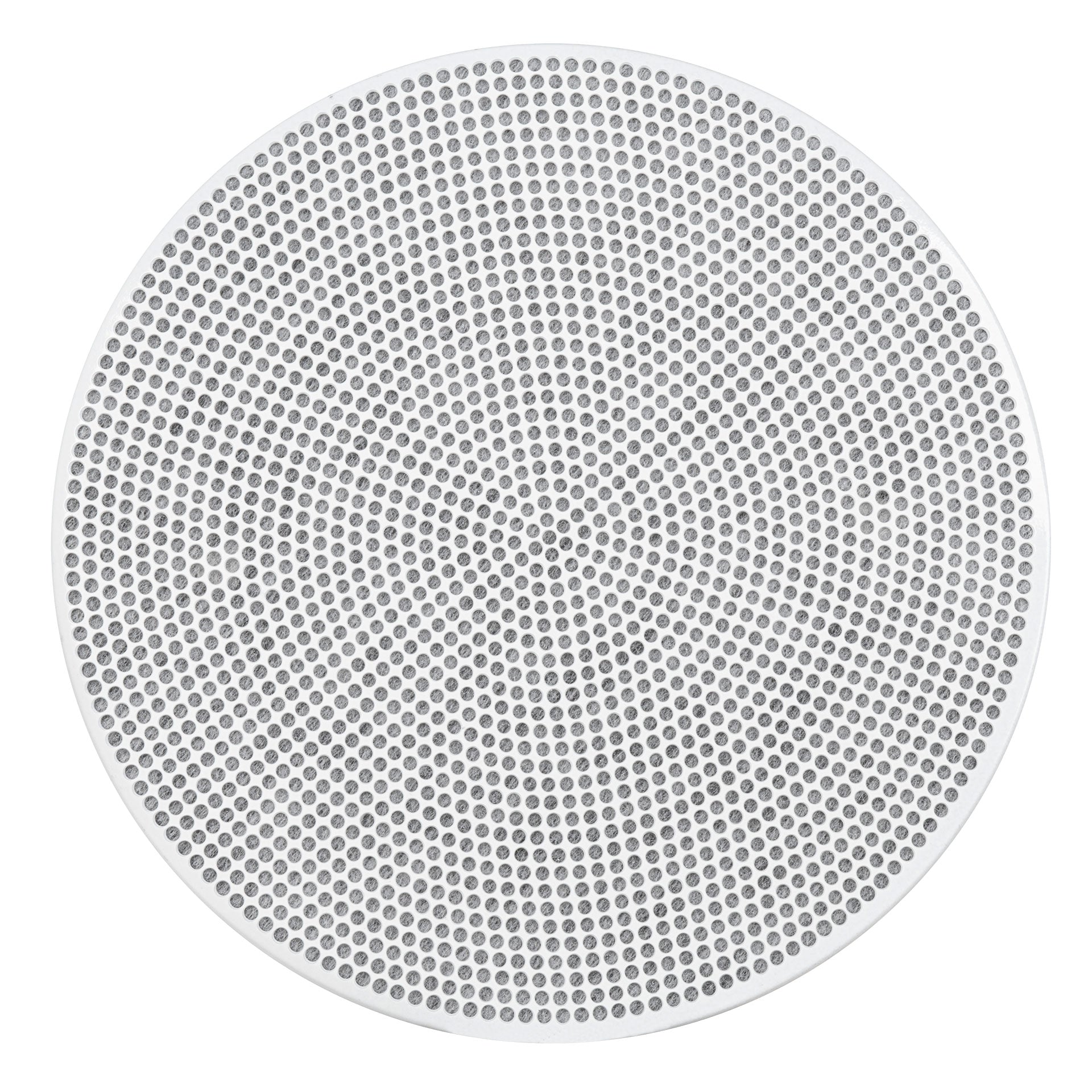

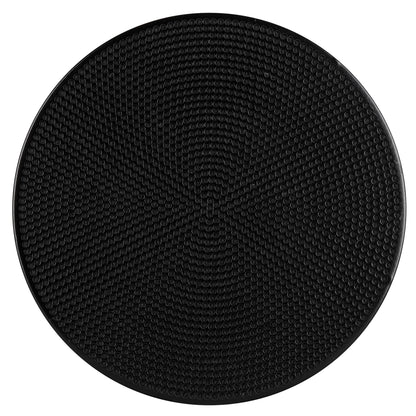

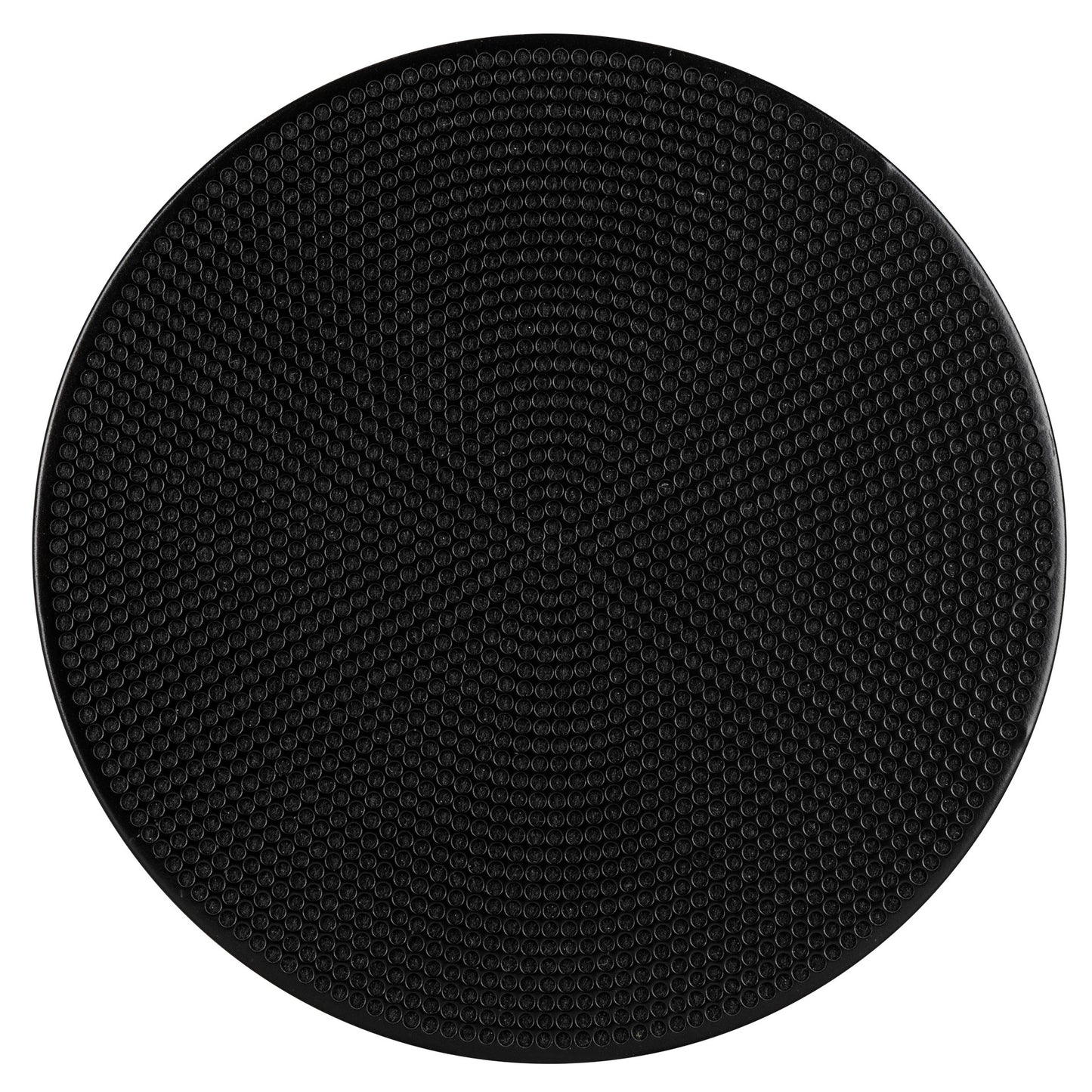

- 2 stainless steel magnetic grilles included
- White - RAL 9003 and Black - RAL 9005

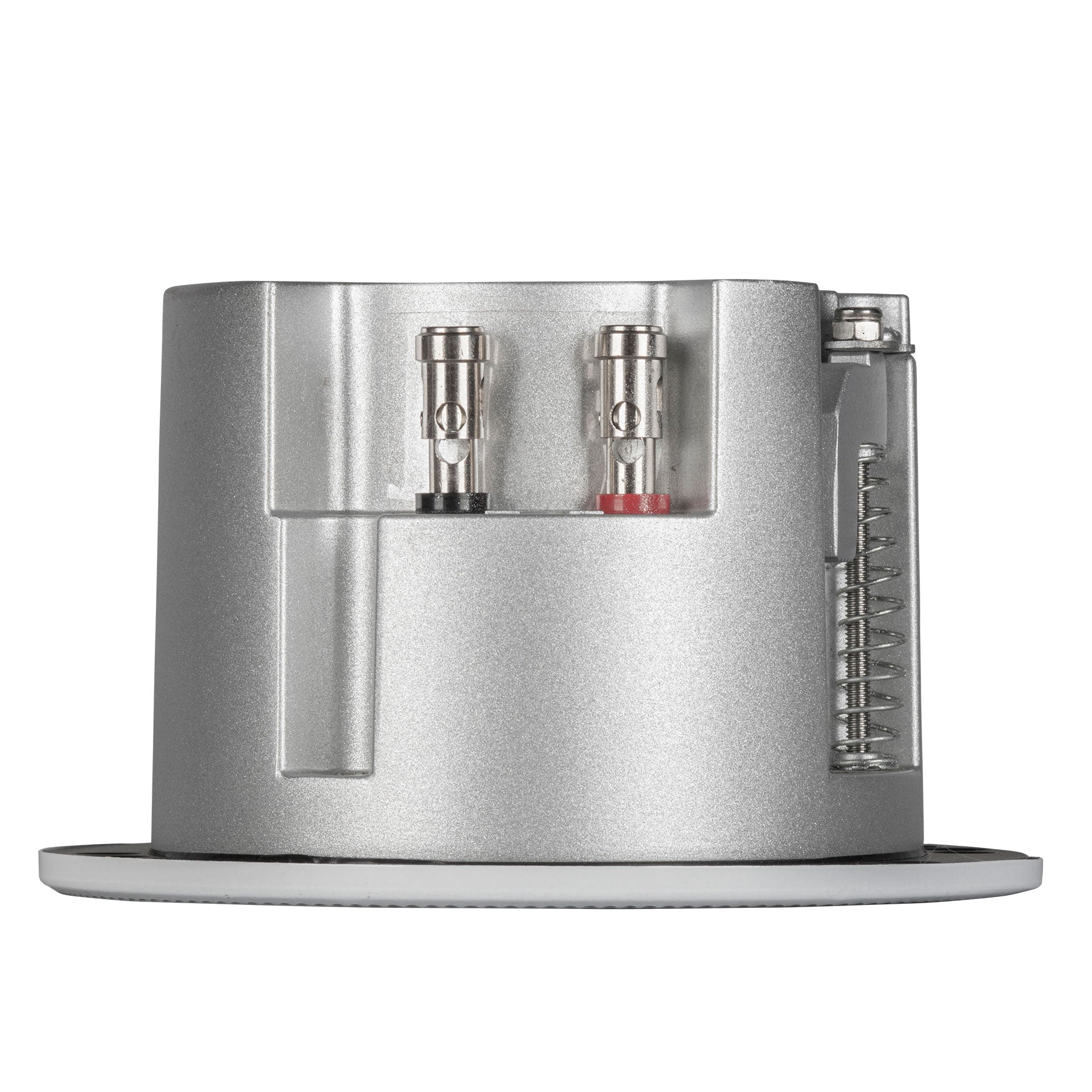

- Connection on push type terminals
Specifications
ACOUSTICAL SPECIFICATIONS
-
Frequency Response (-10dB): 70 Hz - 20000 Hz
-
Max SPL @ 1m: 104 dB
-
Coverage angle: 130°
-
System Sensitivity: 86 dB
POWER SECTION
-
Amplification: Full Range
-
Nominal Impedance: 16 ohm
-
Power Handling: 15 W RMS
-
Peak Power Handling: 60 W PEAK
-
Recommended Amplifiers: KPS SERIES, DMA SERIES
TRANSDUCERS
-
Woofer: 1 x 2.5'' neo, 1.0'' v.c
INPUT/OUTPUT SECTION
-
Input connectors: Push Type Terminals
-
Output connectors: Push Type Terminals
STANDARD COMPLIANCE
-
Safety agency: CE compliant
PHYSICAL SPECIFICATIONS
-
Cabinet/Case Material: Aluminum
-
Grille: Stainless Steel
SIZE / WEIGHT
-
Depth: 68 mm / 2.68 inches
-
Recessed Depth: 61 mm / 2.4 inches
-
Diameter: 109 mm / 4.29 inches
-
Cut out diameter: 86 mm / 3.39 inches
-
Weight: 0.37 kg / 0.82 lbs
SHIPPING INFORMATION
-
Package Height: 115 mm / 4.53 inches
-
Package Width: 292 mm / 11.5 inches
-
Package Depth: 150 mm / 5.91 inches
-
Package Weight: 1 kg / 2.2 lbs
