RCF BS 8 Passive Pendent Ball Speaker, 5/10/20W, 100V, 5M Suspension Cable (White)

Passive Pendent Ball Speaker, 5/10/20W, 100V, 5M Suspension Cable (White)

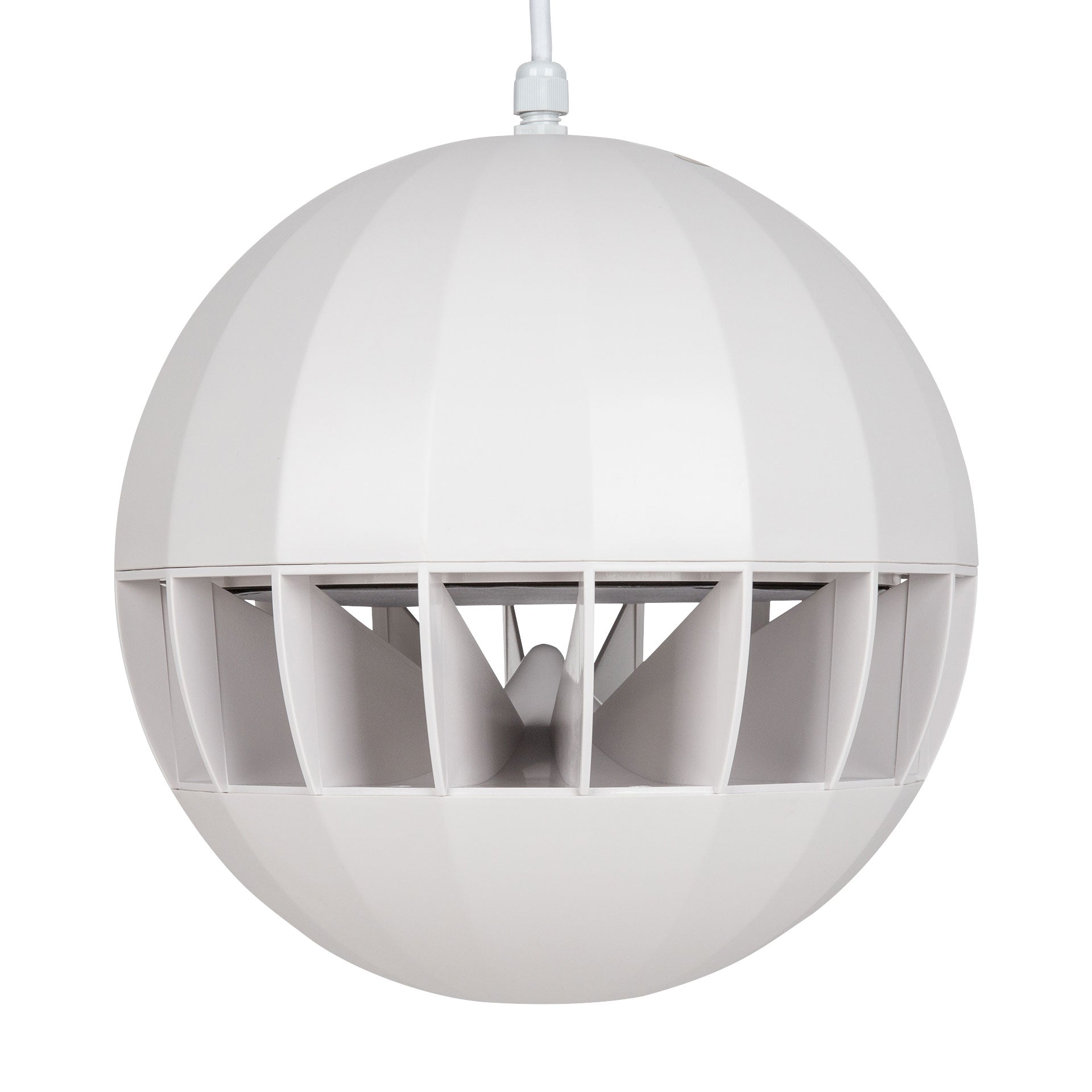

The BS 8 is a spherical speaker designed for suspended installation. Ideal for covering large areas, it incorporates a 200 mm (8”) loudspeaker which provides high quality sound reproduction with excellent voice intelligibility.

FEATURES

• 8" dual cone wide band woofer
• Power selectable (100 V): 20 W – 10 W – 5 W
• 93 dB sensitivity
• Colour white RAL 9010

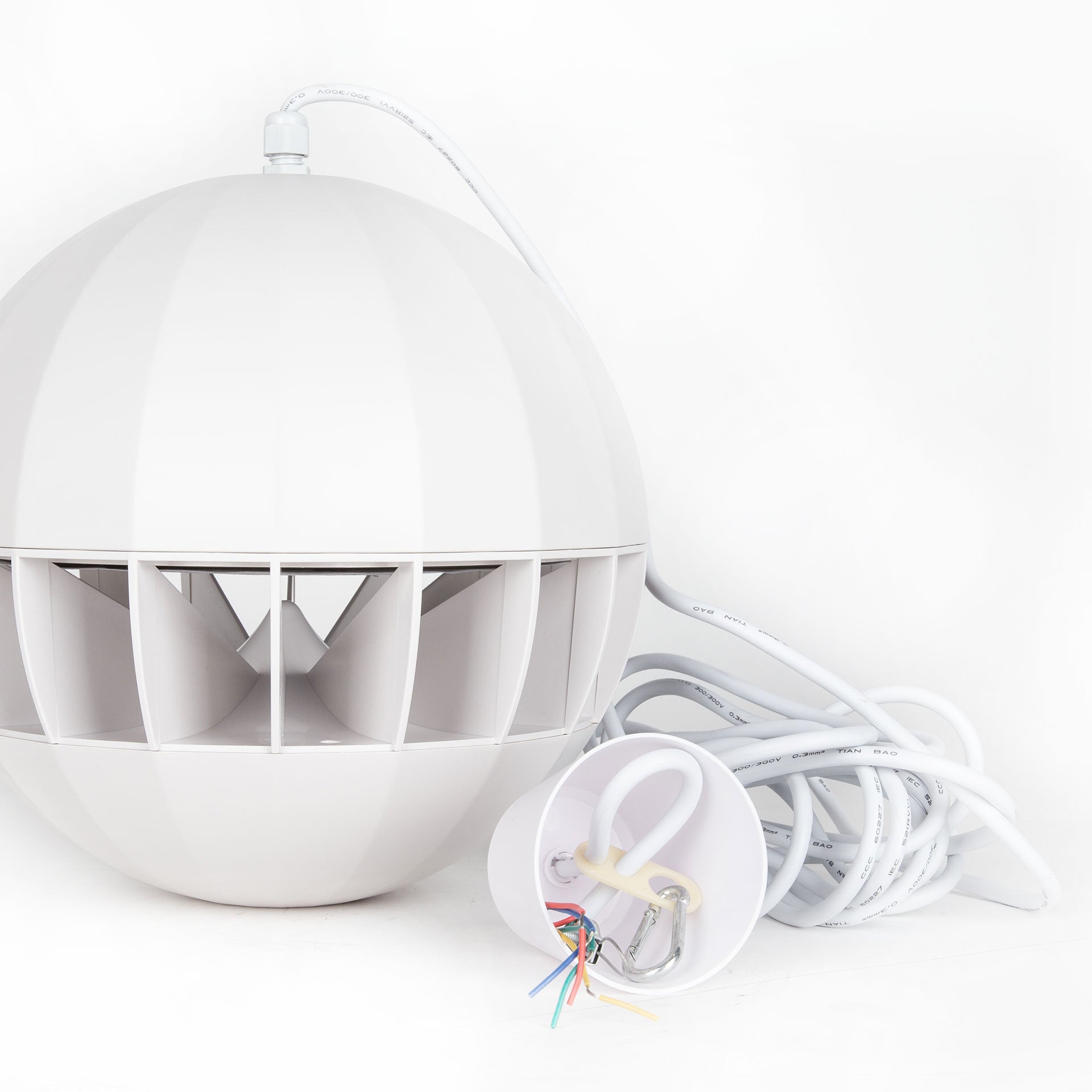

• 5 m suspension and connection cable included

Specifications

ACOUSTICAL SPECIFICATIONS

• Frequency Response (-10dB): 160 Hz - 12500 Hz
• Max SPL @ 1m: 106 dB
• Horizontal coverage angle: 360°
• System Sensitivity: 93 dB

POWER SECTION

• Power Handling: 20 W
• Peak Power Handling: 80 W PEAK

TRANSDUCERS

• Woofer: 1 x 8''

INPUT/OUTPUT SECTION

• Input connectors: Cable
• Output connectors: Cable
• Constant Voltage Transformer: 100 V
• Power selection 1: 20 W - 500 ohm
• Power selection 2: 10 W - 1000 ohm
• Power selection 3: 5 W - 2000 ohm

STANDARD COMPLIANCE

• Safety agency: CE compliant

PHYSICAL SPECIFICATIONS

• Cabinet/Case Material: Plastic
• Hardware: Carabiner and safety steel wire
• Grille: Plastic
• Color: White - RAL 9010

SIZE / WEIGHT

• Height: 240 mm / 9.45 inches
• Diameter: 250 mm / 9.84 inches
• Weight: 2.3 kg / 5.07 lbs

SHIPPING INFORMATION

• Package Height: 300 mm / 11.81 inches
• Package Width: 315 mm / 12.4 inches
• Package Depth: 315 mm / 12.4 inches
• Package Weight: 3.55 kg / 7.83 lbs
